key TOYOTA CAMRY 2007 XV40 / 8.G Navigation Manual

4
Inputting letters and
numbers/List screen
operation
When searching for an address or a name, or
entering a memo, letters and numbers can be
input via the touch screen.
INFORMATION
Keyboard layout can be changed. (See
page 83.)
To input letters
To display the alphabet keys, touch “AZ” or
“”.
Enter letters by touching the alphabet keys di-
rectly.
:Touching this button erases one let-
ter. By holding this button, letters
will continue to be erased.On certain letter entry screens, letters can be
entered in upper or lower case.
:To enter in lower case.
:To enter in upper case.

5
To input numbers and symbols
To display the number keys and symbol keys,
touch “09”.
Enter numbers and symbols by touching the
number keys and symbol keys directly.
:Touching this button erases
one letter. By holding this
button, letters will continue to
be erased.
:Touching this button displays
other symbols.
To display the list
To search for an address or a name, touch
“List”. Matching items from the database are
listed even if the entered address or name is
incomplete.If the number of matches is four or less, the list
is displayed without touching “List”.
INFORMATION
The number of matching items is shown
to the right side of the screen. If the
number of matching items is more than
9,999, the system displays “
∗∗∗∗” on
the screen.

20
1“Address”
A house number and the street address can
be input by using the input keys. 24. . . . . . .
2“POI Name”
Select one of the many POIs (Points of Inter-
est) that have already been stored in the sys-
tem’s database. 29. . . . . . . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 32. . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of the
last 100 previously set destinations and from
the previous starting point. 36. . . . . . . . . . . .
5“Memory”
The location can be selected from the regis-
tered “Memory points”. (To register memory
points, see “ — Registering memory points”
on page 71.) 36. . . . . . . . . . . . . . . . . . . . . . . .
6“Emergency”
One of the four categories of emergency ser-
vice points that are already stored in the sys-
tem’s database can be selected. 35. . . . . . .
Quick reference (“Destination” screen)

65
1“Distance”
The distance units “km” or “miles” can be
selected. 82. . . . . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. 82. . . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 83. . . . . . . . . . .
4“Time Zone”
The desired time zone can be selected.
84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch−
screen button and current street name on the
map screen can be set. 84. . . . . . . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the “Dis-
play POI Icons” top screen is possible.
85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display the
building shape on the map screen is possible.
86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

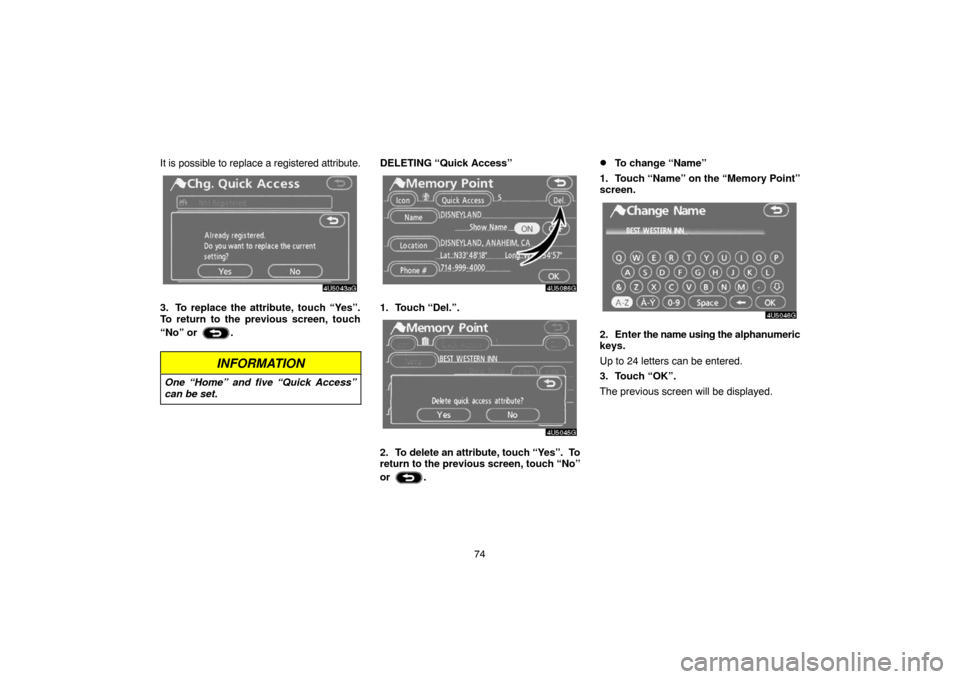

74 It is possible to replace a registered attribute.
3. To replace the attribute, touch “Yes”.
To return to the previous screen, touch
“No” or
.
INFORMATION
One “Home” and five “Quick Access”
can be set.
DELETING “Quick Access”
1. Touch “Del.”.
2. To delete an attribute, touch “Yes”. To
return to the previous screen, touch “No”
or
.
To change “Name”
1. Touch “Name” on the “Memory Point”
screen.
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

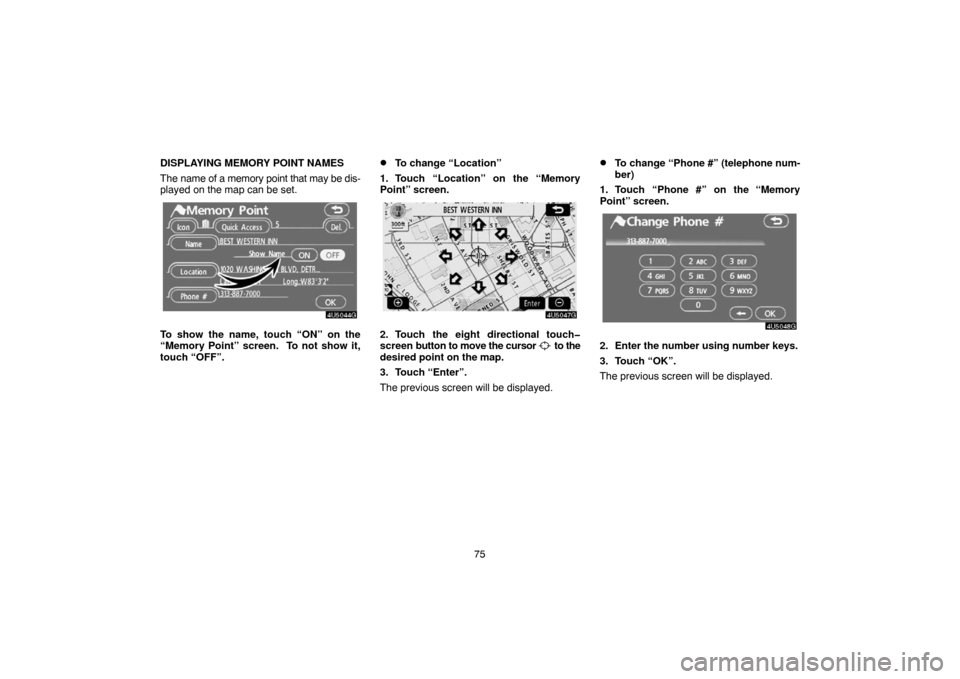

75 DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be dis-
played on the map can be set.
To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
To change “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Memory
Point” screen.
2. Enter the number using number keys.
3. Touch “OK”.
The previous screen will be displayed.

79

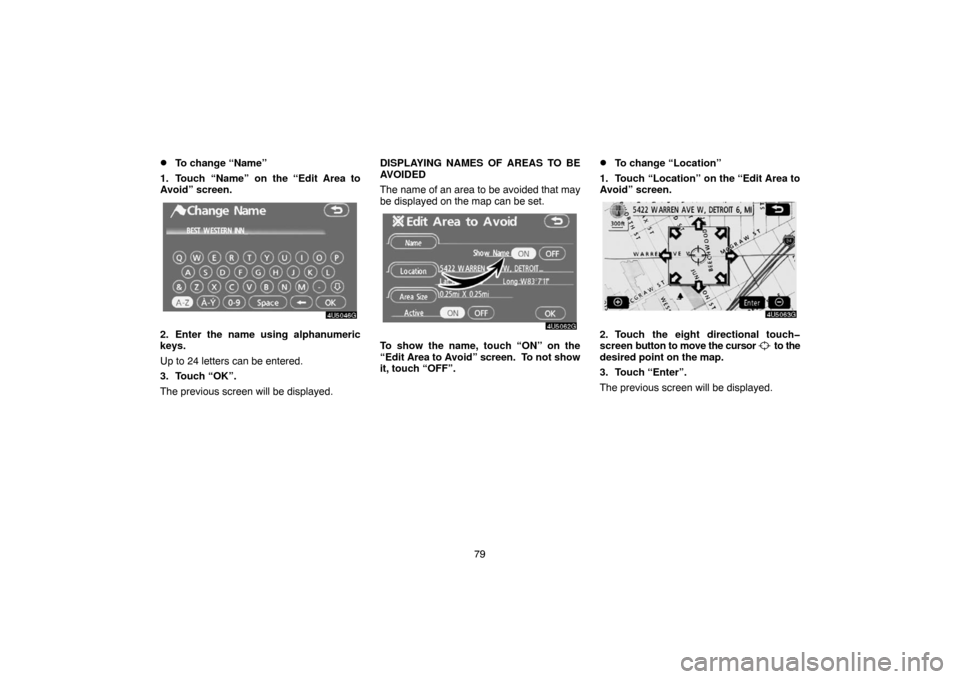

To change “Name”
1. Touch “Name” on the “Edit Area to
Avoid” screen.
2. Enter the name using alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING NAMES OF AREAS TO BE
AVOIDED
The name of an area to be avoided that may
be displayed on the map can be set.To show the name, touch “ON” on the
“Edit Area to Avoid” screen. To not show
it, touch “OFF”.
To change “Location”
1. Touch “Location” on the “Edit Area to
Avoid” screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

83
INFORMATION
The displayed time to the destination
is the approximate driving time that is
calculated based on the selected
speeds and the actual position along
the guidance route.
The time shown on the screen may
vary greatly depending on progress
along the route, which may be af-
fected by road conditions such as
traffic jams, and construction work.
It is possible to display up to 99 hours
59 minutes.
Input key layout
Key layout can be changed.
1. Touch “Setup” on the “Menu” screen.
2. Touch “ABC” or “QWE” of “Keyboard
Layout” to choose the input key layout.LAYOUT TYPE
“ABC” type
“QWE” type
The selected button is highlighted.
3. Touch “OK”.

94
3. Touch the button to be edited.
“Dealer”: To enter the name of a dealer. (See
page 94.)
“Contact”: To enter the name of a dealer
member. (See page 94.)
“Location”: To set a location. (See page
94.)
“Phone #”: To set a telephone number. (See
page 95.)
“Delete Dealer”: To delete the dealer infor-
mation displayed on the screen.
“Enter
”: To set the displayed dealer as a
destination. (See “Starting route guidance”
on page 40.)
To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Dealer”
screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

95
To edit “Phone #” (telephone number)
1. Touch “Phone #” on the “Edit Dealer”
screen.
2. Enter the number using number keys.
3. Touch “OK”.
The previous screen will be displayed.
Calendar with memo —
It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 3.)
Memos can also be used for route guidance
if the memo has been registered with location
information.
1. Push the “INFO” button.
2. Touch “Calendar”.
On this screen, the current date is highlighted
in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month calen-
dar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 98.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.
