TOYOTA CAMRY 2007 XV40 / 8.G Owners Manual

’07Camry_U (L/O 0608)
133
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 342 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer

’07Camry_U (L/O 0608)
134
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
This meter displays the odometer and
two trip meters when the ignition
switch is on.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.The displayed temperature ranges from
−40C (−40F) up to 50C (122F).
The ignition switch must be set at ON.
If an abnormality exists in the connection
of the outside air temperature sensor, “−−”
or “E” will appear on the display. If “−−”
or “E” appears on the display, contact
your Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition switch is
quickly set to ON. It is normal if it goes
out soon.
Odometer and two trip meters Outside temperature display

’07Camry_U (L/O 0608)
135
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The following information is displayed
on the multiinformation display when
the ignition switch is set at ON.
Cruise information and outside tem-
perature
Odometer and two trip meters
Warning messages
During ordinary driving, cruise information
is displayed. However, in case the vehicle
has a system malfunction or if there is
some information that the driver should be
informed of, a warning message appears
on the display. See “—Messages” on page
139 for details.
If the electrical power source has been
disconnected from the cruise information
display, the display will automatically be
set to the initial mode.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
At extremely low temperatures, the multi−
information display may respond slowly,
and the display changes may be delayed.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Multiinformation display—

’07Camry_U (L/O 0608)
136
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Each time you push the “DISP” button,
the display toggles through the follow-
ing information.
1. Outside temperature
2. Driving range
3. Average fuel consumption
4. Driving distance
5. Average vehicle speed
6. Cruise information off
7. Zoom display of odometer and trip me-
ter
The display will return to the outside tem-
perature display with pushing and holding
the “DISP” button for 1 second.
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
—Outside temperature and cruise information

’07Camry_U (L/O 0608)
137
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Outside temperature
(“OUTSIDE TEMP”)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
−40C (−40F) up to 50C (122F).
If an abnormality exists in the connection
of the outside air temperature sensor, “−−”
or “E” will appear on the display. If “−−”
or “E” appears on the display, contact
your Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition switch is
quickly set to ON. It is normal if it goes
out soon.
2. Driving range
(“CRUISING RANGE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every 1
second while driving.If the fuel gauge malfunctions, the mileage
figure will not appear.
When the vehicle is refueled, the driving
range is recalculated.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.
3. Average fuel consumption
(“TANK AVG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the dis-
played value is reset.4. Driving distance
(“SINCE START”)
The driving distance after the engine
starts is displayed.
Every time you start the engine, the driv-
ing distance display is reset.
5. Average vehicle speed
(“AVG SPEED”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
6. Cruise information off
The display indicates only odometer and
two trip meters.
7. Zoom display of odometer and trip
meter
The odometer and one of the trip meters
are displayed simultaneously. See
“—Odometer and two trip meters” de-
scribed below.

’07Camry_U (L/O 0608)
138
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

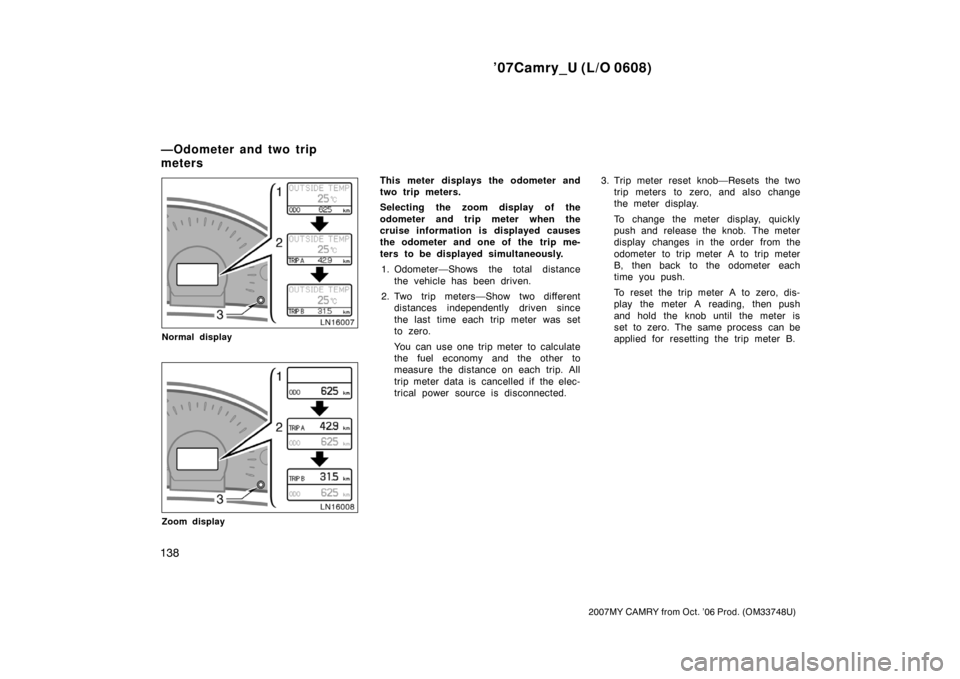

Normal display
Zoom display
This meter displays the odometer and
two trip meters.
Selecting the zoom display of the
odometer and trip meter when the
cruise information is displayed causes
the odometer and one of the trip me-
ters to be displayed simultaneously.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
—Odometer and two trip
meters

’07Camry_U (L/O 0608)
139
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MessageStatusAction
aParking brake is not released.Release parking brake.
bEngine oil pressure is low.Stop and check.
cEngine coolant temperature is high.Stop your vehicle and allow engine to cool.
dAny of doors are opened.Close doors completely.
eHood is opened.Close hood completely.
—Messages

’07Camry_U (L/O 0608)
140
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MessageStatusAction
fTrunk is opened.Close trunk completely.
gVehicle stability control system malfunction is
detected.Take vehicle to your Toyota dealer.
hTransmission selector lever is not set “P” position.Shift the transmission selector lever to “P” position.
iBrake pedal is not depressed when starting engine.Depress brake pedal firmly.
j
Ignition switch is not set to OFF when getting out
vehicle carrying the key.
Key is not detected in the vehicle when ignition
switch is set at ON.
Turn off engine.
Take care key.
kElectronic key battery is low.Replace key battery.
lSteering lock system malfunction is detected.Contact your Toyota dealer.

’07Camry_U (L/O 0608)
141
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MessageStatusAction
mSteering lock is stuck.Rotate steering wheel slightly.
nOil change is nearly due.Check engine oil.
oOil change is due.Replace engine oil.
pWasher fluid level is low.Add washer fluid.
qMoon roof is opened with ignition switch off.Close moon roof.

’07Camry_U (L/O 0608)
142
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(a)
This message is to warn the driver that
the parking brake is not completely re-
leased at the vehicle speed of 5 km/h
(3 mph) or more.
Stop the vehicle and release the park-
ing brake fully.
The message appears with the master
warning light and a warning tone sounds.
(b)
This message is to warn the driver that
the engine oil pressure is too low.
Turn the engine off as soon as possible
and contact your Toyota dealer.
The message appears with the master
warning light and a warning tone sounds.(c)
This message is to warn the driver that
the engine coolant temperature is too
high.
Stop the vehicle and allow the engine
to cool.
The message appears with the master
warning light and a warning tone sounds.
NOTICE
Do not continue driving with an over-
heated engine. See “If your vehicle
overheats” on page 342 in Section 4.
(d)
This message is to remind the driver
that any of the doors are opened.
Close the door securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).
(e)
This message is to remind the driver
that the hood is opened.
Close the hood securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).
