check engine TOYOTA CAMRY 2007 XV40 / 8.G User Guide

’07Camry_U (L/O 0608)
167
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
range:
range km/h (mph)
1 60 (37)
2 104 (65)
3 139 (86)
4 198 (123)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower range.
When the “S” mode indicator light does
not come on even with the selector lever
moved to the sequential position, there
may be a problem somewhere in the
system. Have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible. In this case, you can drive in
the same condition as in the “D” position.(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
When driving in the “D” position—
Shift the selector lever to the “S”
position.
When driving in the “6” range within
the “S” position—
Move the selector lever down to the
“–” side to select the “5” range.
The transmission will downshift to fifth
range and engine braking will be en-
abled.
Vehicles with cruise control—when the
cruise control is being used, even if
you downshift the transmission, engine
braking will not be enabled because
the cruise control is not cancelled.
For ways to decrease the vehicle
speed, see “Cruise control” on page
181 in this Section.
Move the selector lever down to the
“−” side to select the “4” range. The
transmission will downshift to fourth
range when the vehicle speed drops
down to or lower than 169 km/h (105
mph), and stronger engine braking will
be enabled.
Vehicles with cruise control—when the
cruise control is being used, even if
you downshift the transmission, engine
braking will not be enabled because
the cruise control is not cancelled.
Move the selector lever down to the
“−” side to select the “3” range. The
transmission will downshift to third
range when the vehicle speed drops
down to or lower than 121 km/h (75
mph), and more powerful engine brak-
ing than that of the “4” range position
will be enabled.
Move the selector lever down to the
“−” side to select the “2” range. The
transmission will downshift to second
range when the vehicle speed drops
down to or lower than 87 km/h (54
mph), and more powerful engine brak-
ing will be enabled.

’07Camry_U (L/O 0608)
170
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
NOTICE
Do not use any gears other than
first gear when starting off and
moving forward. Doing so may dam-
age the clutch.
Make sure the vehicle is completely
stopped before shifting into reverse.
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition switch is set at ON, the
system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self−check
mode, but does not indicate a malfunction.
Traction control system

’07Camry_U (L/O 0608)
172
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
With multi−information display—
The message and master warning light
come on after ignition switch is set at
ON.
The message and master warning light
come on while driving.The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system will activate when your ve-
hicle speed reaches or exceeds 15 km/h
(9 mph), and will deactivate when the ve-
hicle speed reduces to below 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode, but does
not indicate a malfunction.
CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, and spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 388 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
Vehicle stability control
system

’07Camry_U (L/O 0608)
183
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Depressing the clutch pedal (manual
transmission)
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.
The cruise control indicator light remains
on to indicate that the system is still in
operation.To turn the cruise control off, press the
“ON−OFF” button. Make sure the cruise
control indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.RESETTING TO A SLOWER SPEED
Push the lever down in the “− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Automatic transmission models—Even if
you downshift from the “D” to “4” or “D”
to “S” with the cruise control on, engine
braking will not be applied because the
cruise control is not cancelled. To de-
crease the vehicle speed, reset to a slow-
er speed with the cruise control lever or
depress the brake pedal. If you use the
brake pedal, cruise control is cancelled.

’07Camry_U (L/O 0608)
290
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high threeway catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a checkup as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
threeway catalytic converter sys-
tem best.
To ensure that the threeway cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-

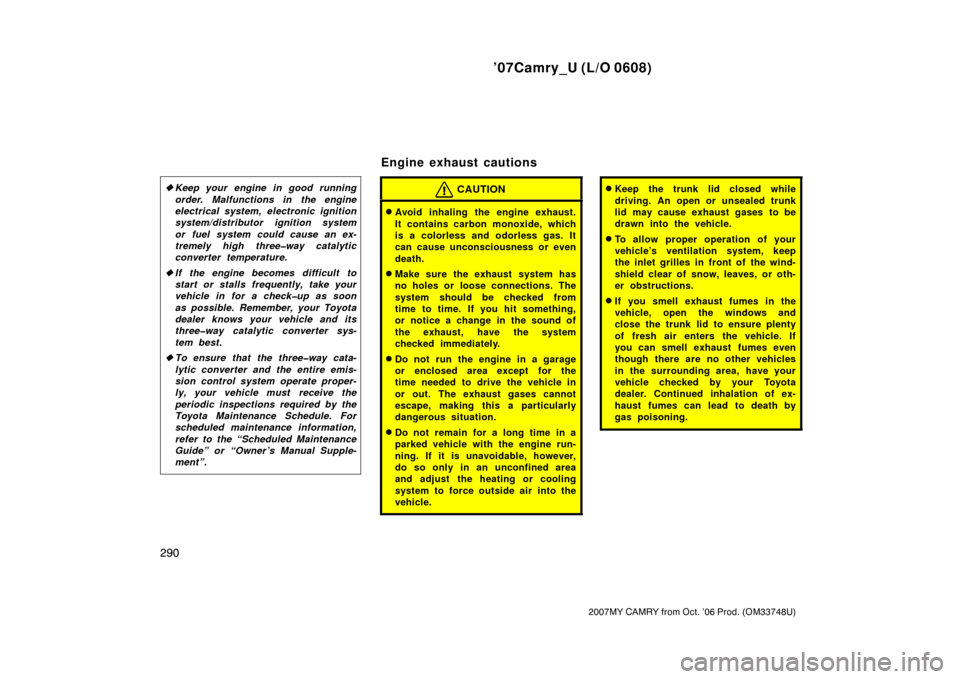

ment”.CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Keep the trunk lid closed while
driving. An open or unsealed trunk
lid may cause exhaust gases to be
drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, open the windows and
close the trunk lid to ensure plenty
of fresh air enters the vehicle. If
you can smell exhaust fumes even
though there are no other vehicles
in the surrounding area, have your
vehicle checked by your Toyota
dealer. Continued inhalation of ex-
haust fumes can lead to death by
gas poisoning.
Engine exhaust cautions

’07Camry_U (L/O 0608)
292
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-
gine oil at the optimum level so that oil
function will not be impaired. Therefore, it
is essential that the oil level be checked
regularly. Toyota recommends that the oil
level be checked every time you refuel
the vehicle.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
For detailed information on oil level check,
see “Checking the engine oil level” on
page 380 in Section 7−2.
Your engine is fitted with iridiumtipped
spark plugs.
NOTICE
Use only iridiumtipped spark plugs.
Do not adjust gaps for engine perfor-
mance or smooth driveability.
Long reach
type
Your engine is fitted with long reach
iridiumtipped spark plugs.
NOTICE
Use only Toyota genuine long reach
iridiumtipped spark plugs and do not
adjust gaps for your engine perfor-
mance and smooth driveability.
For details about the spark plug type, see
“Service specifications” on page 407 in
Section 8.
Iridiumtipped spark plugs
(2.4 L 4cylinder [2AZFE]
engine)Long reach iridiumtipped
spark plugs
(3.5 L V6 [2GRFE] engine)

’07Camry_U (L/O 0608)
294
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Depressing the brake pedal on slippery
road surfaces such as on a manhole cov-
er, a steel plate at a construction site,
joints in a bridge, etc. on a rainy day
tends to activate the anti−lock brake sys-
tem.
You may hear a click or motor sound in
the engine compartment for a few seconds
when the engine is started or just after
the vehicle begins to move. This means
that the anti−lock brake system is in the
self−check mode, and does not indicate a
malfunction.
When the antilock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti−lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti−lock brake sys-
tem activation, the brake pedal may
move a little forward.

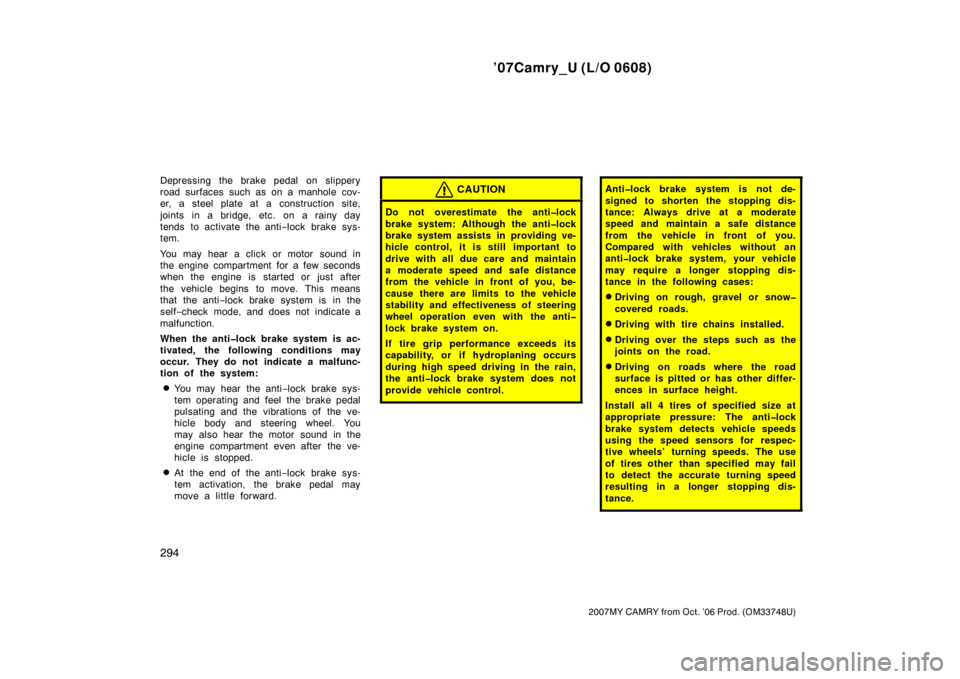

CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.

’07Camry_U (L/O 0608)
316
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Check the area around the vehicle be-
fore entering it.
2. Adjust seat position, seatback angle,
seat cushion height, head restraint
height, steering wheel angle and length.
3. Adjust the inside and outside rear view
mirrors.
4. Lock all doors.
5. Fasten seat belts.Once you press “ENGINE START STOP”
switch (engine switch) and release it, the
cranking hold function continues to crank
the engine until it starts.
The function stops cranking the engine
after about 25 seconds maximum if the
engine has not started yet. When you
crank the engine again, wait a few sec-
onds and restart it.
If you press and hold the “ENGINE
START STOP” switch, the function will
keep cranking for about 30 seconds maxi-
mum.1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3.Manual transmission: Press the clutch
pedal to the floor and shift the trans-
mission into neutral. Hold the clutch
pedal to the floor until the engine is
started. A starter safety device will pre-
vent the starter from operating if the
clutch pedal is not fully depressed.
Automatic transmission: Put the se-
lector lever in “P”. If you need to re-
start the engine while the vehicle is
moving, put the selector lever in “N”.
A starter safety device will prevent the
starter from operating if the selector
lever is in any drive position.
4.Automatic transmission only: De-
press the brake pedal and hold it to
the floor until driving off.
Before starting the engineHow to start the engine—
—Cranking hold function(vehicle with smart key system)(a) Before cranking

’07Camry_U (L/O 0608)
317
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air−fuel mixture for starting. You can start
a cold or hot engine as follows:
With your foot off the accelerator pedal,
crank the engine by turning the key to
“START”. Release it when the engine
starts.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See “If your vehicle will not start” on page
336 in Section 4.NOTICE
Do not crank for more than 30 se-
conds at a time. This may overheat
the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to
start or stalls frequently, have the
engine checked immediately.
PUSH BUTTON START FUNCTION
The engine can be started by pressing the
“ENGINE START STOP” switch.
Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air−fuel mixture for starting.
You can start a cold or hot engine as
follows:
When the key is in the vehicle (on your
person), it is possible to start the engine.
(b) Starting the engine
(with key cylindertype
ignition switch)(b) Starting the engine
(with smart key system)

’07Camry_U (L/O 0608)
318
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
With the brake pedal firmly depressed, the
indicator light on the “ENGINE START
STOP” switch will turn green. Check that
the automatic transmission selector lever
is in the “P” position. Pressing the
“ENGINE START STOP” switch once
starts the engine.
Press the “ENGINE START STOP” switch
slowly and firmly.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
In the following cases, the engine will not
start.
If a buzzer sounds from the vehicle,
and the “KEY IS NOT DETECTED”
message appears on the multi−informa-
tion display and the master warning
light comes on when pressing the
“ENGINE START STOP” switch, this
indicates that the key is not in the
vehicle.
If the key is placed in the trunk, the
engine cannot be started.
There are instances in which the en-
gine will not start, even if the key is
in the vehicle (e.g. on the floor, in the
cup holder or glove box).
When the push button start function
does not operate properly, the following
may be causes:
The key battery may be discharged if
the electronic key does not work.
You can start the engine by touching
the Toyota logo side of the electronic
key to the “ENGINE START STOP”
switch. For details, see “Smart key
system” on page 30 in Section 1−2.
Replace the key battery as soon as
possible. (See “—Replacing battery” on
page 28 in Section 1−2.)
The engine was repeatedly turned on
and off over a short period.
Wait 10 seconds and then start the
engine.
