OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering switches and overhead console overview6 . . . . . . . . . . . . . . .
Instrument cluster overview8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel10 . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’07Camry_U (L/O 0608)
4
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Theft deterrent system/engine
immobilizer system indicator light
4. Clock
5. “AIRBAG ON” and “AIRBAG OFF”
indicator lights and front passenger ’s
seat belt reminder light
6. Emergency flasher switch
7. Audio system or navigation system
including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
8. Rear window and outside rear view
mirror defogger switch
9. Air conditioning controls
10. Tire pressure warning system reset
switch
11. AUX adapter
12. Power outlet
13. Auxiliary boxes
14. Ignition switch
15. Power rear view mirror control switches With manual air conditioning controls

’07Camry_U (L/O 0608)
5
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Theft deterrent system/engine
immobilizer system indicator light
4. Clock
5. “AIRBAG ON” and “AIRBAG OFF”
indicator lights and front passenger ’s
seat belt reminder light
6. Emergency flasher switch
7. Audio system or navigation system
including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
8. Air conditioning controls
9. Tire pressure warning system reset
switch
10. Rear window and outside rear view
mirror defogger switch
11. AUX adapter
12. Power outlet
13. Auxiliary boxes
14. Ignition switch (with smart key system)
15. Ignition switch
(with key cylinder type ignition switch)
16. Power rear view mirror control switches With automatic air conditioning controls

’07Camry_U (L/O 0608)
8
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
LN11061

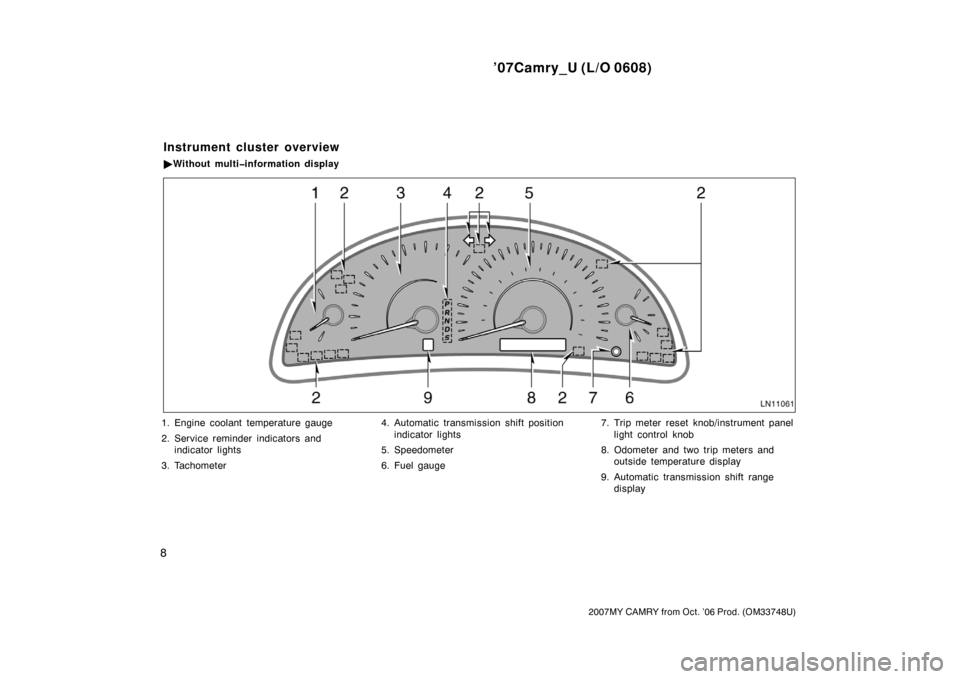

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Tachometer4. Automatic transmission shift position
indicator lights
5. Speedometer
6. Fuel gauge7. Trip meter reset knob/instrument panel
light control knob
8. Odometer and two trip meters and
outside temperature display
9. Automatic transmission shift range
display
Instrument cluster overview
Without multiinformation display

’07Camry_U (L/O 0608)
9
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
LN11062

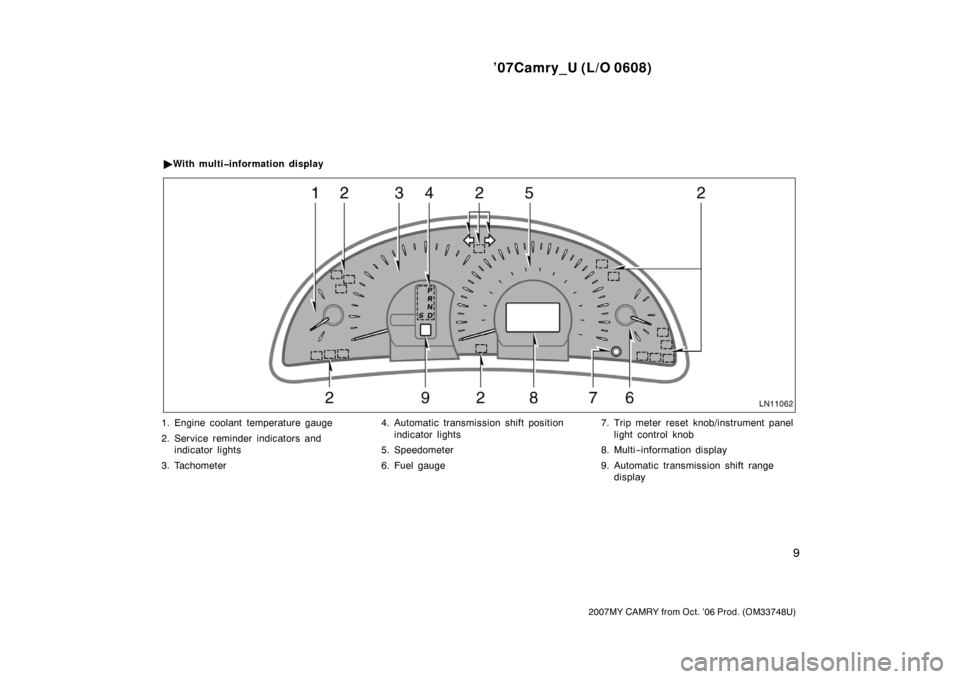

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Tachometer4. Automatic transmission shift position
indicator lights
5. Speedometer
6. Fuel gauge7. Trip meter reset knob/instrument panel
light control knob
8. Multi−information display
9. Automatic transmission shift range
display With multiinformation display

’07Camry_U (L/O 0608)
10
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Brake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Charging system warning light∗
1
Malfunction indicator lamp∗
1
Low engine oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning
light∗
1
or
Front passenger ’s seat belt reminder light∗
1
Vehicle stability control system and traction
control system warning light∗
1
or
Low tire pressure warning light∗
1
or
Low fuel level warning light∗
1
Indicator symbols on the instrument panel

’07Camry_U (L/O 0608)
11
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Headlight high beam indicator light
Turn signal indicator lights
Front fog light indicator light
Headlight indicator light
Tail light indicator light
Slip indicator light
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 146 in Section 1−6.
∗
2: If this light flashes, see “Cruise control” on page 181 in Sec-
tion 1−7.
Cruise control indicator light∗
2
Engine oil replacement reminder light∗
1
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light
Master warning light∗
1

’07Camry_U (L/O 0608)
19
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The engine immobilizer system is automat-
ically set when:
Vehicles with key cylinder−type ignition
switch—The key is removed from the igni-
tion switch.
Vehicles with smart key system—The igni-
tion switch is turned off.
The indicator light will start flashing to
show that the system is set.If any of the following indicator conditions
occur, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 49 in this Section.)
The indicator light does not start flash-
ing under the following situations.
Vehicles with key cylinder−type ignition
switch—When the key is removed from
the ignition switch.
Vehicles with smart key system—When
the ignition switch is turned off.
The indicator light flashes inconsistent-
ly.
The engine immobilizer system is automat-
ically canceled when:
Vehicles with key cylinder−type ignition
switch—
You insert the key to the ignition switch.
Vehicles with smart key system—
You enter the vehicle carrying a key with
smart key system and press the “ENGINE
START STOP” switch (engine switch).
Even if the key battery is discharged, the
engine can be started. See “Smart key
system” on page 30 in this Section.When the system is canceled, the indica-
tor light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key (vehicles with key cylin-
der−type ignition switch) or electronic key
(vehicles with smart key system). Howev-
er, there is a limit to the number of addi-
tional keys your Toyota dealer can make
for you.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.

’07Camry_U (L/O 0608)
21
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Indicator light
2. Lock switch
3. Alarm switch
4. Unlock switch
5. Trunk opener switchThe wireless remote control function is
designed to lock or unlock all the
doors, open the trunk lid, or activate
the alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
When the switch is operated, the indicator
light flashes once. If not, the battery may
be discharged. Replace the battery at the
earliest opportunity.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage the key.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys (for vehicles with key cylinder−
type ignition switch) or 5 wireless remote
control transmitters (for vehicles with
smart key system) for the same vehicle.
Contact your Toyota dealer for detailed
information.If the wireless remote control transmitter
does not actuate the doors, or does not
operate from a normal distance, or if the
indicator on the transmitter is dimmed or
does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on pages 26 or 28 in this Sec-
tion.
If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (See “If you lose
your keys” on page 356 in Section 4.)
It is possible to disable the wireless re-
mote control system. For details, contact
your Toyota dealer.

’07Camry_U (L/O 0608)
25
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

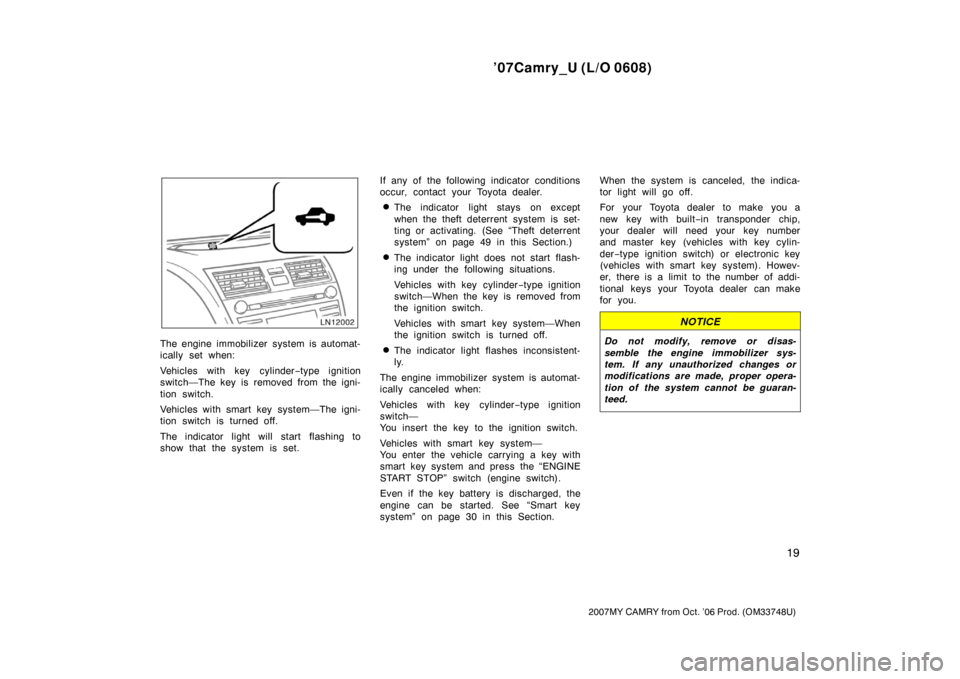

To open the trunk lid, push and hold
the trunk opener switch of the transmit-
ter for 1 second. A long beep will
sound.
If the key is in the ignition (vehicles with
key cylinder−type ignition switch) or the
ignition switch is set at ACC or ON (ve-
hicles with smart key system), the trunk
lid cannot be opened by the trunk opener
switch.
Opening of the trunk lid with the wireless
remote control can be changed as follows.
Contact your Toyota dealer for details.
Trunk lid opens by pushing the trunk
opener switch twice in succession.
Trunk lid opens by pushing the trunk
opener switch once regardless of how
long the switch is being pressed.
Opening of the trunk lid is disabled
using the wireless remote control trans-
mitter.
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system

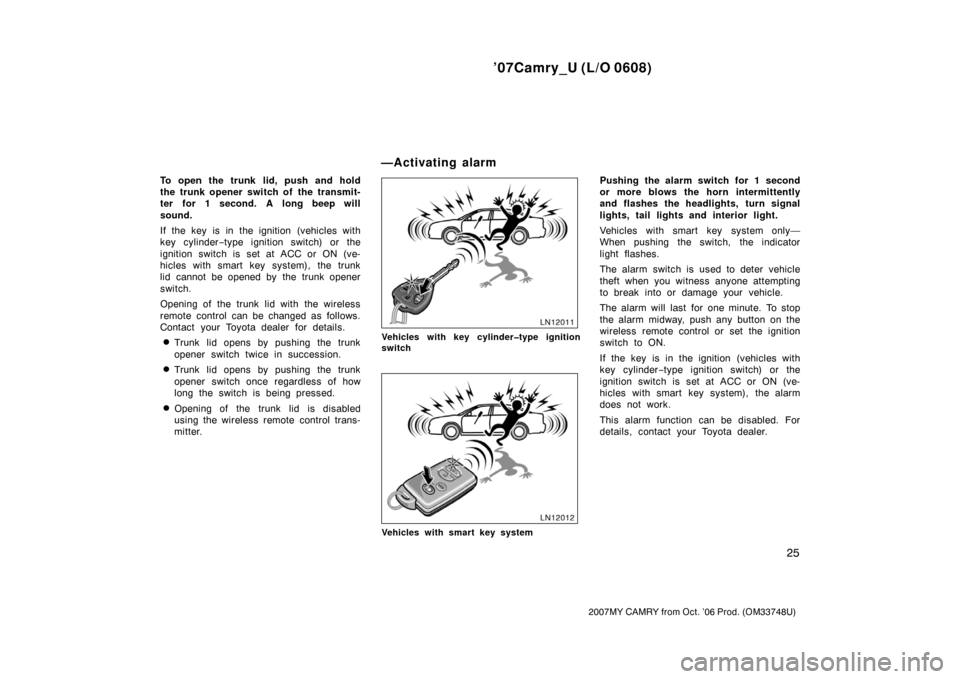

Pushing the alarm switch for 1 second
or more blows the horn intermittently
and flashes the headlights, turn signal
lights, tail lights and interior light.
Vehicles with smart key system only—
When pushing the switch, the indicator
light flashes.
The alarm switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
the alarm midway, push any button on the
wireless remote control or set the ignition
switch to ON.
If the key is in the ignition (vehicles with
key cylinder−type ignition switch) or the
ignition switch is set at ACC or ON (ve-
hicles with smart key system), the alarm
does not work.
This alarm function can be disabled. For
details, contact your Toyota dealer.
—Activating alarm
