TOYOTA CAMRY 2008 XV40 / 8.G Navigation Manual

OTHER FUNCTIONS
131
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and op-
erated with at least 20 cm and more be-
tween the radiator and person’s body
(excluding extremities: hands, wrists,
feet and legs).
Colocation: This transmitter must
not be co−located or operated in con-
junction with any other antenna or
transmitter.To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
1. Push the “INFO” button.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push
of the steering
wheel to display this screen when the ve-
hicle is stopped.
— Enter a Bluetooth phone

OTHER FUNCTIONS
132
3. Touch “Settings” to display “Set-
tings” screen.
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
5. Touch “Register” to connect your
cellular phone to the system.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
6. When this screen is displayed, input
the Passkey displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case
of using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.

OTHER FUNCTIONS
133

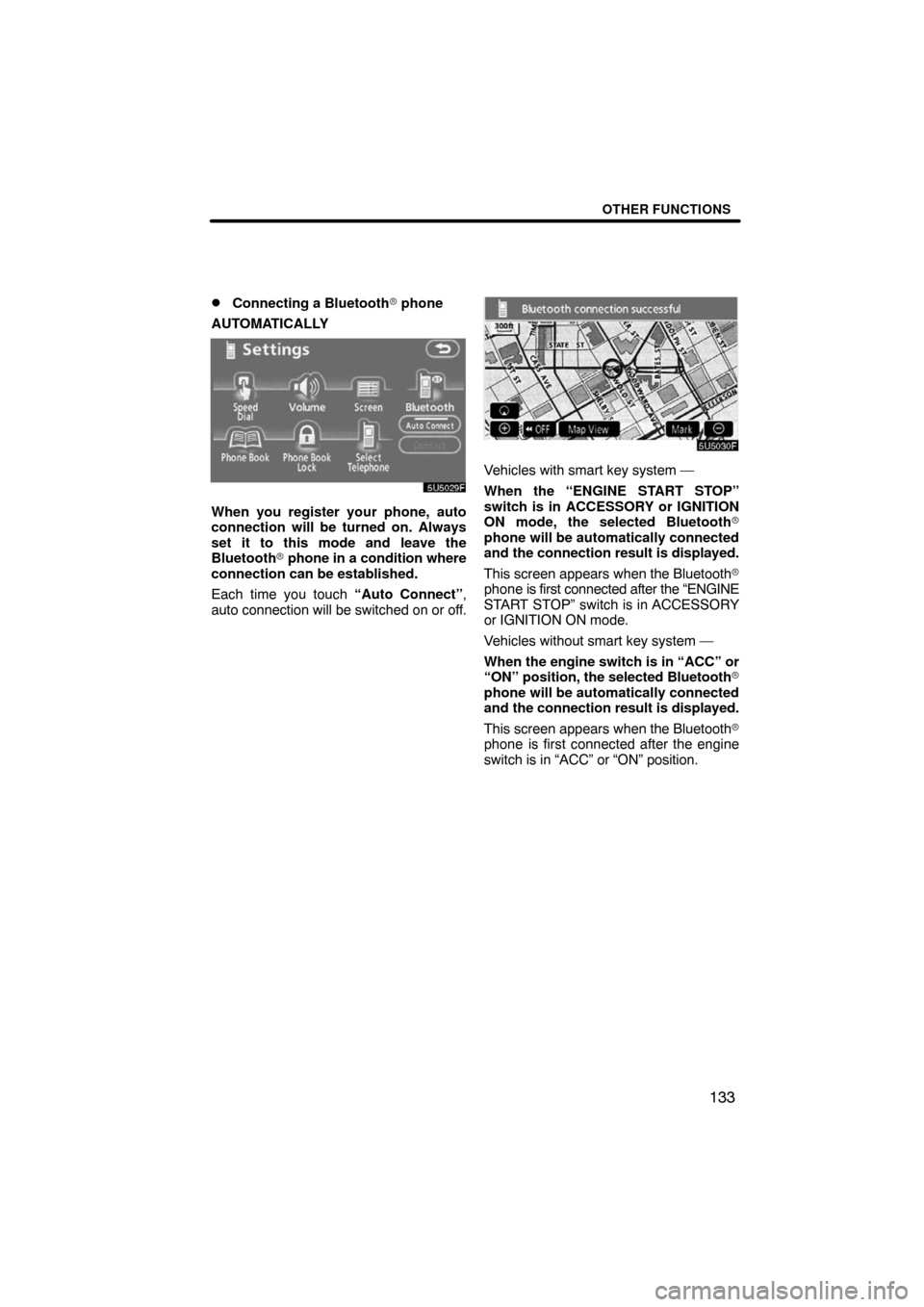

Connecting a Bluetooth phone
AUTOMATICALLY
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth phone in a condition where
connection can be established.
Each time you touch “Auto Connect”,
auto connection will be switched on or off.
Vehicles with smart key system —
When the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode, the selected Bluetooth
phone will be automatically connected
and the connection result is displayed.
This screen appears when the Bluetooth
phone is first connected after the “ENGINE
START STOP” switch is in ACCESSORY
or IGNITION ON mode.
Vehicles without smart key system —
When the engine switch is in “ACC” or
“ON” position, the selected Bluetooth
phone will be automatically connected
and the connection result is displayed.
This screen appears when the Bluetooth
phone is first connected after the engine
switch is in “ACC” or “ON” position.

OTHER FUNCTIONS
134

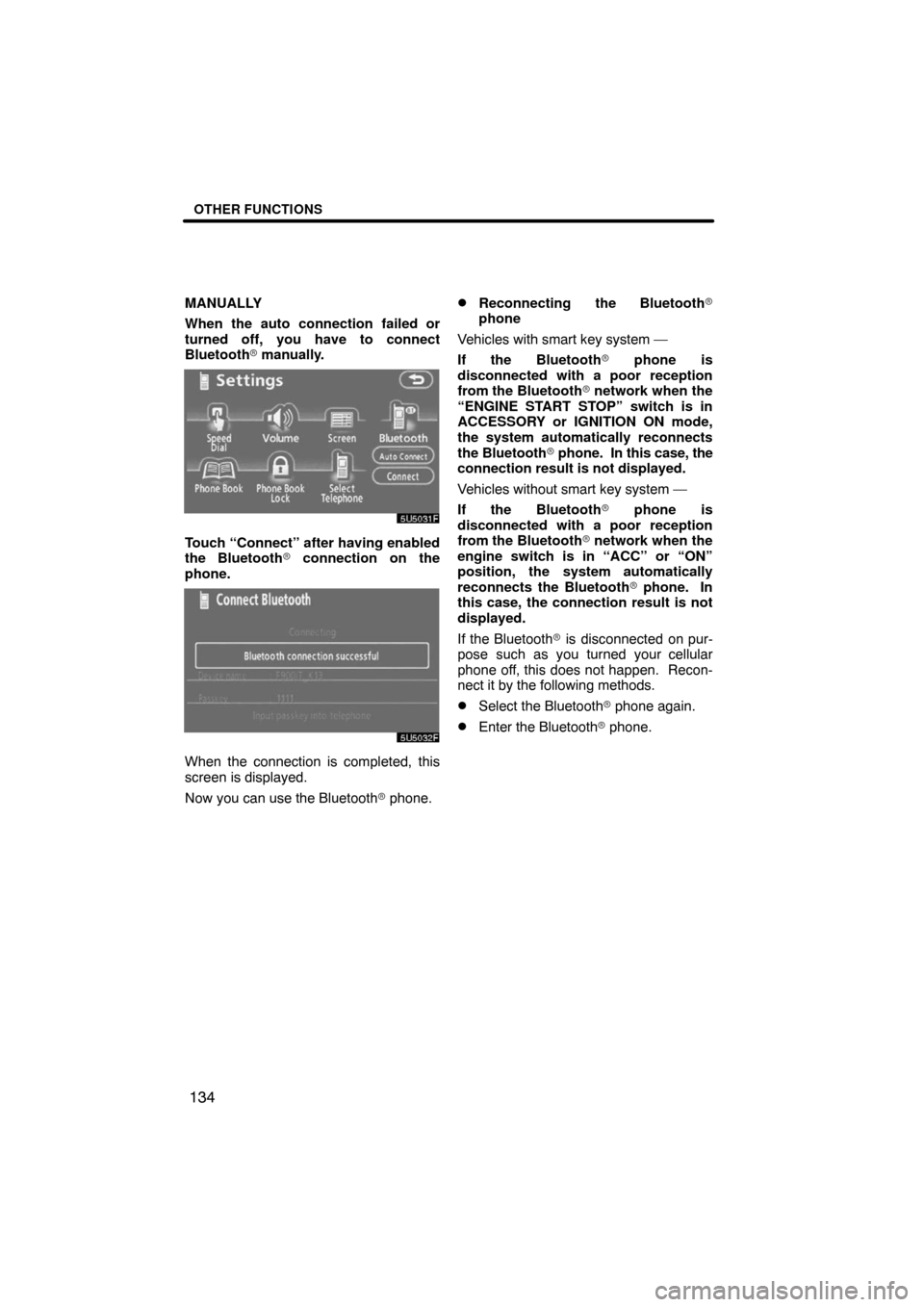

MANUALLY
When the auto connection failed or
turned off, you have to connect
Bluetooth manually.
Touch “Connect” after having enabled
the Bluetooth connection on the
phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth
phone
Vehicles with smart key system —
If the Bluetooth phone is
disconnected with a poor reception
from the Bluetooth network when the
“ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode,
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
Vehicles without smart key system —
If the Bluetooth phone is
disconnected with a poor reception
from the Bluetooth network when the
engine switch is in “ACC” or “ON”
position, the system automatically
reconnects the Bluetooth phone. In
this case, the connection result is not
displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

OTHER FUNCTIONS
135

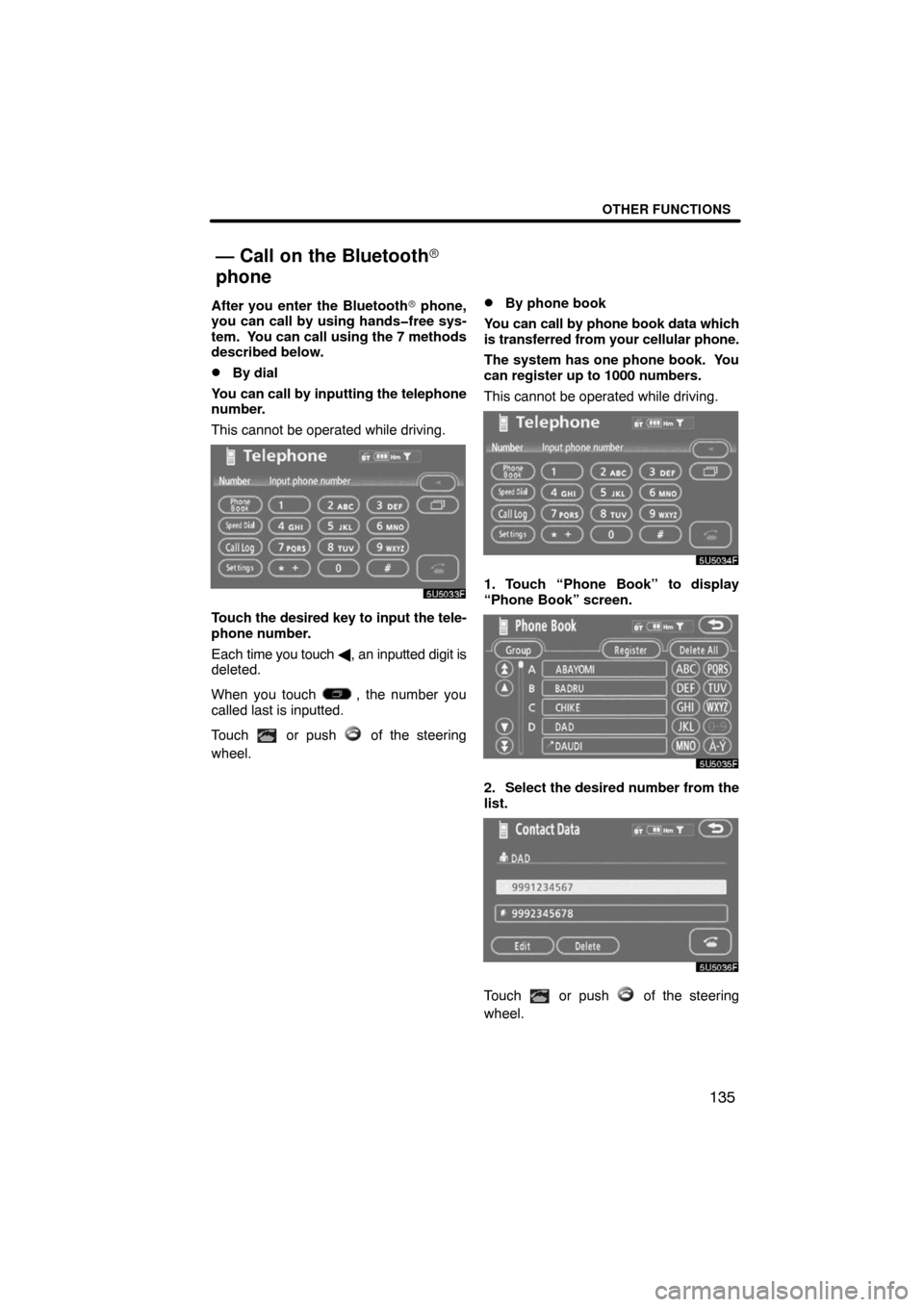

After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is
deleted.
When you touch
, the number you
called last is inputted.
Touch
or push of the steering
wheel.
By phone book
You can call by phone book data which
is transferred from your cellular phone.
The system has one phone book. You
can register up to 1000 numbers.
This cannot be operated while driving.
1. Touch “Phone Book” to display
“Phone Book” screen.
2. Select the desired number from the
list.
Touch or push of the steering
wheel.
— Call on the Bluetooth
phone

OTHER FUNCTIONS
136

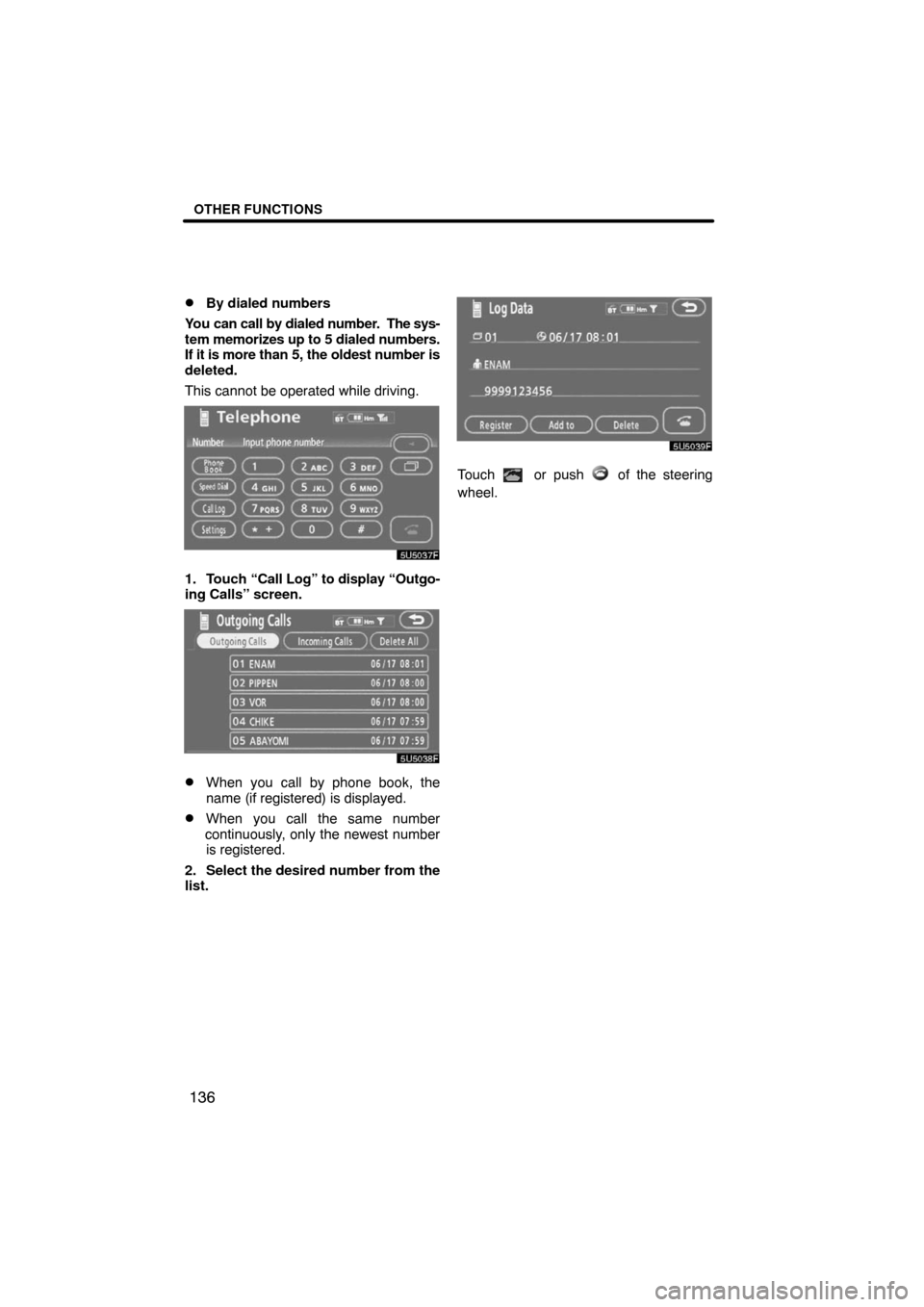

By dialed numbers
You can call by dialed number. The sys-
tem memorizes up to 5 dialed numbers.
If it is more than 5, the oldest number is
deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgo-
ing Calls” screen.
When you call by phone book, the
name (if registered) is displayed.
When you call the same number
continuously, only the newest number
is registered.
2. Select the desired number from the
list.
Touch or push of the steering
wheel.

OTHER FUNCTIONS
137

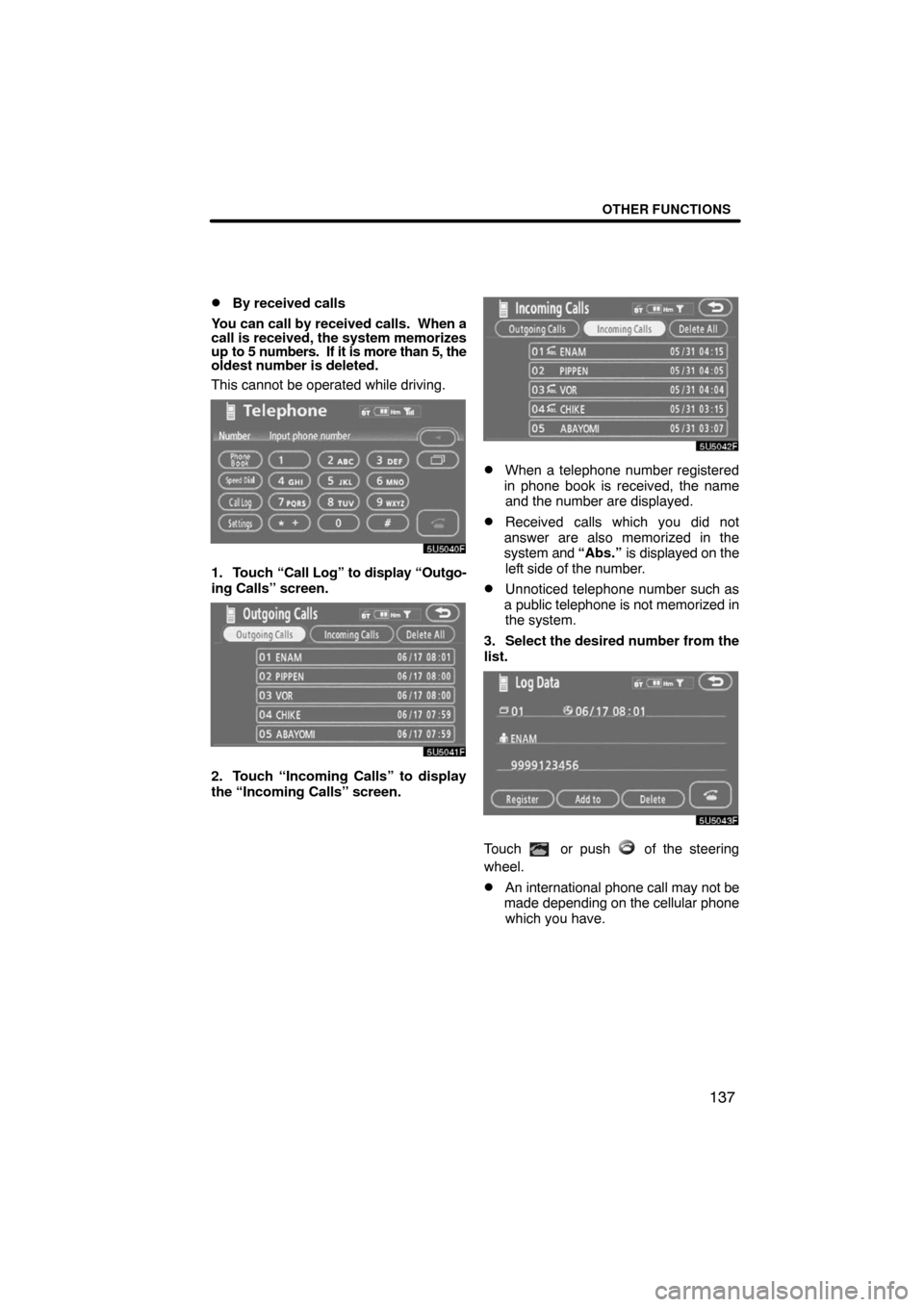

By received calls
You can call by received calls. When a
call is received, the system memorizes
up to 5 numbers. If it is more than 5, the
oldest number is deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgo-
ing Calls” screen.
2. Touch “Incoming Calls” to display
the “Incoming Calls” screen.
When a telephone number registered
in phone book is received, the name
and the number are displayed.
Received calls which you did not
answer are also memorized in the
system and “Abs.” is displayed on the
left side of the number.
Unnoticed telephone number such as
a public telephone is not memorized in
the system.
3. Select the desired number from the
list.
Touch or push of the steering
wheel.
An international phone call may not be
made depending on the cellular phone
which you have.

OTHER FUNCTIONS
138

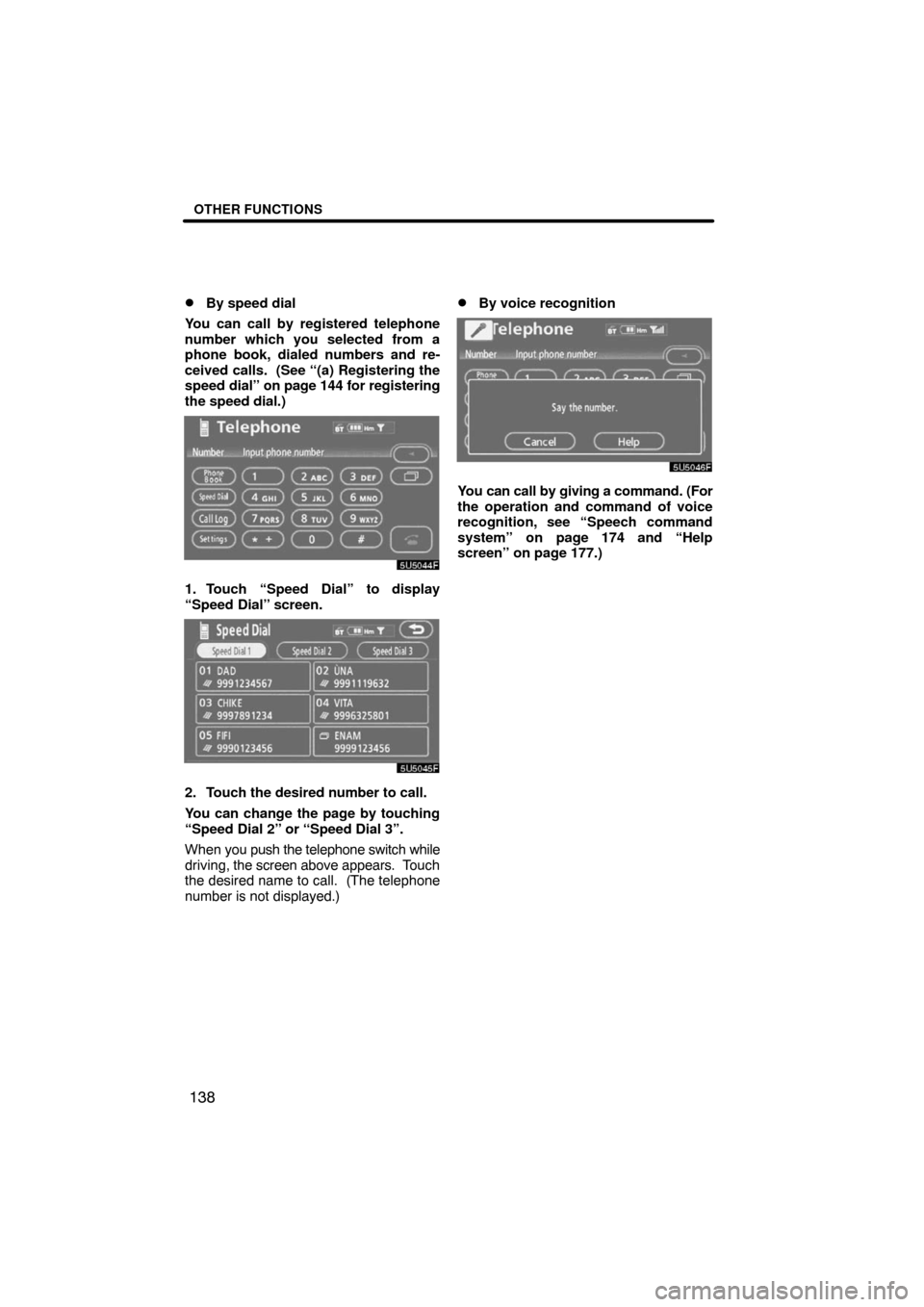

By speed dial
You can call by registered telephone
number which you selected from a
phone book, dialed numbers and re-
ceived calls. (See “(a) Registering the
speed dial” on page 144 for registering
the speed dial.)
1. Touch “Speed Dial” to display
“Speed Dial” screen.
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3”.
When you push the telephone switch while
driving, the screen above appears. Touch
the desired name to call. (The telephone
number is not displayed.)
By voice recognition
You can call by giving a command. (For
the operation and command of voice
recognition, see “Speech command
system” on page 174 and “Help
screen” on page 177.)

OTHER FUNCTIONS
139
DIALING BY NAME
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “
 Setting the
voice recognition” on page 157.
Example: Call DAD.
You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “DAD.”
System: “DAD chosen, when ready,
please briefly push the talk
switch or push the off−hook
switch to dial.”
You: Push the talk switch.
System: “After the beep, please say
“Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you can call DAD.
“Next” is displayed when multiple entries
are found for a searched name.
Up to 6 entries can be displayed including
the first searched one.
Do the following to change the entry to the
next one.
Touch “Next”.
Push the talk switch to say “Next Can-
didate”.
Calling without the voice recognition
After the entry number is displayed, you
can also call by pushing the telephone
switch or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch.
Push of the steering wheel.
Touch “Cancel”. (Except for recogniz-
ing the command.)
Say “Cancel”.

OTHER FUNCTIONS
140
DIALING BY PHONE NUMBER
You can call by giving a desired num-
ber.
You: Push the talk switch.
System: “After the beep, please say the
number.”
You: “812387.”
System: “When ready, please briefly
push the talk switch or push the
off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please
continue to add numbers or
say “Dial”.”
You: “Dial.”
System: “Dialing the number.”

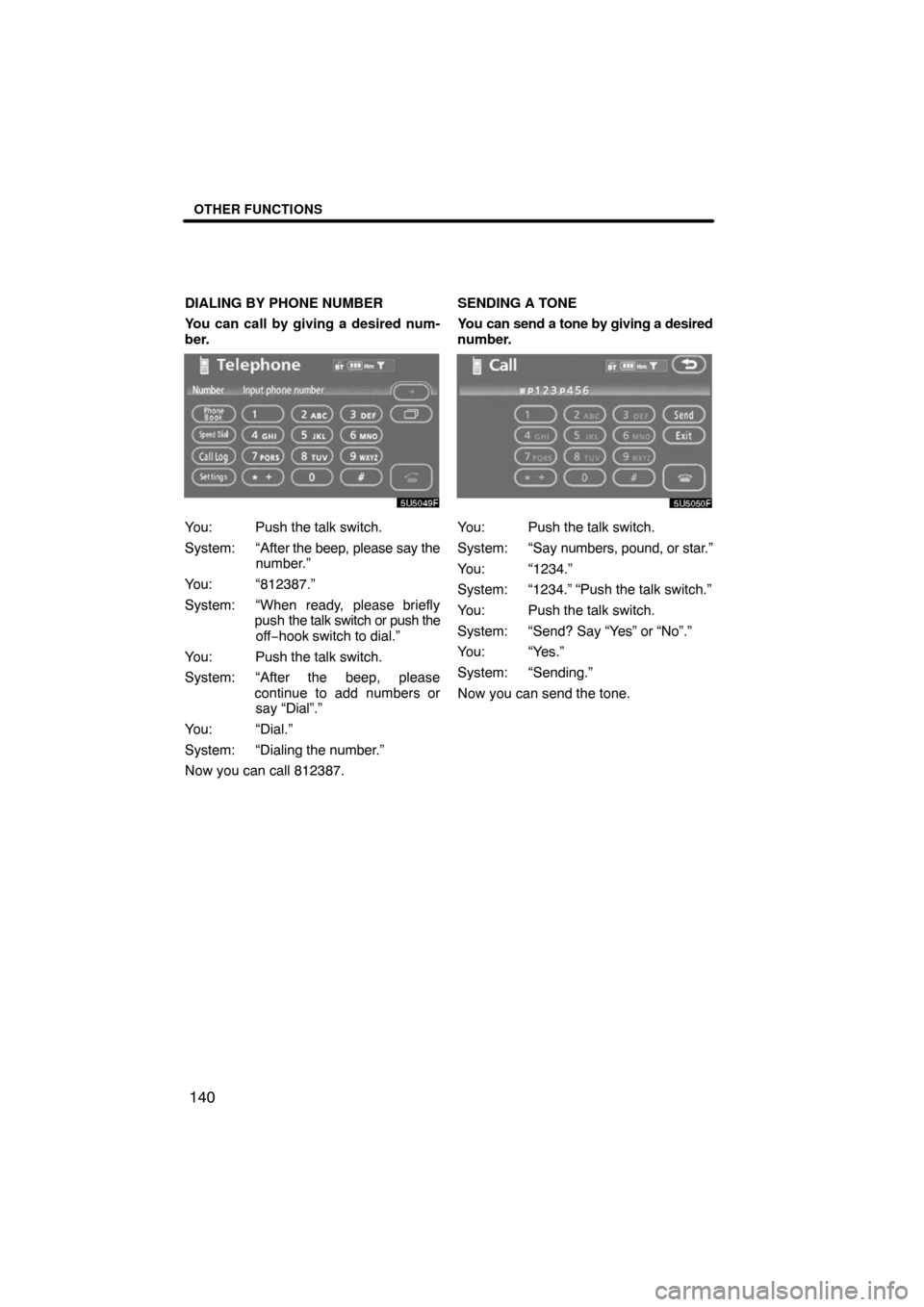

Now you can call 812387.SENDING A TONE
You can send a tone by giving a desired
number.You: Push the talk switch.
System: “Say numbers, pound, or star.”
You: “1234.”
System: “1234.” “Push the talk switch.”
You: Push the talk switch.
System: “Send? Say “Yes” or “No”.”
You: “Yes.”
System: “Sending.”
Now you can send the tone.
