6
No.NameFunctionPage
7“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
78, 80, 81, 82
8“OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
11 0
9Zoom in buttonTouch this button to magnify the map
scale.36
10Foot print map
buttonTouch this button to display the foot print
map and the building information.37
11“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
28, 70
12“DEST” buttonPush this button to display the “Destina-
tion” screen.11, 12, 40, 41
13
Screen
configuration
buttonTouch this button to change the screen
mode.34
14“MENU” buttonPush this button to display the “Menu”
screen.7, 9, 86, 88,
89, 90, 92, 106,
238
15Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
71
16“INFO” buttonPush this button to display the “Informa-
tion” screen.118, 122, 131,
179, 182
17
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
226
18
Speech
command system
indicatorThe microphone is shown by pushing
the talk switch. The speech command
system can be operated while this indi-
cator is shown.
174
8

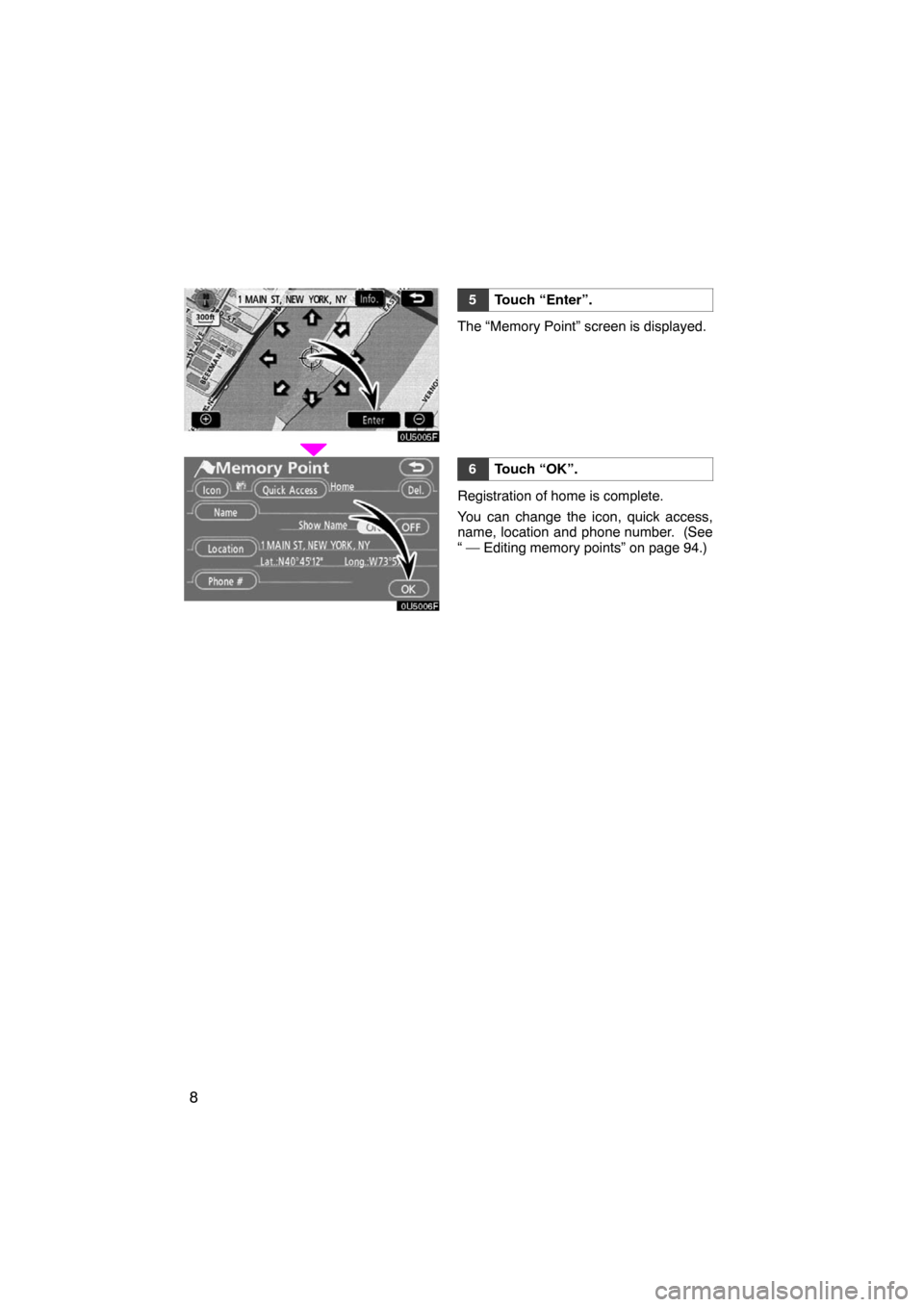

5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 94.)
10

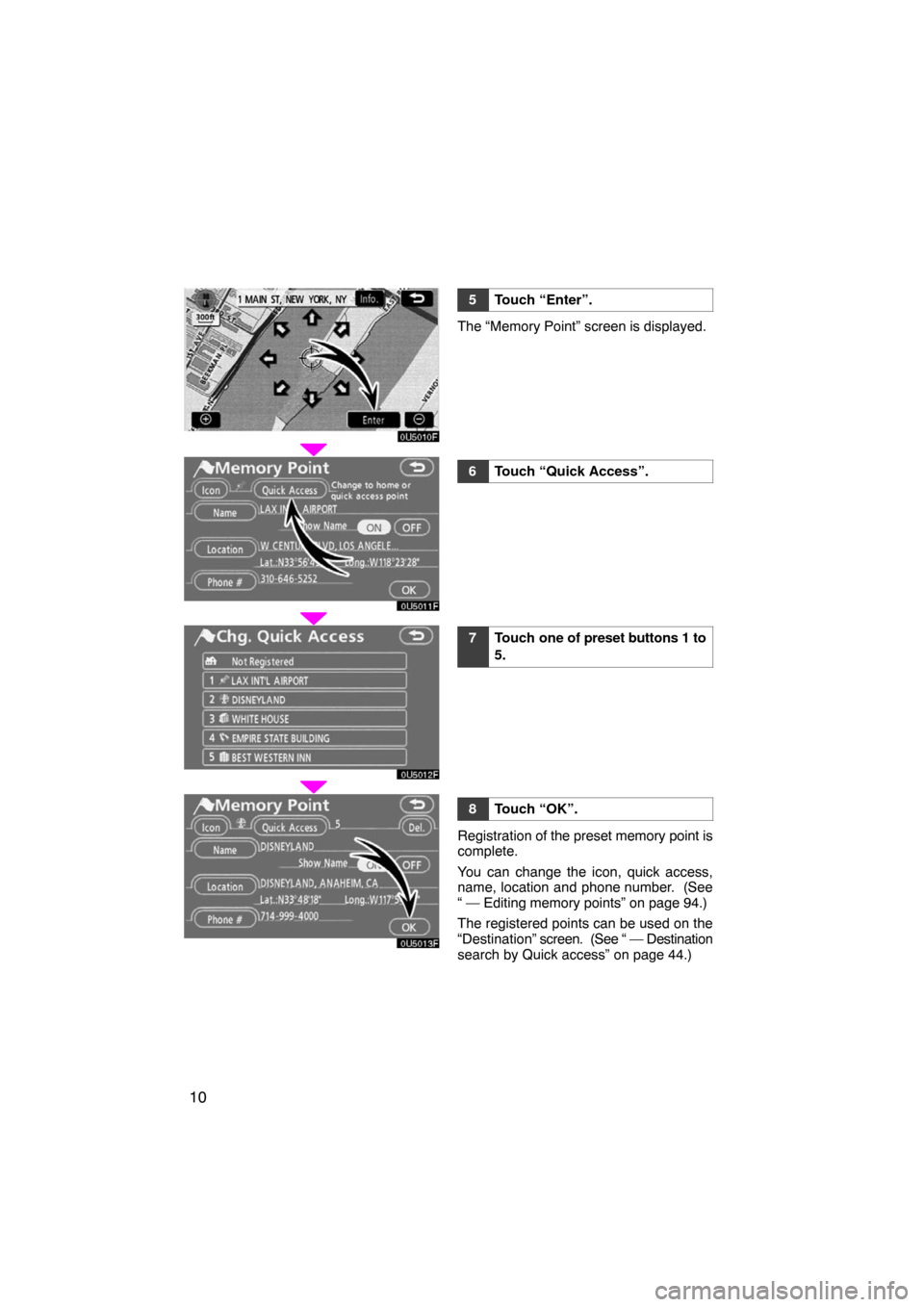

5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “Quick Access”.
7Touch one of preset buttons 1 to
5.
8Touch “OK”.
Registration of the preset memory point is
complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 94.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 44.)
