311
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury observe the following precautions.
■
When working on the engine compartment
●Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
● Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience discomfort, see a doctor.
■ When working near the electric c ooling fans or radiator grille
Vehicles with smart key system: Be sure the “ENGINE START STOP” switch
is OFF. With the “ENGINE START STOP” switch in IGNITION ON mode, the
electric cooling fans may automatically start to run if the air conditioning is on
and/or the coolant temperature is high. ( P. 326)
Vehicles without smart key system: Be sure the engine switch is OFF. With
the engine switch in “ON” position, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is
high. ( P. 326)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in the eyes.

312 4-3. Do-it-yourself maintenance
NOTICE
■If you remove the air cleaner
Driving with the air cleaner removed may cause excessive engine wear due
to dirt in the air. Also, a backfire could cause a fire in the engine compart-
ment.

313
4-3. Do-it-yourself maintenance
4
Maintenance and care

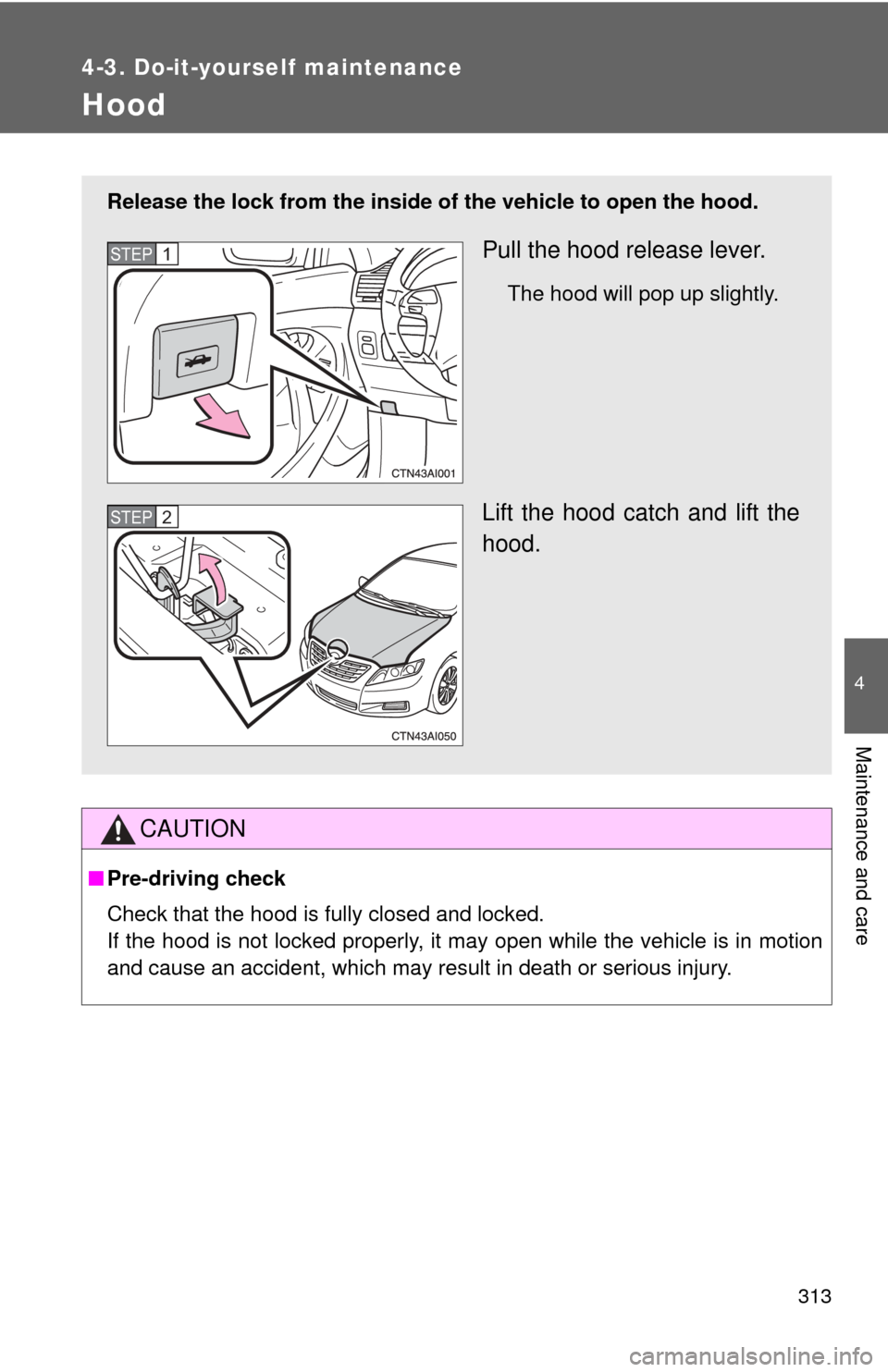

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
STEP1
STEP2

314
4-3. Do-it-yourself maintenance

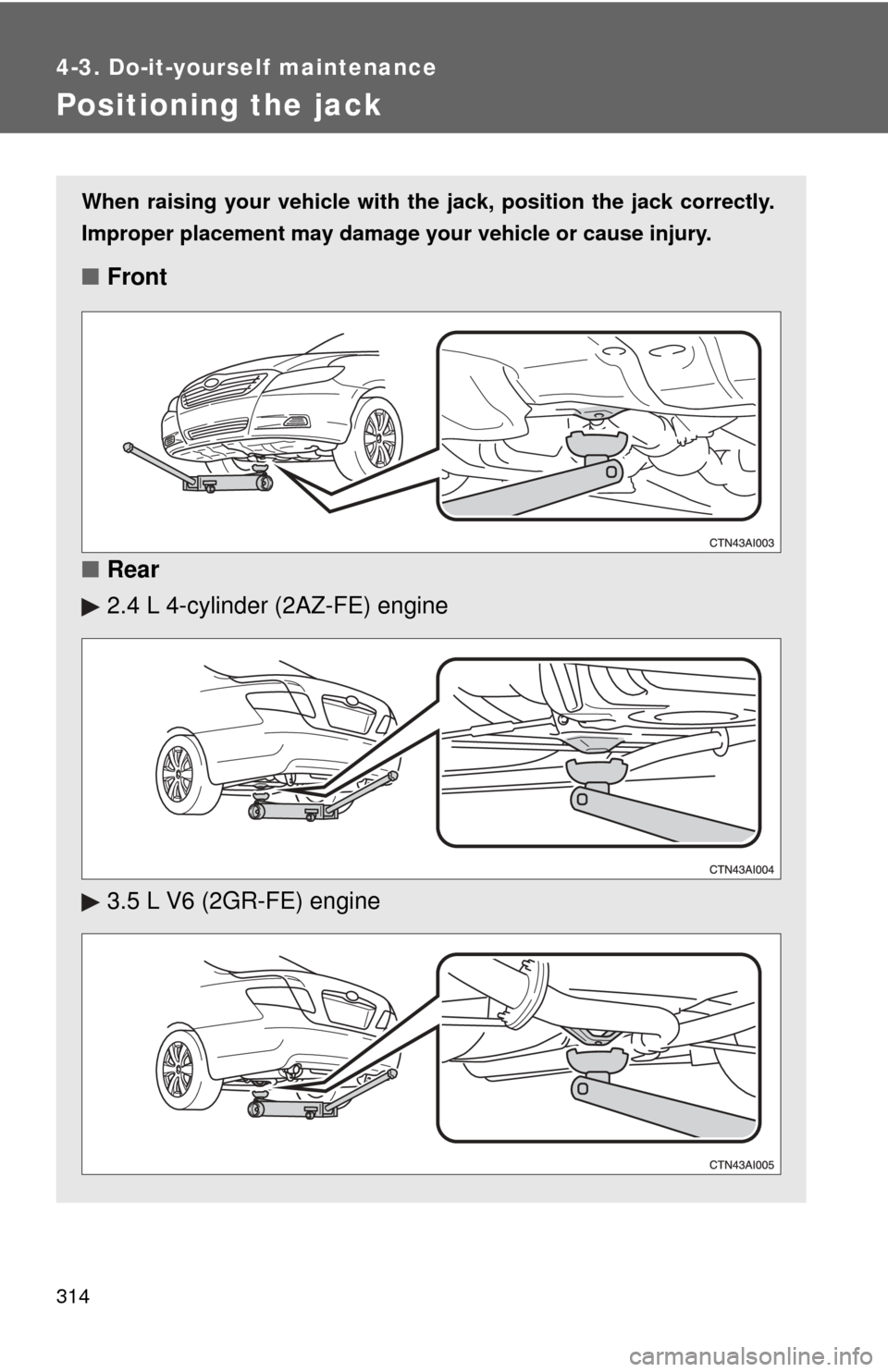

Positioning the jack
When raising your vehicle with the jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Front
■ Rear
2.4 L 4-cylinder (2AZ-FE) engine
3.5 L V6 (2GR-FE) engine

315
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or\
seri-
ous injury.
●Do not put any part of your body or get underneath the vehicle supported
only by the jack.
Always use automotive jack stands on a solid, level surface.
● Do not start the engine while the vehicle is supported by the jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in P (automatic transmission) or R (manual transmission).
● Make sure to set the jack properly at the jack point.
Raising the vehicle with an improperly positioned jack will damage the
vehicle and may cause the vehicle to fall off the jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the jack.

316
4-3. Do-it-yourself maintenance

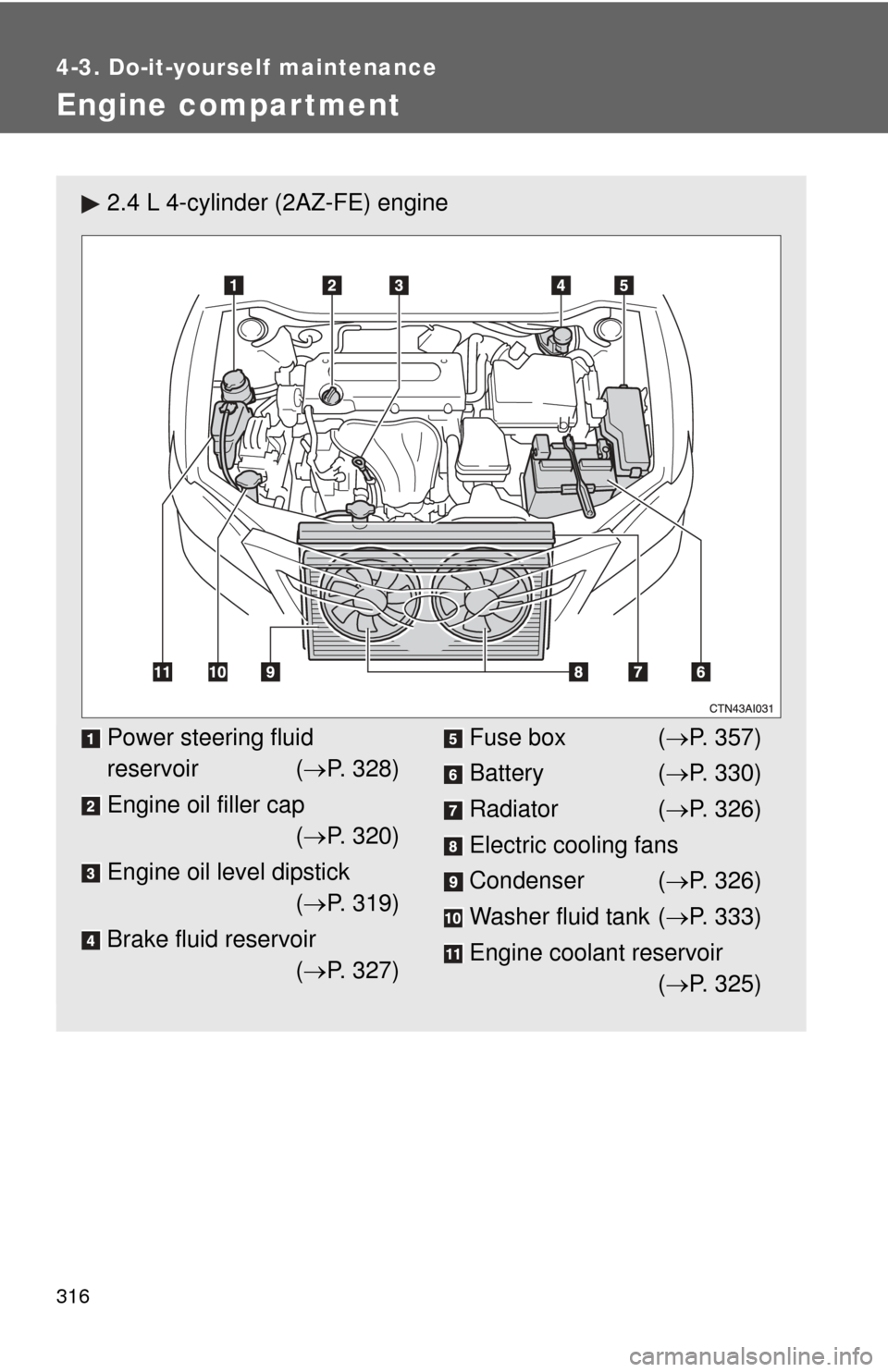

Engine compar tment
2.4 L 4-cylinder (2AZ-FE) engine
Power steering fluid
reservoir (P. 328)
Engine oil filler cap ( P. 320)
Engine oil level dipstick ( P. 319)
Brake fluid reservoir ( P. 327)Fuse box ( P. 357)
Battery ( P. 330)
Radiator ( P. 326)
Electric cooling fans
Condenser ( P. 326)
Washer fluid tank ( P. 333)
Engine coolant reservoir ( P. 325)

317
4-3. Do-it-yourself maintenance
4
Maintenance and care

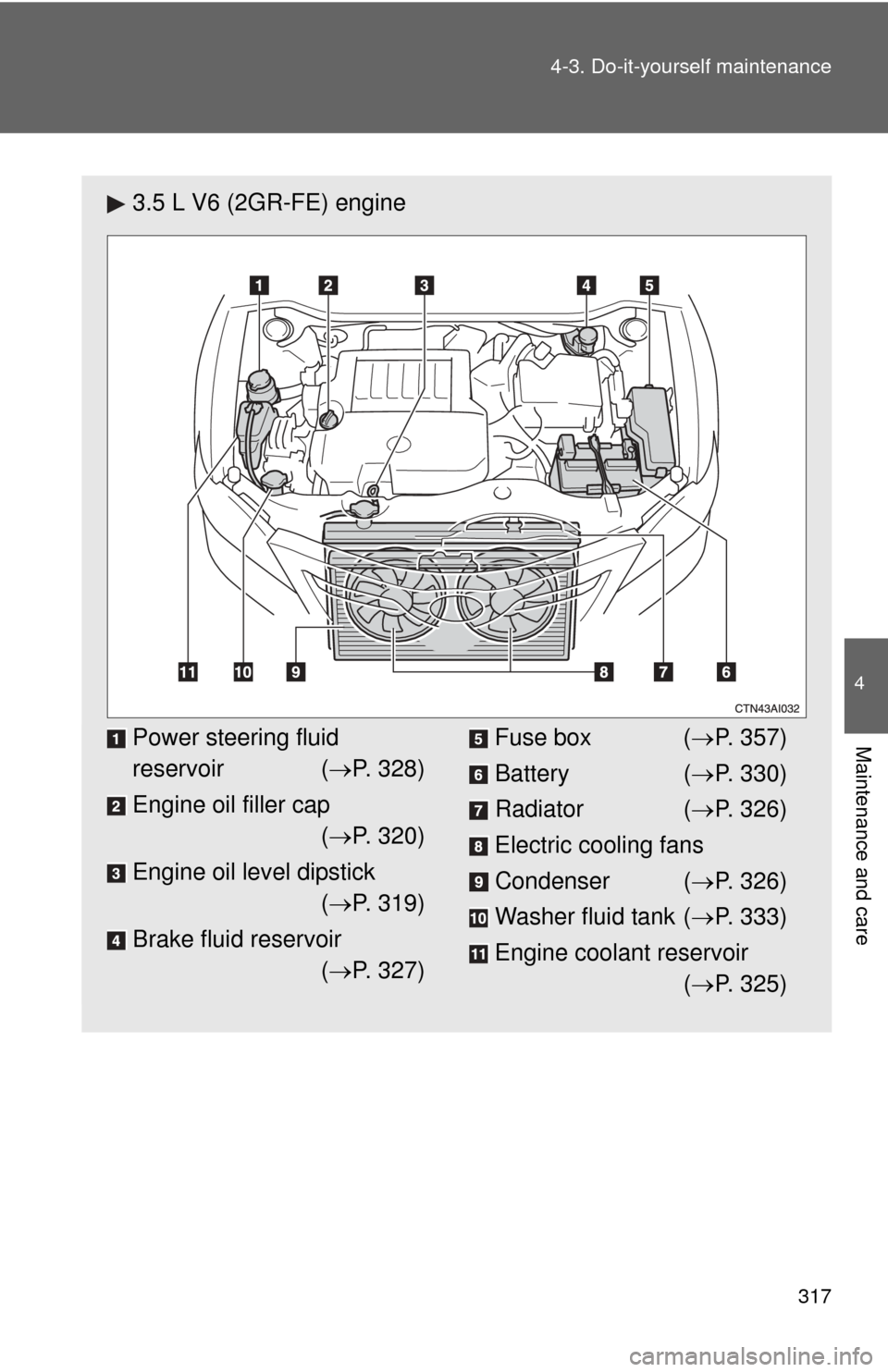

3.5 L V6 (2GR-FE) engine
Power steering fluid
reservoir (
P. 328)
Engine oil filler cap ( P. 320)
Engine oil level dipstick ( P. 319)
Brake fluid reservoir ( P. 327)Fuse box ( P. 357)
Battery ( P. 330)
Radiator ( P. 326)
Electric cooling fans
Condenser ( P. 326)
Washer fluid tank ( P. 333)
Engine coolant reservoir ( P. 325)

318 4-3. Do-it-yourself maintenance

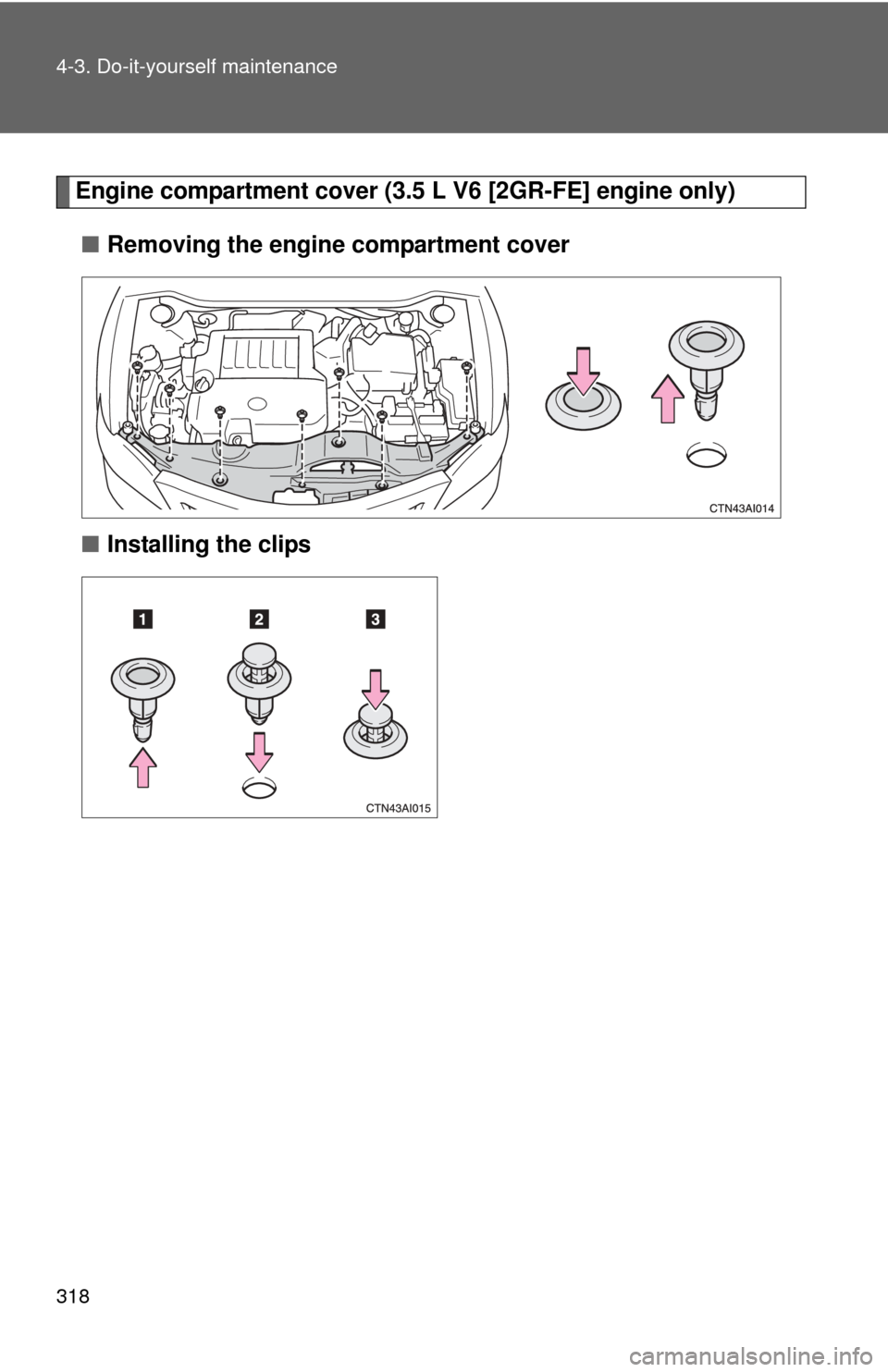

Engine compartment cover (3.5 L V6 [2GR-FE] engine only)
■ Removing the engine compartment cover
■ Installing the clips

319
4-3. Do-it-yourself maintenance
4
Maintenance and care

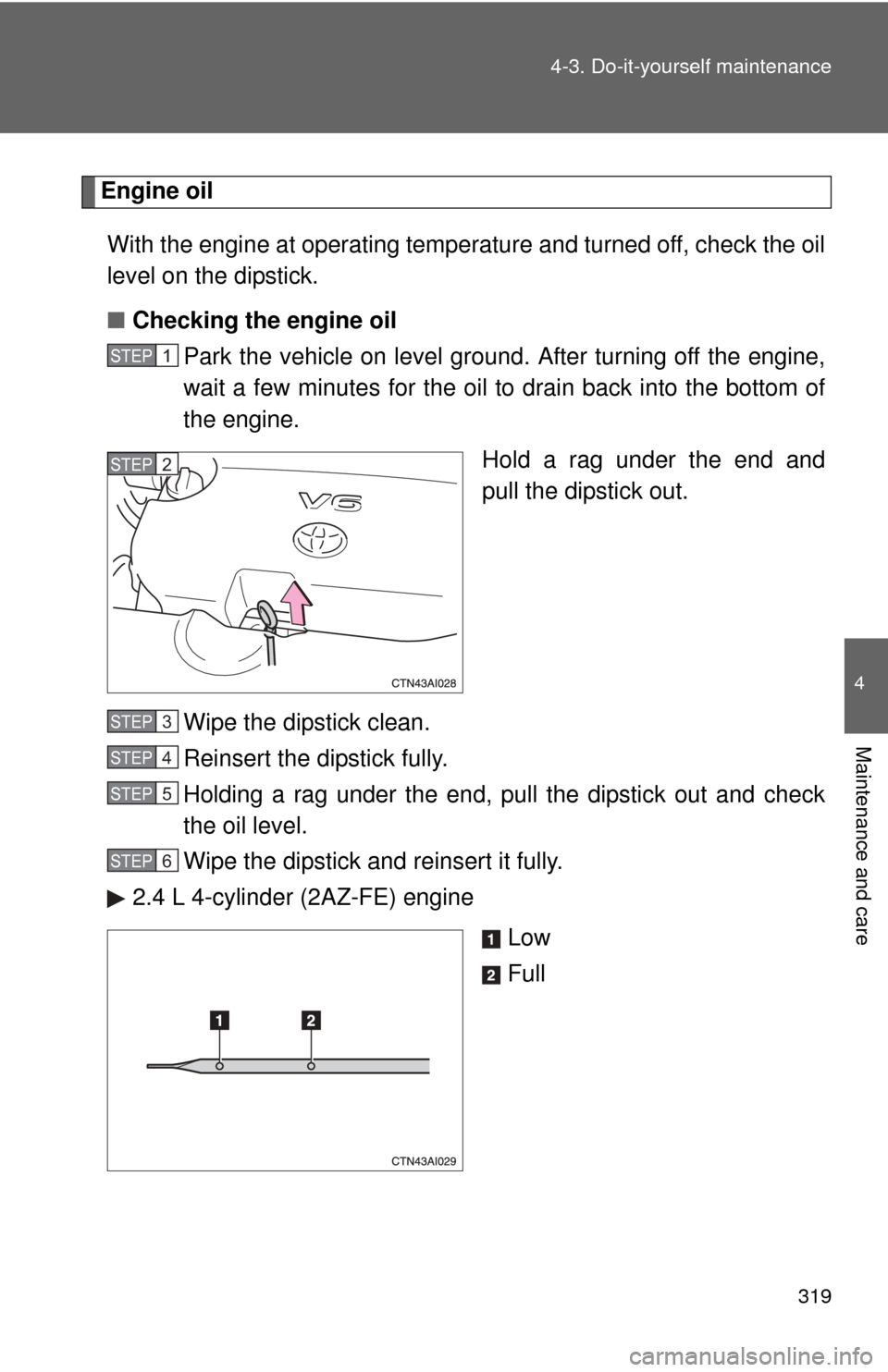

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait a few minutes for the oil to drain back into the bottom of
the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
2.4 L 4-cylinder (2AZ-FE) engine
Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

320 4-3. Do-it-yourself maintenance
3.5 L V6 (2GR-FE) engineLow
Full
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Oil grade ILSAC multigrade engine oil
Items Clean funnel
STEP1
STEP2
