●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. ( P. 368)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
FuseAmpereCircuit
Page 368 of 476
368
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 438)
■ Remove the engine compartment cover. (3.5 L V6 [2GR-FE]
engine only)
P. 3 1 8

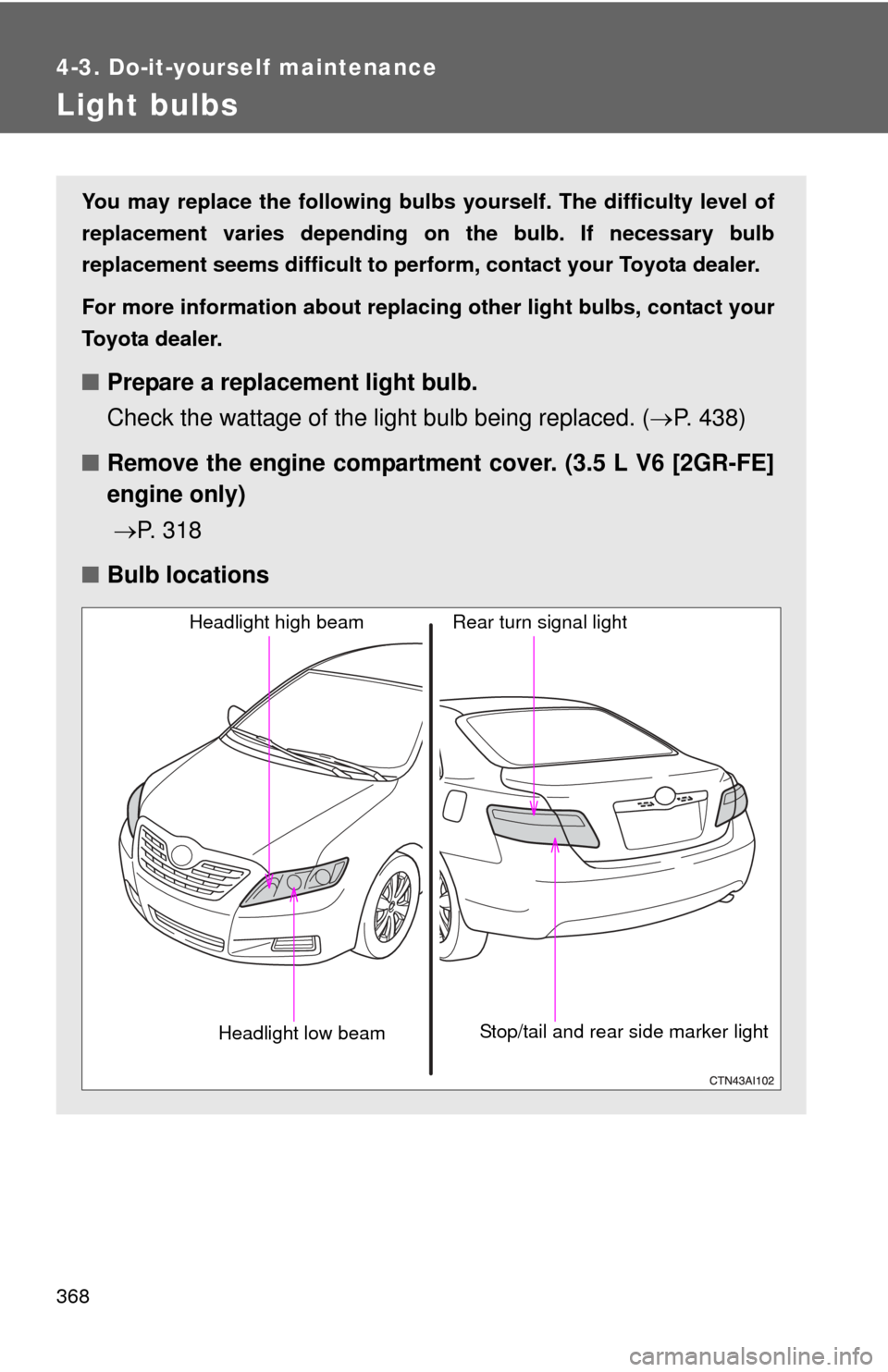

■ Bulb locations
Headlight high beam
Headlight low beam
Rear turn signal light
Stop/tail and rear side marker light
Page 369 of 476
369
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlight

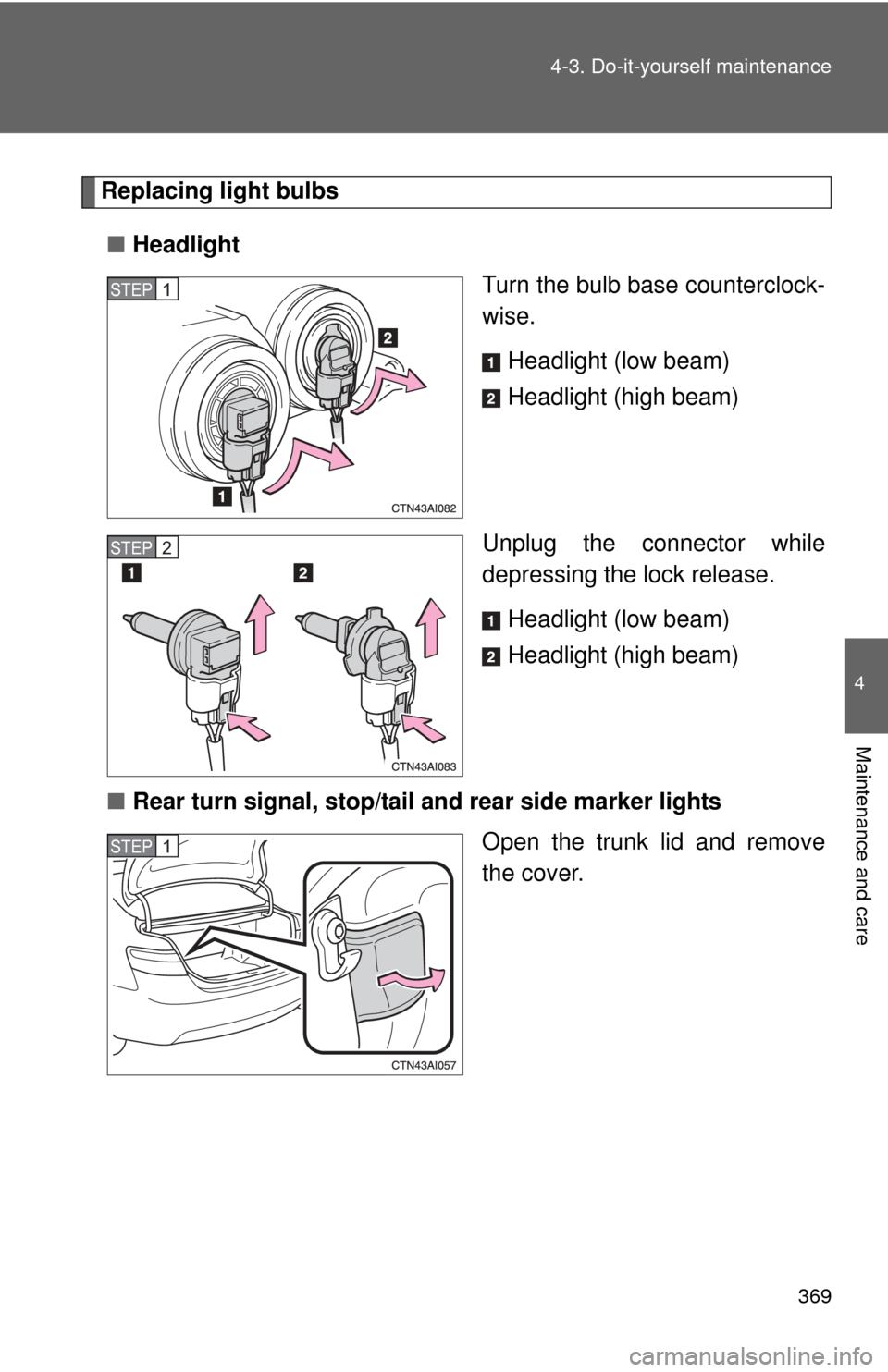

Turn the bulb base counterclock-
wise.
Headlight (low beam)
Headlight (high beam)
Unplug the connector while
depressing the lock release. Headlight (low beam)
Headlight (high beam)
■ Rear turn signal, stop/tail a nd rear side marker lights
Open the trunk lid and remove
the cover.
STEP1
STEP2
STEP1
Page 370 of 476
370 4-3. Do-it-yourself maintenance

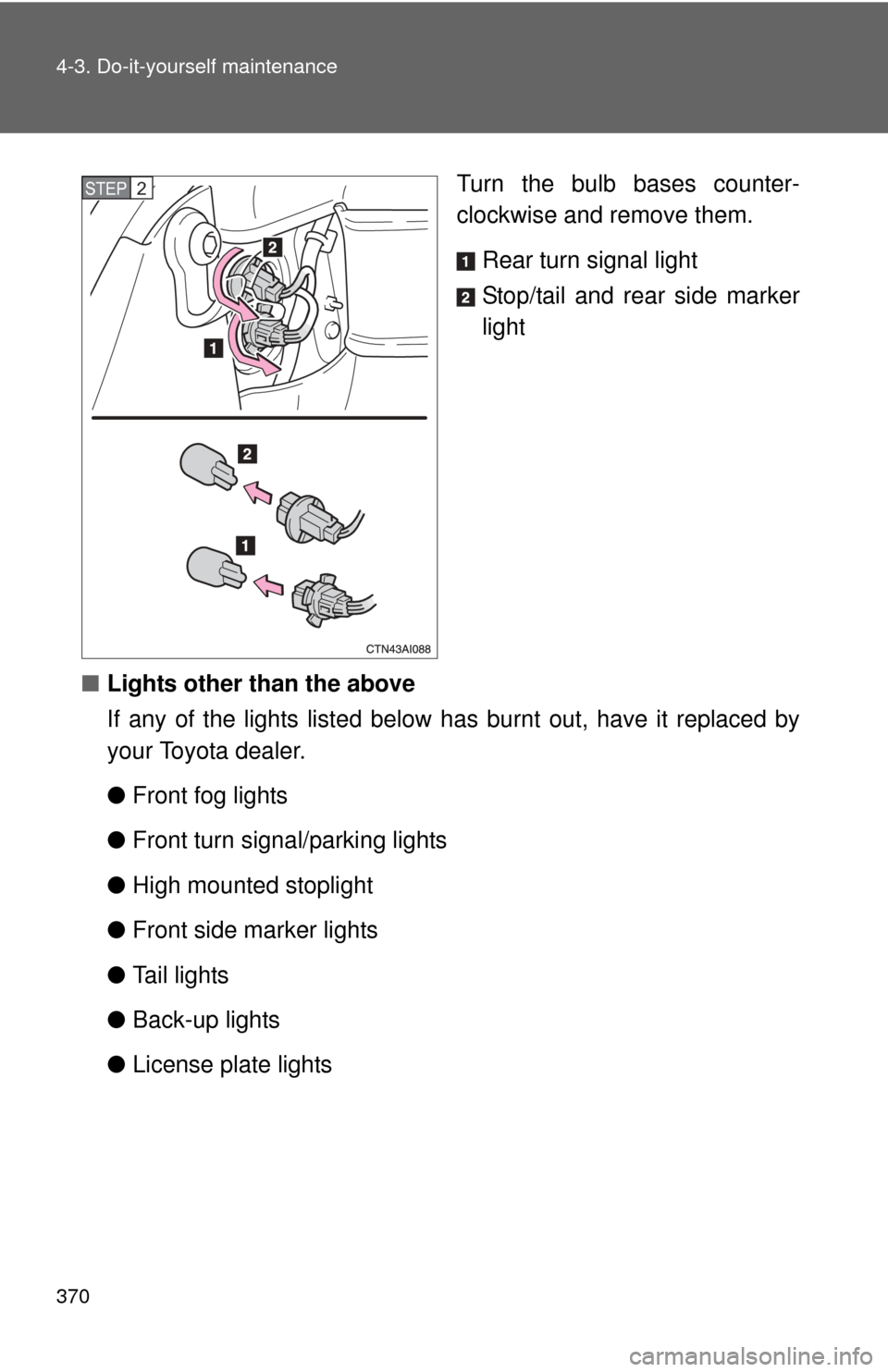

Turn the bulb bases counter-
clockwise and remove them.Rear turn signal light
Stop/tail and rear side marker
light
■ Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Front fog lights
● Front turn signal/parking lights
● High mounted stoplight
● Front side marker lights
● Tail lights
● Back-up lights
● License plate lightsSTEP2
Page 371 of 476
371
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
Page 438 of 476
438 6-1. Specifications
Light bulbs
A: H11 halogen bulbsB: HB3 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam
9005 55
60A
B
Front side marker
lights
5C
Front turn signal/park-
ing lights 3457NAK 27/8 D
Rear turn signal lights 21 D
Stop/tail and rear side
marker lights 7443 21/5 C
Tail lights Type A
Type B
194 5
3.8 C
C
License plate lights 5C
Back-up lights 921 16 C
Front fog lights (if
equipped)
55 A
Interior Personal lights
Front
Rear
5
8C
C
Interior light 8E
Door courtesy lights 168 5 C
Vanity lights 8C
Glove box light 1.2 C
Trunk light 3.8 C
Page 467 of 476
