engine TOYOTA CAMRY 2008 XV40 / 8.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

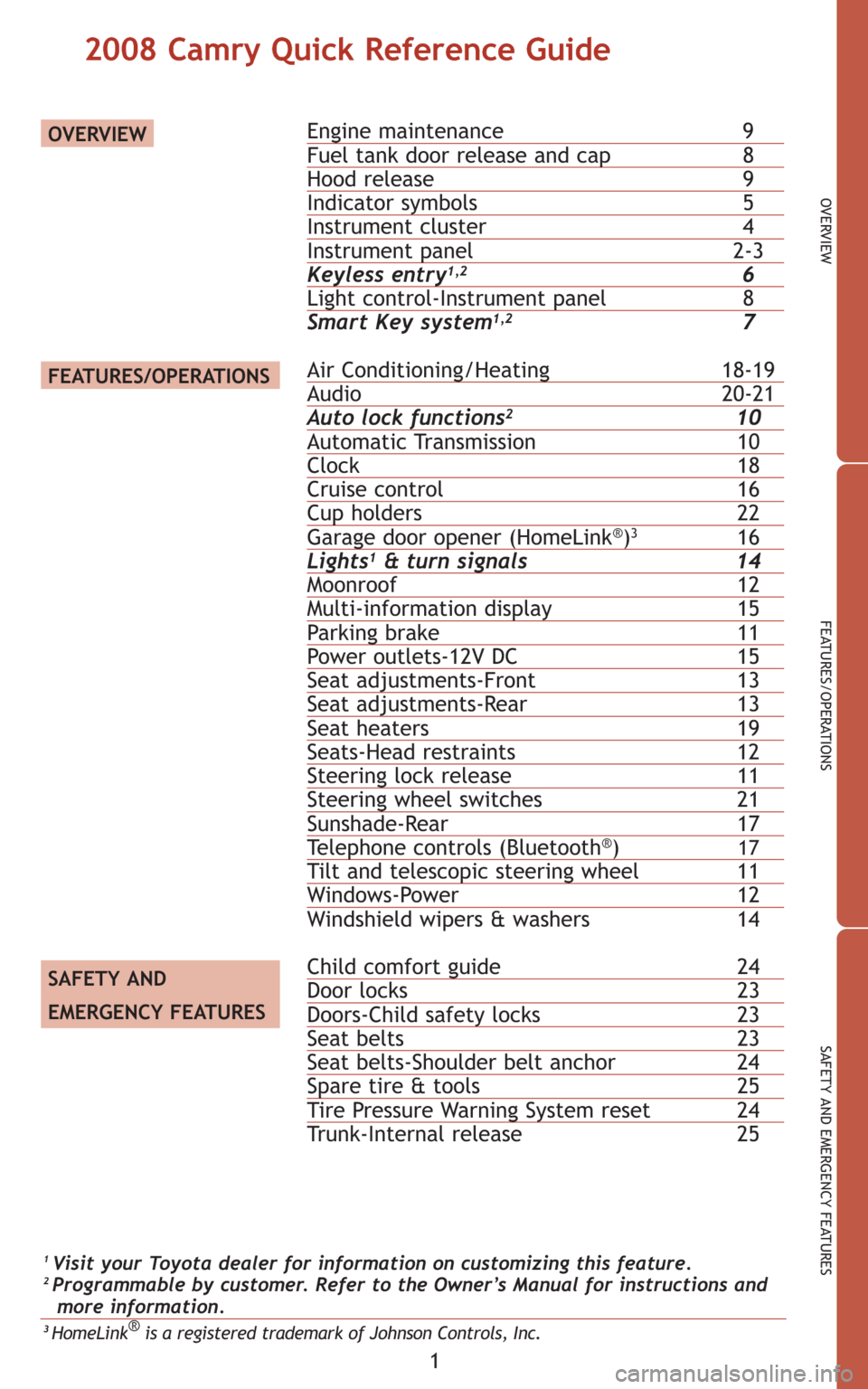

2008 Camry Quick Reference Guide
Engine maintenance 9Fuel tank door release and cap8Hood release 9Indicator symbols 5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel8
Smart Key system1,27
Air Conditioning/Heating18-19Audio 20-21Auto lock functions210Automatic Transmission 10Clock 18Cruise control 16Cup holders 22Garage door opener (HomeLink®)316Lights1& turn signals 14Moonroof 12Multi-information display15Parking brake 11Power outlets-12V DC 15Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 19Seats-Head restraints 12Steering lock release 11Steering wheel switches 21Sunshade-Rear 17Te l e p h o n e controls (Bluetooth®)17Tilt and telescopic steering wheel 11Windows-Power 12
Windshield wipers & washers 14
Child comfort guide24Door locks 23Doors-Child safety locks 23Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Warning System reset 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat heater controls1
AUX audio jack
12V DC Power outlet
“ENGINE START STOP” button (Smart Key)
1
Cruise control
Engine (ignition) switch (standard key)
Tilt and telescopic steering lock release
Power rearview mirror control
Air Conditioning controls
Outside rearview mirror
1/Back window defogger button
1If equipped2For details, refer to the “Navigation System Owner’s Manual.”
Automatic Air Conditioning
Manual Air Conditioning

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Multi-information display
Automatic Transmission shift position indicator
Sequential shift display*
Odometer, two trip meters and outside temperature display
* If equipped
With multi-information display
Without multi-information display

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

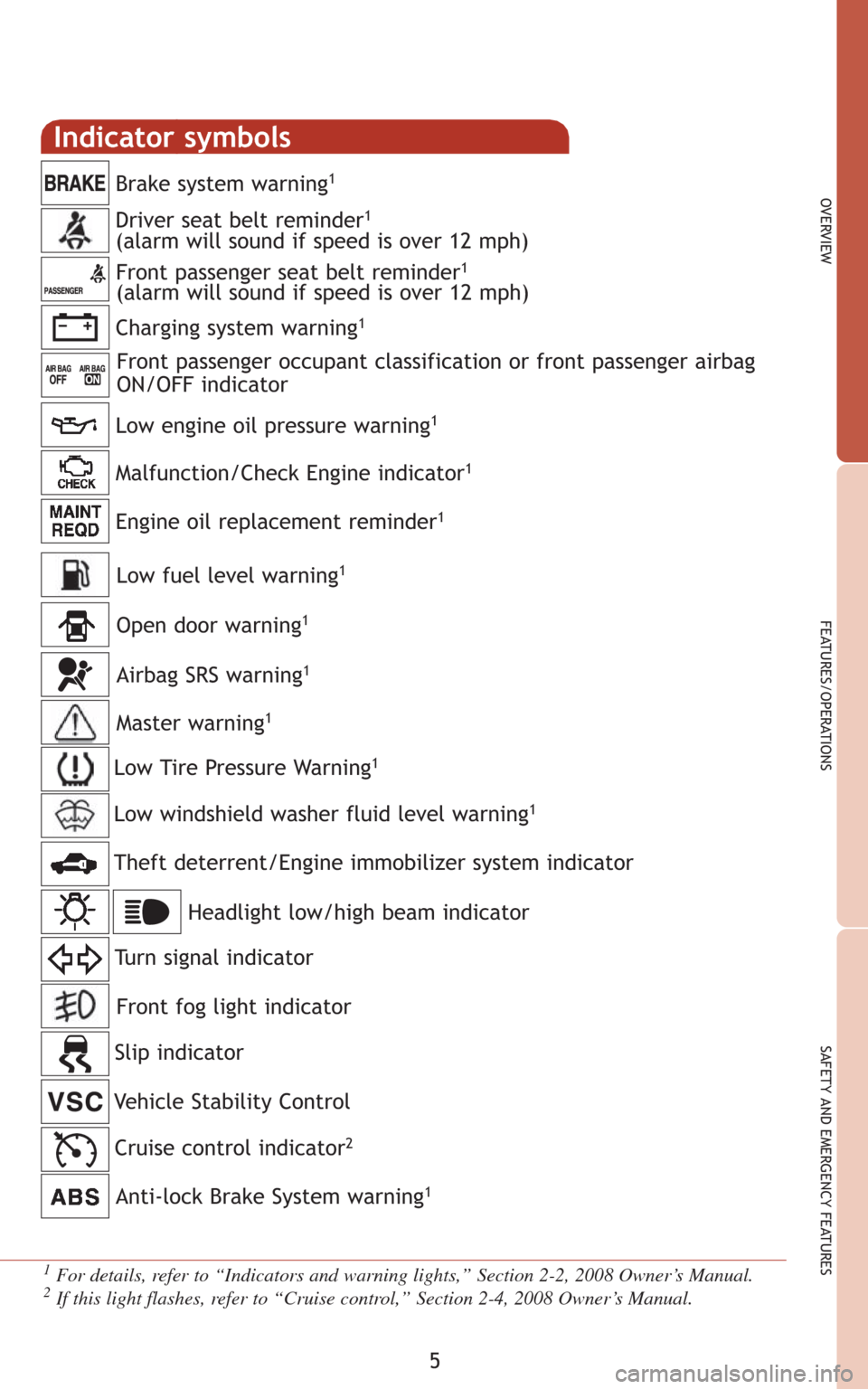

Indicator symbols
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator
1For details, refer to “Indicators and warning lights,” Section 2-2, 2008 Owner’s Manual.2If this light flashes, refer to “Cruise control,” Section 2-4, 2008 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
Vehicle Stability Control
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning1
Airbag SRS warning1
Master warning1
Low windshield washer fluid level warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
1
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning1
Front fog light indicator

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system* (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Locking/Unlocking operation
Carry remote
to lock/unlock
Push
Unlocking
front door*
GraspLocking front door
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Opening trunk
Push

8

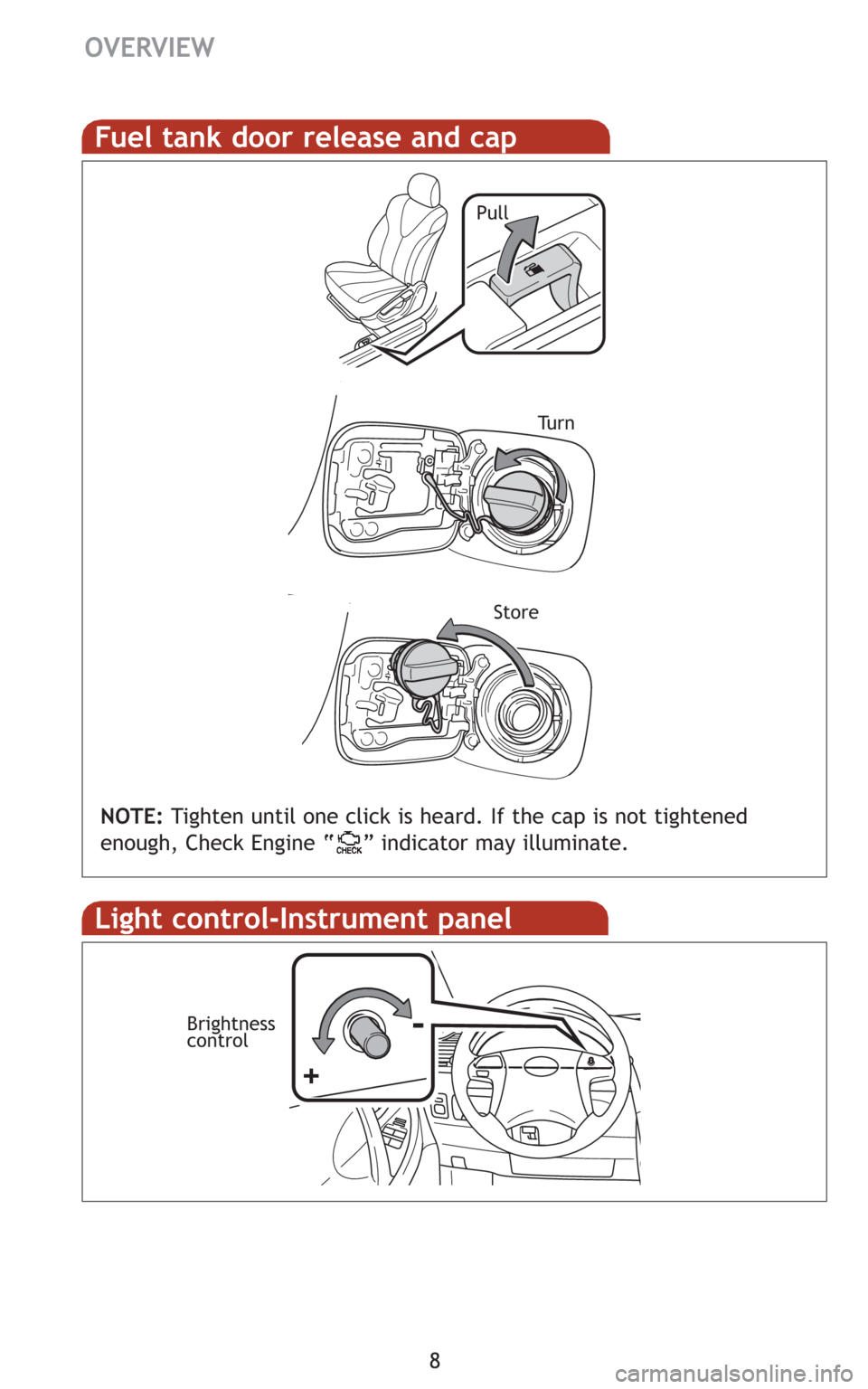

Fuel tank door release and cap
NOTE:Tighten until one click is heard. If the cap is not tightened
enough, Check Engine “ ” indicator may illuminate.
Pull
Tu r n
Store
Light control-Instrument panel
Brightness
control-
+
OVERVIEW

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

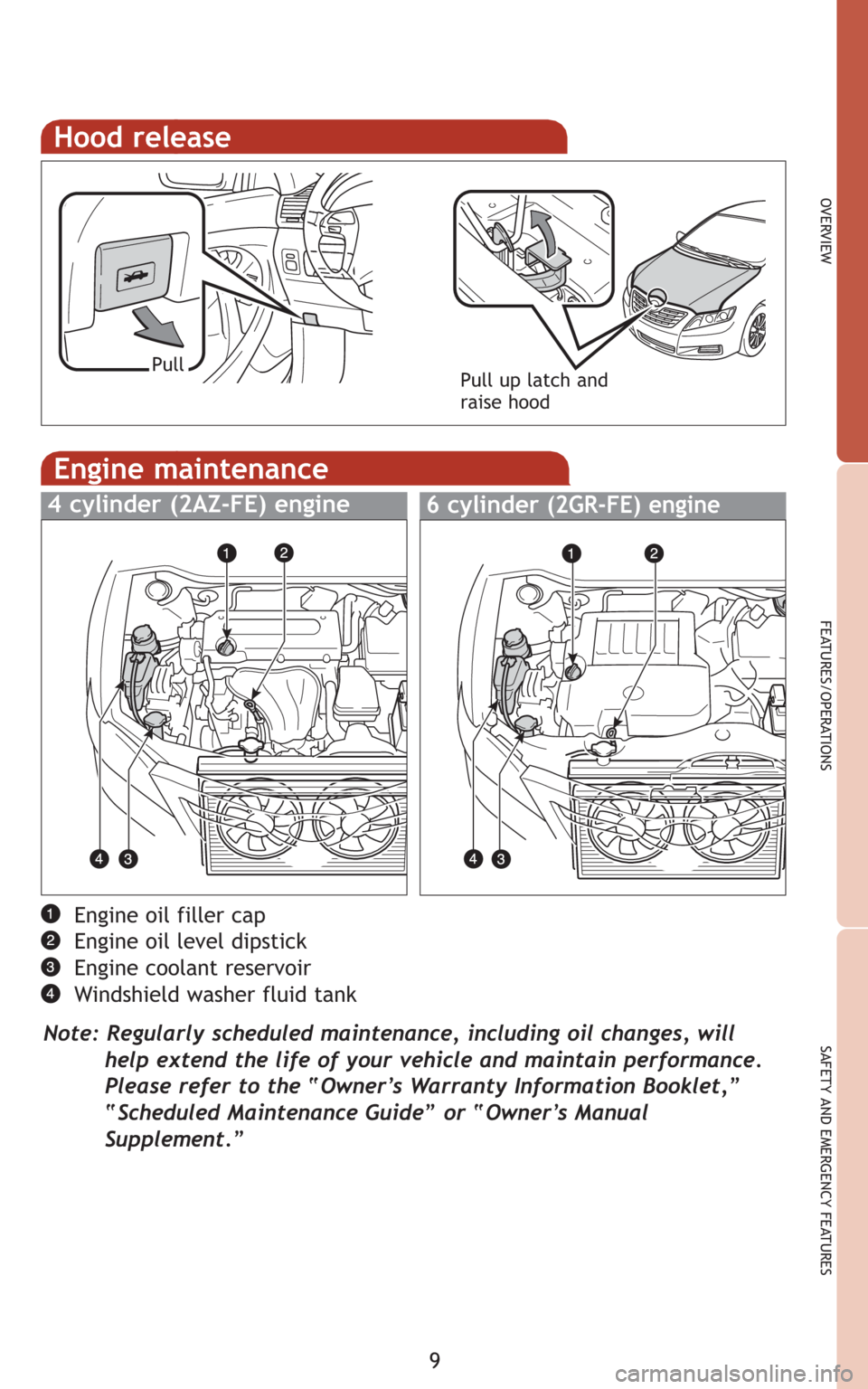

Hood release
Pull up latch and
raise hoodPull
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
4 cylinder (2AZ-FE) engine6 cylinder(2GR-FE) engine

10
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
1 The “ENGINE START STOP”/engine switch must be ON and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
4 cylinder (2AZ-FE) engine6 cylinder (2GR-FE) engine
Park1
Reverse
Neutral
Drive
N

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
Front console
Center console (LE model)
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Center console (XLE and SE model)
Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
