stop start TOYOTA CAMRY 2008 XV40 / 8.G Quick Reference Guide

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

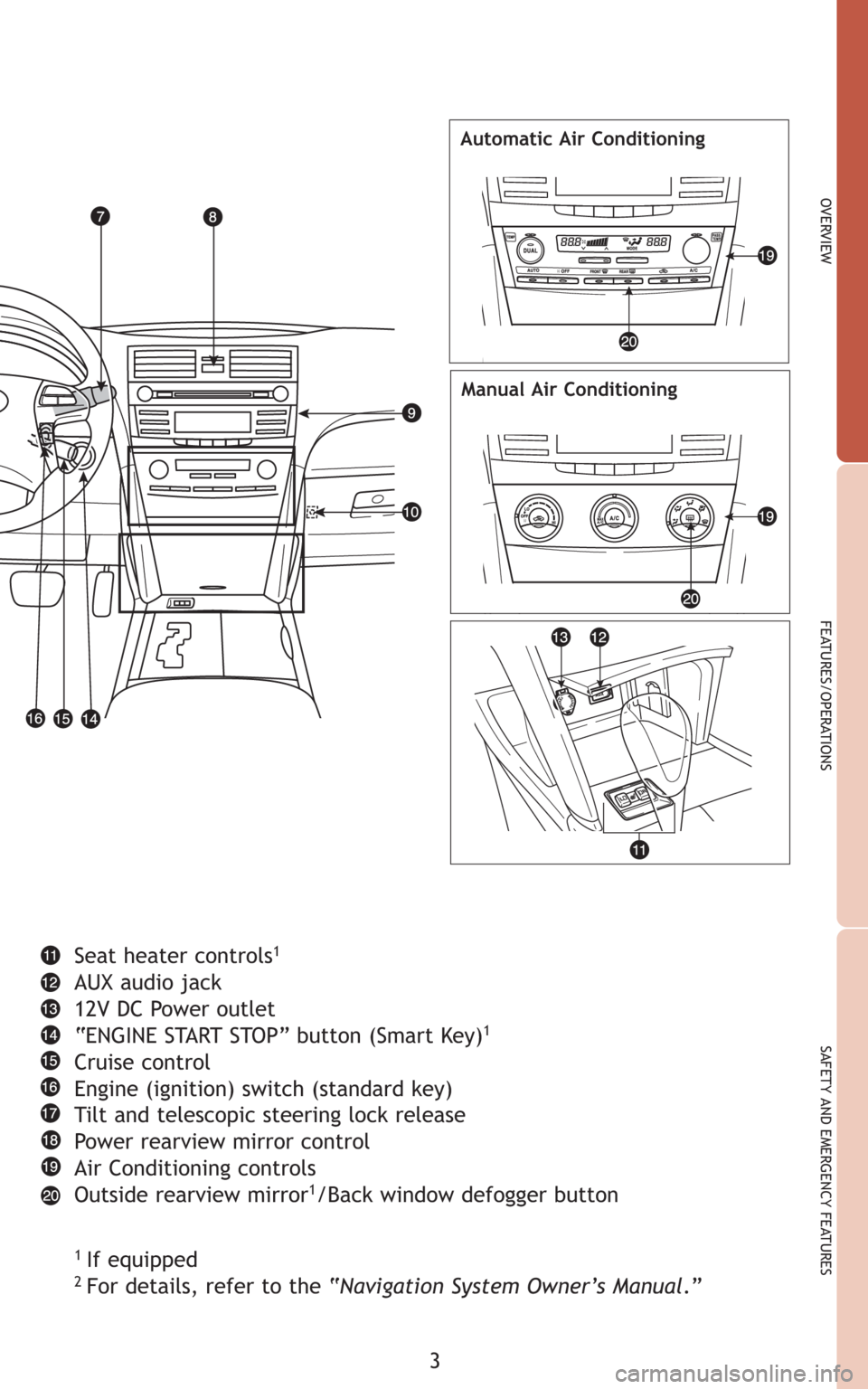

Seat heater controls1
AUX audio jack
12V DC Power outlet
“ENGINE START STOP” button (Smart Key)
1
Cruise control
Engine (ignition) switch (standard key)
Tilt and telescopic steering lock release
Power rearview mirror control
Air Conditioning controls
Outside rearview mirror
1/Back window defogger button
1If equipped2For details, refer to the “Navigation System Owner’s Manual.”
Automatic Air Conditioning
Manual Air Conditioning

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system* (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Locking/Unlocking operation
Carry remote
to lock/unlock
Push
Unlocking
front door*
GraspLocking front door
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Opening trunk
Push

10
FEATURES/OPERATIONS

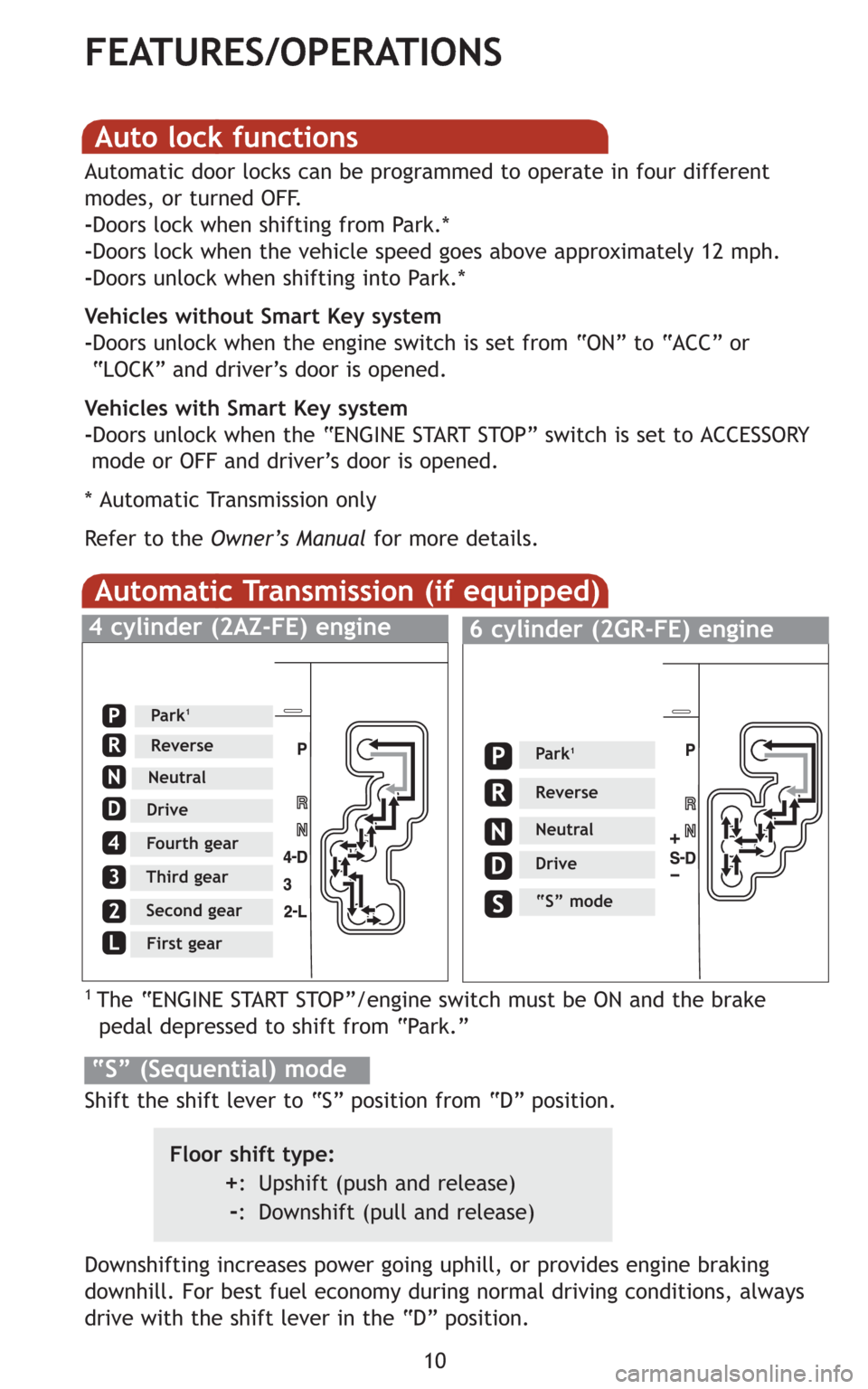

Automatic Transmission (if equipped)
1 The “ENGINE START STOP”/engine switch must be ON and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
4 cylinder (2AZ-FE) engine6 cylinder (2GR-FE) engine
Park1
Reverse
Neutral
Drive
N

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

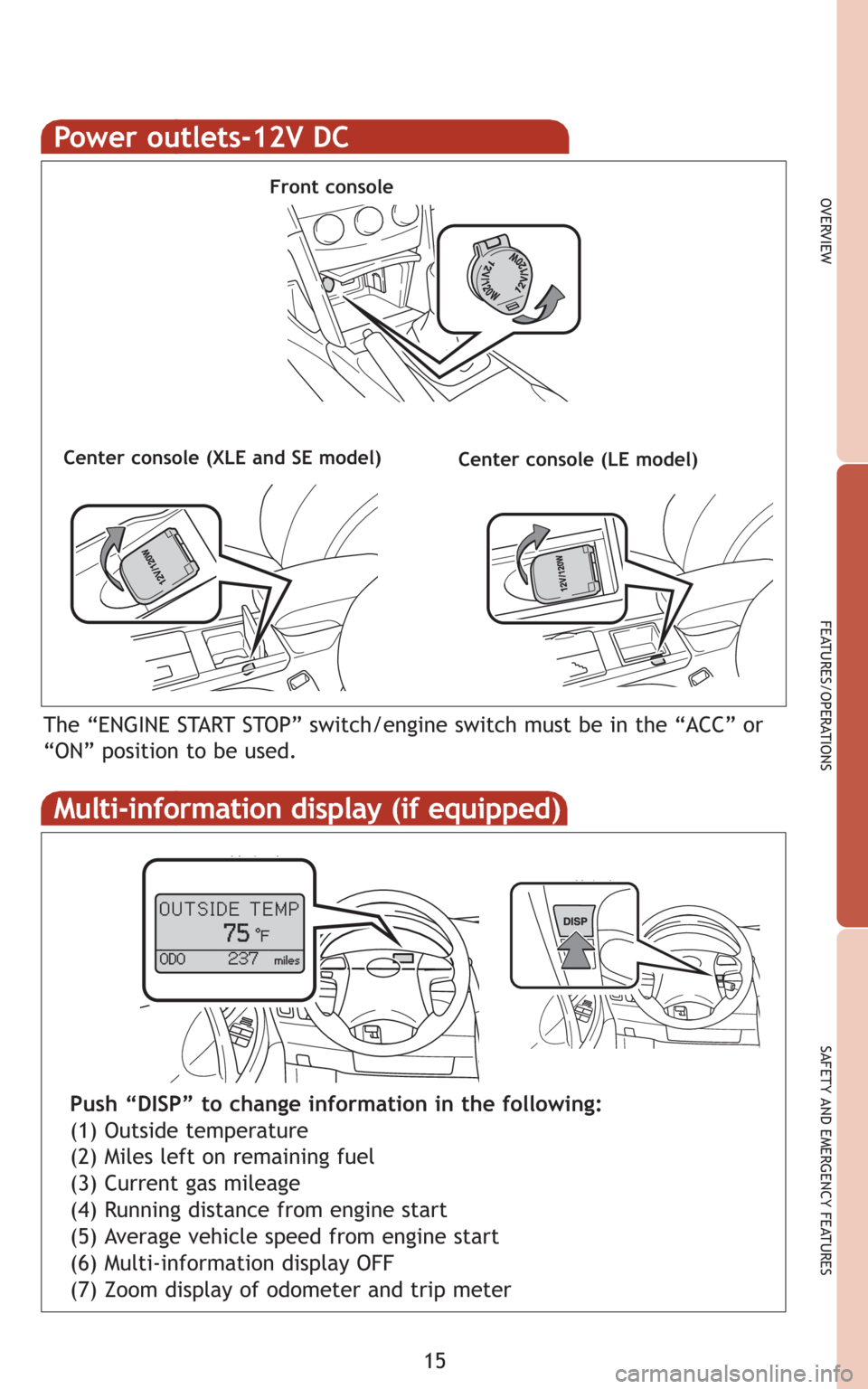

Power outlets-12V DC
Front console
Center console (LE model)
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Center console (XLE and SE model)
Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
