trunk release TOYOTA CAMRY 2008 XV40 / 8.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2008 Camry Quick Reference Guide
Engine maintenance 9Fuel tank door release and cap8Hood release 9Indicator symbols 5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel8
Smart Key system1,27
Air Conditioning/Heating18-19Audio 20-21Auto lock functions210Automatic Transmission 10Clock 18Cruise control 16Cup holders 22Garage door opener (HomeLink®)316Lights1& turn signals 14Moonroof 12Multi-information display15Parking brake 11Power outlets-12V DC 15Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 19Seats-Head restraints 12Steering lock release 11Steering wheel switches 21Sunshade-Rear 17Te l e p h o n e controls (Bluetooth®)17Tilt and telescopic steering wheel 11Windows-Power 12
Windshield wipers & washers 14
Child comfort guide24Door locks 23Doors-Child safety locks 23Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Warning System reset 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

25

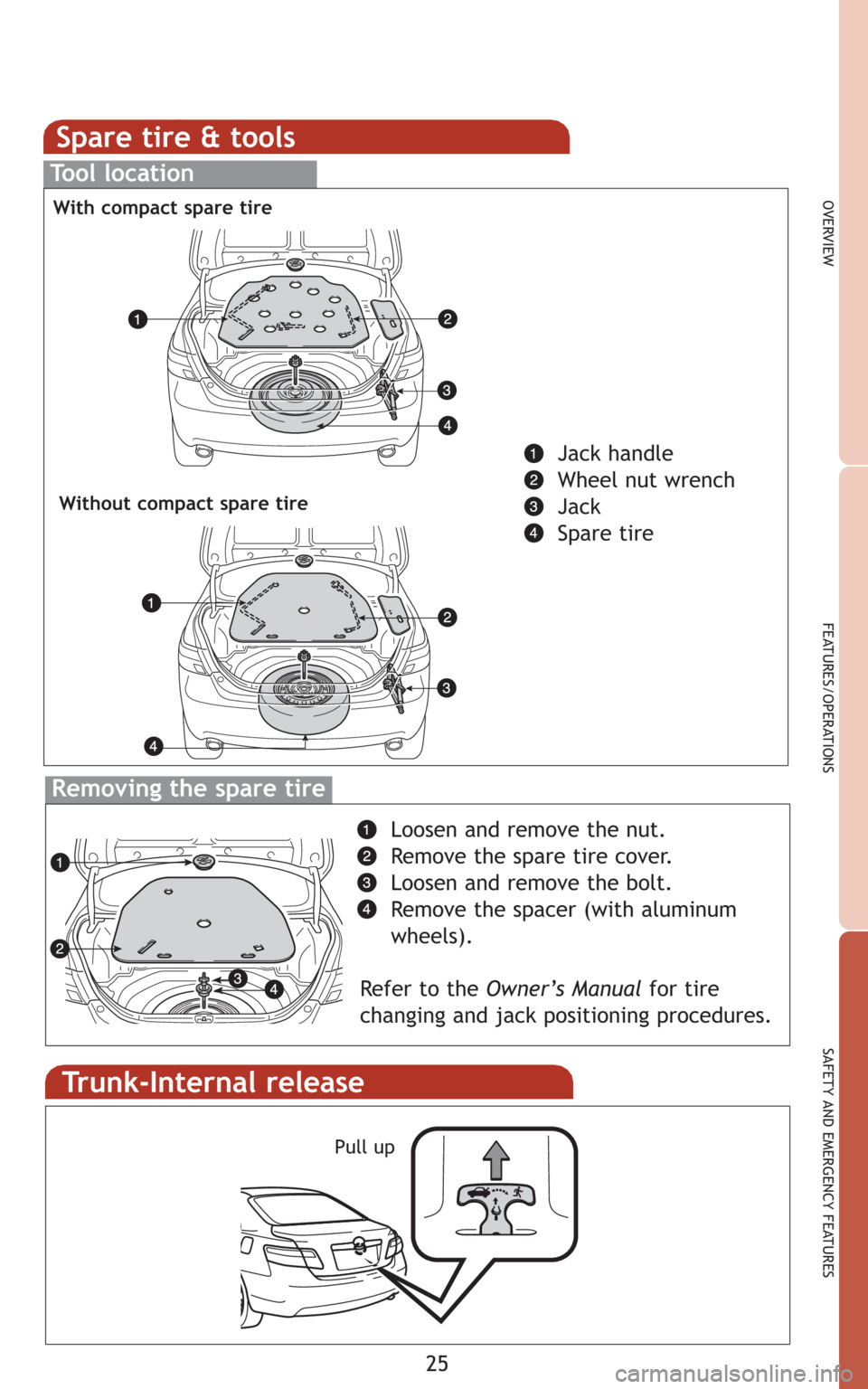

Spare tire & tools
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Tool location
Jack handle
Wheel nut wrench
Jack
Spare tire
With compact spare tire
Without compact spare tire
Removing the spare tire
Loosen and remove the nut.
Remove the spare tire cover.
Loosen and remove the bolt.
Remove the spacer (with aluminum
wheels).
Refer to the Owner’s Manualfor tire
changing and jack positioning procedures.
Trunk-Internal release
Pull up
