stop start TOYOTA CAMRY 2013 XV50 / 9.G Manual PDF

5
When trouble arises
459
5-2. Steps to take in an emergency
■
Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 391)
■ Changing “ENGINE START STOP” switch modes
Release the brake pedal and press the “ENGINE START STOP” switch in
above.
The engine does not start and modes will be changed each time the switch
is pressed. ( P. 150)
■ If the doors cannot be locked or unlocked by the smart key system
Lock and unlock the doors by the mechanical key or wireless remote contr\
ol.
■ When the electronic key does not work properly
●Make sure that the smart key system has not been deactivated in the
customization setting. If it is off, turn the function on.
(Customizable features P. 501)
● Check if battery-saving mode is set. If it is set, cancel the function.
( P. 3 9 )
STEP3

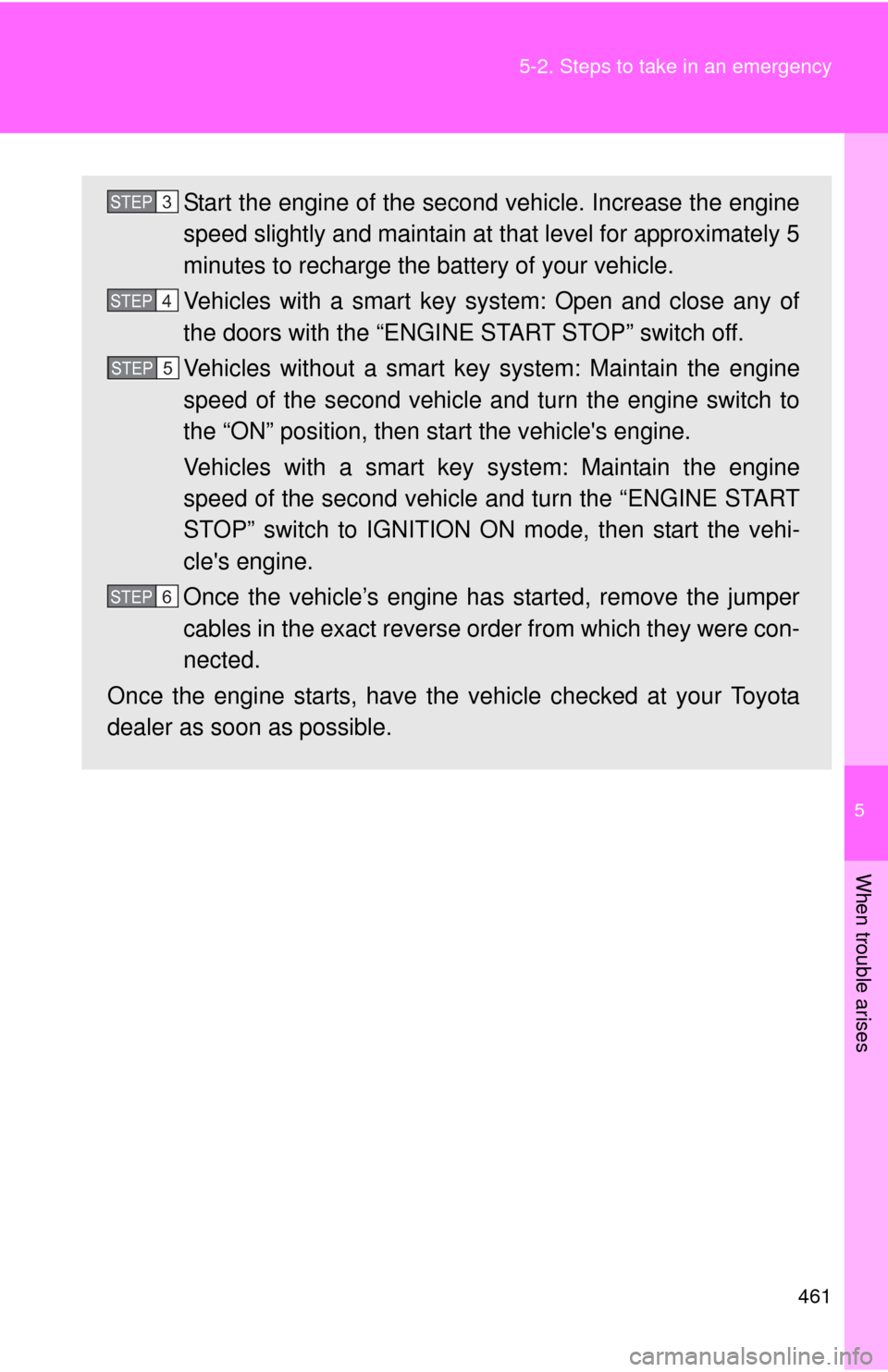

5
When trouble arises
461
5-2. Steps to take in an emergency
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at
that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with a smart key system: Open and close any of
the doors with the “ENGINE START STOP” switch off.
Vehicles without a smart key system: Maintain the engine
speed of the second vehicle and turn the engine switch to
the “ON” position, then start the vehicle's engine.
Vehicles with a smart key system: Maintain the engine
speed of the second vehicle and turn the “ENGINE START
STOP” switch to IGNITION ON mode, then start the vehi-
cle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse or der from which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.STEP3
STEP4
STEP4STEP5
STEP6

462 5-2. Steps to take in an emergency
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.
■ Precautions when the battery is discharged (vehicles with a smart key
system)
●In some cases, it may not be possible to unlock the doors using the smart
key system when the battery is discharged. Use the wireless remote con-
trol or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has
recharged but will start normally after the second attempt. This is not a
malfunction.
● The “ENGINE START STOP” switch mode is memorized by the vehicle.
When the battery is reconnected, the system will return to the mode it
was in before the battery was discharged. Before disconnecting the bat-
tery, turn the “ENGINE START STOP” switch off.
If you are unsure what mode the “ENGINE START STOP” switch was in
before the battery discharged, be especially careful when reconnecting
the battery.
■ When the battery is removed or discharged
Make sure that the key is not inside the vehicle when recharging or replacing
the battery. The key may be locked in the vehicle if the alarm is activated.
(P. 98)

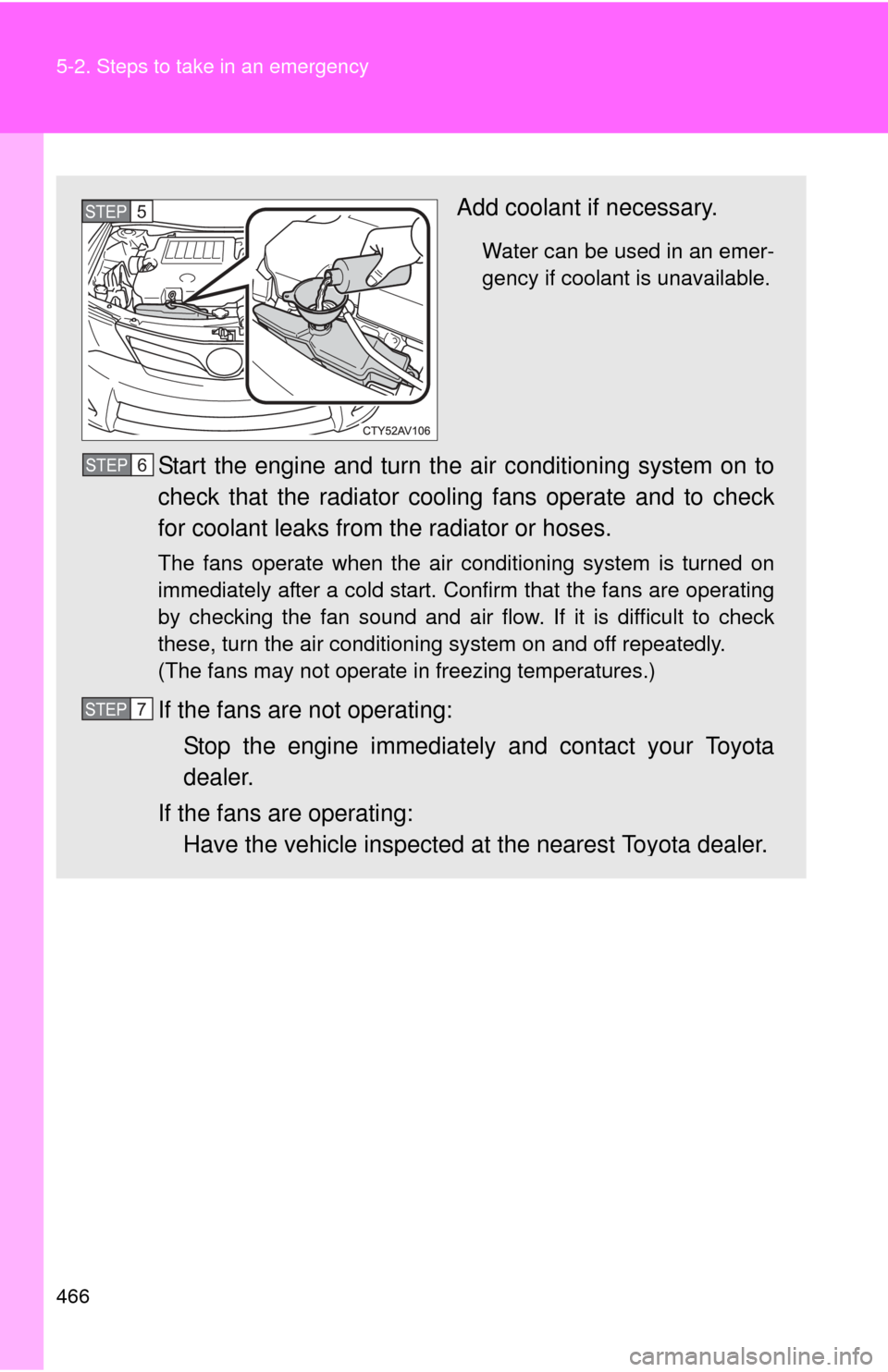

466 5-2. Steps to take in an emergency
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to
check that the radiator cooling fans operate and to check
for coolant leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on
immediately after a cold start. Confirm that the fans are operating
by checking the fan sound and air flow. If it is difficult to check
these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Toyota
dealer.
If the fans are operating: Have the vehicle inspected at the nearest Toyota dealer.
STEP5
STEP6
STEP7

468
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damage to the transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Stop the engine. Set the parki ng brake and shift the shift
lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the engine.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC if this function is hampering your attempts to free
the vehicle. ( P. 205)
STEP1
STEP2
STEP3
STEP4
STEP5

470 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the “ENGINE START
STOP” switch for 2 consecu-
tive seconds or more, or press
it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.STEP4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP5

505
6-2. Customization
6
Vehicle specifications
Illumination
(
P. 292)
Time elapsed
before lights
turn off
15 seconds Off
—O O
7.5 seconds
30 seconds
Operation
when the doors
are unlocked On Off — — O
Vehicles with-
out smart key
system: Opera-
tion after the
engine switch
turned to the
“LOCK” posi-
tion
Vehicles with
smart key sys-
tem: Operation
after the
“ENGINE
START STOP”
switch turned
off On Off — — O
Operation
when you
approach the
vehicle with the
electronic key
on your per-
son
*2
On Off — — O
Seat belt
reminder
(
P. 429) Vehicle speed
linked seat belt
reminder
buzzer
On Off — — O
ItemFunctionDefault set-
tingCustomizedsetting

529
Alphabetical index
Electric power steering........... 204
Electronic key
If the electronic key does not operate properly ........... 457
Emergency flashers
Switch ................................... 420
Emergency, in case of If a warning light turns on ..... 426
If the electronic key does
not operate properly ........... 457
If the engine will not start...... 453
If the shift lever cannot be
shifted from P ..................... 455
If the vehicle has
discharged battery ............. 460
If the warning buzzer sounds ............................... 426
If you have a flat tire ............ 441
If you lose your keys............. 456
If you think something is wrong ................................. 424
If your vehicle becomes stuck................................... 468
If your vehicle has to be stopped in an emergency... 469
If your vehicle needs to
be towed ............................ 421
If your vehicle overheats ...... 465 Engine
Compartment ........................362
Engine switch ................145, 148
Hood......................................359
How to start the
engine .........................145, 148
Identification number .............472
If the engine will not start ......453
Ignition switch................145, 148
Overheating...........................465
Engine coolant
Capacity ................................478
Checking ...............................369
Preparing and checking before winter .......................224
Engine coolan t temperature
display ....................................170
Engine immobilizer system.......93
Engine oil Capacity ................................476
Checking ...............................364
Preparing and checking before winter .......................224
Engine switch light ..................292
EPS ............................................204
Event data recorder ...................22E

533
Alphabetical index
Seats
Adjustment ............................. 62
Adjustment precautions .......... 64
Child seats/child restraint system installation.............. 123
Cleaning ............................... 345
Head restraint ......................... 67
Properly sitting in the seat ...... 99
Rear seat folding down........... 65
Seat heaters ......................... 314
Service reminder
indicators .............................. 180
Shift lever Automatic
transmission ............... 155, 159
If the shift lever cannot be shifted from P ................ 455
Shift lock system..................... 455
Side airbags ............................. 101
Side marker lights Replacing light bulbs ............ 408
Switch ................................... 186
Wattage ................................ 483
Side mirror Adjusting and folding .............. 79
Defogger............................... 246
Smart key system Entry function ......................... 32
Starting the engine ............... 148
Spare tire Inflation pressure .................. 382
Storage location ................... 441
Spark plug................................ 478
Specifications .......................... 472
Speedometer ........................... 170 Steering
Column lock release......146, 152
Steering wheel Adjustment ..............................76
Stop lights
Replacing light bulbs .............408
Wattage .................................483
Storage feature.........................296
Storage precautions ................219
Stuck If your vehicle becomes
stuck ...................................468
Sun visors.................................305
Sunshade Roof.........................................85
Switch Emergency flasher switch .....420
Engine switch ................145, 148
Fog light switch .....................193
Hazard light switch ................420
Ignition switch................145, 148
Light switches........................186
Power door lock switch ...........52
Power window switch ..............81
Window lock switch .................81
Wiper and washer switch ......195
