cruise control TOYOTA CAMRY 2013 XV50 / 9.G Owners Manual

1
2
3
4
5
6
7
3
2-2. Instrument clusterGauges and meters ............ 170
Indicators and warning lights ................................. 180
2-3. Operating the lights and wipers
Headlight switch .................. 186
Fog light switch ................... 193
Windshield wipers and washer .............................. 195
2-4. Using other driving systems
Cruise control ...................... 200
Driving assist systems ........ 204
BSM (Blind Spot Monitor) ... 209
2-5. Driving information Cargo and luggage ............. 219
Vehicle load limits ............... 223
Winter driving tips ............... 224
Trailer towing ...................... 228
Dinghy towing ..................... 229 3-1. Using the air conditioning
system and defogger
Manual air conditioning system .............................. 232
Automatic air conditioning system .............................. 239
Rear window and outside rear view mirror
defoggers ......................... 246
3-2. Using the audio system Audio system types ............ 248
Using the radio ................... 253
Using the CD player ........... 256
Playing back MP3 and WMA discs ....................... 262
Operating an iPod .............. 270
Operating a USB memory ............................ 279
Optimal use of the audio system .............................. 287
Using the AUX port............. 290
3-3. Using the interior lights Interior lights list ................. 292
• Interior lights..................... 293
• Personal lights.................. 294
3Interior features

15
B
Telephone switches , *1, *2
Type A
Audio remote control switches , *1, *2
Talk switch , *1, *2
Cruise control switch P. 200
Engine (ignition) switch
(vehicles without a smart
key system)
P. 145
: If equipped
*1: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
*2: For vehicles with a Display Audio system, refer to “Display Audio System Owner’s Manual”.

16
B
Engine (ignition) switch
(vehicles without a smart
key system)
P. 145
Telephone switches *4
Pictorial indexInstrument panel
Type B
Paddle shift switches P. 162
Audio remote control
switches *4
Cruise control switch P. 200
Talk switch , *4

20
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system /sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.

When driving2
133
2-1. Driving proceduresDriving the vehicle............ 134
Engine (ignition) switch (vehicles without a
smart key system).......... 145
Engine (ignition) switch (vehicles with a smart
key system).................... 148
Automatic transmission (vehicles without paddle
shift switches) ................ 155
Automatic transmission (vehicles with paddle
shift switches) ................ 159
Turn signal lever .............. 166
Parking brake ................... 168
Horn ................................. 169
2-2. Instrument cluster Gauges and meters ......... 170
Indicators and warning lights .............................. 180
2-3. Operating the lights and wipers
Headlight switch ............... 186
Fog light switch ................ 193
Windshield wipers and washer ........................... 195 2-4. Using other driving
systems
Cruise control ................... 200
Driving assist systems ..... 204
BSM (Blind Spot Monitor) ....... 209
2-5. Driving information Cargo and luggage .......... 219
Vehicle load limits ............ 223
Winter driving tips ............ 224
Trailer towing ................... 228
Dinghy towing .................. 229

158 2-1. Driving procedures
■When driving with cruise control activated
Even when performing the following actions with the intent of enabling
engine braking, engine braking will not activate while driving in S mode and
downshifting to 5 or 4 because cruise control will not be canceled. ( P. 200)
■ If the shift lever cannot be shifted from P
P. 455
■ If the “S” indicator does not come on or the “D” indicator is displayed
even after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■ Downshift restriction wa rning buzzer (S mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
CAUTION
■ When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.

164 2-1. Driving procedures
■S mode
●When the shift range is “4” or lower, holding the shift lever toward “+” sets
the shift range to “6”.
● To prevent the engine from over-revving, upshifting may automatically
occur.
● To protect the automatic transmission, a function is adopted that auto-
matically shifts to the top range when the temperature is too hot.
■ AI-SHIFT
AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position.
(Shifting the shift lever to the S position cancels the function.)
■ When driving with cruise control activated
Even when performing the following actions with the intent of enabling
engine braking, engine braking will not activate while driving in D or S mode
and downshifting to 5 or 4 because cruise control will not be canceled.
(P. 200)
■ If the shift lever cannot be shifted from P
P. 455
■ If the “S” indicator does not come on or the “D” indicator is displayed
even after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■ Downshift restriction warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)

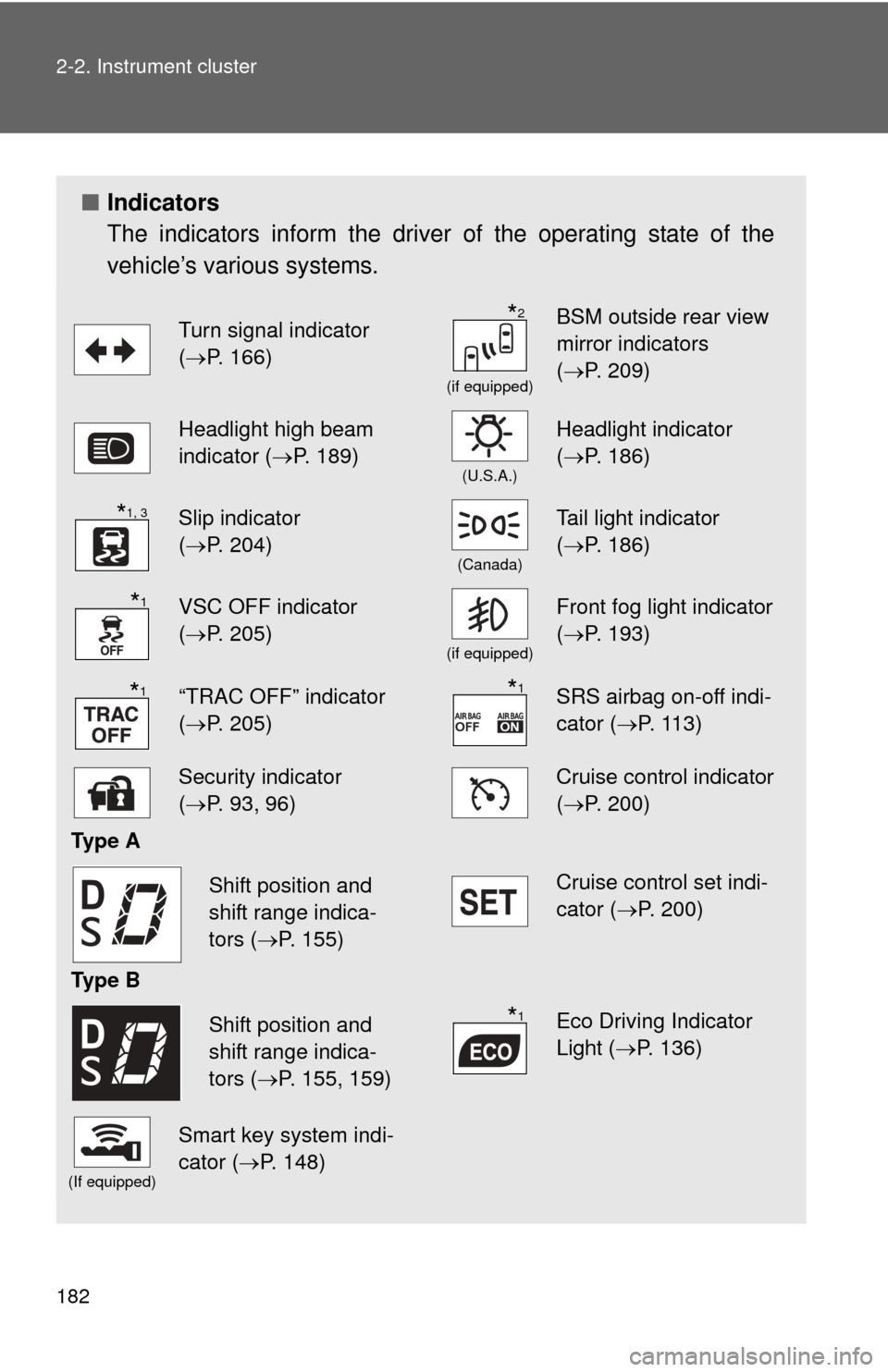

182 2-2. Instrument cluster
■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 166)
(if equipped)
BSM outside rear view
mirror indicators
( P. 209)
Headlight high beam
indicator ( P. 189)
(U.S.A.)
Headlight indicator
(P. 186)
Slip indicator
(P. 204)
(Canada)
Tail light indicator
( P. 186)
VSC OFF indicator
(P. 205)
(if equipped)
Front fog light indicator
( P. 193)
“TRAC OFF” indicator
(P. 205)SRS airbag on-off indi-
cator (P. 113)
Security indicator
(P. 93, 96)Cruise control indicator
( P. 200)
Ty p e A
Cruise control set indi-
cator (P. 200)
Ty p e B
Eco Driving Indicator
Light ( P. 136)
(If equipped)
Smart key system indi-
cator ( P. 148)
*2
*1, 3
*1
*1*1
Shift position and
shift range indica-
tors (P. 155)
Shift position and
shift range indica-
tors (P. 155, 159)*1

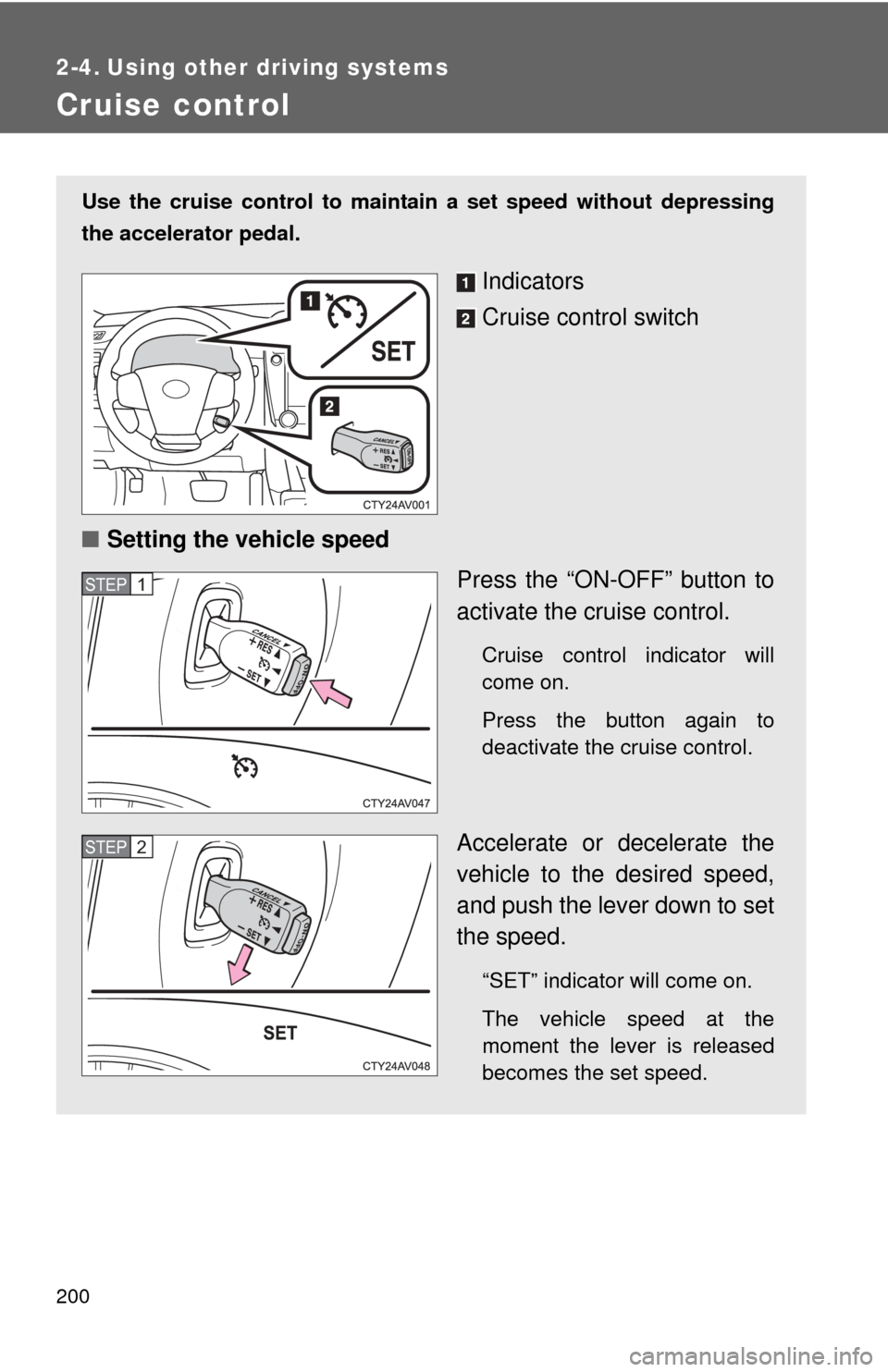

200
2-4. Using other driving systems
Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

202 2-4. Using other driving systems
■Cruise control can be set when
●The shift lever is in the D or range 4 or higher of S has been selected.
● Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
● Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
●Actual vehicle speed falls more than approximately 10 mph (16 km/h)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
■ If the cruise control indicator light comes on in yellow
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by your Toyota dealer.
