TOYOTA CAMRY 2015 XV50 / 9.G Owners Manual

4618-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33A86U)
(If equipped)

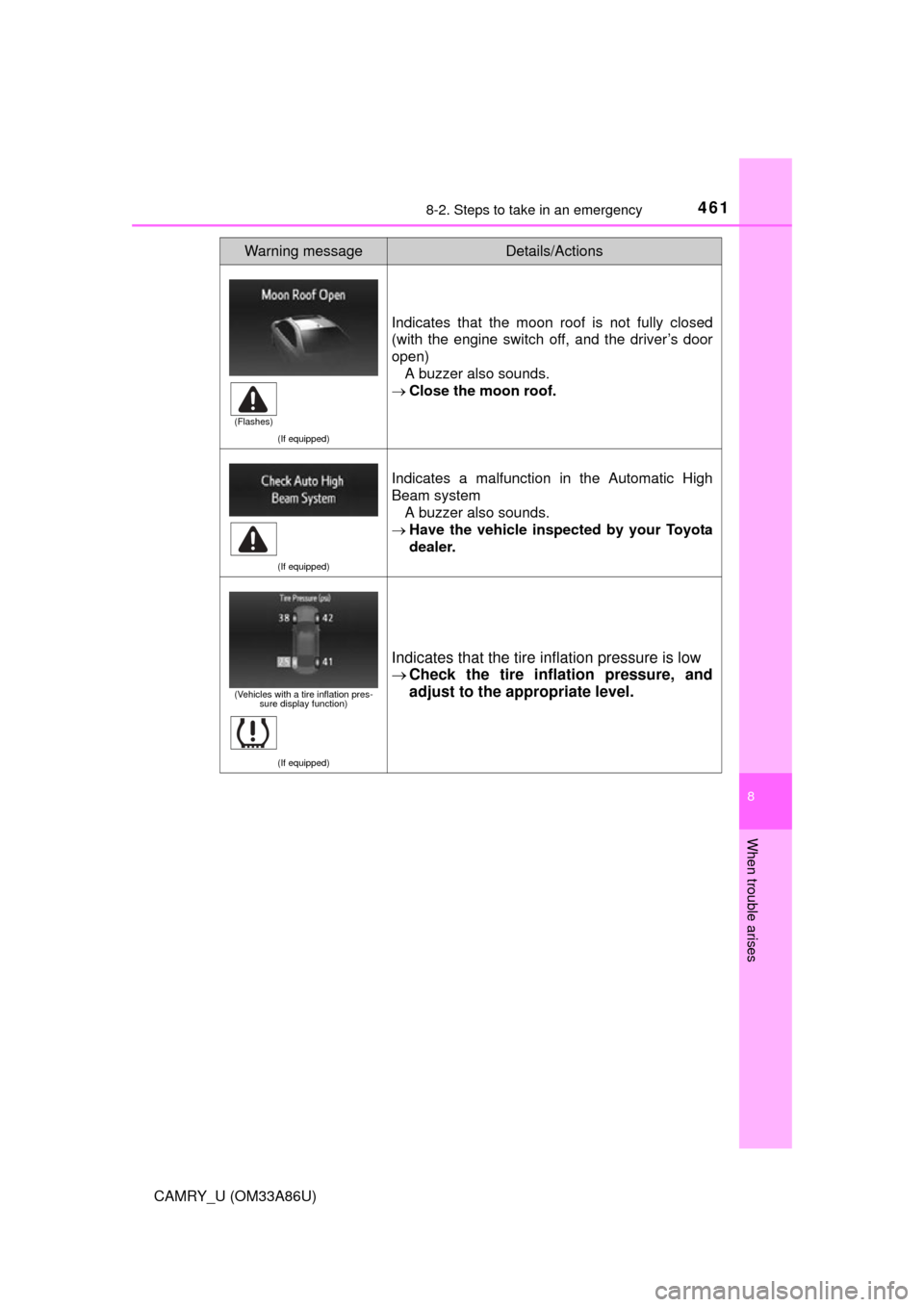

Indicates that the moon roof is not fully closed
(with the engine switch off, and the driver’s door
open)A buzzer also sounds.
 Close the moon roof.
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the tire inflation pressure is low
Check the tire inflation pressure, and
adjust to the appropriate level.
Warning messageDetails/Actions
(Flashes)
(Vehicles with a tire inflation pres-
sure display function)

4628-2. Steps to take in an emergency
CAMRY_U (OM33A86U)

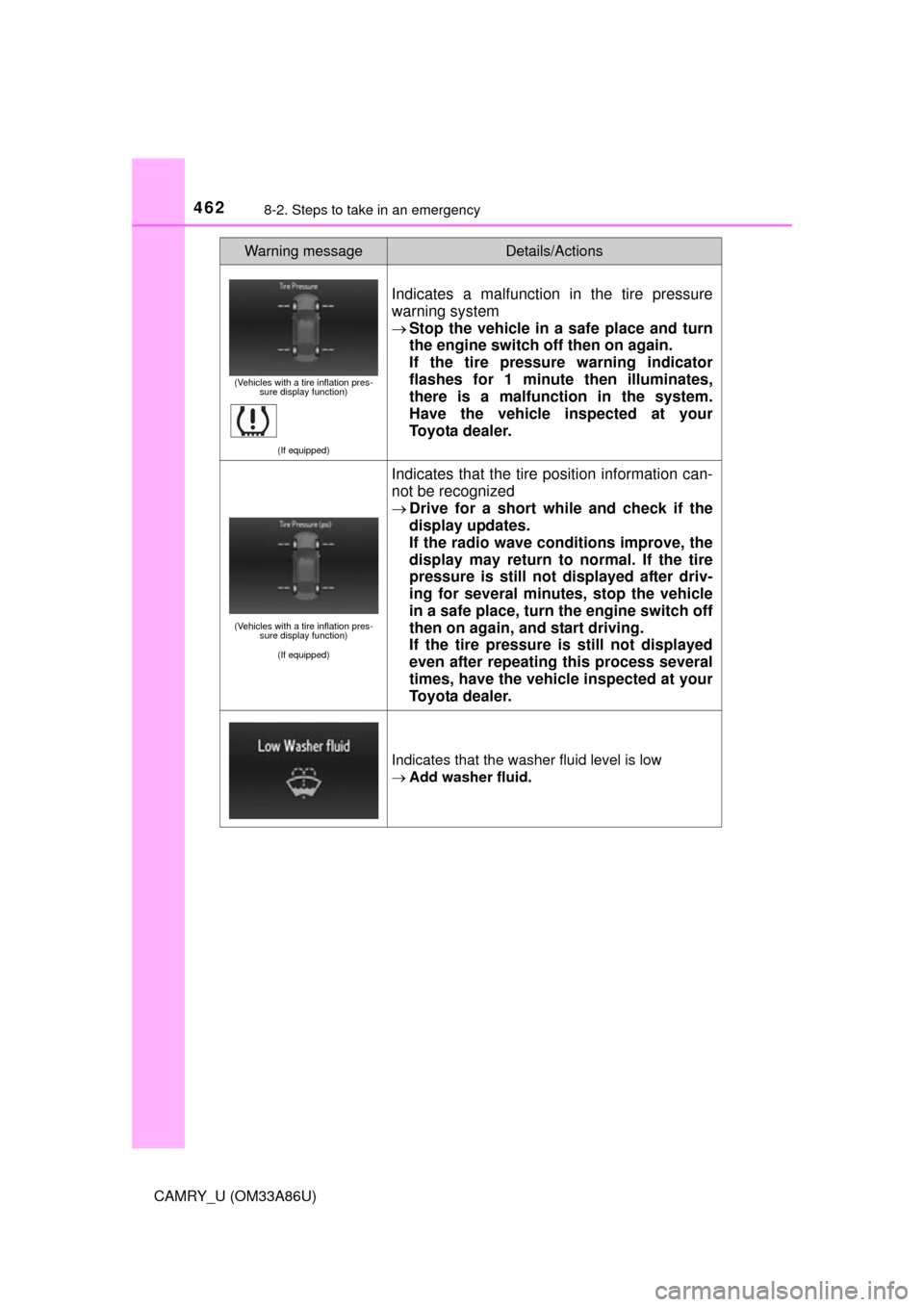

(If equipped)
Indicates a malfunction in the tire pressure
warning system
Stop the vehicle in a safe place and turn
the engine switch off then on again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
there is a malfunction in the system.
Have the vehicle inspected at your
Toyota dealer.
(If equipped)
Indicates that the tire position information can-
not be recognized
 Drive for a short while and check if the
display updates.
If the radio wave conditions improve, the
display may return to normal. If the tire
pressure is still not displayed after driv-
ing for several minutes, stop the vehicle
in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is still not displayed
even after repeating this process several
times, have the vehicle inspected at your
Toyota dealer.
Indicates that the washer fluid level is low
 Add washer fluid.
Warning messageDetails/Actions
(Vehicles with a tire inflation pres-
sure display function)
(Vehicles with a tire inflation pres-sure display function)

4638-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33A86U)
Indicates that remaining fuel is approximately 2.6
gal. (9.7 L, 2.1 Imp. gal.) or less
Refuel the vehicle.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
Turn the TRAC on. ( P. 217)
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the massage has been reset.
If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule*.
Comes on approximately 5000 miles (8000 km)
after the massage has been reset.
(The indicator will not work properly unless the
massage has been reset.)
Perform the necessary maintenance.
Please reset the massage after the mainte-
nance is performed ( P. 381)
Warning messageDetails/Actions

4648-2. Steps to take in an emergency
CAMRY_U (OM33A86U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.

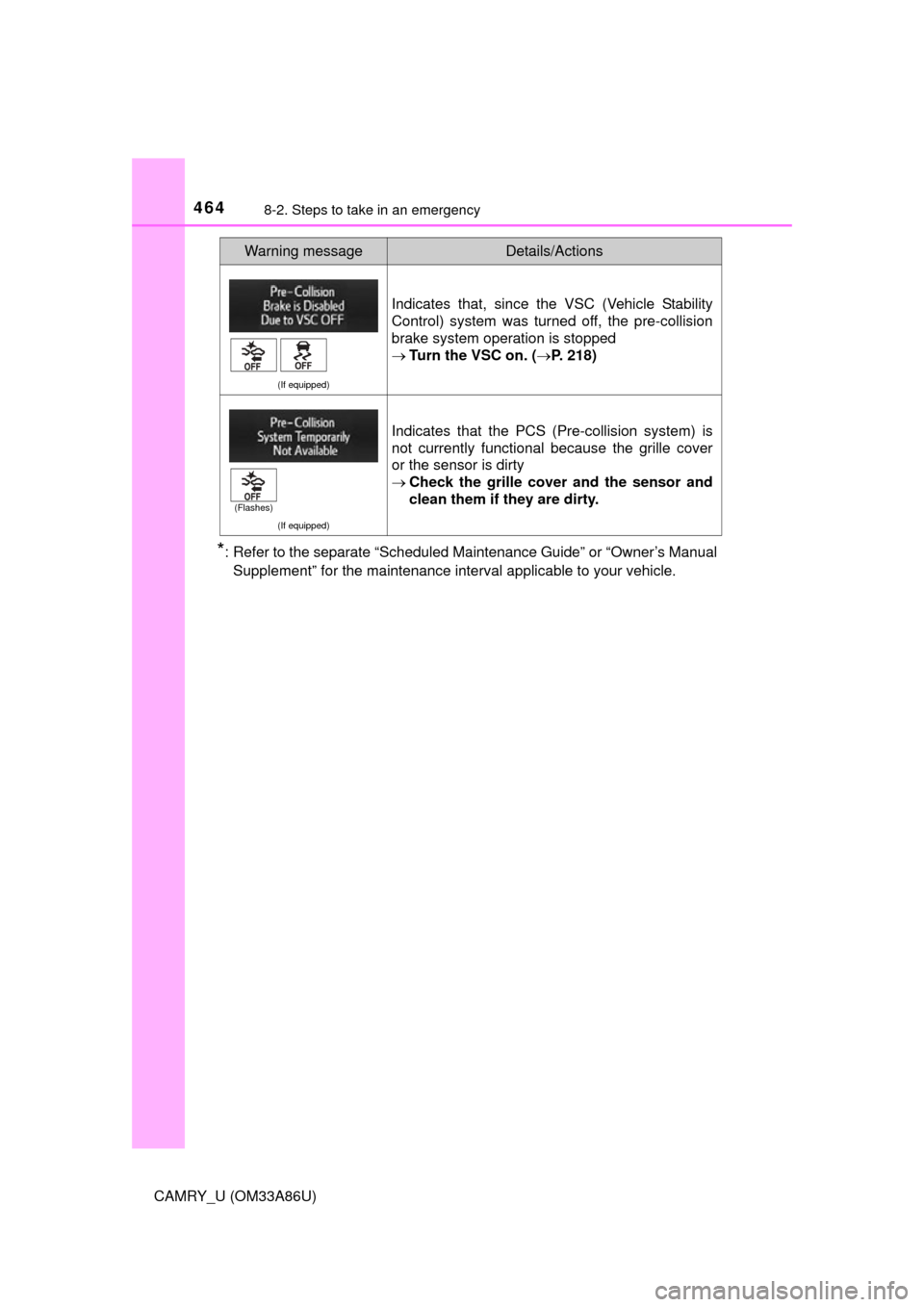

(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
 Turn the VSC on. ( P. 218)
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
(Flashes)

4658-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33A86U)
■Warning message in dynamic radar cr uise control mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ The LDA (Lane Departure Alert) lane departure warning function (if
equipped)
In the following situations, a warning message will not be displayed even if a
lane line is crossed.
● When the vehicle speed deviates from the operating range of the LDA sys-
tem functions
● When the lane lines cannot be recognized
■
When a tire is replaced with the spare tire
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function
properly (vehicles with a tire pressure warning system)
 P. 4 0 8
■Warning buzzer
P. 452

4668-2. Steps to take in an emergency
CAMRY_U (OM33A86U)
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart key system)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions
Con-
tinu-
ous  The driver’s door was opened
when the shift lever was not in
P and the engine switch was
not turned off.

Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
engine switch was not turned
off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
(Flashes)
(Displayed alternately)
(Flashes)

4678-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33A86U)

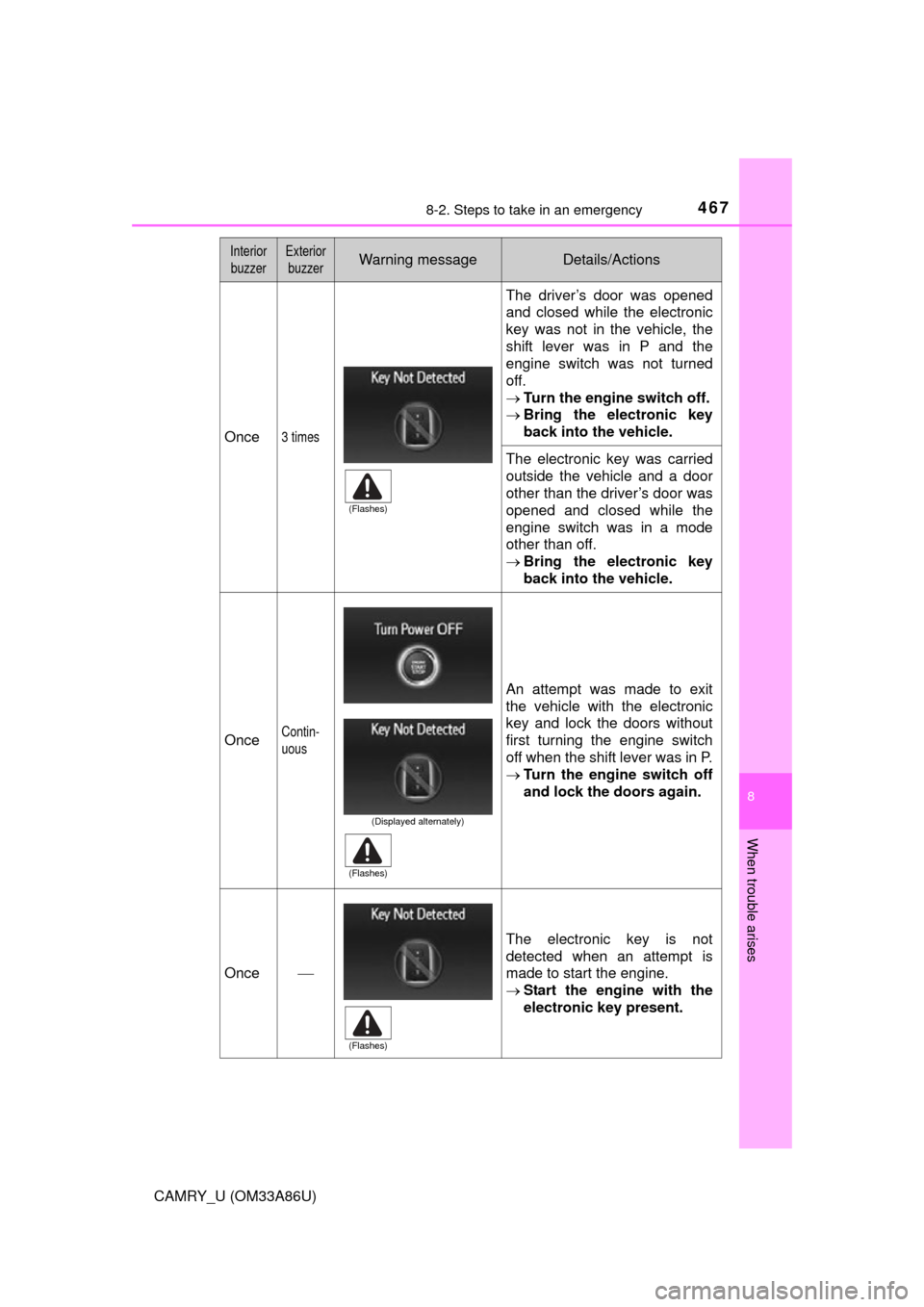

Once3 times
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P and the
engine switch was not turned
off.
Turn the engine switch off.
 Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
OnceContin-
uous
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off when the shift lever was in P.
Turn the engine switch off
and lock the doors again.
Once
The electronic key is not
detected when an attempt is
made to start the engine.
Start the engine with the
electronic key present.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

4688-2. Steps to take in an emergency
CAMRY_U (OM33A86U)
9
times

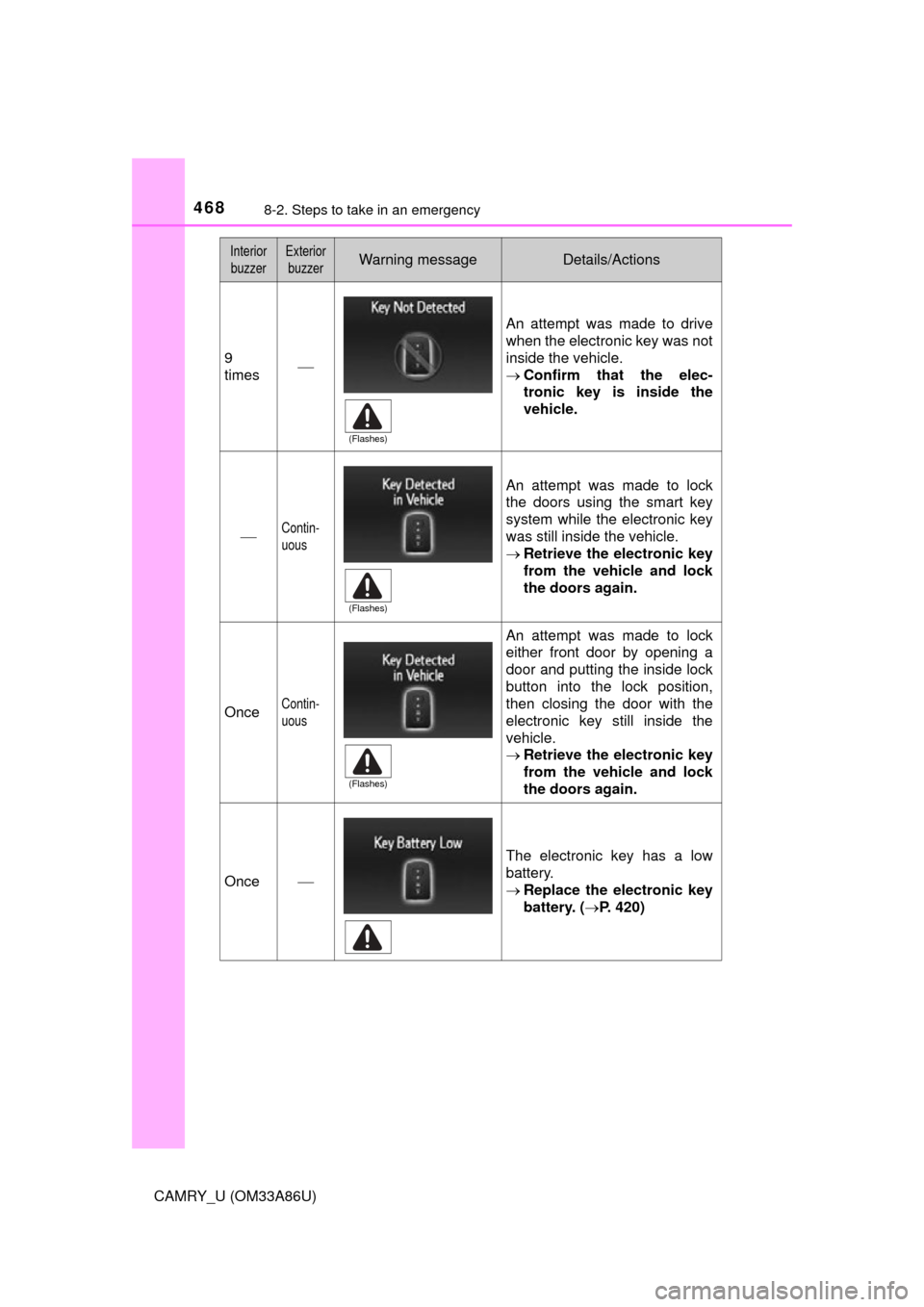

An attempt was made to drive
when the electronic key was not
inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
OnceContin-
uous
An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door with the
electronic key still inside the
vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 420)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

4698-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33A86U)
Once

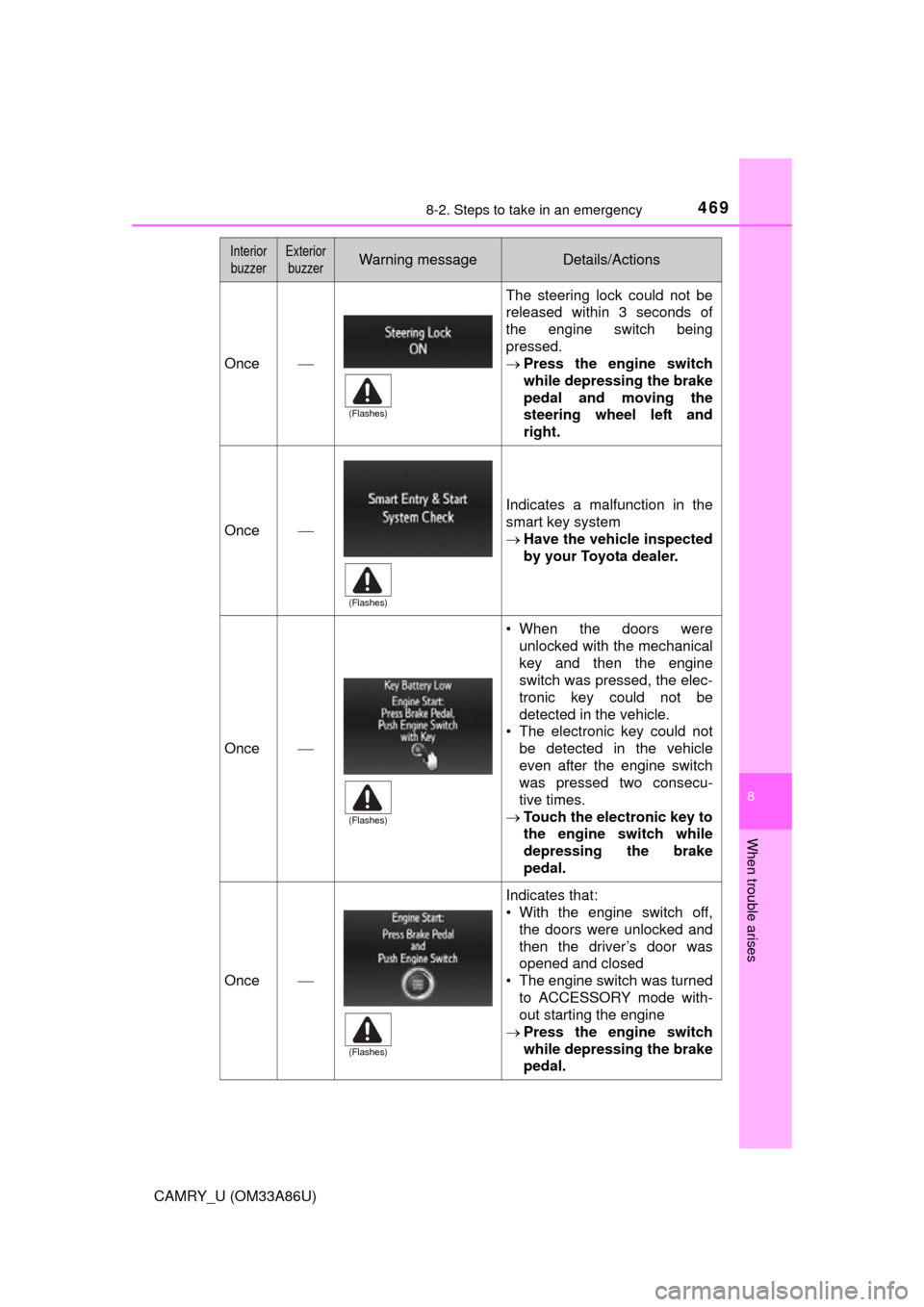

The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once
Indicates a malfunction in the
smart key system
Have the vehicle inspected
by your Toyota dealer.
Once
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the engine switch while
depressing the brake
pedal.
Once
Indicates that:
• With the engine switch off,
the doors were unlocked and
then the driver’s door was
opened and closed
• The engine switch was turned
to ACCESSORY mode with-
out starting the engine
 Press the engine switch
while depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

4708-2. Steps to take in an emergency
CAMRY_U (OM33A86U)

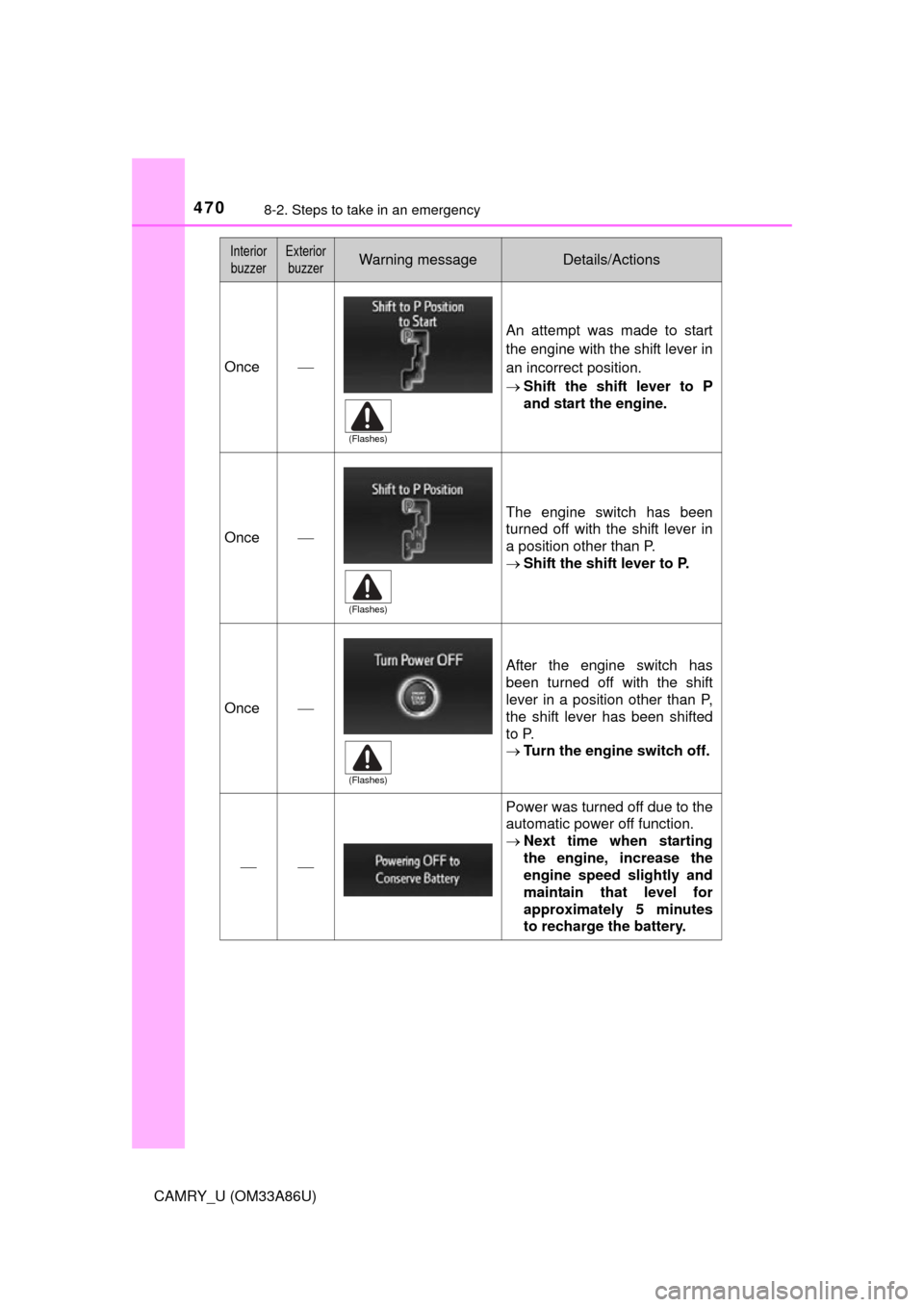

Once
An attempt was made to start
the engine with the shift lever in
an incorrect position.
Shift the shift lever to P
and start the engine.
Once
The engine switch has been
turned off with the shift lever in
a position other than P.
Shift the shift lever to P.
Once
After the engine switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
Turn the engine switch off.

Power was turned off due to the
automatic power off function.
Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
