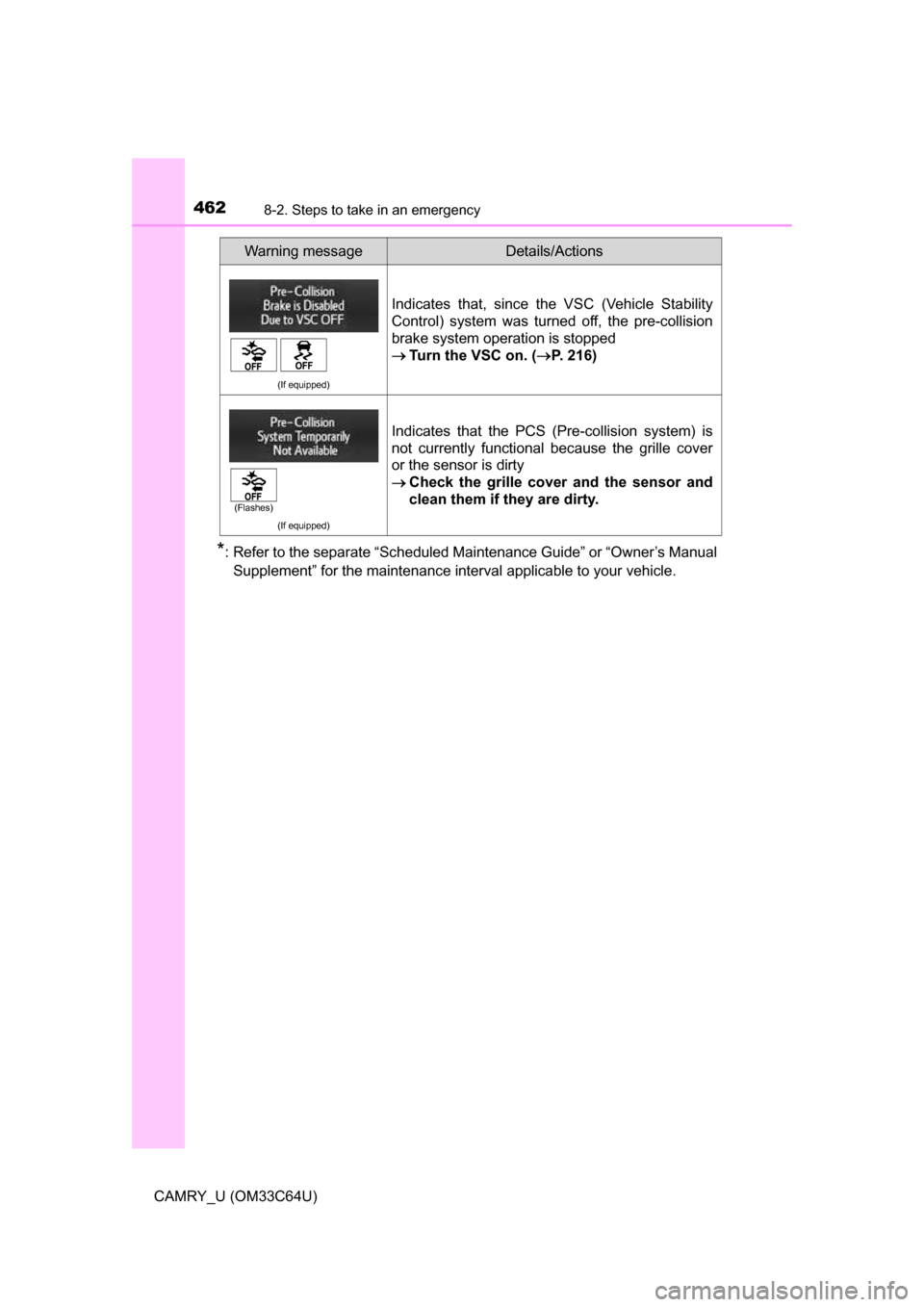

4628-2. Steps to take in an emergency
CAMRY_U (OM33C64U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
 Turn the VSC on. ( P. 216)
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
 Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
(Flashes)

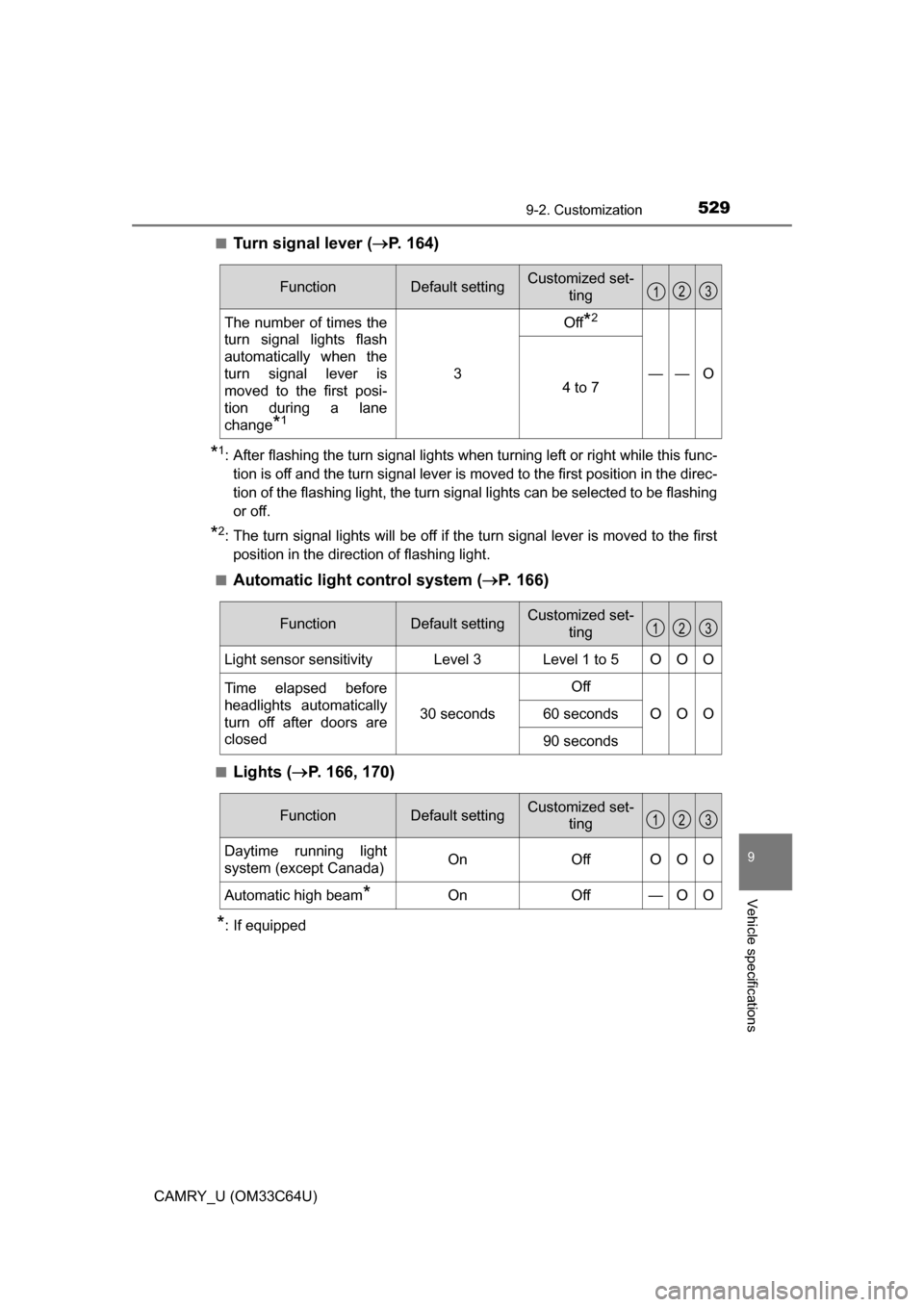

5299-2. Customization
9
Vehicle specifications
CAMRY_U (OM33C64U)■
Turn signal lever (
P. 164)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
■
Automatic light control system ( P. 166)
■Lights ( P. 166, 170)
*: If equipped
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O4 to 7
123
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityLevel 3Level 1 to 5OOO
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OOO60 seconds
90 seconds
123
FunctionDefault settingCustomized set-ting
Daytime running light
system (except Canada)OnOffOOO
Automatic high beam*OnOff—OO
123

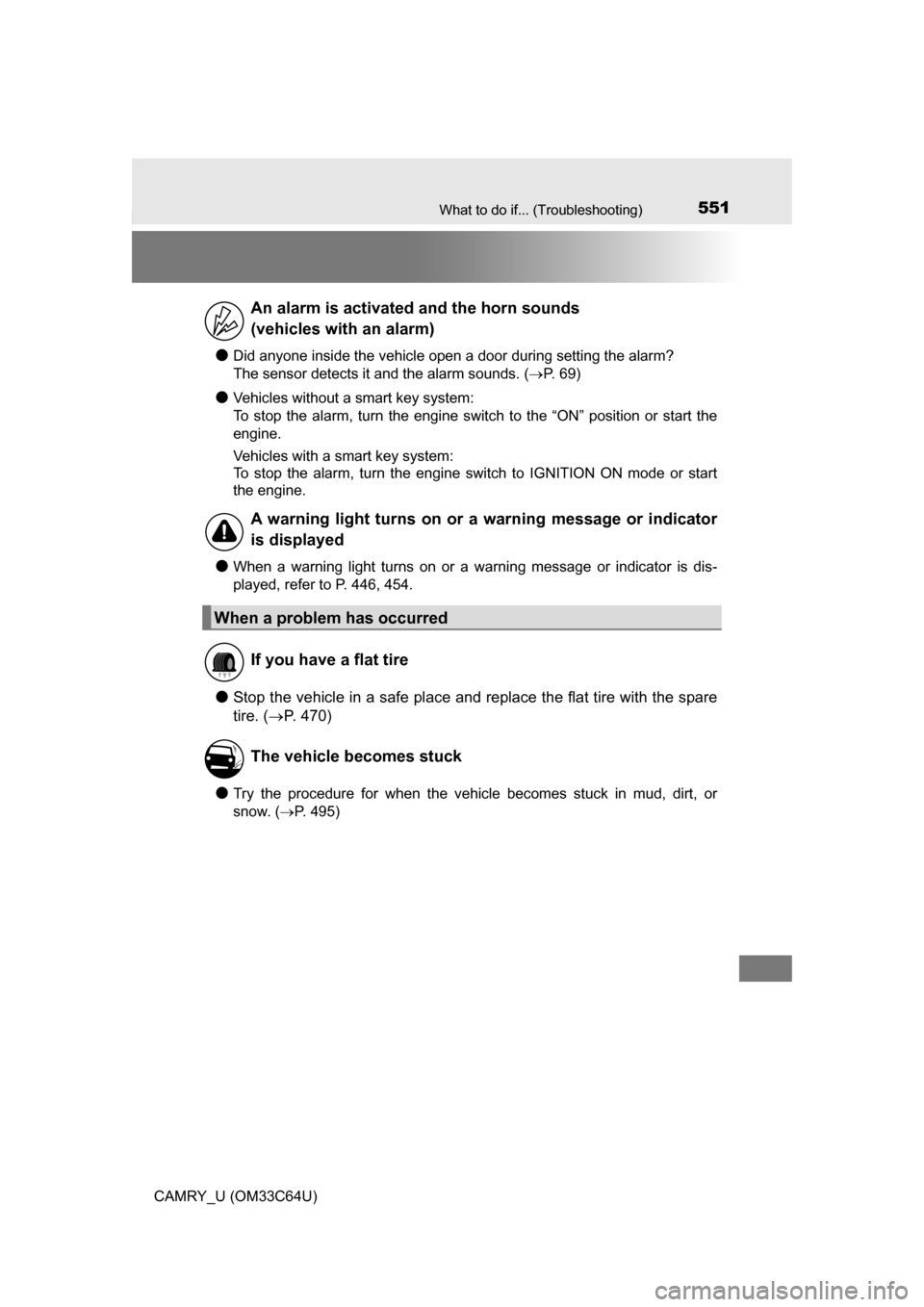

551What to do if... (Troubleshooting)
CAMRY_U (OM33C64U)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 69)
●Vehicles without a smart key system:
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart key system:
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
●When a warning light turns on or a warning message or indicator is dis-
played, refer to P. 446, 454.
●Stop the vehicle in a safe place and replace the flat tire with the spare
tire. ( P. 470)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 495)
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning light turns on or a warning message or indicator
is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

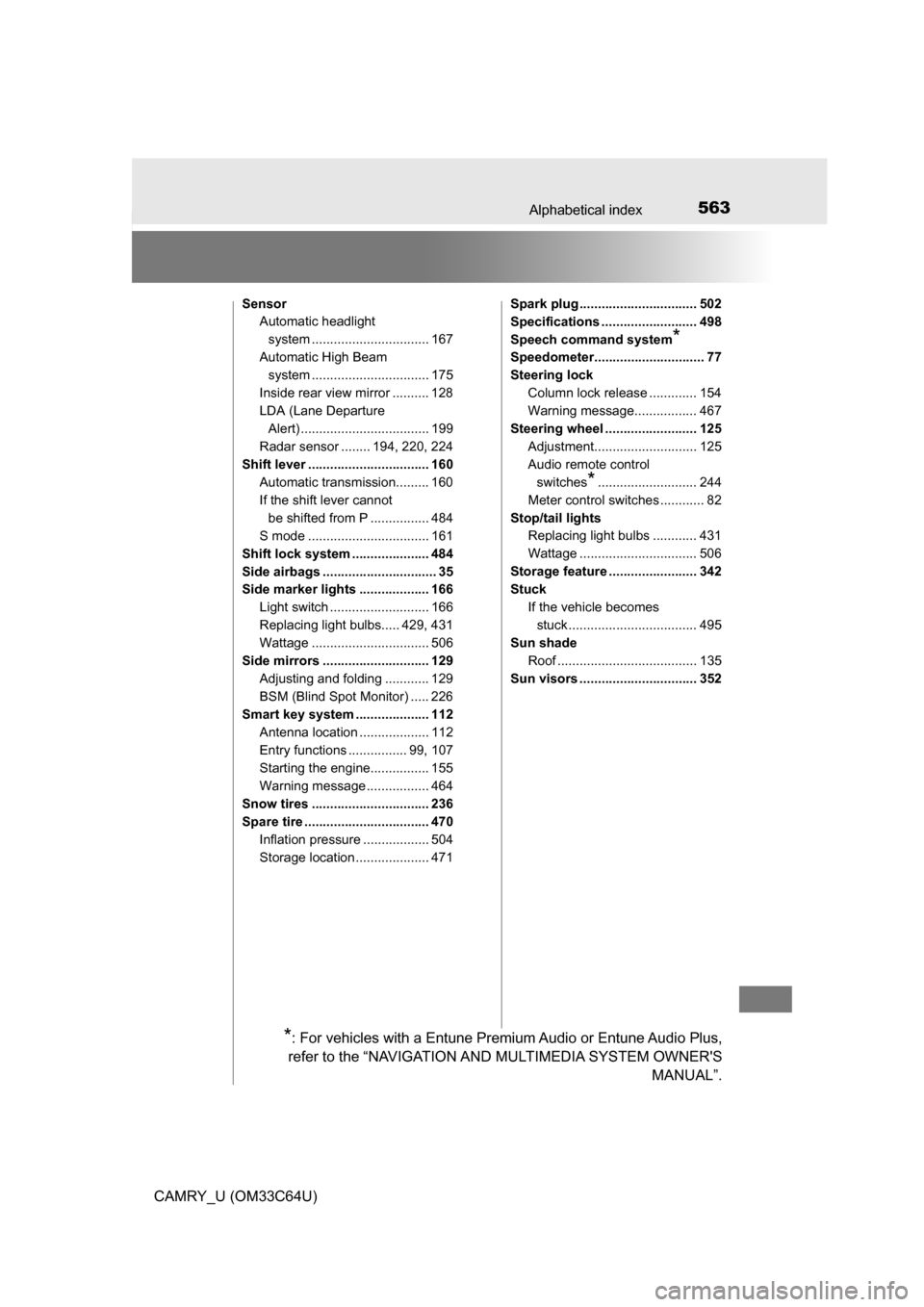

563Alphabetical index
CAMRY_U (OM33C64U)
SensorAutomatic headlight
system ......... ....................... 167
Automatic High Beam system ......... ....................... 175
Inside rear view mirror .......... 128
LDA (Lane Departure Alert) ................................... 199
Radar sensor ........ 194, 220, 224
Shift lever ................................. 160 Automatic transmission......... 160
If the shift lever cannot
be shifted from P ................ 484
S mode ................................. 161
Shift lock system ..................... 484
Side airbags ............................... 35
Side marker lights ................... 166 Light switch ........................... 166
Replacing light bulbs..... 429, 431
Wattage ................................ 506
Side mirrors ............................. 129 Adjusting and folding ............ 129
BSM (Blind Spot Monitor) ..... 226
Smart key system .................... 112 Antenna location ................... 112
Entry functions ................ 99, 107
Starting the engine................ 155
Warning message ................. 464
Snow tires ................................ 236
Spare tire .................................. 470 Inflation pressure .................. 504
Storage location .................... 471 Spark plug ................................ 502
Specifications .......................... 498
Speech command system
*
Speedometer.............................. 77
Steering lock
Column lock release ............. 154
Warning message................. 467
Steering wheel ......................... 125
Adjustment............................ 125
Audio remote control switches
*........................... 244
Meter control switches ............ 82
Stop/tail lights Replacing light bulbs ............ 431
Wattage ................................ 506
Storage feature ........................ 342
Stuck If the vehicle becomes stuck ................................... 495
Sun shade
Roof ...................................... 135
Sun visors ................................ 352
*: For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
