TOYOTA CAMRY 2018 Accessories, Audio & Navigation (in English)

141
1. USEFUL INFORMATION
INFORMATION
51Select “Yes” when the pop-up mes-
sage appears.
2Check that the weather information is
displayed.
 The time since the information was last
updated is displayed.
 When detailed audio weather information
is available, an icon will be displayed on
the weather map. Select the icon to listen
to the weather information.
WEATHER GUIDANCE
SERVICE
When weather information for areas
around the current position,
destination, or along the set route is
available, important information will be
output through the speakers and a
pop-up message asking if you would
like to view the full weather information
will be displayed.

142
1. USEFUL INFORMATION
3. DATA SERVICES SETTINGS*
1Press the “MENU” button.
2Select “Setup” .
3Select “Data Services” .
4Select “Data Download Source” .
5Select the desired item to be set.SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via HD Radio broadcast or DCM (Data
Communication Module). The receiv-
ing method can be set to both or only
via HD Radio broadcast.
*: Entune Premium Audio only
No.Function
Select to receive data service infor-
mation via both HD Radio broadcast
and the DCM. When both methods
are available, HD Radio broadcast
will be selected.
Select to receive data only via HD
Radio broadcast.
INFORMATION
●This function is not made available in
some countries or areas.

143
1. USEFUL INFORMATION
INFORMATION
5

144

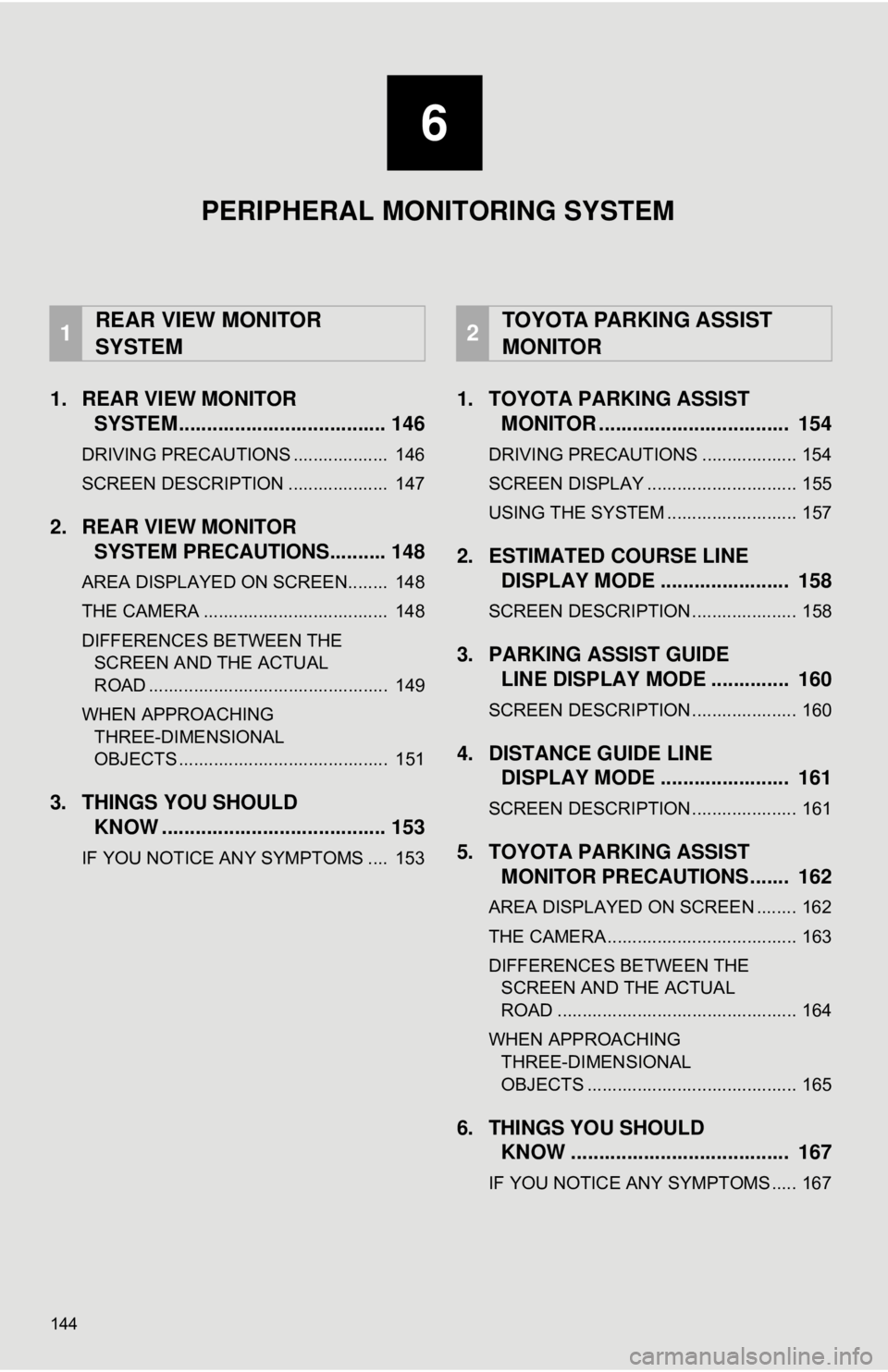

1. REAR VIEW MONITORSYSTEM..................................... 146
DRIVING PRECAUTIONS ................... 146
SCREEN DESCRIPTION .................... 147
2. REAR VIEW MONITORSYSTEM PRECAUTIO NS.......... 148
AREA DISPLAYED ON SCREEN........ 148
THE CAMERA ..................................... 148
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 149
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 151
3. THINGS YOU SHOULD KNOW ........................................ 153
IF YOU NOTICE ANY SYMPTOMS .... 153
1. TOYOTA PARKING ASSIST MONITOR .................................. 154
DRIVING PRECAUTIONS ................... 154
SCREEN DISPLAY .............................. 155
USING THE SYSTEM .......................... 157
2. ESTIMATED COURSE LINE
DISPLAY MODE ....................... 158
SCREEN DESCRIPTION ..................... 158
3. PARKING ASSIST GUIDELINE DISPLAY MODE .............. 160
SCREEN DESCRIPTION ..................... 160
4. DISTANCE GUIDE LINEDISPLAY MODE ....................... 161
SCREEN DESCRIPTION ..................... 161
5. TOYOTA PARKING ASSIST
MONITOR PRECAUTIONS ....... 162
AREA DISPLAYED ON SCREEN ........ 162
THE CAMERA ...................................... 163
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 164
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 165
6. THINGS YOU SHOULD KNOW ....................................... 167
IF YOU NOTICE ANY SYMPTOMS ..... 167
1REAR VIEW MONITOR
SYSTEM2TOYOTA PARKING ASSIST
MONITOR
6
PERIPHERAL MONITORING SYSTEM

6
145
4
5
7
8
9
1
2
3
6

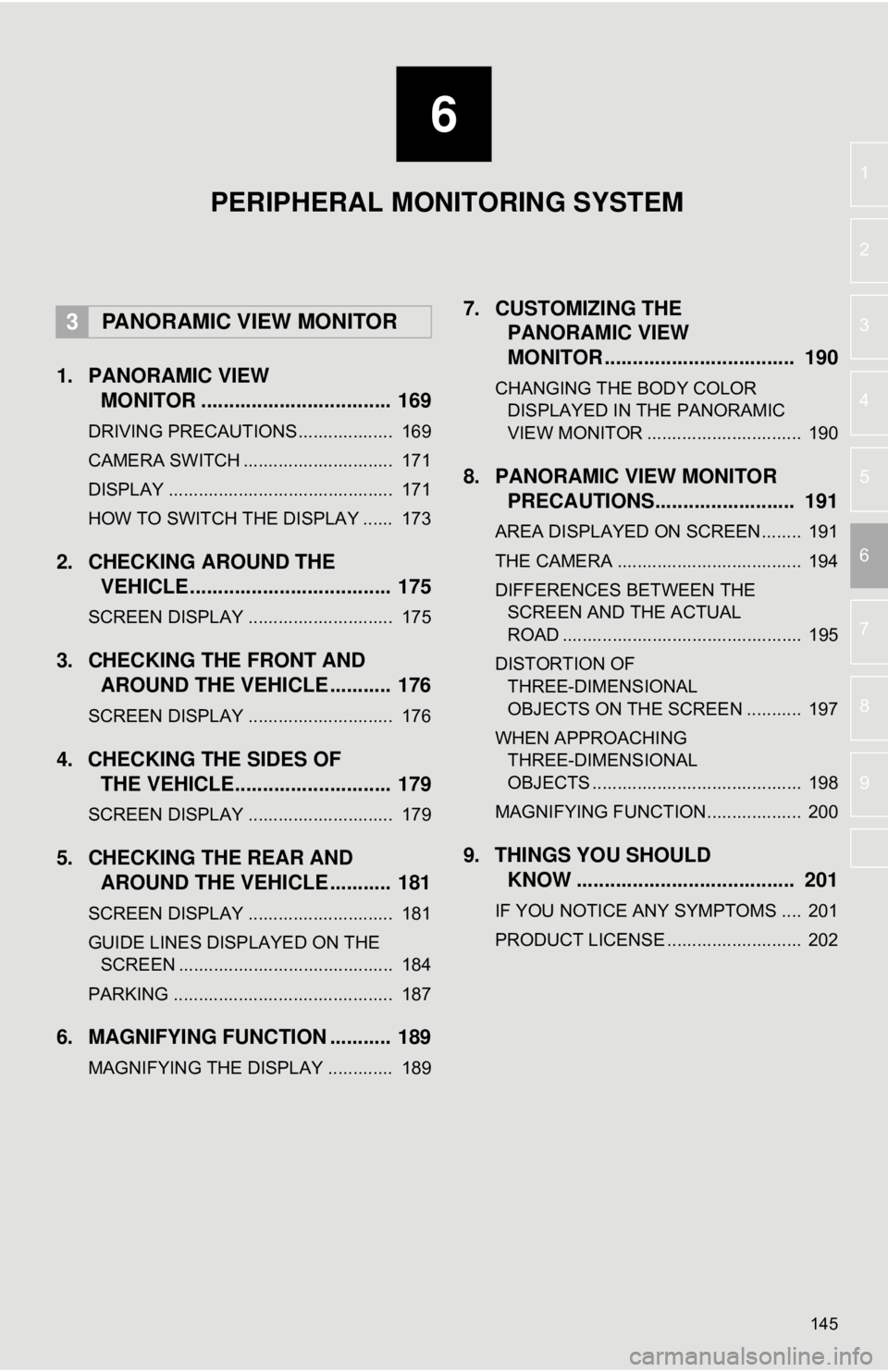

1. PANORAMIC VIEWMONITOR .................................. 169
DRIVING PRECAUTIONS ................... 169
CAMERA SWITCH .............................. 171
DISPLAY ............................................. 171
HOW TO SWITCH THE DISPLAY ...... 173
2. CHECKING AROUND THEVEHICLE .................................... 175
SCREEN DISPLAY ............................. 175
3. CHECKING THE FRONT AND
AROUND THE VEHICLE ........... 176
SCREEN DISPLAY ............................. 176
4. CHECKING THE SIDES OFTHE VEHICLE............................ 179
SCREEN DISPLAY ............................. 179
5. CHECKING THE REAR ANDAROUND THE VEHICLE ........... 181
SCREEN DISPLAY ............................. 181
GUIDE LINES DISPLAYED ON THE
SCREEN ........................................... 184
PARKING ............................................ 187
6. MAGNIFYING FUNCTION ........... 189
MAGNIFYING THE DISPLAY ............. 189
7. CUSTOMIZING THE PANORAMIC VIEW
MONITOR .................................. 190
CHANGING THE BODY COLOR
DISPLAYED IN THE PANORAMIC
VIEW MONITOR ............................... 190
8. PANORAMIC VIEW MONITOR PRECAUTIONS......................... 191
AREA DISPLAYED ON SCREEN........ 191
THE CAMERA ..................................... 194
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 195
DISTORTION OF THREE-DIMENSIONAL
OBJECTS ON THE SCREEN ........... 197
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 198
MAGNIFYING FUNCTION ................... 200
9. THINGS YOU SHOULD KNOW ....................................... 201
IF YOU NOTICE ANY SYMPTOMS .... 201
PRODUCT LICENSE ........................... 202
3PANORAMIC VIEW MONITOR
PERIPHERAL MONITORING SYSTEM

146
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
*: If equipped
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the trunk is not closed com-
pletely
• On roads that are not flat or straight, such as curves or slopes
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.( →P.149)

147
1. REAR VIEW MONITOR SYSTEM
PERIPHERAL MONITORING SYSTEM
6
SCREEN DESCRIPTION
Vehicles without a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine switch is in the “ON” position.
 Vehicles with a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Vehicle width guide line
Displays a guide path when t he vehicle is being backed
straight up.
• The displayed width is wider than the actual vehicle
width.
Vehicle center guide lineThis line indicates the estimated vehicle center on the
ground.
Distance guide lineShows distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
• Displays a point approximatel y 3 ft. (1 m) (blue) from
the edge of the bumper.
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.

148
1. REAR VIEW MONITOR SYSTEM
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
screen. ( →P. 3 9 )
AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
INFORMATION
● The area displayed on the screen may
vary according to vehicle orientation
conditions.
● Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
● The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
● Items which are located higher than the
camera may not be displayed on the
monitor.
Screen Displayed area
Corners of bumper
THE CAMERA
The camera for the rear view monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If dirt or foreign matter (such as water
droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a
clear image. In this case, flush it with a
large quantity of water and wipe the
camera lens clean with a soft and wet
cloth.

149
1. REAR VIEW MONITOR SYSTEM
PERIPHERAL MONITORING SYSTEM
6
The distance guide lines and the vehicle
width guide lines may not actually be par-
allel with the dividing lines of the parking
space, even when they appear to be so.
Be sure to check visually.
 The distances between the vehicle width
guide lines and the left and right dividing
lines of the parking space may not be
equal, even when they appear to be so.
Be sure to check visually.
 The distance guide lines give a distance
guide for flat road surfaces. In any of the
following situations, there is a margin of
error between the fixed guide lines on the
screen and the actual distance /course on
the road.
NOTICE
● The rear view monitor system may not
operate properly in the following cases.
• If the back of the vehicle is hit, the
position and mounting angle of the
camera may change.
• As the camera has a water proof con- struction, do not detach, disassemble
or modify it. This may cause incorrect
operation.
• When cleaning the camera lens, flush
the camera with a large quantity of
water and wipe it with a soft and wet
cloth. Strongly rubbing the camera lens
may cause the camera lens to be
scratched and unable to transmit a
clear image.
• Do not allow organic solvent, car wax, window cleaner or a glass coating to
adhere to the camera. If this happens,
wipe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on
the vehicle in cold weather, the system
may not operate normally.
• When washing the vehicle, do not
apply intensive bursts of water to the
camera or camera area. Doing so may
result in the camera malfunctioning.
● Do not expose the camera to strong
impact as this could cause a malfunc-
tion. If this happens, have the vehicle
inspected by your Toyota dealer as soon
as possible.
DIFFERENCES BETWEEN
THE SCREEN AND THE
ACTUAL ROAD

150
1. REAR VIEW MONITOR SYSTEM
WHEN THE GROUND BEHIND
THE VEHICLE SLOPES UP
SHARPLY
The distance guide lines will appear to
be closer to the vehicle than the actual
distance. Because of this, objects will
appear to be farther away than they ac-
tually are. In the same way, there will
be a margin of error between the
guidelines and the actual distance/
course on the road.WHEN THE GROUND BEHIND
THE VEHICLE SLOPES DOWN
SHARPLY
The distance guide lines will appear to
be farther from the vehicle than the ac-
tual distance. Because of this, objects
will appear to be closer than they actu-
ally are. In the same way, there will be
a margin of error between the guide-
lines and the actual distance/course on
the road.
