Page 571 of 612
5718-2. Customization
CAMRY_U (01999-06139)
8
Vehicle specifications
■Power windows, and moon roof* or panoramic moon roof*
(→ P. 170, 174, 178)
*: If equipped
■
Moon roof* ( → P. 174)
*: If equipped
■
Automatic light control system ( →P. 219)
FunctionDefault settingCustomized setting
Key linked operationOffOn—O
Wireless remote control
linked operationOffOn (open only)—O
Wireless remote control
linked operation signal
(buzzer)
OnOff—O
12
FunctionDefault settingCustomized setting
Linked operation of com-
ponents when key is
used (open only)
Slide onlyTilt only—O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only—O
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OO60 seconds
90 seconds
12
Page 572 of 612
5728-2. Customization
CAMRY_U (01999-06139)■
Lights (→
P. 219)
■Intuitive parking assist* (→ P. 314)
*: If equipped
■
BSM (Blind Spot Monitor)* ( → P. 300)
*:If equipped
■
RCTA (Rear Cross Traffic Alert)* ( → P. 300)
*:If equipped
FunctionDefault settingCustomized setting
Daytime running light
system (except Canada)OnOffOO
Windshield wiper linked
headlight illuminationOnOff—O
12
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNear—O
Detection distance of the
rear center sensorFarNear—O
Buzzer volume21 to 3—O
12
FunctionDefault settingCustomized setting
Outside rear view mirror
indicator brightnessBrightDim—O
12
FunctionDefault settingCustomized setting
Buzzer volume21 to 3—O
12
Page 573 of 612
5738-2. Customization
CAMRY_U (01999-06139)
8
Vehicle specifications

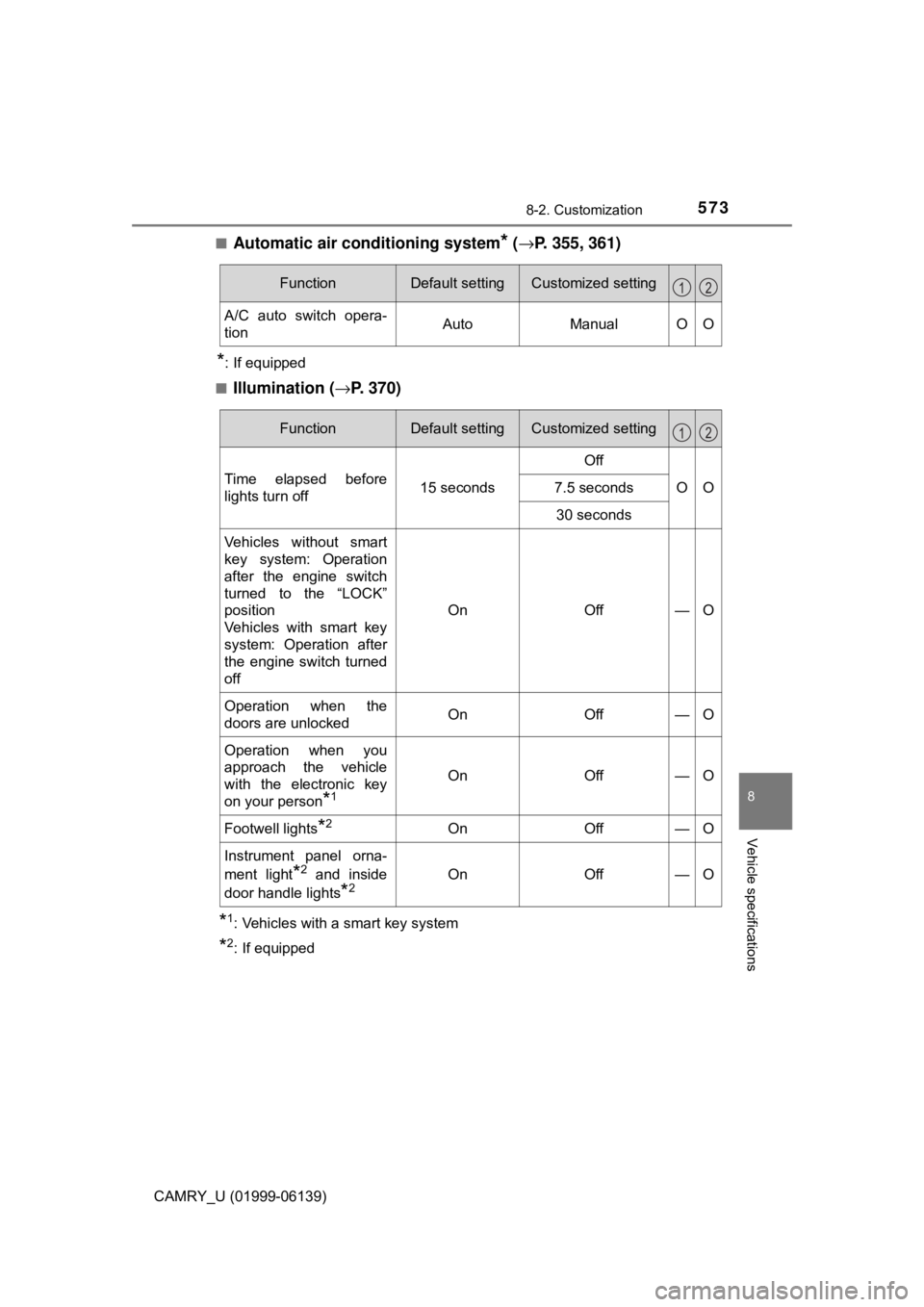

■Automatic air conditioning system* (→ P. 355, 361)
*: If equipped
■
Illumination ( →P. 370)
*1: Vehicles with a smart key system
*2: If equipped
FunctionDefault settingCustomized setting
A/C auto switch opera-
tionAutoManualOO
12
FunctionDefault settingCustomized setting
Time elapsed before
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Vehicles without smart
key system: Operation
after the engine switch
turned to the “LOCK”
position
Vehicles with smart key
system: Operation after
the engine switch turned
off
OnOff—O
Operation when the
doors are unlockedOnOff—O
Operation when you
approach the vehicle
with the electronic key
on your person
*1
OnOff—O
Footwell lights*2OnOff—O
Instrument panel orna-
ment light
*2 and inside
door handle lights
*2OnOff—O
12
Page 574 of 612
5748-2. Customization
CAMRY_U (01999-06139)
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
Page 575 of 612
575
CAMRY_U (01999-06139)
8
Vehicle specifications

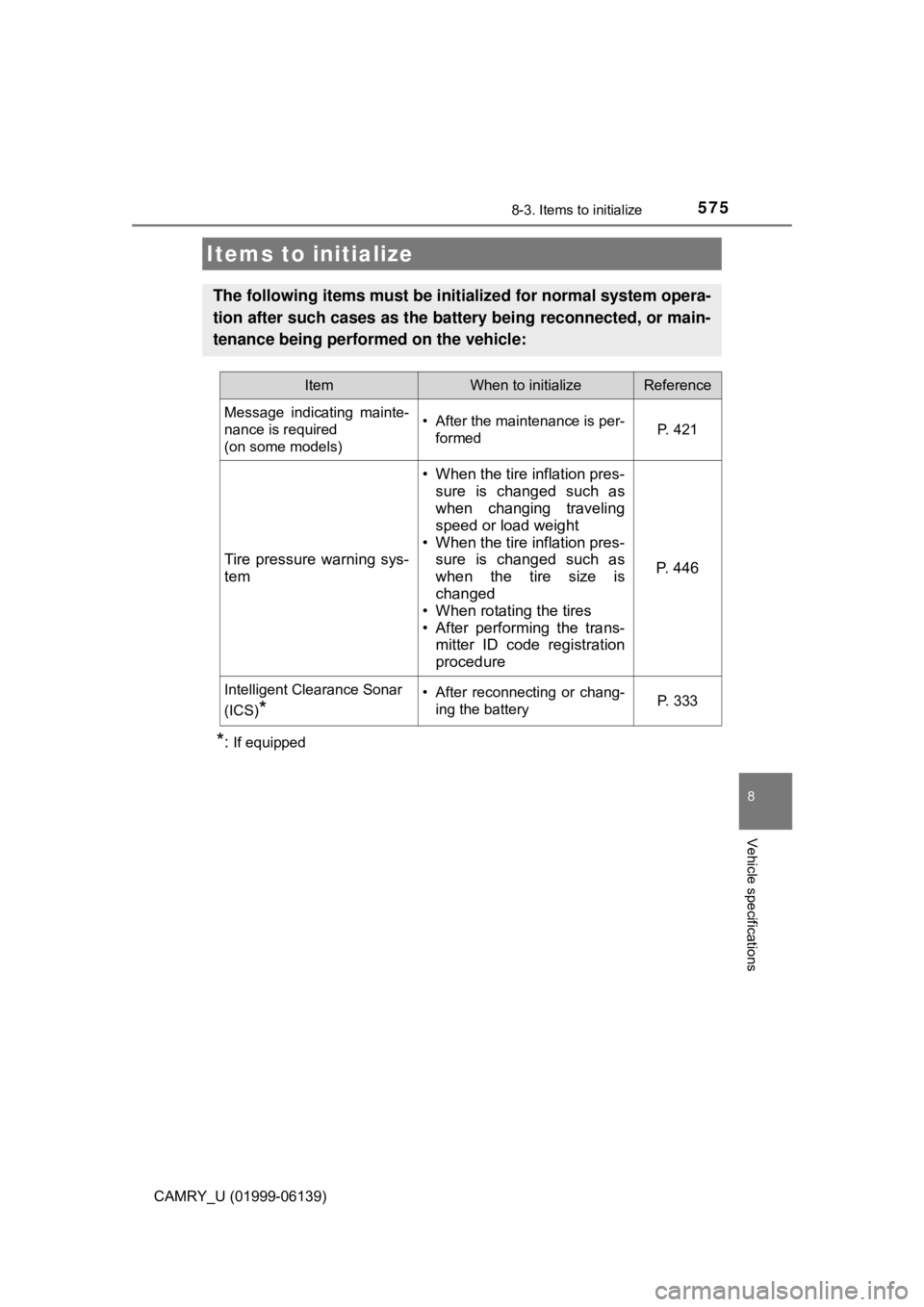

8-3. Items to initialize
*:If equipped
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required
(on some models)• After the maintenance is per- formedP. 421
Tire pressure warning sys-
tem
• When the tire inflation pres-sure is changed such as
when changing traveling
speed or load weight
• When the tire inflation pres- sure is changed such as
when the tire size is
changed
• When rotating the tires
• After performing the trans-
mitter ID code registration
procedure
P. 4 4 6
Intelligent Clearance Sonar
(ICS)
*
• After reconnecting or chang-
ing the batteryP. 333
Page 576 of 612
5768-3. Items to initialize
CAMRY_U (01999-06139)
Page 577 of 612
9
577
For owners
CAMRY_U (01999-06139)Reporting safety defects
for U.S. owners........................ 578
Seat belt instructions for Canadian owners
(in French) ............................... 579
SRS airbag instructions for Canadian owners
(in French) ............................... 581
Page 578 of 612
578
CAMRY_U (01999-06139)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complain ts, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
Page 579 of 612
579
9
For owners
CAMRY_U (01999-06139)
●Déroulez la sangle diagonale
de telle sorte qu'elle passe bien
sur l'épaule, sans pour autant
être en contact avec le cou ou
glisser de l'épaule.
● Placez la sangle abdominale le
plus bas possible sur les
hanches.
● Réglez la position du dossier de sièg e. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
■Ceintures de sécurité
Nettoyez avec un chif fon ou une éponge humidifiés avec de l'eau
savonneuse tiède. Vérifiez régulièrement que les ceintures ne sont
pas usées, effilochées ou en taillées excessivement.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt secti on for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
Entretien et soin
Page 580 of 612
580
CAMRY_U (01999-06139)
AVERTISSEMENT
■Détérioration et usure des ceintures de sécurité
Inspectez le système de ceintures de sécurité régulièrement. Contrô\
lez
l'absence de coupures, d'effilochages et de pièces desserrées. N'utilisez
pas une ceinture de sécurité endommagée avant qu'elle ne soit r\
emplacée.
Une ceinture de sécurité endommagée ne permet pas de protéger un occu-
pant de blessures graves ou mortelles.
