812. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06122)
The indicators inform the driver of the operating state of the vehicle’s
various systems.

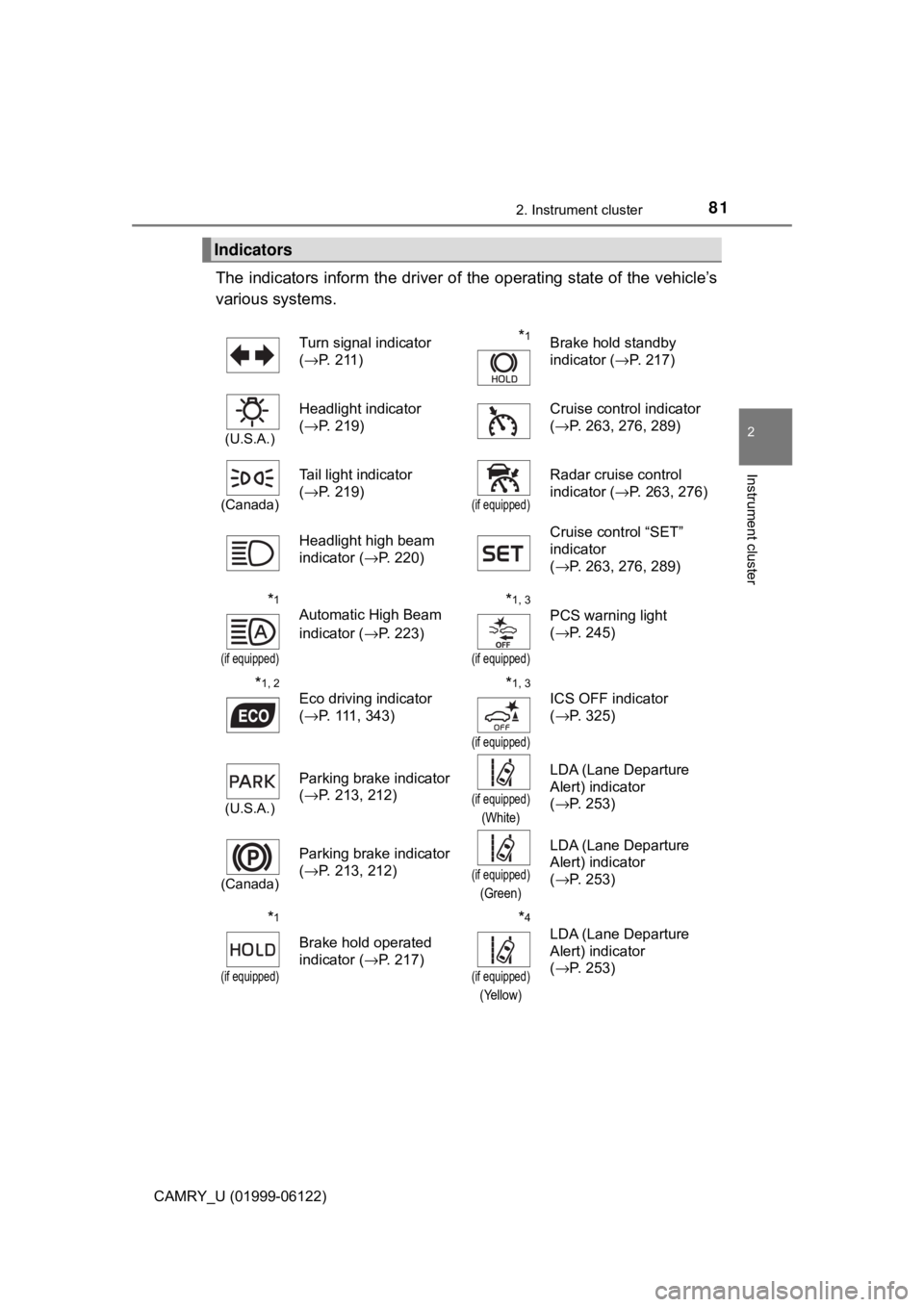

Indicators
Turn signal indicator
(→P. 211)*1Brake hold standby
indicator (→P. 217)
(U.S.A.)
Headlight indicator
(→P. 219)Cruise control indicator
(→P. 263, 276, 289)
(Canada)
Tail light indicator
(→P. 219)
(if equipped)
Radar cruise control
indicator (→P. 263, 276)
Headlight high beam
indicator (→P. 220)Cruise control “SET”
indicator
(→P. 263, 276, 289)
*1
(if equipped)
Automatic High Beam
indicator (→P. 223)*1, 3
(if equipped)
PCS warning light
(→P. 245)
*1, 2
Eco driving indicator
(→P. 111, 343)*1, 3
(if equipped)
ICS OFF indicator
(→P. 325)
(U.S.A.)
Parking brake indicator
(→P. 213, 212)
(if equipped)
(White)
LDA (Lane Departure
Alert) indicator
(→P. 253)
(Canada)
Parking brake indicator
(→P. 213, 212)
(if equipped)
(Green)
LDA (Lane Departure
Alert) indicator
(→P. 253)
*1
(if equipped)
Brake hold operated
indicator (→P. 217)
*4
(if equipped)
(Yellow)
LDA (Lane Departure
Alert) indicator
(→P. 253)

822. Instrument cluster
CAMRY_U (01999-06122)
*1, 4
Slip indicator (→P. 295)
*1, 7
(Type A for
Canada)
“AIRBAG ON/OFF”
indicator (→P. 45)
*1, 3VSC OFF indicator
(→P. 296)
*1, 7
(Type B for
Canada)
“AIRBAG ON/OFF”
indicator (→P. 45)
(if equipped)
“BSM” indicator
(→P. 300)*7Security indicator
(→P. 71, 74)
(if equipped)
“RCTA” indicator
(→P. 300)
(if equipped)
Intuitive parking assist
indicator (→P. 314)
*5, 6
(if equipped)
BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(→P. 300)
(if equipped)
“SPORT” indicator
(→P. 343)
*1, 7
(Type A for
U.S.A.)
“AIRBAG ON/OFF”
indicator (→P. 4 5 )
(if equipped)
“ECO MODE” indicator
(→P. 343)
*1, 7
(Type B for
U.S.A.)
“AIRBAG ON/OFF”
indicator (→P. 4 5 )
*8
Low outside tempera-
ture indicator (→P. 84)

832. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06122)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
*2: This light does not turn on when the system is disabled.
*3: This light turns on when the system is off.
*4: This light flashes to indicate that the system is operating.
*5: These indicators will illuminate in the following situations to indicate that
the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the engine
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
• When the engine switch is in the “ON” position (vehicles without a smart
key system) or IGNITION ON mode (vehicles with a smart key system)
and the BSM function is enabled.
• When the engine switch is in the “ON” position (vehicles without a smart
key system) or IGNITION ON mode (vehicles with a smart key system)
and the RCTA function is enabled. (At this time, a buzzer will also
sound.)
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10 seconds, then stay on.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

842. Instrument cluster
CAMRY_U (01999-06122)
4.2-inch display
7-inch display

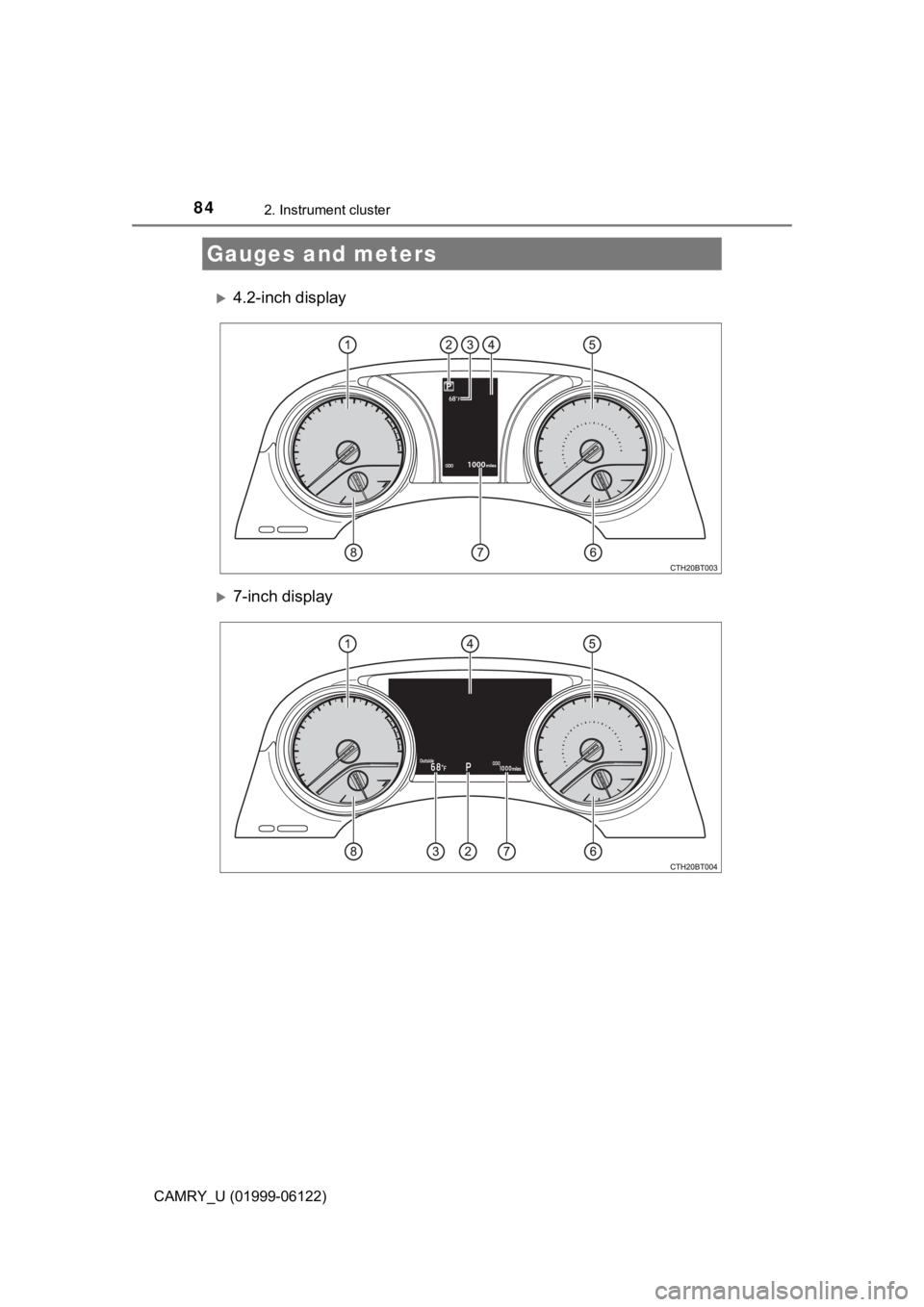

Gauges and meters

852. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06122)
Tachometer
Displays the engine speed in revolutions per minute
Shift position (→P. 205)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data (→P. 87, 99)
Displays warning messages in case of a malfunction (→P. 507)
Speedometer
Fuel gauge
Odometer and trip meter (→P. 96, 110)
Engine coolant temperature gauge
Displays the engine coolant temperature
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
• The brightness of the instrument
panel lights can be adjusted
individually for day mode and
night mode
*.
• If the brightness is adjusted
when the surroundings are
bright and the tail lights are on
(day mode brightness adjust-
ment), the brightness level of
night mode will be adjusted at
the same time.
*: Day mode and night mode: →P. 8 6

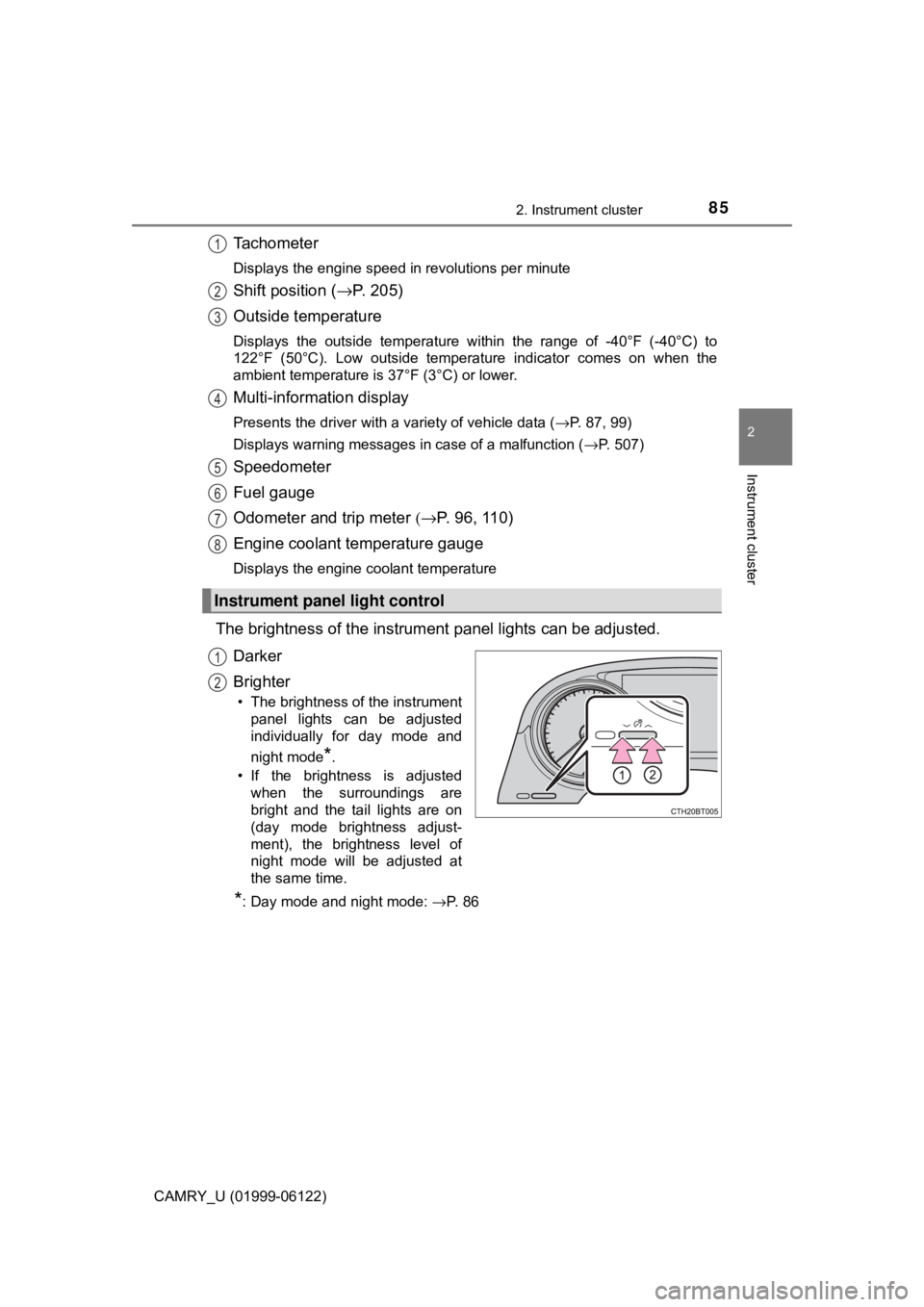

Instrument panel light control
1
2
3
4
5
6
7
8
1
2

862. Instrument cluster
CAMRY_U (01999-06122)
■The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■Brightness of the meters (day mode and night mode)
●The brightness of the meters is changed between day mode and night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but
the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding area is dark
●When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
■Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
●When stopped, or driving at low speeds (less than 16 mph [25 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
●When “− −” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (→P. 534)

872. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06122)

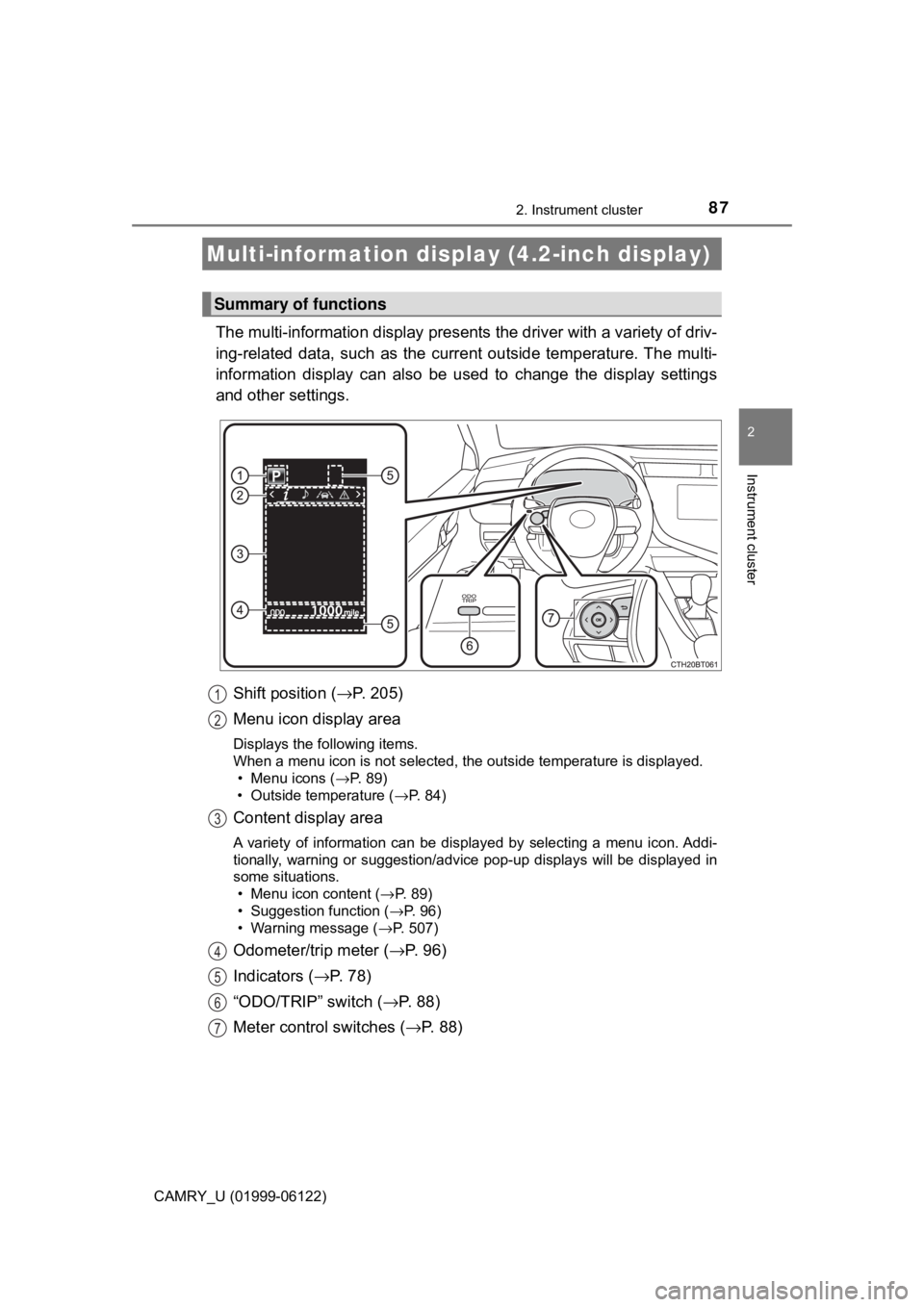

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
Shift position (→P. 205)
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature is displayed.
• Menu icons (→P. 89)
• Outside temperature (→P. 84)
Content display area
A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.
• Menu icon content (→P. 89)
• Suggestion function (→P. 96)
• Warning message (→P. 507)
Odometer/trip meter (→P. 96)
Indicators (→P. 78)
“ODO/TRIP” switch (→P. 8 8 )
Meter control switches (→P. 88)
Multi-information display (4.2-inch display)
Summary of functions
1
2
3
4
5
6
7

882. Instrument cluster
CAMRY_U (01999-06122)
◆Using the content display area
The content display area is operated using the meter control
switches.
Scroll screens
*, change the
displayed content
* and move
the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous
screen
Pressing and holding the switch
will display the first screen of the
selected menu icon.
*: When the screen can be scrolled or different content can be displayed,
a mark, such as an arrow, will be displayed to suggest which switch to
operate.
◆Using the odometer/trip meter
Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item
Each time the switch is pressed,
the displayed item will be
changed.
Press and hold: Reset
Display the desired trip meter
and press and hold the switch to
reset the trip meter.
Using the multi-information display
1
2
3

892. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06122)

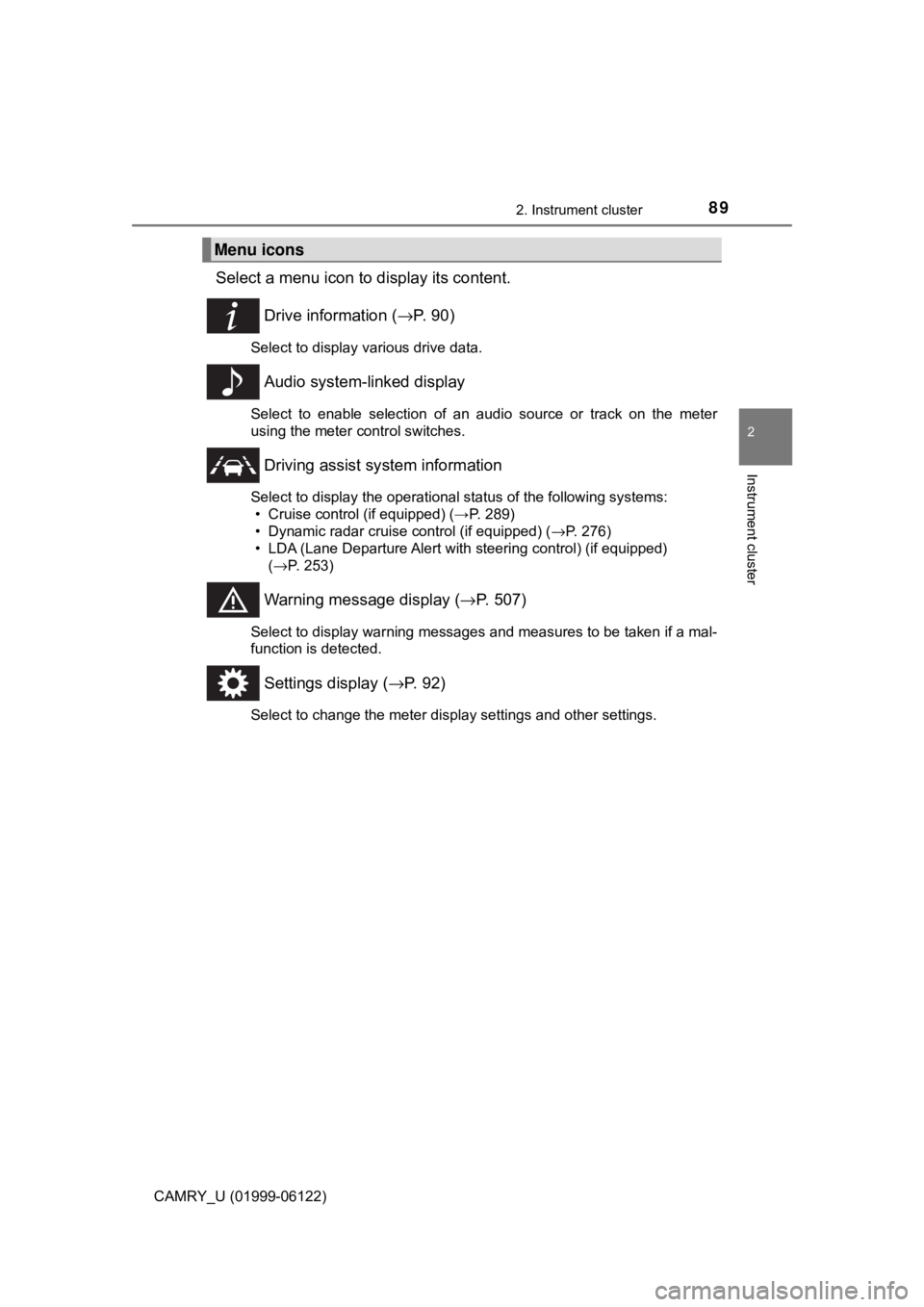

Select a menu icon to display its content.
Drive information (→P. 9 0 )
Select to display various drive data.
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information
Select to display the operational status of the following systems:
• Cruise control (if equipped) (→P. 289)
• Dynamic radar cruise control (if equipped) (→P. 276)
• LDA (Lane Departure Alert with steering control) (if equipped)
(→P. 253)
Warning message display (→P. 507)
Select to display warning messages and measures to be taken if a mal-
function is detected.
Settings display (→P. 9 2 )
Select to change the meter display settings and other settings.
Menu icons

902. Instrument cluster

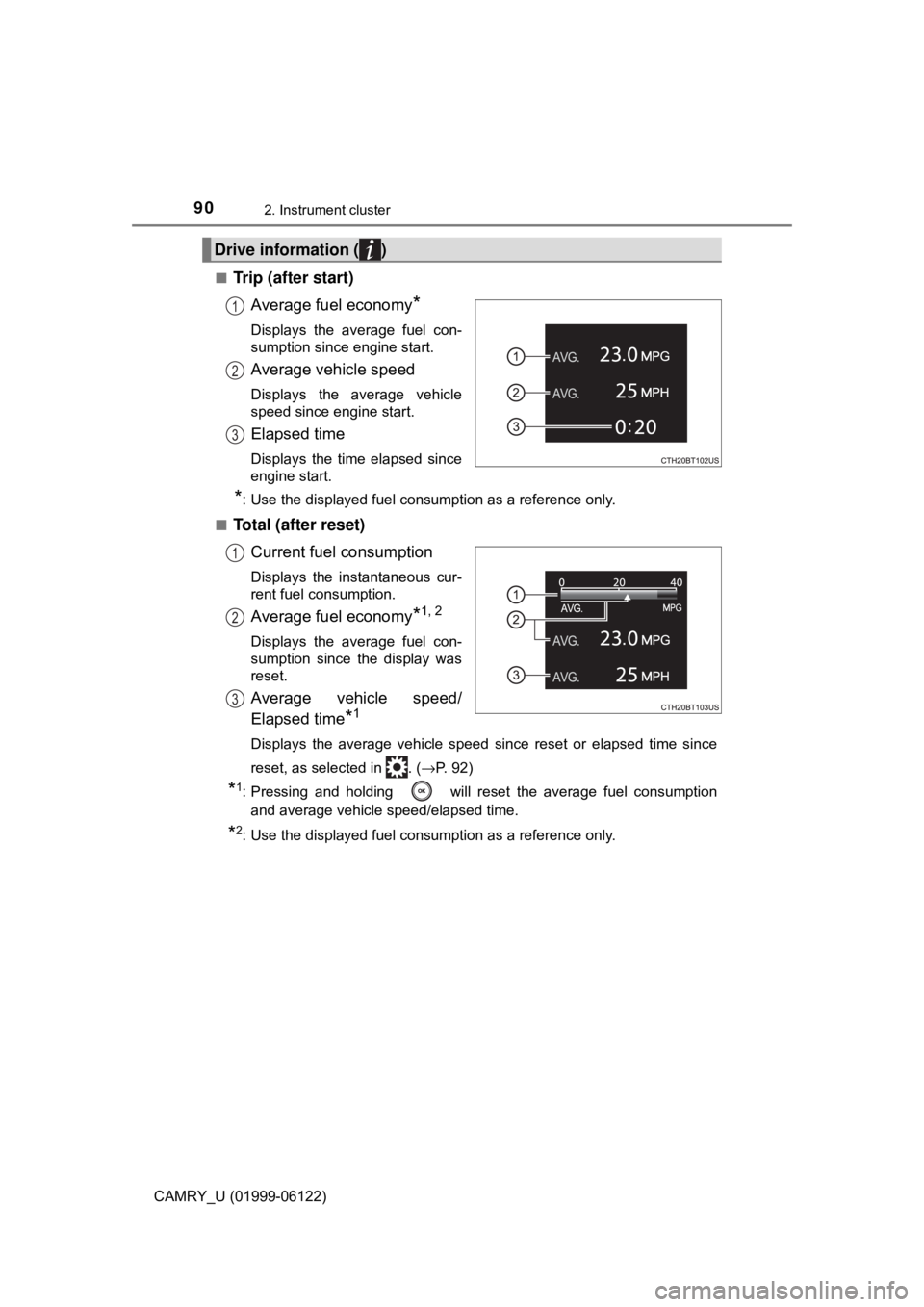

CAMRY_U (01999-06122)■
Trip (after start)
Average fuel economy
*
Displays the average fuel con-
sumption since engine start.
Average vehicle speed
Displays the average vehicle
speed since engine start.
Elapsed time
Displays the time elapsed since
engine start.
*: Use the displayed fuel consumption as a reference only.
■
Total (after reset)
Current fuel consumption
Displays the instantaneous cur-
rent fuel consumption.
Average fuel economy*1, 2
Displays the average fuel con-
sumption since the display was
reset.
Average vehicle speed/
Elapsed time
*1
Displays the average vehicle speed since reset or elapsed time since
reset, as selected in . (→P. 92)
*1: Pressing and holding will reset the average fuel consumption
and average vehicle speed/elapsed time.
*2: Use the displayed fuel consumption as a reference only.
Drive information ( )
1
2
3
