TOYOTA CAMRY CNG 1999 Owners Manual

181

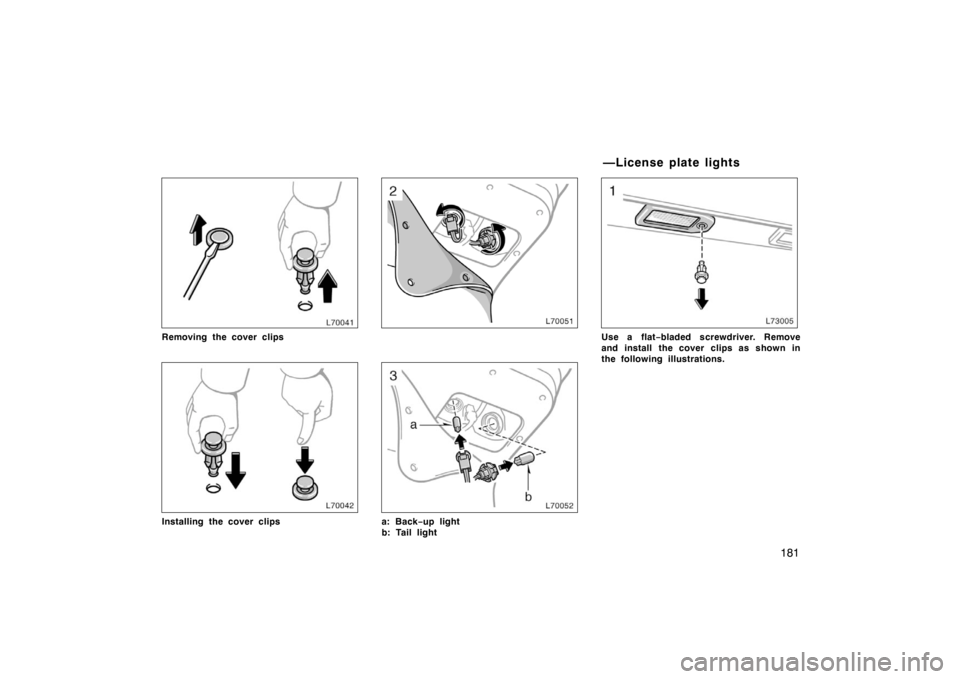

Removing the cover clips
Installing the cover clipsa: Back−up light
b: Tail light
Use a flat−bladed screwdriver. Remove
and install the cover clips as shown in
the following illustrations.
—License plate lights

182

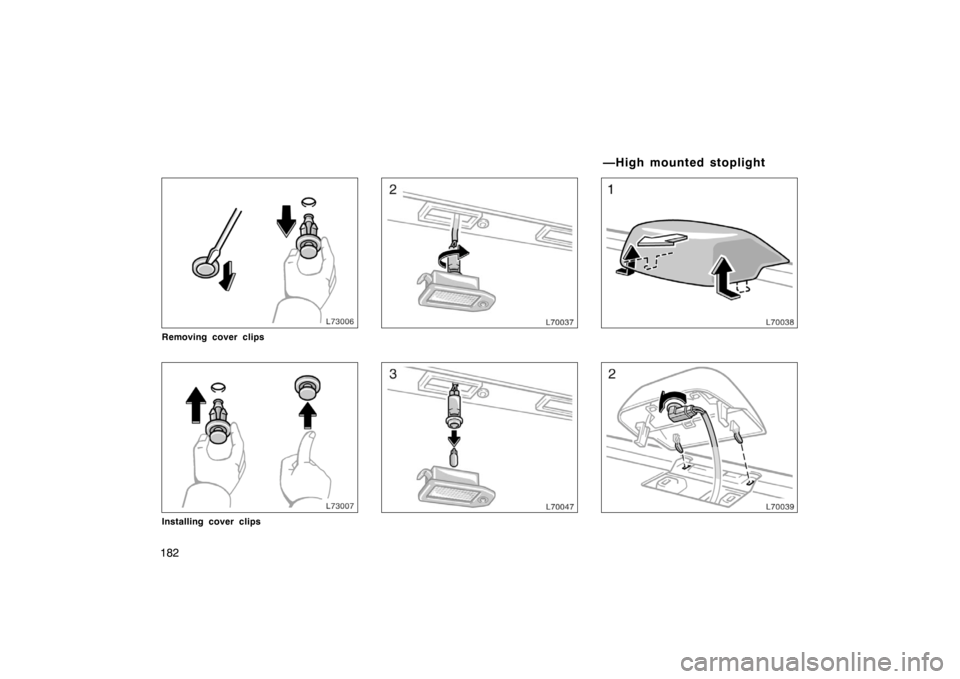

Removing cover clips
Installing cover clips

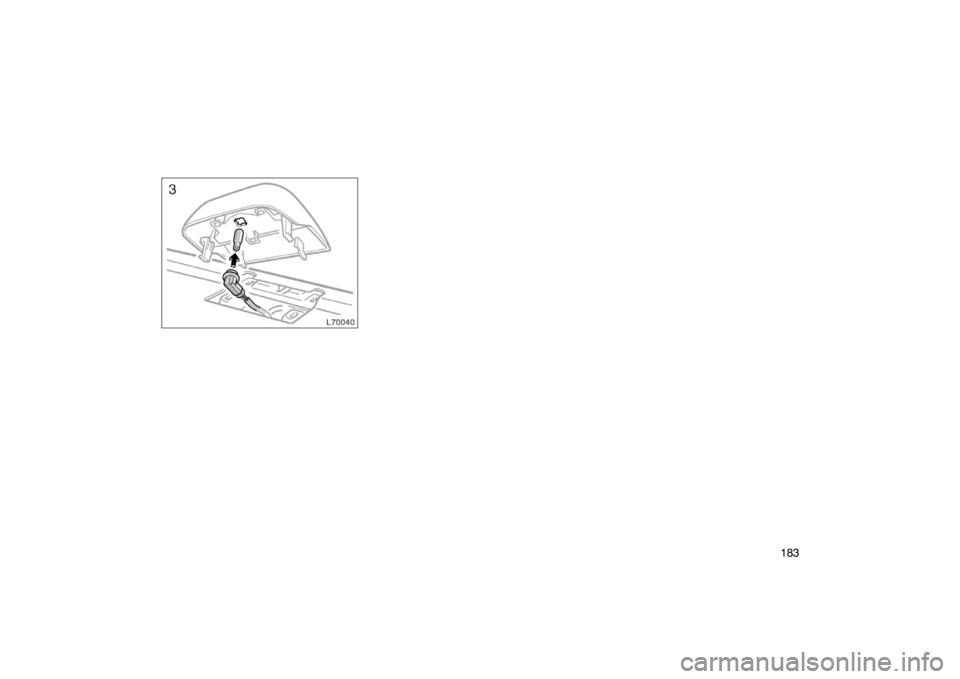

—High mounted stoplight

183

184

185
Part 8
SPECIFICATIONS
Dimensions and weight
Engine
Fuel
Service specifications
Ti r es
Fuses
Dimensions and weight
Overall length mm (in.) 4783 (188.3)
Overall width mm (in.) 1780 (70.1)
Overall height mm (in.) 1419 (55.9)
∗
Wheelbase mm (in.) 2670 (105.1)
Front tread mm (in.) 1547 (61.0)
Rear tread mm (in.) 1520 (59.8)
Vehicle capacity weight
(occupants + luggage)
kg (lb) 410 (900)
∗: Unladen vehicle
Engine
Model:
5S−FNE
Type:
4 cylinder in line, CNG (Compressed
Natural Gas)
Bore and stroke, mm (in.):
87.091.0 (3.433.58)
Displacement, cm
3 (cu. in.):
2164 (132.0)

186
Fuel
Fuel type:
Compressed natural gas
Service pressure:
24800 kPa (3600 psig)
Equivalent gasoline capacity:
43 L (11.4 gal., 9.5 lmp.gal.)
Water volume:
135 L (35.7 gal., 29.7 lmp.gal.)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.28—0.38 (0.011—0.015)
Spark plug type:
DENSO PK20TR8−G
Spark plug gap, mm(in.):
0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT−33−73F (used belt), Ibf:
With air conditioning
Generator belt 13010
Power steering pump belt 8020
Without air conditioning
Generator belt 6520
Power steering pump belt 8020ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.6 (3.8, 3.2)
Without filter 3.4 (3.6, 3.0)
Oil grade:
API grade SJ, “Energy−Conserving” or
ILSAC multigrade engine oil is recom-
mended.

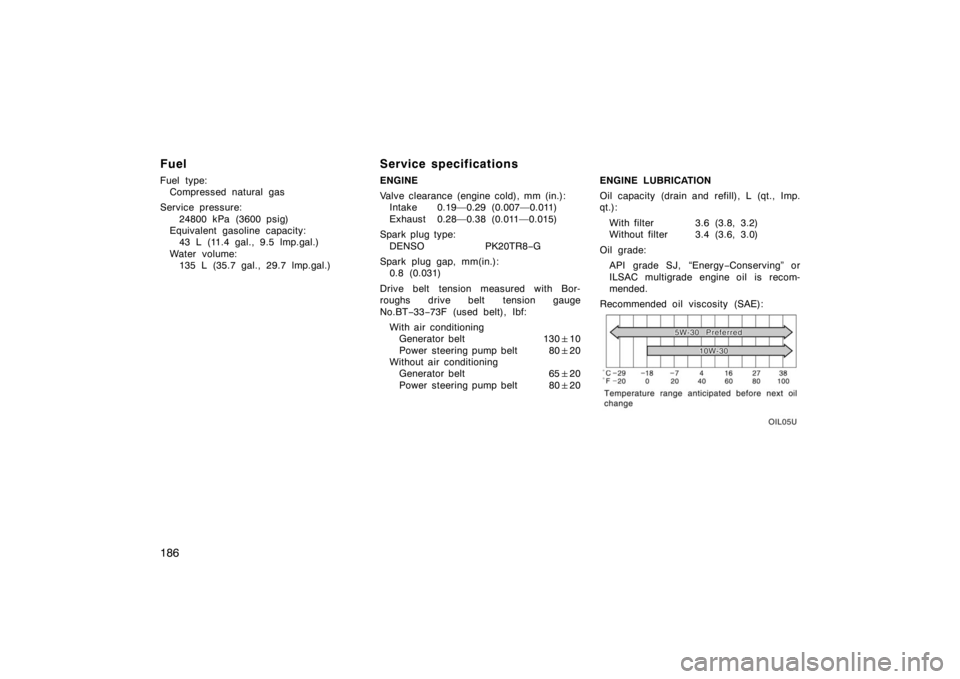

Recommended oil viscosity (SAE):

187
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
6.9 (7.3, 6.1)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene−glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8V Fully charged
12.2—12.4V Half charged
11.8—12.0V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights turned off
Charging rates:
5 A max.AUTOMATIC TRANSAXLE
Automatic transmission
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 2.5 (2.6, 2.2)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIIl (DEXRONII)
Differential
Fluid capacity L (qt., Imp. qt.):
1.6 (1.7, 1.4)
Fluid type:
Automatic transmission fluid D−II or
DEXRONIII (DEXRONII)
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
70 (2.8)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
5—8 clicksFluid type:
SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III

188
TiresFuses
Engine compartment
Tire size:
Spare tire T145/80R16 105M
Except spare tire P205/65R15 92H
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Spare tire 420 (4.2, 60)
Except spare tire
When driving under the above vehicle load conditions at sustained high speeds
above 160 km/h (100 mph), in countries where such speeds are permitted
by−law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm
2 or bar, 35 psi)
provided that it does not exceed the maximum cold tire pressure molded on
the tire sidewall.
Normal
drivingFor all loads including full rated loads
For reduced loads (1 to 4 passengers)
Trailer driving220 (2.2, 32)
200 (2.0, 29)
220 (2.2, 32)
Wheel nut torque, N·m (kgf·m, ft·lbf):
104 (10.5, 77) Wheel size:
Spare tire 4T
Except spare tire 156JJ

189
Engine compartment
Fuses (type A)
1. A/C 10 A: Air conditioning system
2. SPARE 10 A: Spare fuse
3. SPARE 15 A: Spare fuse
4. SPARE 30 A: Spare fuse
5. ALT−S 5 A: Charging system
6. HEAD (RH) 15 A: Right−hand headlight
7. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, A/F sensor
8. HORN 10 A: Horn
9. HAZARD 10 A: Emergency flasher
Instrument panel
10. AM2 30 A: Gauge and meter, SRS
airbag system, seat belt pretensioners,
multiport fuel injection system/sequen-
tial multiport fuel injection system,
“IGN” and “STARTER” fuses
11 . T E L 5 A : No circuit
12. HEAD (LH) 15 A: Left−hand headlight
13. RADIO NO.1 20 A: Audio system
14. DOME 7.5 A: Clock, ignition switch
light, personal light, trunk light, interior
light, power door lock system
15. ECU−B 10 A: Anti−lock brake system,
SRS airbag system, seat belt preten-
sioners16. A/F HTR 25 A: No circuit
17. SEAT−HEATER 20 A: No circuit
18. HEATER 10 A: Air conditioning system,
rear window defogger
19. GAUGE 10 A: Gauges and meters,
back−up lights, cruise control system,
charging system, power windows, ser-
vice reminder indicators and warning
buzzers
20. WIPER 25 A: Windshield wipers and
washer
21. MIRROR−HEATER 10 A: Outside rear
view mirror defogger
22. ECU−IG 15 A: Cruise control system,
anti−lock brake system, power antenna,
SRS airbag system, seat belt preten-
sioners, shift lock control system, mul-
tiport fuel injection system/sequential
multiport fuel injection system
23. IGN 5 A: Gauges and meters, charging
system, SRS airbag system, seat belt
pretensioners, multiport fuel injection
system/sequential multiport fuel injec-
tion system

190
24. STOP 15 A: Stop lights, cruise control
system, high−mounted stoplight, anti−
lock brake system, shift lock control
system, multiport fuel injection system/
sequential multiport fuel injection sys-
tem
25. TAIL 10 A: Parking lights, license plate
lights, tail lights, front side marker
lights, multiport fuel injection system/
sequential multiport fuel injection sys-
tem
26. POWER−OUTLET 15 A: Power outlet
27. OBD 7.5 A: On−board diagnosis sys-
tem
28. FOG 15 A: No circuit
29. STARTER 5 A: Gauges and meters,
multiport fuel injection system/sequen-
tial multiport fuel injection system
30. DOOR 25 A: Power door lock system
31. PANEL 7.5 A: Gauge and meter, audio
system, cigarette lighter, glove box
light, clock, instrument panel light con-
trol, service reminder indicators, air
conditioning control panel lights, ash-
tray light, emergency flasher, rear win-
dow defogger, electronically controlled
automatic transmission system
32. TURN 7.5 A: Emergency flasher33. RAD−NO.2 7.5 A: Audio system
34. CIG 15 A: Cigarette lighter, shift lock
control system, power rear view mirror
controls, power door lock system, SRS
airbag system, seat belt pretensioners,
air conditioning system

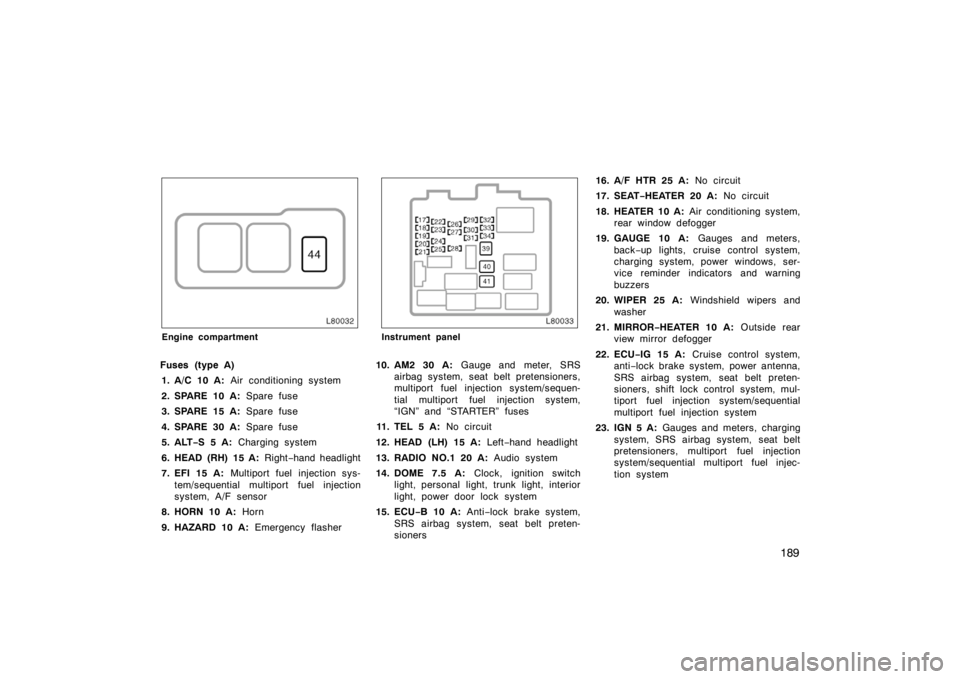

Fuses (type B)
35. CDS 30 A: Electric cooling fans
36. RDI 30 A: Electric cooling fans
37. MAIN 40 A: “HEAD RH”, “HEAD LH”,
fuses
38. HTR 50 A: “AM1” and “A/C” fuses
39. DEF 40 A: Rear window defogger
40. PWR 30 A: Power window control sys-
tem
41. AM1 40 A: “POWER−OUTLET”, “CIG”,
“RAD−NO.2”, “SEAT−HEATER”, “TURN”,
“WIP”, “ECU−IG”, “GAUGE”, and “HTR”
fuses
42. CDS NO.2 30 A: No Circuit
Fuses (type C)
43. ALT 100 A: “RDI” and “CDS” fuses
44. ABS 60 A: Anti−lock brake system
