Battery recharging precautions
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed
on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re-
charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.

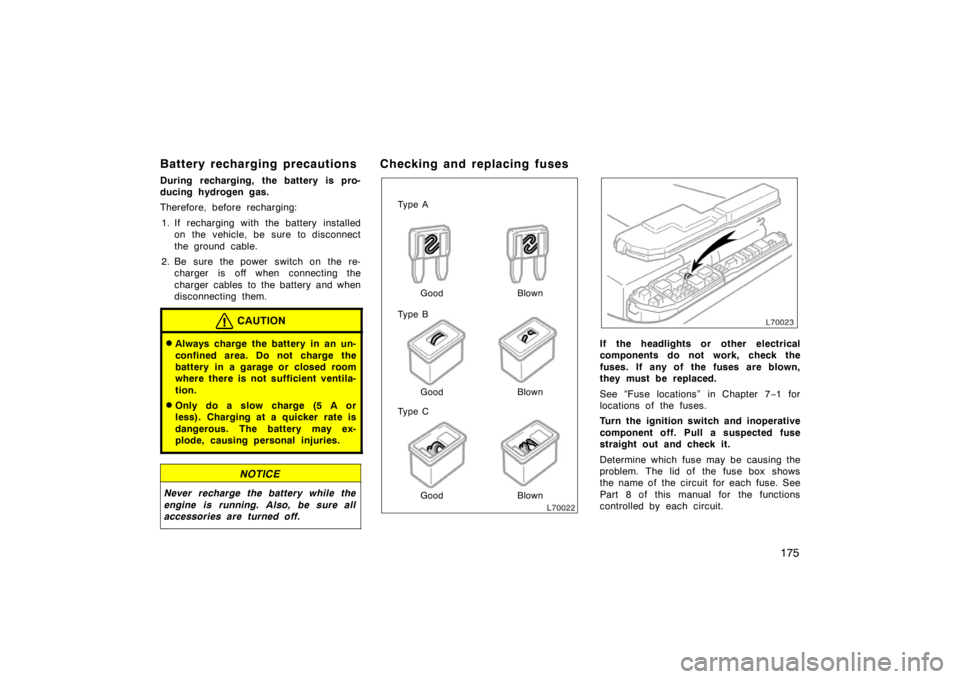

Checking and replacing fuses
Ty p e A
Ty p e B
Ty p e CGood Blown
Good Blown
Good Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Chapter 7−1 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Part 8 of this manual for the functions
controlled by each circuit.

176
Type A fuses can be pulled out by the
pull−out tool. The location of the pull−out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the
“MIRROR−HEATER”, “DOME” or “A/C”
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower,but as close as
possible to, the rating. If the amperage is
lower than that specified, the fuse might
blow out again but this does not indicate
anything wrong. Be sure to get the correct
fuse as soon as possible and return the
substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your authorized Toyota CNG
dealer correct it as soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your authorized
Toyota CNG dealer and most auto parts
stores. Follow the manufacturer ’s direc-
tions for how much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.

190
24. STOP 15 A: Stop lights, cruise control
system, high−mounted stoplight, anti−
lock brake system, shift lock control
system, multiport fuel injection system/
sequential multiport fuel injection sys-
tem
25. TAIL 10 A: Parking lights, license plate
lights, tail lights, front side marker
lights, multiport fuel injection system/
sequential multiport fuel injection sys-
tem
26. POWER−OUTLET 15 A: Power outlet
27. OBD 7.5 A: On−board diagnosis sys-
tem
28. FOG 15 A: No circuit
29. STARTER 5 A: Gauges and meters,
multiport fuel injection system/sequen-
tial multiport fuel injection system
30. DOOR 25 A: Power door lock system
31. PANEL 7.5 A: Gauge and meter, audio
system, cigarette lighter, glove box
light, clock, instrument panel light con-
trol, service reminder indicators, air
conditioning control panel lights, ash-
tray light, emergency flasher, rear win-
dow defogger, electronically controlled
automatic transmission system
32. TURN 7.5 A: Emergency flasher33. RAD−NO.2 7.5 A: Audio system
34. CIG 15 A: Cigarette lighter, shift lock
control system, power rear view mirror
controls, power door lock system, SRS
airbag system, seat belt pretensioners,
air conditioning system
Fuses (type B)
35. CDS 30 A: Electric cooling fans
36. RDI 30 A: Electric cooling fans
37. MAIN 40 A: “HEAD RH”, “HEAD LH”,
fuses
38. HTR 50 A: “AM1” and “A/C” fuses
39. DEF 40 A: Rear window defogger
40. PWR 30 A: Power window control sys-
tem
41. AM1 40 A: “POWER−OUTLET”, “CIG”,
“RAD−NO.2”, “SEAT−HEATER”, “TURN”,
“WIP”, “ECU−IG”, “GAUGE”, and “HTR”
fuses
42. CDS NO.2 30 A: No Circuit
Fuses (type C)
43. ALT 100 A: “RDI” and “CDS” fuses
44. ABS 60 A: Anti−lock brake system
