TOYOTA CAMRY CNG 2001 Owner's Manual

’01CAMRY CNG (L/O0009)
152001 CAMRY CNG_U (OM33542U)
When refueling, you must use a special
nozzle that meets ANSI/AGA
NGV−1−1994 standards.
There are three types of nozzles. Use
a P36 type nozzle for this vehicle. If a
P36 nozzle is not available at a nearby
CNG station, you may use another type
of nozzle, but you cannot expect to get
a completely full tank with it.
For your safety, ask and follow the in-
structions at the refueling station when
refueling.
Before starting to refuel, wipe off mud
or dirt that may be deposited around
the fuel receptacle.
You will hear a chattering noise from the
tank when it is being filled, but this is
quite normal.
If you hear fuel leaking from the fuel re-
ceptacle, stop refueling immediately and
have your authorized Toyota CNG dealer
check the fuel receptacle.
For information on CNG stations, refer to
the station “Refueling station information”
on page v in the beginning of this manual.CAUTION
In order to safety refuel and avoid
serious personal injury, ask the
CNG station staff to refuel the ve-
hicle with CNG for you.
Do not start the engine while refuel-
ing. As the natural gas is flam-
mable, an explosion or a fire could
occur. Also, do not smoke or allow
open flames when refueling.
If you smell or hear fuel leaking
while refueling, immediately stop re-
fueling. Do not refuel it until after
the leak has been repaired.

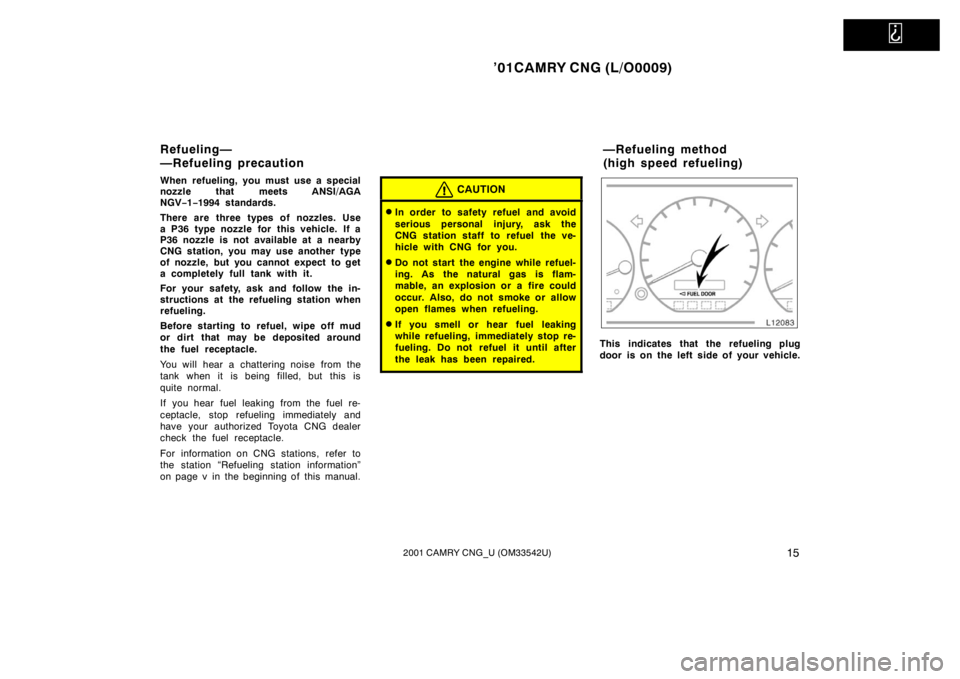

This indicates that the refueling plug
door is on the left side of your vehicle.
Refueling—
—Refueling precaution—Refueling method
(high speed refueling)

’01CAMRY CNG (L/O0009)
162001 CAMRY CNG_U (OM33542U)
There are two ways of natural gas re-
fueling: high and low speed. This manu-
al explains typical high speed refueling.
As for the low speed refueling method,
follow the instructions provided by the
manufacturer for the refueling equipments.

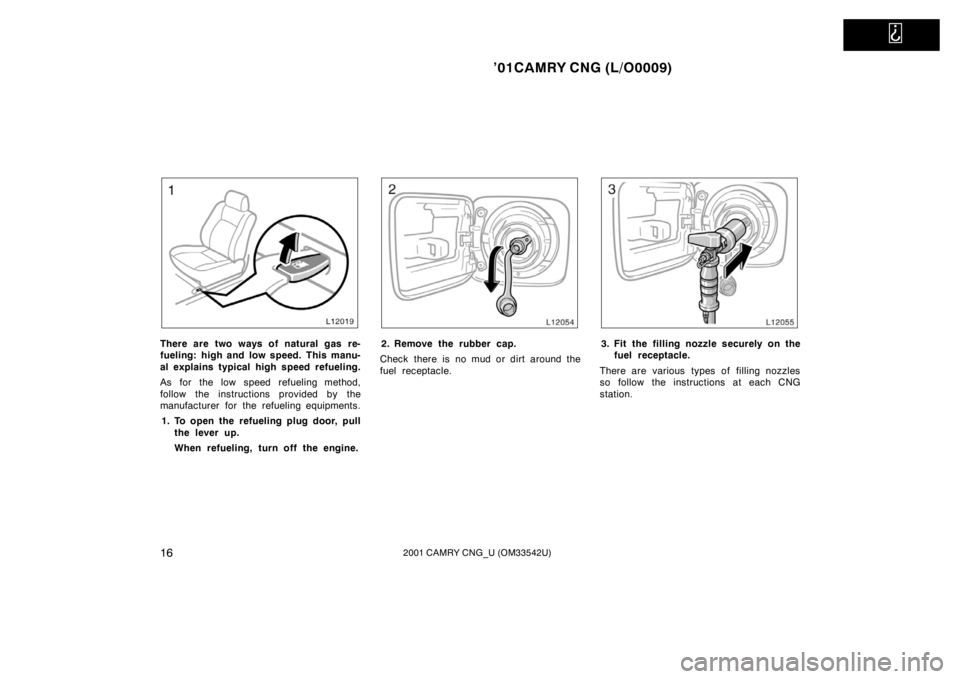

1. To open the refueling plug door, pull
the lever up.
When refueling, turn off the engine.2. Remove the rubber cap.
Check there is no mud or dirt around the
fuel receptacle.3. Fit the filling nozzle securely on the
fuel receptacle.
There are various types of filling nozzles
so follow the instructions at each CNG
station.

’01CAMRY CNG (L/O0009)
172001 CAMRY CNG_U (OM33542U)
4. Turn the valve lever to fasten the
nozzle to the fuel receptacle and to
start filling the tank.5. Refueling will stop automatically
when the tank is full. When discon-
necting the filling nozzle, follow the
instructions of the refueling station.
Reverse the procedure to disconnect the
nozzle after filling the tank.
When disconnecting the filling nozzle, you
may hear a brief hissing sound as a small
amount of fuel escapes, but this is nor-
mal.

’01CAMRY CNG (L/O0009)
182001 CAMRY CNG_U (OM33542U)

’01CAMRY CNG (L/O0009)
192001 CAMRY CNG_U (OM33542U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbagsgs 31. . . . . . . . . . . . . . . . . . . . . .
Child restraint39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti−glare inside rear view mirroror 58. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 3

’01CAMRY CNG (L/O0009)
202001 CAMRY CNG_U (OM33542U)
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

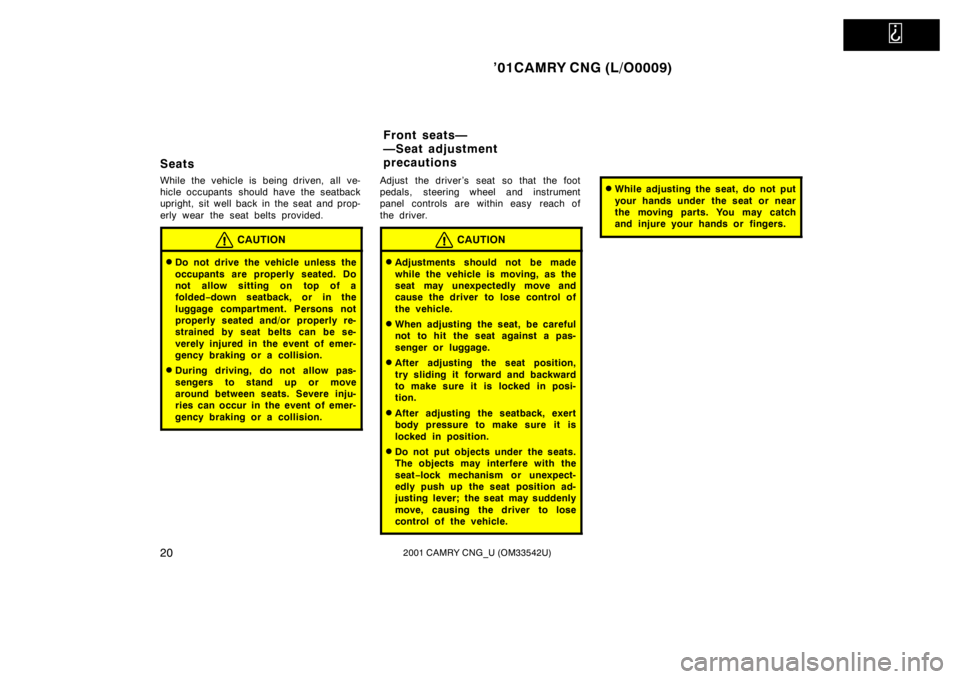

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded−down seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat−lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
Front seats—
—Seat adjustment
precautions

’01CAMRY CNG (L/O0009)
212001 CAMRY CNG_U (OM33542U)

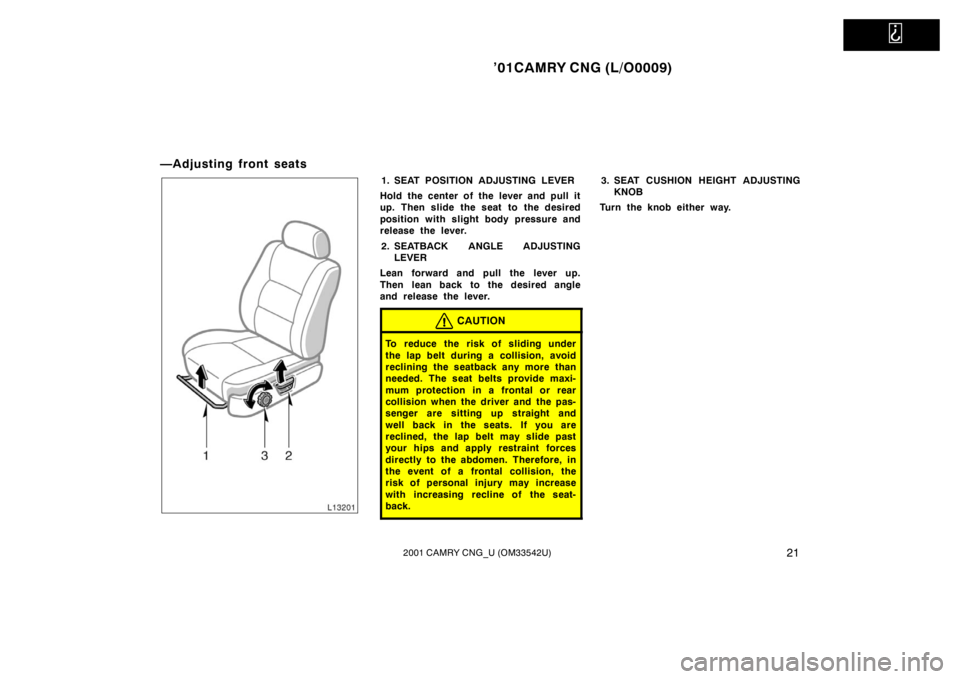

—Adjusting front seats
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT CUSHION HEIGHT ADJUSTING
KNOB
Turn the knob either way.

’01CAMRY CNG (L/O0009)
222001 CAMRY CNG_U (OM33542U)

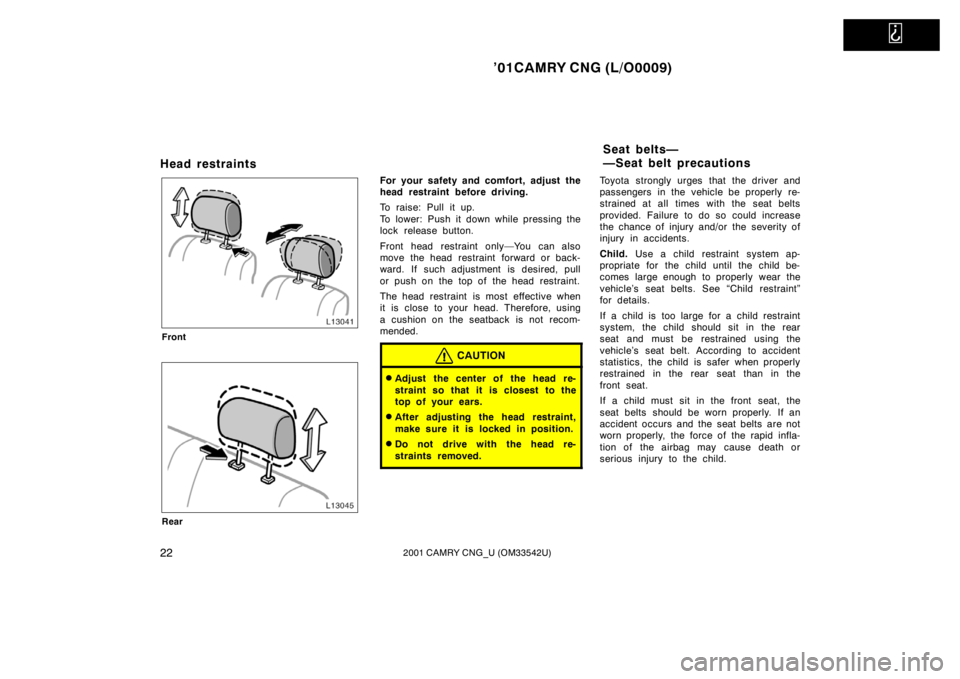

Head restraints
Front
Rear
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraint only—You can also
move the head restraint forward or back-
ward. If such adjustment is desired, pull
or push on the top of the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat belts—
—Seat belt precautions

’01CAMRY CNG (L/O0009)
232001 CAMRY CNG_U (OM33542U)
Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific

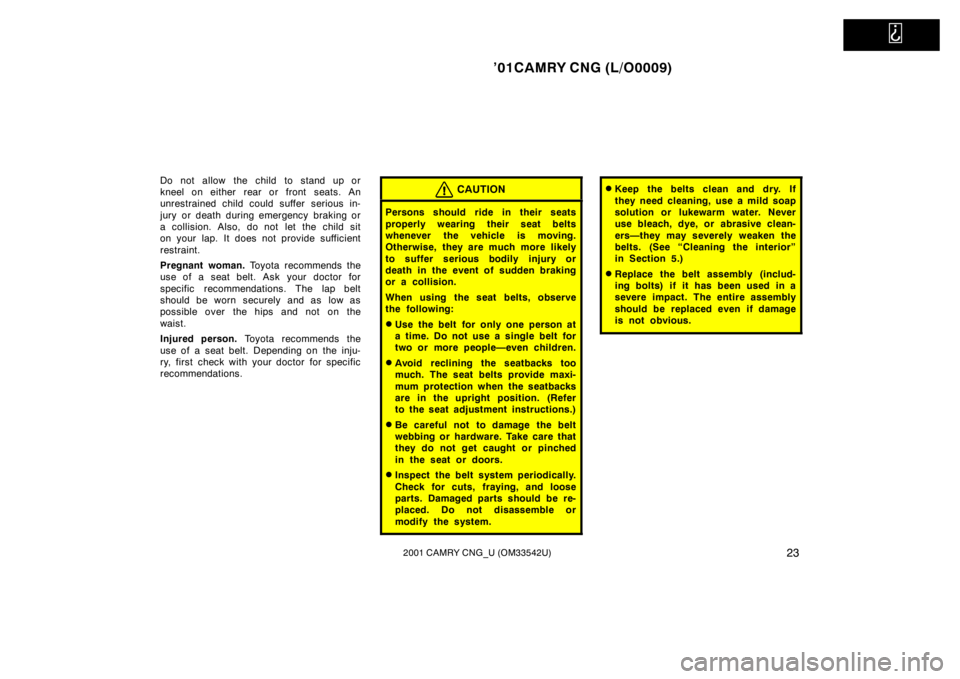

recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See “Cleaning the interior”
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

’01CAMRY CNG (L/O0009)
242001 CAMRY CNG_U (OM33542U)
Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
authorized Toyota CNG dealer. Do
not use the seat until the seat belt
is fixed. It cannot protect an adult
occupant or your child from injury.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
—Front seat belts and rear
outside seat belts
