’01CAMRY CNG (L/O0009)
42001 CAMRY CNG_U (OM33542U)

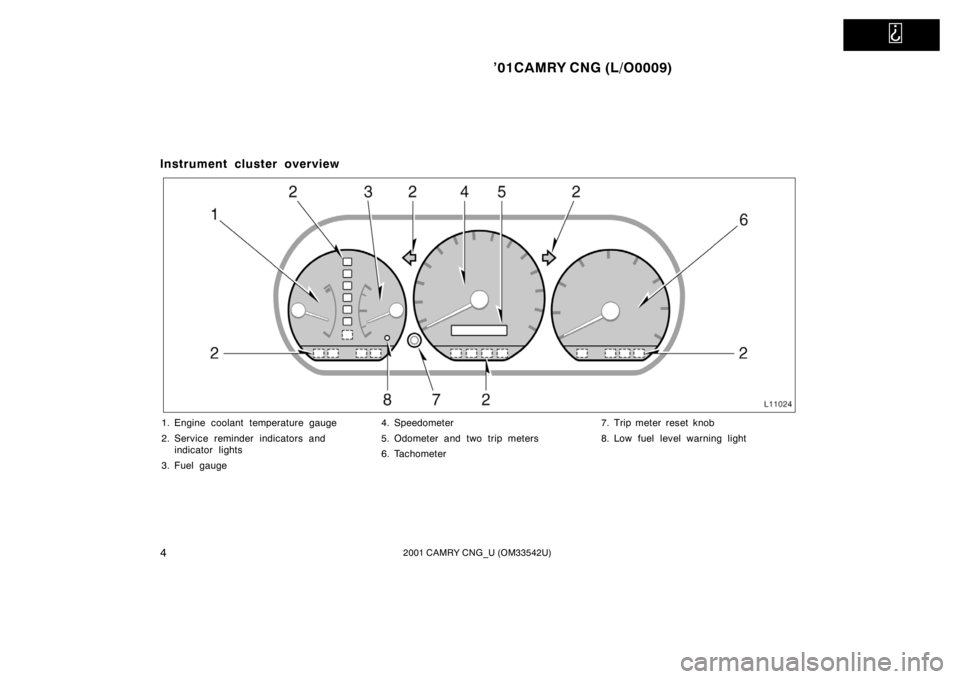

Instrument cluster overview
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Fuel gauge4. Speedometer
5. Odometer and two trip meters
6. Tachometer7. Trip meter reset knob
8. Low fuel level warning light

’01CAMRY CNG (L/O0009)
672001 CAMRY CNG_U (OM33542U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gaugege 68. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzersrs 70. . . . . . . . . . . . . .
SECTION 1− 5

’01CAMRY CNG (L/O0009)
692001 CAMRY CNG_U (OM33542U)
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm
( revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over−revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.

’01CAMRY CNG (L/O0009)
702001 CAMRY CNG_U (OM33542U)
3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.(a) If parking brake is
off, stop
immediately and
contact authorized
To y o t a C N G
dealer.
(b) Fasten seat belt.If the indicator or
buzzer below
comes on...
(c) Stop and check.
(d) Take vehicle to
authorized Toyota
CNG dealer.
(e) Fill the tank up.(indicator and buzzer)
Low fuel level
warning lightDo this.
(f) Stop and check.
(g) Take vehicle to
authorized Toyota
CNG dealer.
(h) Close all doors.
(i) Replace bulb.
(j) Take vehicle to
authorized Toyota
CNG dealer
immediately.
Do this.
(k) Add washer fluid.
(l) Remove key.Key reminder
buzzerIf the indicator or
buzzer below
comes on...
Service reminder indicators
an d warn in g bu zzers

’01CAMRY CNG (L/O0009)
1852001 CAMRY CNG_U (OM33542U)
Checking and replacing tires
Tread wear indicator
CHECKING YOUR TIRES
Check the tires tread for the tread wear
indicators. If the indicators show, re-
place the tires.
The tires on your Toyota have built−in
tread wear indicators to help you know
when the tires need replacement. When
the tread depth wears to 1.6 mm (0.06
in.) or less, the indicators will appear. If
you can see the indicators in two or more
adjacent grooves, the tire should be re-
placed. The lower the tread, the higher
the risk of skidding.
The effectiveness of snow tires is lost
if the tread wears down below 4 mm
(0.16 in.).Check the tires regularly for damage
such as cuts, splits and cracks. If any
damage is found, consult with a techni-
cian and have the tire repaired or re-
placed.
Even if the damage does not appear seri-
ous, a qualified technician should examine
the damage. Objects which have pene-
trated the tire may have caused internal
damage.
Any tires which are over 6 years old
must be checked by a qualified techni-
cian even if damage is not obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
When replacing a tire, use only the
same size and construction as original-
ly installed and with the same or great-
er load capacity.
Using any other size or type of tire may
seriously affect handling, ride, speedome-
ter/odometer calibration, ground clearance,
and clearance between the body and tires
or snow chains.
CAUTION
Do not mix radial, bias belted, or
bias−ply tires on your vehicle. It
can cause dangerous handling char-
acteristics, resulting in loss of con-
trol.
Do not use tires or wheels other
than the manufacturer ’s recom-
mended size.
Toyota recommends all four tires, or at
least both front or rear tires be re-
placed as a set.
See “If you have a flat tire” in Section 4
for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect vehicle
handling and tire life. Wheels can get out
of balance with regular use and should
therefore be balanced occasionally.
When replacing a tubeless tire, the air
valve should also be replaced with a
new one.
