TOYOTA CAMRY HYBRID 2007 XV40 / 8.G Owners Manual

’07Camry hybrid_U (L/O 0610)
380
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Model:2AZ− FXE
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
88.5 96.0 (3.48 3.78)
Displacement, cm
3 (cu. in.):
2362 (144.1)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗: Unladen vehicle 1470 (57.9) 4805 (189.2)
1820 (71.7)
2775 (109.3)
1575 (62.0)
1565 (61.6)
410 (900)
Engine

’07Camry hybrid_U (L/O 0610)
381
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Fuel type:Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 65 (17.2, 14.3) Type:
Permanent magnet synchronous motor
Maximum output: 105 kW
Maximum torque: 270 N·m (27.5 kgf·m, 199 ft·lbf) Type:
Nickel −Metal hydride battery
Voltage: 7.2 V/module
Capacity: 6.5 Ah
Quantity: 34 modules
Overall voltage: 244.8 V
Fuel Traction motorHybrid battery

’07Camry hybrid_U (L/O 0610)
382
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.38—0.48 (0.015—0.019)
Spark plug type:
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
NOTICE
Use only above spark plugs. Do not
adjust gaps for engine performance or
smooth driveab ility.
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 4.3 (4.5, 3.8)
Without filter 4.1 (4.3, 3.6)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.

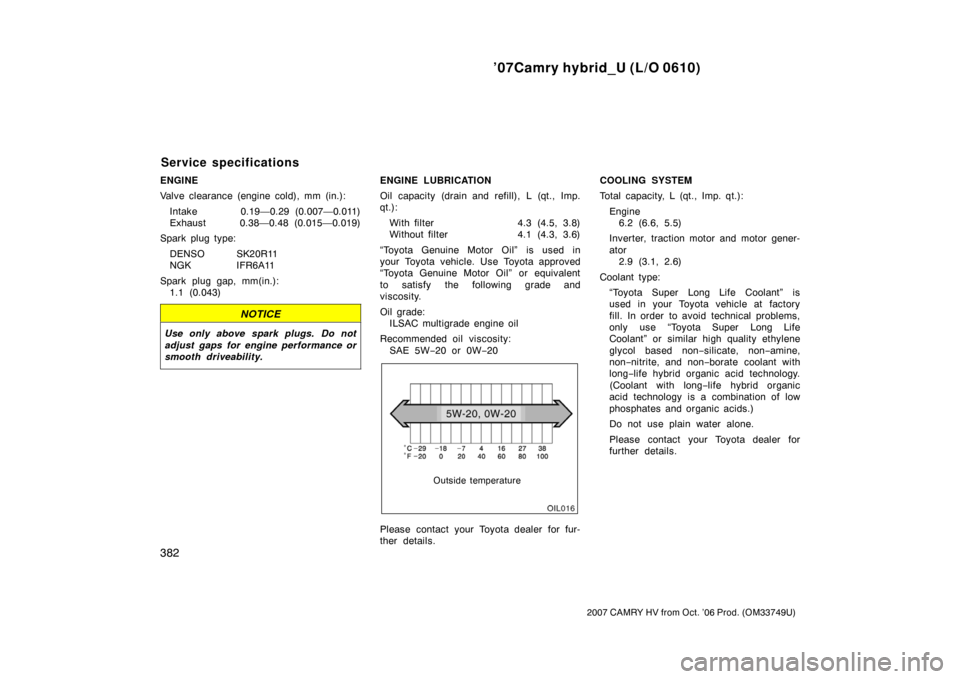

Oil grade: ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W −20 or 0W −20
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Engine6.2 (6.6, 5.5)
Inverter, traction motor and motor gener-
ator 2.9 (3.1, 2.6)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
Service specifications

’07Camry hybrid_U (L/O 0610)
383
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
12 VOLT BATTERY
Open voltage
∗ at 20C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
CAUTION
When replacing the battery, only
install a battery designated for your
hybrid vehicle. Using a conventional
battery may cause hydrogen gas to
build up in the vehicle.
TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
3.8 (4.0, 3.3)
Fluid type: Toyota Genuine ATF WS
Change the transmission fluid only as nec-
essary.
Generally, it is necessary to change
transmission fluid only if your vehicle is
driven under one of the Special Operating
Conditions listed in your “Scheduled
Maintenance Guide” or “Owner ’s Manual
Supplement”. When changing the
transmission fluid, use only “Toyota
Genuine ATF WS” (ATF JWS3324 or
NWS9638) to aid in assuring optimum
transaxle performance. Notice: Using transmission fluid other
than “Toyota Genuine ATF WS” may
cause deterioration in shift quality,
locking up of your transmission accom-
panied by vibration, and ultimately dam-
age the transmission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.

’07Camry hybrid_U (L/O 0610)
384
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the hybrid system operating, mm
(in.):80 (3.1)
Pedal free play, mm (in.): 1—2 (0.04—0.08)
Pad wear limit, mm (in.): 1.0 (0.04)
Parking brake Parking brake adjustment when de-
pressed with the force of 300 N (31 kgf,
67 lbf):7—10 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)

’07Camry hybrid_U (L/O 0610)
385
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Tire size and cold tire inflation pressure:
Front and rearkPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRearWheel size
P215/60R16 94V220 (2.2, 32)220 (2.2, 32)16 61/2 J
When driving under the above vehicle conditions at sustai ned high speeds above 160 km/h (100 mph), in countries
where such speeds are permitted by −law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm2 or bar, 35 psi) provided
that it does not exceed the maximum cold tire inflation pressure molded on the tire sidewall.
Spare kPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRearWheel size
T155/70D17 110M420 (4.2, 60)420 (4.2, 60)17 4T
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) :
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions”, pages 359 through 367, in Section 7 −2.
Tires

’07Camry hybrid_U (L/O 0610)
386
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
ENGINE COMPARTMENT1. AM2 7.5 A: “POWER” switch
2. ABS MAIN No.2 10 A: Electronically
controlled brake system
3. ABS MAIN No.1 10 A: Electronically
controlled brake system
4. ABS MAIN No.3 10 A: Electronically
controlled brake system
5. BATT FAN 10 A: Hybrid battery fan
6. ETCS 10 A: Electronic throttle control
system
7. HAZ 15 A: Turn signal lights
8. IG2 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system, “GAUGE
NO.2”, “IGN” and “INJ” fuses
9. STR LOCK 20 A: Steering lock system
10. DOME 10 A: Gages and meters, vanity
lights, trunk light, “POWER” switch
light, door courtesy lights, interior light,
personal lights, clock, smart key
system
11. ECUB NO.1 10 A: Front passenger
occupant classification system, main
body ECU
12. RADIO NO.1 15 A: Audio system, nav-
igation system 13. DOOR NO.1 25 A:
Main body ECU,
power door lock
14. IGCT 30 A: Hybrid system ECU,
“PWR”, “IGCT No.2” and “INV W/P”
fuses
15. AMP 25 A: Audio system
16. EFI MAIN 30 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system and “EFI NO.3” fuses
17. EFI NO.3 10 A: Fuel tank system, mul-
tiport fuel injection system/sequential
multiport fuel injection system
18. IGCT NO.2 10 A: Hybrid system ECU,
motor generator ECU
19. INV W/P 15 A: Hybrid system ECU,
traction battery, DC/DC converter, mul-
tiport fuel injection system/sequential
multiport fuel injection system
20. SHORN 7.5 A: No circuit
21. A/F 20 A: No circuit
22. MPXB 10 A: Gauges and meters
23. EFI NO.1 10 A: Smart key system
24. HORN 10 A: Horns
25. HLP(RL) 15 A: Right−hand headlight
(low beam)
Fuses

’07Camry hybrid_U (L/O 0610)
387
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
26. HLP(LL) 15 A: Left−hand headlight
(low beam)
27. HLP(RH) 15 A: Right−hand headlight
(high beam)
28. HLP(LH) 15 A: Left−hand headlight
(high beam)
29. HTR 50 A: Air conditioning system
30. HTR SUB2 50 A: PTC heater
31. HTR SUB1 50 A: PTC heater
32. RR DEF 50 A: Rear window defogger,
“MIR HTR” fuse
33. CDS FAN 40 A: Electric cooling fans
34. RDI FAN 40 A: Electric cooling fans
35. DC/DC 120 A: “ABS MTR2”, “EPS”,
“ABS MTR”, “AM2”, DOOR NO.1”,
“ETCS”, “IG2”, “HAZ”, “AMP”, “ABS
MAIN1”, “ABS MAIN2”, “STR LOCK”,
“ABS MAIN3”, “BTT FAN”, “EFI MAIN”,
“EFI NO.1” and “IGCT” fuses
36. EPS 80 A: Electric power steering sys-
tem
37. ABS MTR2 40 A: Electronically con-
trolled brake system
38. ABS MTR1 50 A: Electronically con-
trolled brake system

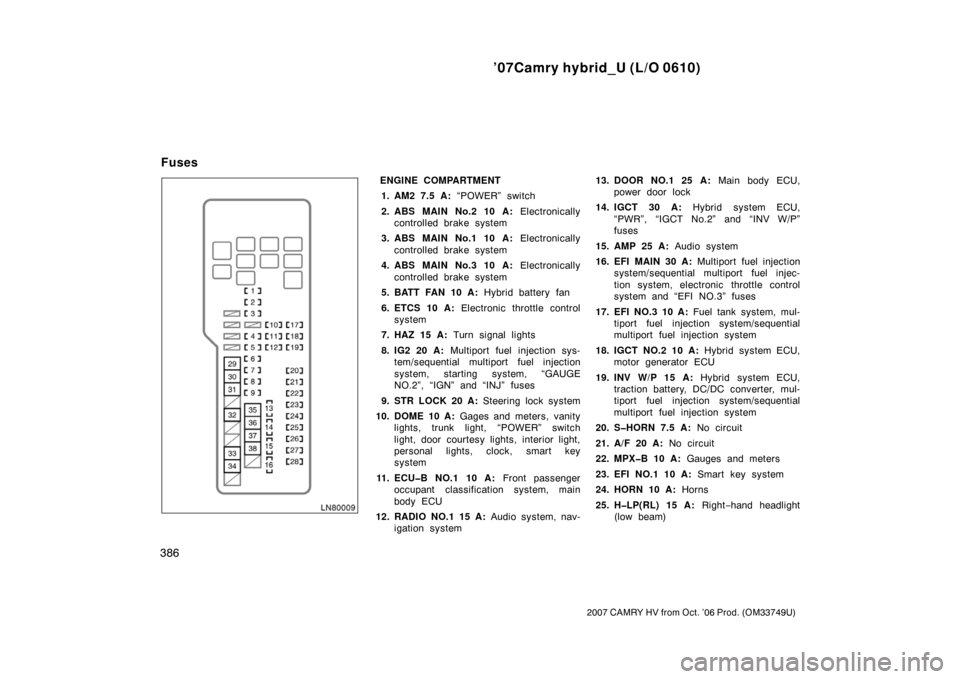

INSTRUMENT PANEL
1. RR DOOR RH 25 A: Rear right power
window
2. RR DOOR LH 25 A: Rear left power
window
3. FUEL OPN 7.5 A: Fuel fillter door
opening system
4. FR FOG 15 A: No circuit
5. OBD 7.5 A: On−board diagnosis sys-
tem
6. ECUB NO.2 7.5 A: No circuit7. STOP 10 A:
Stop lights, high mounted
stoplight, shift lock control system,
multiport fuel injection system/sequen-
tial multiport fuel injection system, main
body ECU, electronically controlled
brake system, electronic throttle control
system
8. TI&TE 30 A: No circuit
9. AM1 7.5 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
10. A/C 7.5 A: Air conditioning system
11. PWR 25 A: Power windows
12. DOOR NO.2 25 A: Main body ECU
13. S/ROOF 30 A: Electric moon roof
14. TAIL 15 A: Front side marker lights,
tail lights, rear side marker lights, li-
cense plate lights
15. PANEL 7.5 A: Navigation system, seat
heaters, emergency flashers, air condi-
tioning system, audio system, glove
box light, instrument panel lights, steer-
ing switches, clock
16. ECU IG NO.1 10 A: Main body ECU,
push start system, electric moon roof,
auto anti −glare inside rear view mirror,
tire pressure warning system, naviga-
tion system

’07Camry hybrid_U (L/O 0610)
388
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
17. ECU IG NO.2 7.5 A: Electronically
controlled brake system, electric power
steering system, shift lock control sys-
tem
18. A/C NO.2 10 A: Air conditioning sys-
tem, rear window defogger
19. WASH 10 A: Windshield wipers and
washer
20. SHTR 20 A: Seat heaters
21. GAUGE NO.1 10 A: Emergency flash-
ers, back− up lights
22. WIP 25 A: Windshield wipers and
washer
23. HLP LVL 7.5 A: No circuit
24. INJ 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
25. IGN 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, steering
lock system, front passenger occupant
classification system, smart key sys-
tem, electronic throttle control system
26. GAUGE NO.2 7.5 A: Gages and me-
ters, clock 27. ECUACC 7.5 A:
Clock, main body
ECU, shift lock control system, outside
rear view mirrors, smart key system,
push start system
28. CIG 20 A: No circuit
29. PWR OUTLET 20 A: Power outlet
30. RADIO NO.2 7.5 A: Audio system,
navigation system
31. MIR HTR 10 A: Outside rear view mir-
ror defoggers
32. 30 A: Power windows
33. 30 A: Power seats

’07Camry hybrid_U (L/O 0610)
389
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners390
. . . . . . . . . . . . . . . . . . . . . .
SECTION 9
