Event data recorder
Your vehicle has computers that monitor and control cer-
tain aspects of your vehicle. These computers assist in
driving and maintaining optimal vehicle performance. Be-
sides storing data useful for troubleshooting, there is a
system to record data in a crash or a near car crash
event. This is called an Event Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a
crash or a near car crash event, this device may record
some or all of the following information: Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat
belts or not
 Driver ’s seat position
 Front passenger ’s occupant classification
SRS airbag deployment data
 SRS airbag system diagnostic data
If your vehicle is equipped with a vehicle stability control
(VSC) system, its Electronic Control Unit (ECU) may con-
tain another EDR. There are a variety of driving situations
which include activating the VSC under which the VSC
EDR will record certain information. The VSC EDR may
record some or all of the following information:
 Behavior of the vehicle
 Steering wheel angle
 Vehicle speed
 To what extent the accelerator pedal was depressed
 To what extent the brake pedal was applied
 To what extent the ECU controlled the condition of
the 4 wheels
 Vehicle stability control system diagnostic data
The information above is intended to be used for the
purpose of improving vehicle safety performance. Unlike
general data recorders, the EDR does not record sound
data such as conversation between passengers.

’07Camry hybrid_U (L/O 0610)
13
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Pull your vehicle off the road, put
the transmission in the “P” posi-
tion, apply the parking brake, turn
the hybrid system off and carry the
key.
In order to avoid death or serious
injury, do not touch high voltage
wiring, connectors or high voltage
parts (inverter unit, hybrid battery
and etc.). High voltage parts and
cables are indicated in the illustra-
tion on page 7.
If exposed electric wires are pro-
truding inside or outside of your
vehicle, an electric shock may oc-
cur. Never touch the electric wires.
If fluid leaks or gets into some
parts of the vehicle, never touch it
because it may be strong alkaline
electrolyte from the hybrid battery.
If it contacts your skin or eyes,
wash it off immediately with a large
amount of water or if possible, bo-
ric acid solution. Get immediate
medical attention in order to help
avoid serious injury.
If a fire occurs in the hybrid ve-
hicle, leave the vehicle as soon as
possible. Never use a fire extin-
guisher that is not meant for elec-
tric fires. Using a small amount of
water may be also dangerous.
If your vehicle needs to be towed,
do it with the front wheels raised.
If the wheels with the motor gener-
ator are on the ground when tow-
ing, the motor may continue to gen-
erate electricity. This may cause the
electricity leakage. Depending on
the severity of the damage, electric-
ity leakage may cause fire. See “If
your vehicle needs to be towed” on
page 327 in Section 4.
The emergency shut off system blocks
off the high voltage current and stops
the fuel pump to minimize the risk of
the electric leakage and the fuel leak-
age when a certain level of impact is
detected by the impact sensor. If the
system activates, your vehicle will not
restart. To restart the hybrid system,
contact a Toyota dealer.
CAUTION
Check to see if there are exposed
high voltage parts and cables. Nev-
er touch the parts and cables. See
“—High voltage components” on
page 7 in this Section for the loca-
tions of the high voltage parts and
cables.
Inspect the ground under the ve-
hicle. If you find that liquid has
leaked onto the ground, the fuel
system may have been damaged.
Leave the vehicle as soon as pos-
sible.
Road accident cautions——Emergency shut off system

’07Camry hybrid_U (L/O 0610)
39
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When any of the doors are not secure-
ly closed. A beep will sound continu-
ously for 10 seconds.
When the lock button is pressed while
opening or closing the door. A beep
will sound continuously for 10 seconds.
When the hybrid system is not turned
off. A beep will sound continuously for
2 seconds.
When the key is left in the vehicle. A
beep will sound continuously for 2 sec-
onds.
When attempting to lock the doors with
the key near a window or a door han-
dle. A beep will sound continuously for
2 seconds.
The beep may not sound if the key is on
the instrument panel, on the package tray,
in the glove box or on the floor, etc.
The answerback function (the turn signal
flash and the beep) can be disabled. For
details, contact your Toyota dealer.Unlocking operation

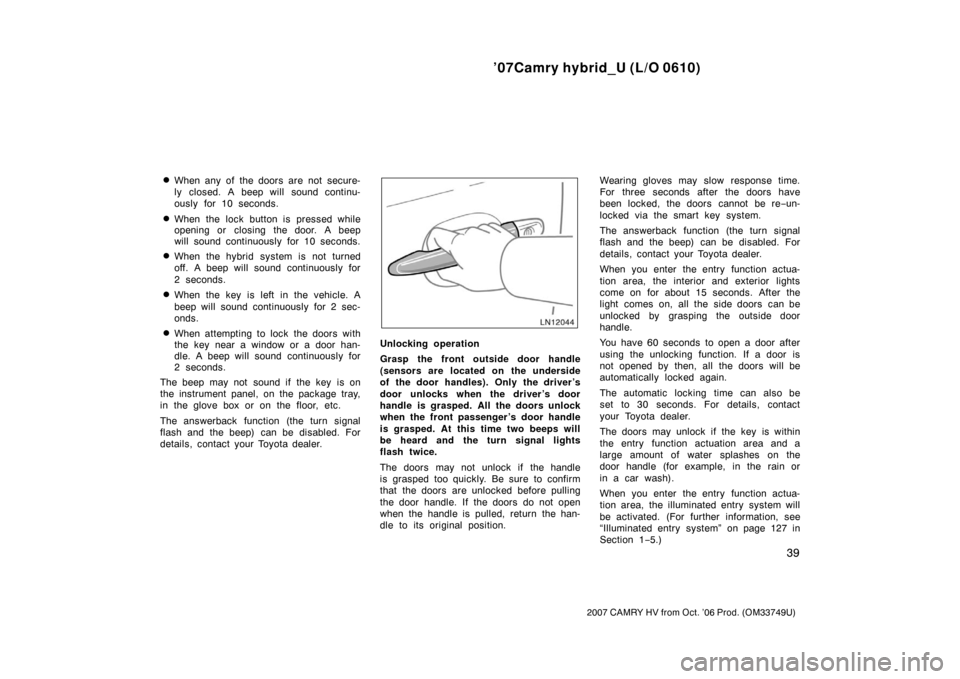

Grasp the front outside door handle
(sensors are located on the underside
of the door handles). Only the driver’s
door unlocks when the driver ’s door
handle is grasped. All the doors unlock
when the front passenger ’s door handle
is grasped. At this time two beeps will
be heard and the turn signal lights
flash twice.
The doors may not unlock if the handle
is grasped too quickly. Be sure to confirm
that the doors are unlocked before pulling
the door handle. If the doors do not open
when the handle is pulled, return the han-
dle to its original position. Wearing gloves may slow response time.
For three seconds after the doors have
been locked, the doors cannot be re
−un-
locked via the smart key system.
The answerback function (the turn signal
flash and the beep) can be disabled. For
details, contact your Toyota dealer.
When you enter the entry function actua-
tion area, the interior and exterior lights
come on for about 15 seconds. After the
light comes on, all the side doors can be
unlocked by grasping the outside door
handle.
You have 60 seconds to open a door after
using the unlocking function. If a door is
not opened by then, all the doors will be
automatically locked again.
The automatic locking time can also be
set to 30 seconds. For details, contact
your Toyota dealer.
The doors may unlock if the key is within
the entry function actuation area and a
large amount of water splashes on the
door handle (for example, in the rain or
in a car wash).
When you enter the entry function actua-
tion area, the illuminated entry system will
be activated. (For further information, see
“Illuminated entry system” on page 127 in
Section 1 −5.)

’07Camry hybrid_U (L/O 0610)
74
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
As far as the seat belt extender on the
front passenger side is concerned, do not
fail to disconnect the extender from the
seat belt after the above operation in or-
der to activate the front passenger airbag
correctly when getting into the vehicle
next time.
When not in use, remove the extender
and store in the vehicle for future use.

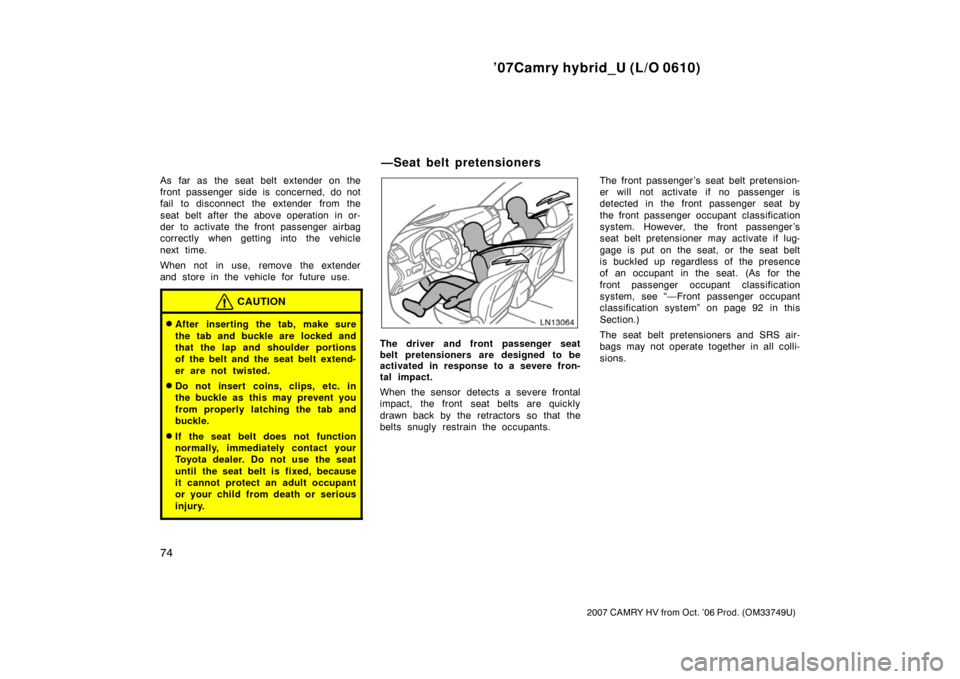

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extend-
er are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
The driver and front passenger seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the sensor detects a severe frontal
impact, the front seat belts are quickly
drawn back by the retractors so that the
belts snugly restrain the occupants.The front passenger ’s seat belt pretension-
er will not activate if no passenger is
detected in the front passenger seat by
the front passenger occupant classification
system. However, the front passenger’s
seat belt pretensioner may activate if lug-
gage is put on the seat, or the seat belt
is buckled up regardless of the presence
of an occupant in the seat. (As for the
front passenger occupant classification
system, see “—Front pass
enger occupant
classification system” on page 92 in this
Section.)
The seat belt pretensioners and SRS air-
bags may not operate together in all colli-
sions.
—Seat belt pretensioners

’07Camry hybrid_U (L/O 0610)
75
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-

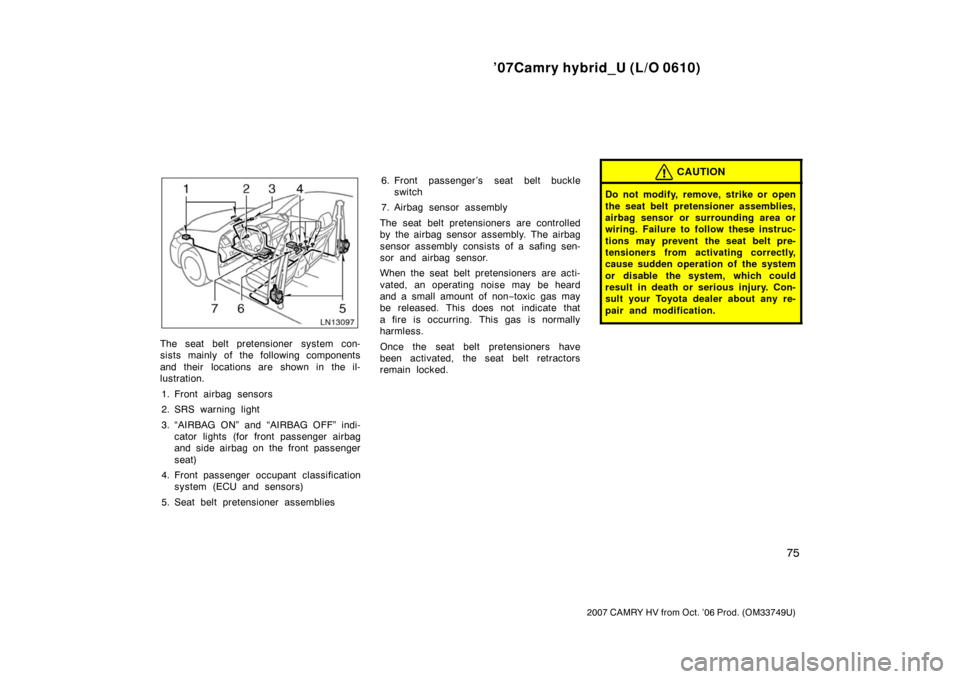

lustration.1. Front airbag sensors
2. SRS warning light
3. “AIRBAG ON” and “AIRBAG OFF” indi- cator lights (for front passenger airbag
and side airbag on the front passenger
seat)
4. Front passenger occupant classification system (ECU and sensors)
5. Seat belt pretensioner assemblies 6. Front passenger ’s seat belt buckle
switch
7. Airbag sensor assembly
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non −toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.

’07Camry hybrid_U (L/O 0610)
76
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This indicator comes on when the
“POWER” switch is set at ON. It goes
off after about 6 seconds. This means
the seat belt pretensioners are operat-
ing properly. This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 150 in Section 1
−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
“POWER” switch is set at ON or re-
mains on for more than about 6 sec-
onds.
The light comes on or starts flashing
while driving.
If any seat belt does not retract or
cannot be pulled out due to a malfunc-
tion or activation of the relevant seat
belt pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.

’07Camry hybrid_U (L/O 0610)
77
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
Your vehicle is equipped with “ADVANCED
AIRBAGS” designed based on US motor
vehicle safety standards (FMVSS208). The
airbag system controls airbag deployment
power for the driver and front passenger.
The driver airbag system consists of the
driver seat’s position sensor etc. The front
passenger ’s airbag system consists of the
front passenger occupant classification
sensor etc. In response to a severe frontal impact,
the SRS front airbags work with the seat
belts to help reduce injury by inflating.
The SRS front airbags help reduce injuries
mainly to the driver’s or front passenger’s
head, chest or knee caused by hitting the
vehicle interior.
The SRS front passenger airbag will not
activate if there is no passenger sitting in
the front passenger seat. However, the
front passenger airbag may deploy if lug-
gage is put in the seat, or the seat belt
is buckled up, regardless of the presence
of an occupant in the seat. (As for the
front passenger occupant classification
system, see “—Front pass
enger occupant
classification system” on page 92 in this
Section.)
Always wear your seat belt properly.
SRS airbags—
—SRS driver airbag, driver
knee airbag and front
passenger airbag

’07Camry hybrid_U (L/O 0610)
79
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Collision from the rear
Collision from the side Vehicle rollover

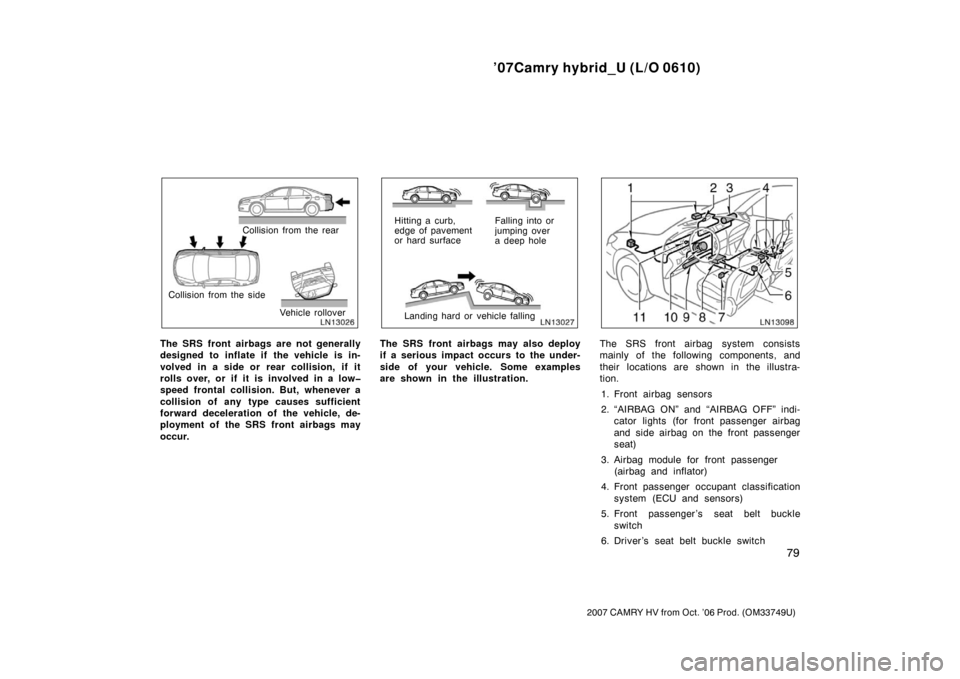

The SRS front airbags are not generally
designed to inflate if the vehicle is in-
volved in a side or rear collision, if it
rolls over, or if it is involved in a low
speed frontal collision. But, when ever a
collision of any type causes sufficient
forward deceleration of the vehicle, de-
ployment of the SRS front airbags may
occur.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over
a deep hole
Landing hard or vehicle falling
The SRS front airbags may also deploy
if a serious impact occurs to the under-
side of your vehicle. Some examples
are shown in the illustration.The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion. 1. Front airbag sensors
2. “AIRBAG ON” and “AIRBAG OFF” indi- cator lights (for front passenger airbag
and side airbag on the front passenger
seat)
3. Airbag module for front passenger (airbag and inflator)
4. Front passenger occupant classification system (ECU and sensors)
5. Front passenger ’s seat belt buckle switch
6. Driver ’s seat belt buckle switch

’07Camry hybrid_U (L/O 0610)
80
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
7. Driver ’s seat position sensor
8. Airbag sensor assembly
9. Knee airbag module for driver (airbag and inflator)
10. Airbag module for driver (airbag and inflator)
11. SRS warning light
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The front airbag sensors constantly moni-
tor the forward deceleration of the vehicle.
If an impact results in a forward decelera-
tion beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the infla-
tors very quickly fills the air bags with
non− toxic gas to help restrain the forward
motion of the occupants. The front airbags
then quickly deflate, so that there is no
obstruction of the driver ’s vision should it
be necessary to continue driving. When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non
−toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately. Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to; avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, lower portion of driver ’s side instru-
ment panel, airbag cover and inflator) may
be hot for several minutes after deploy-
ment, so do not touch! The airbags inflate
only once. The windshield may be dam-
aged by absorbing some of the force of
the inflating airbag.

’07Camry hybrid_U (L/O 0610)
82
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

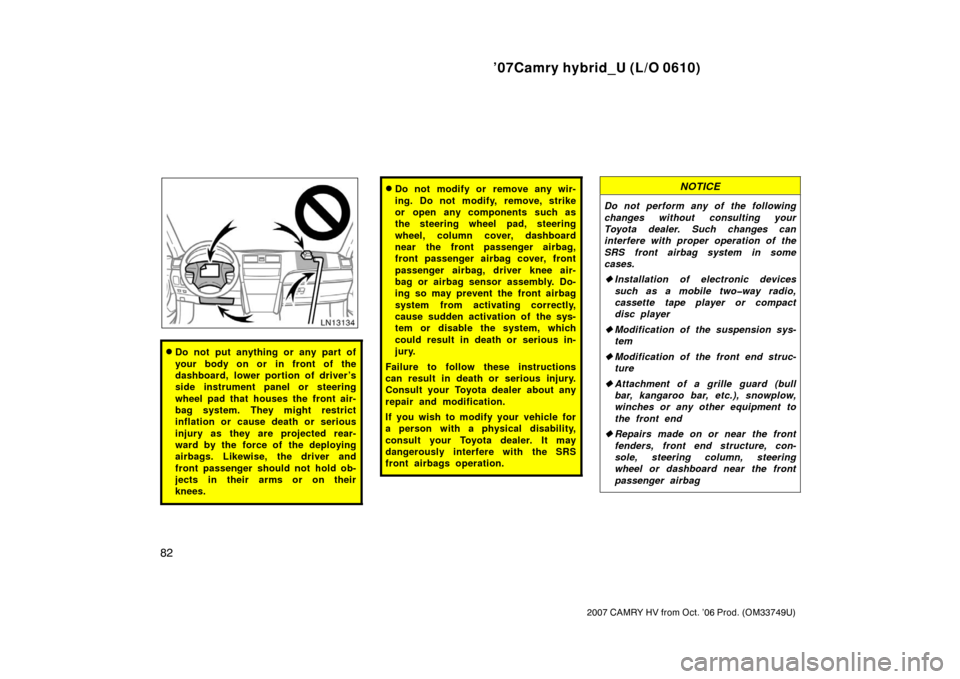

Do not put anything or any part of
your body on or in front of the
dashboard, lower portion of driver ’s
side instrument panel or steering
wheel pad that houses the front air-
bag system. They might restrict
inflation or cause death or serious
injury as they are projected rear-
ward by the force of the deploying
airbags. Likewise, the driver and
front passenger should not hold ob-
jects in their arms or on their
knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag, driver knee air-
bag or airbag sensor assembly. Do-
ing so may prevent the front airbag
system from activating correctly,
cause sudden activation of the sys-
tem or disable the system, which
could result in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
front airbags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
