warning light TOYOTA CAMRY HYBRID 2008 XV40 / 8.G Quick Reference Guide

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Indicator symbols
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator
1For details, refer to “Indicators and warning lights,” Section 2-2, 2008 Owner’s Manual.2If this light flashes, refer to “Cruise control,” Section 2-4, 2008 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Tu r n signal indicator
Slip indicator
Cruise control indicator2
Low Tire Pressure Wa r n i n g1
Theft deterrent/Engine immobilizer system indicator
Open door warning1
Airbag SRS warning1
Master warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Driving ready light1
Malfunction/Check Engine indicator1
Low fuel level warning1
Electric power steering system warning1
Brake system warning light1

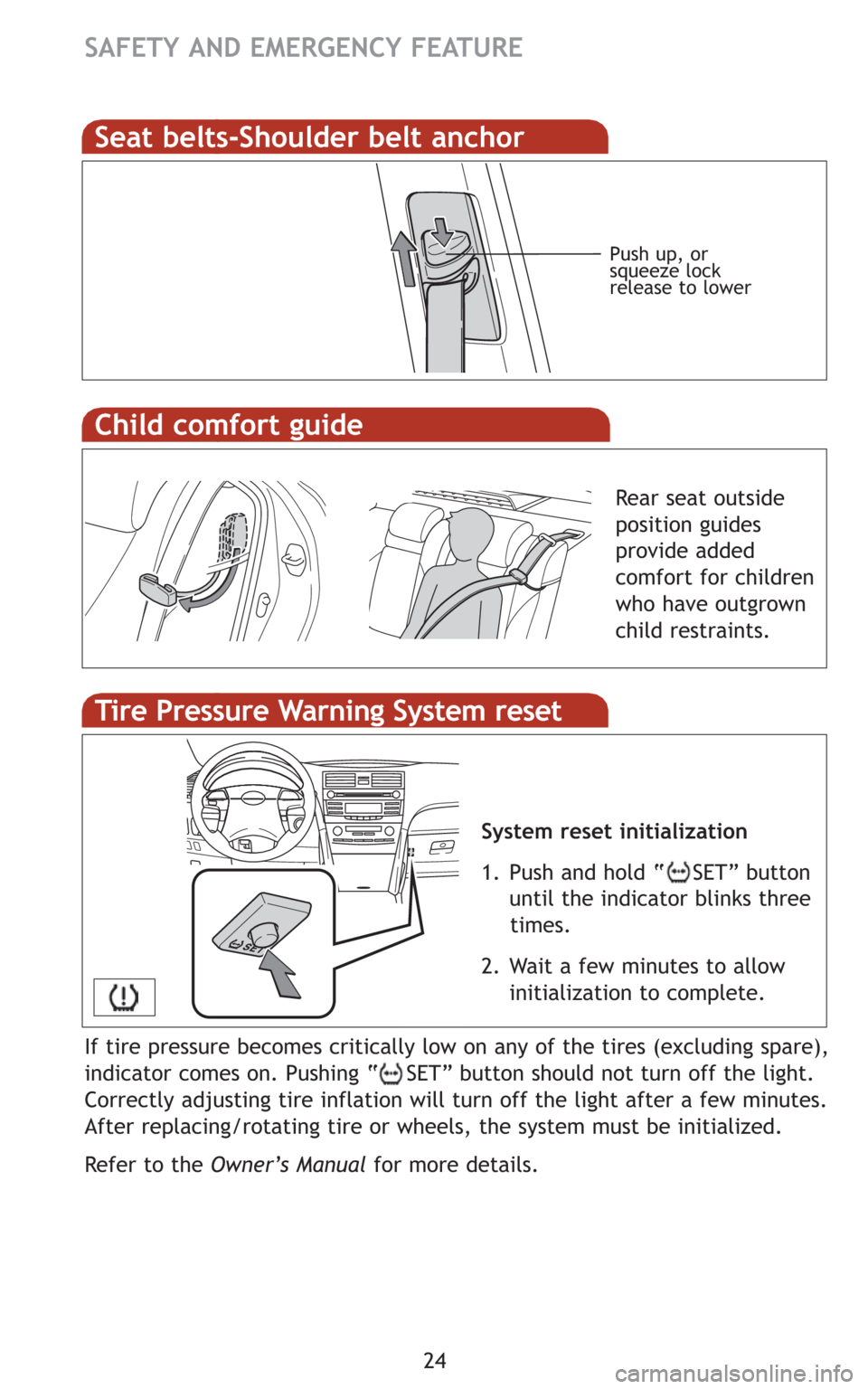

24
SAFETY AND EMERGENCY FEATURE
Push up, or
squeeze lock
release to lower
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the tires (excluding spare),
indicator comes on. Pushing “ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the light after a few minutes.
After replacing/rotating tire or wheels, the system must be initialized.
Refer
to the Owner’s Manualfor more details.
System reset initialization
1.Push and hold “ SET” button
until the indicator blinks three
times.
2.Wait a few minutes to allow
initialization to complete.
Seat belts-Shoulder belt anchor
Rear seat outside
position guides
provide added
comfort for children
who have outgrown
child restraints.
Child comfort guide
