Before driving1
21
1-1. Hybrid systemHybrid system .................... 22
1-2. Key information Keys ................................... 35
1-3. Opening, closing and locking the doors
Smart key system .............. 37
Wireless remote control ..... 48
Doors ................................. 51
Trunk .................................. 55
1-4. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 58
Rear seats.......................... 60
Head restraints................... 61
Seat belts ........................... 63
Steering wheel ................... 71
Anti-glare inside rear view mirror ............................... 72
Outside rear view mirrors ... 74
1-5. Opening and closing the windows
Power windows .................. 76
Moon roof ........................... 78
1-6. Refueling Opening the fuel tank cap ................................... 82 1-7. Theft deterrent system
Immobilizer system ............ 87
Theft prevention labels (for U.S.A.) ....................... 89
1-8. Safety information Correct driving posture....... 90
SRS airbags ....................... 92
Front passenger occupant classification system ...... 104
Child restraint systems..... 109
Installing child restraints ........................ 113
Page 22 of 497
22
1-1. Hybrid system
Hybrid system
Your vehicle is a hybrid vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the char-
acteristics of your vehicle, and operate with care.
The hybrid system combines a gasoline engine and an electric
motor (traction motor) according to driving conditions, improving
fuel efficiency and reducing exhaust emissions.

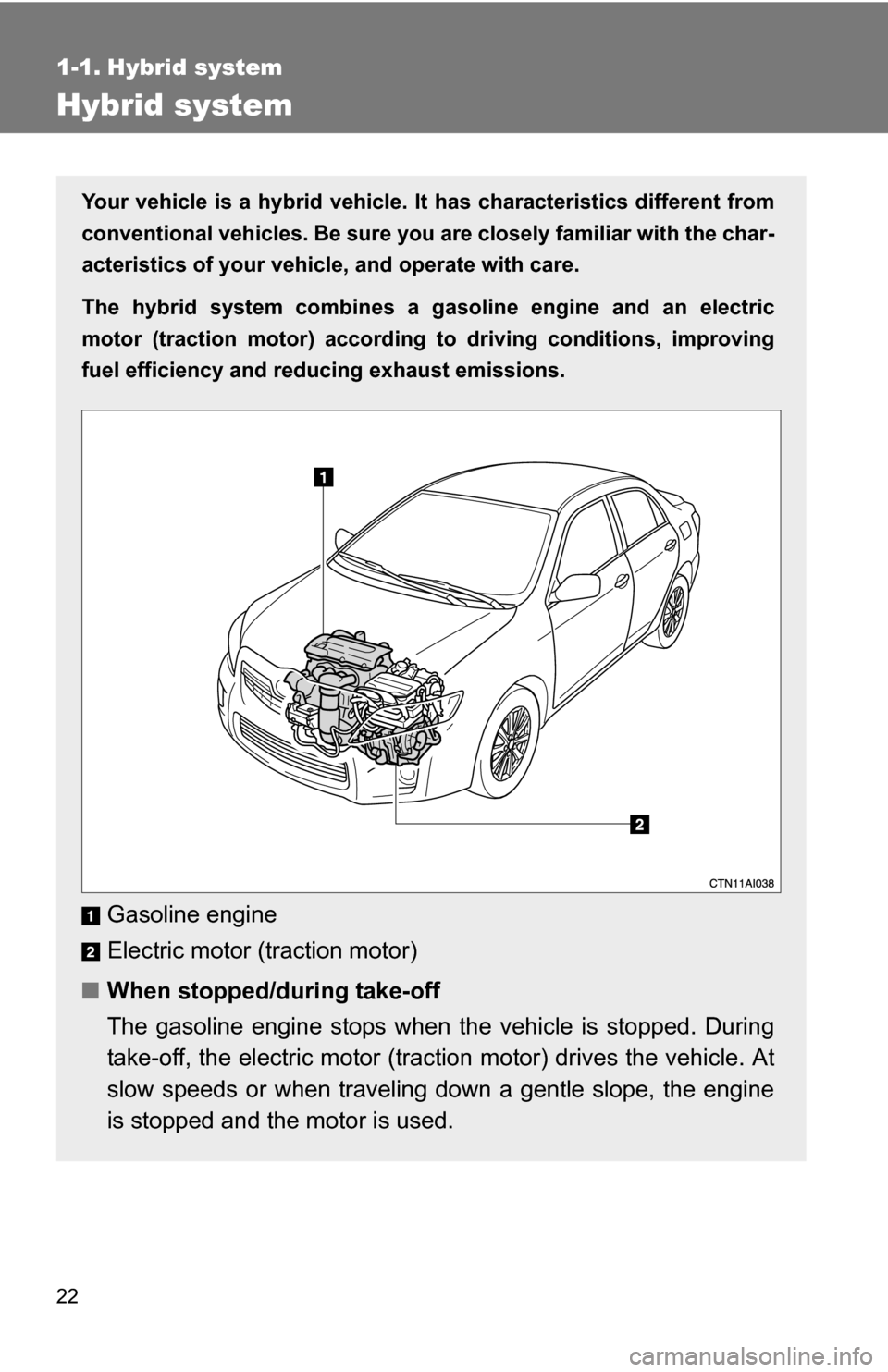

Gasoline engine
Electric motor (traction motor)
■ When stopped/during take-off
The gasoline engine stops when the vehicle is stopped. During
take-off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine
is stopped and the motor is used.
Page 23 of 497
23
1-1. Hybrid system
1
Before driving
■

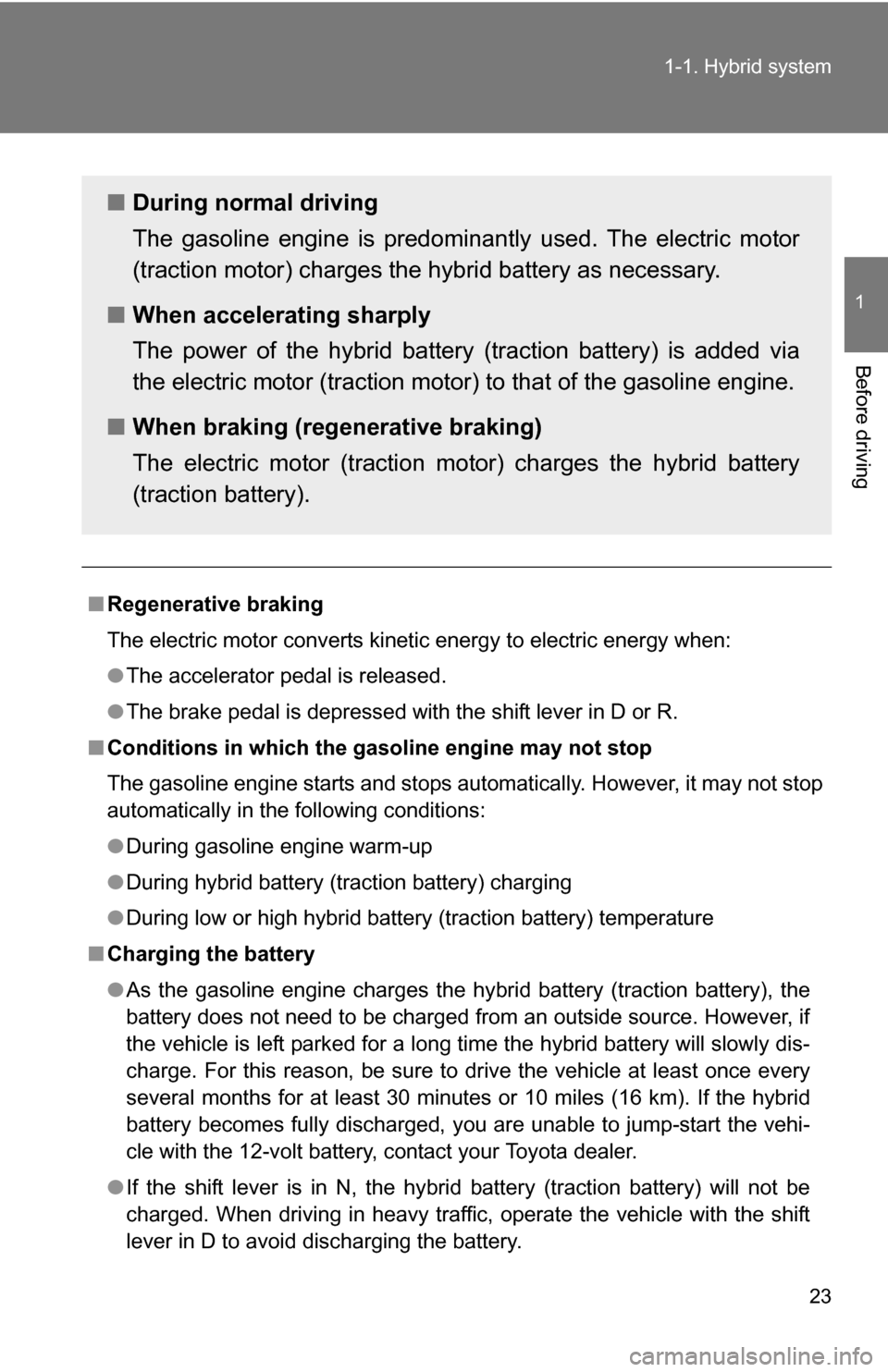

Regenerative braking
The electric motor converts kinetic energy to electric energy when:
●The accelerator pedal is released.
● The brake pedal is depressed with the shift lever in D or R.
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
●During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● During low or high hybrid battery (traction battery) temperature
■ Charging the battery
●As the gasoline engine charges the hybrid battery (traction battery), the
battery does not need to be charged from an outside source. However, if
the vehicle is left parked for a long time the hybrid battery will slowly dis-
charge. For this reason, be sure to drive the vehicle at least once every
several months for at least 30 minutes or 10 miles (16 km). If the hybrid
battery becomes fully discharged, you are unable to jump-start the vehi-
cle with the 12-volt battery, contact your Toyota dealer.
● If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. When driving in heavy traffic, operate the vehicle with the shift
lever in D to avoid discharging the battery.
■ During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery as necessary.
■ When accelerating sharply
The power of the hybrid battery (traction battery) is added via
the electric motor (traction moto r) to that of the gasoline engine.
■ When braking (regenerative braking)
The electric motor (traction mo tor) charges the hybrid battery
(traction battery).
Page 24 of 497
24 1-1. Hybrid system

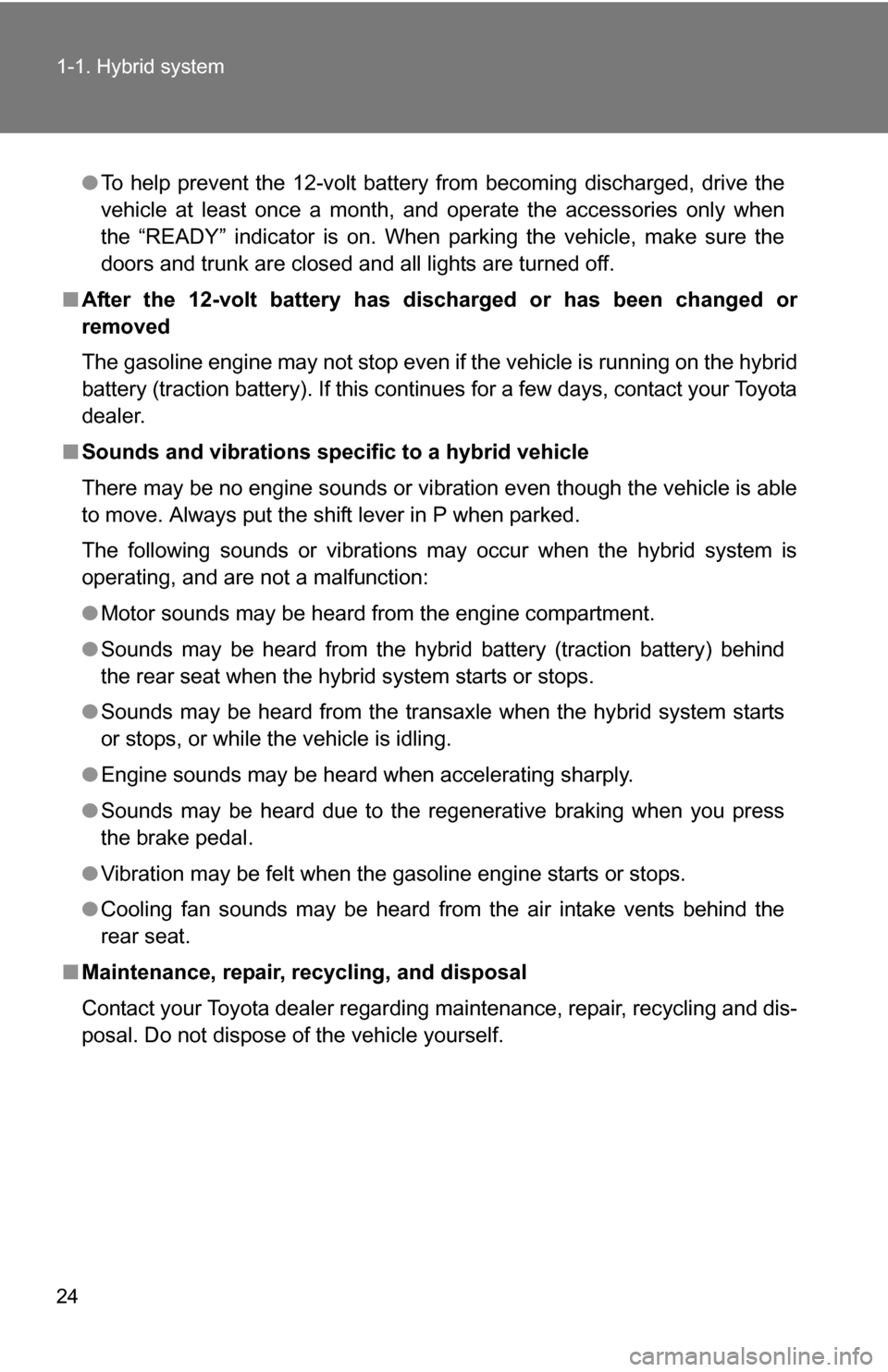

●To help prevent the 12-volt battery from becoming discharged, drive the
vehicle at least once a month, and operate the accessories only when
the “READY” indicator is on. When parking the vehicle, make sure the
doors and trunk are closed and all lights are turned off.
■ After the 12-volt battery has di scharged or has been changed or
removed
The gasoline engine may not stop even if the vehicle is running on the hybrid
battery (traction battery). If this continues for a few days, contact your Toyota
dealer.
■ Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able
to move. Always put the shift lever in P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating, and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind
the rear seat when the hybrid system starts or stops.
● Sounds may be heard from the transaxle when the hybrid system starts
or stops, or while the vehicle is idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to the regenerative braking when you press
the brake pedal.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents behind the
rear seat.
■ Maintenance, repair, recycling, and disposal
Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.
Page 25 of 497
25
1-1. Hybrid system
1
Before driving

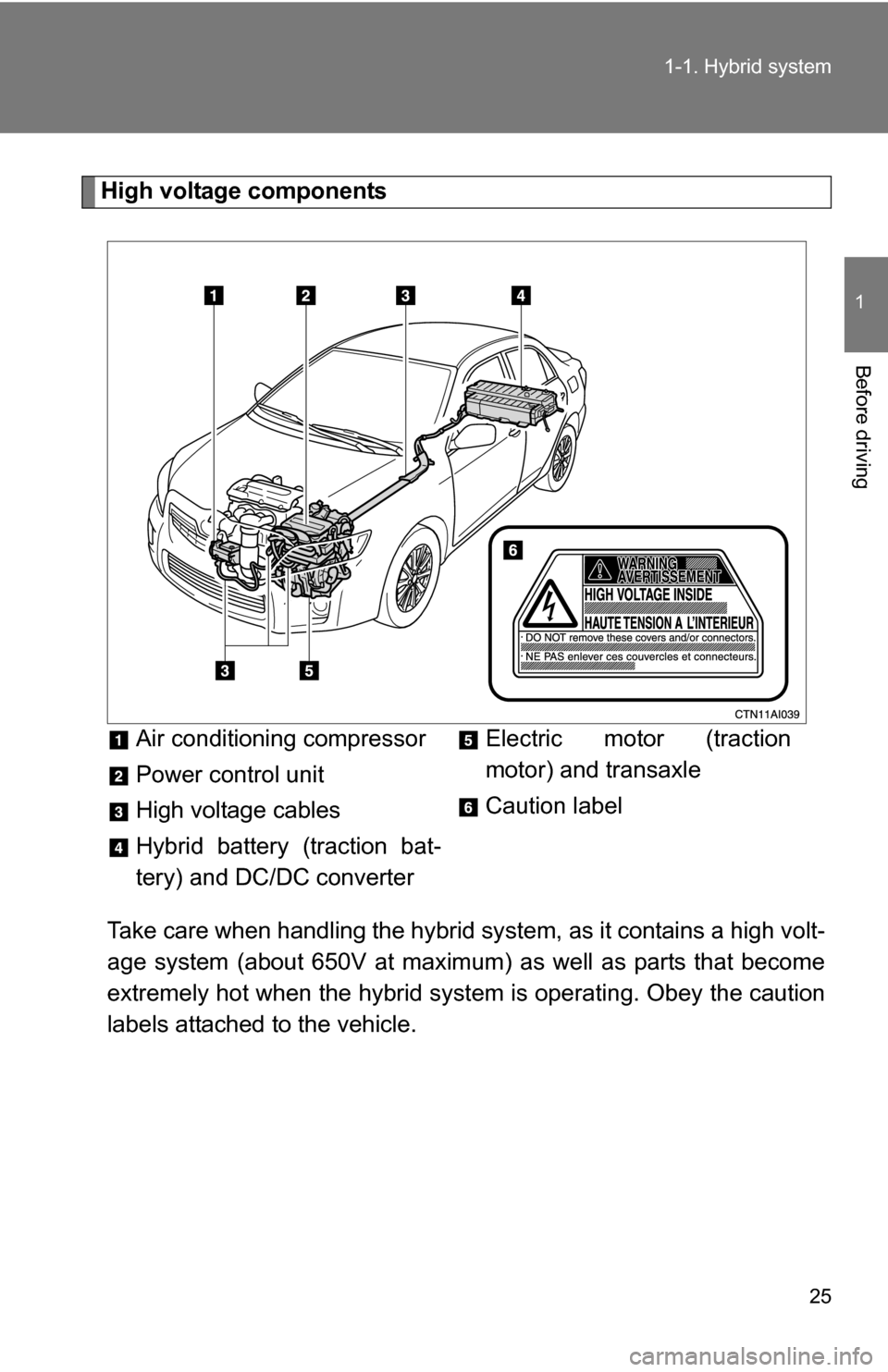

High voltage components
Take care when handling the hybrid sy stem, as it contains a high volt-
age system (about 650V at maximum) as well as parts that become
extremely hot when the hybrid system is operating. Obey the caution
labels attached to the vehicle. Air conditioning compressor
Power control unit
High voltage cables
Hybrid battery (traction bat-
tery) and DC/DC converter
Electric motor (traction
motor) and transaxle
Caution label
Page 26 of 497
26 1-1. Hybrid system

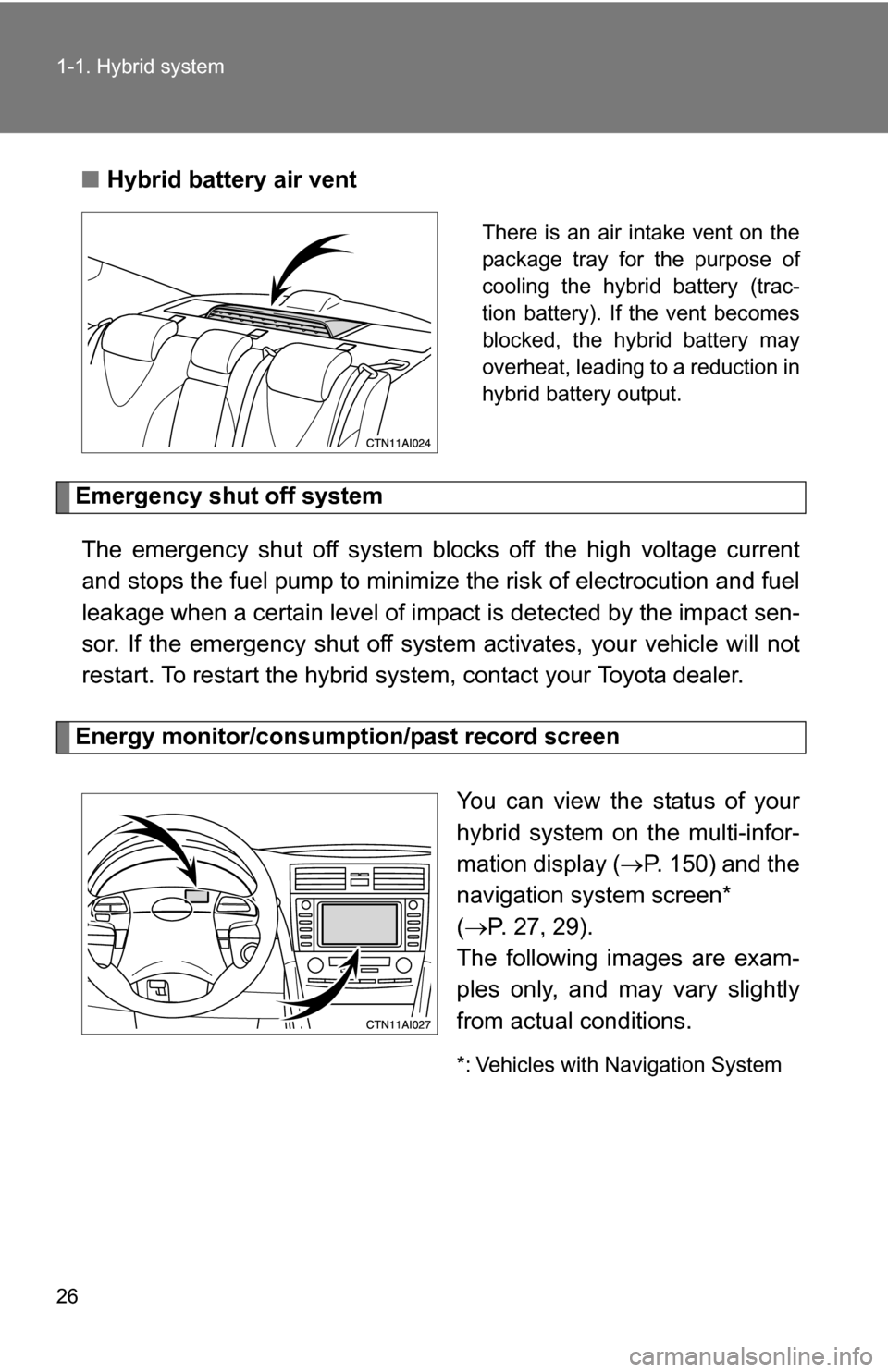

■Hybrid battery air vent
There is an air intake vent on the
package tray for the purpose of
cooling the hybrid battery (trac-
tion battery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
Emergency shut off system
The emergency shut off system blocks off the high voltage current
and stops the fuel pump to minimize the risk of electrocution and fuel
leakage when a certain level of impact is detected by the impact sen-
sor. If the emergency shut off syste m activates, your vehicle will not
restart. To restart the hybrid system, contact your Toyota dealer.
Energy monitor/consumption/past record screen
You can view the status of your
hybrid system on the multi-infor-
mation display (P. 150) and the
navigation system screen*
( P. 27, 29).
The following images are exam-
ples only, and may vary slightly
from actual conditions.
*: Vehicles with Navigation System
Page 27 of 497
27
1-1. Hybrid system
1
Before driving
■
Energy monitor
●How to display on the navigation system screen (if equipped):
Press “INFO”.
Touch “Fuel Consumption” on
the “Information” screen.
If the “Consumption” or “Past
Record” screen is displayed,
touch .
●How to display on the mu lti-information display:
Press the
“DISP” switch on the steering wheel several times to
select the energy monitor display.
STEP1
STEP2
Navigation system screenMulti-information display

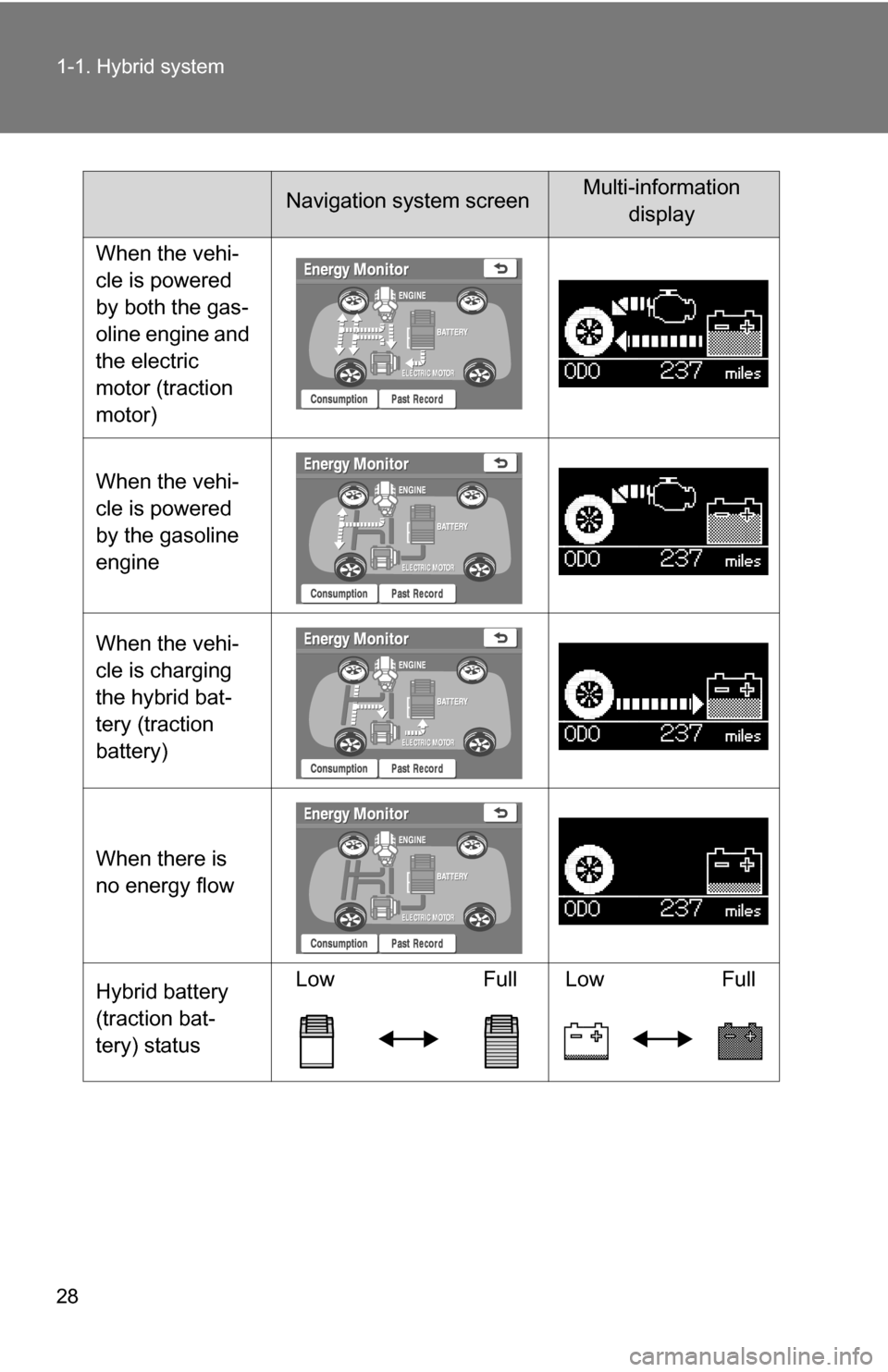

When the vehi-
cle is powered
by the electric
motor (traction
motor)
Page 28 of 497
28 1-1. Hybrid system
When the vehi-
cle is powered
by both the gas-
oline engine and
the electric
motor (traction
motor)
When the vehi-
cle is powered
by the gasoline
engine
When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)
When there is
no energy flow
Hybrid battery
(traction bat-
tery) statusLow
Full Low Full
Navigation system screenMulti-information
display
Page 29 of 497
29
1-1. Hybrid system
1
Before driving
■

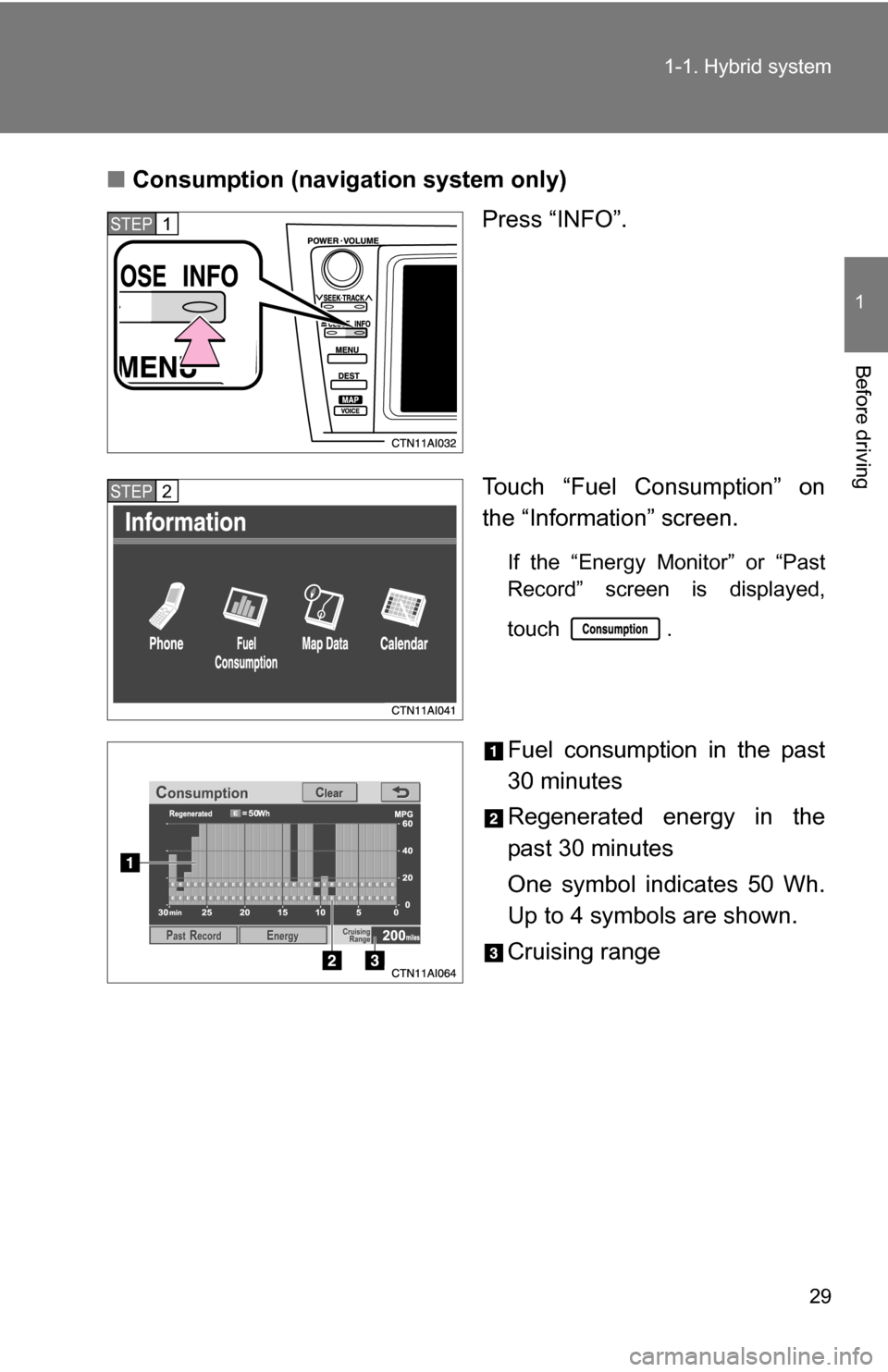

Consumption (navigation system only)
Press “INFO”.
Touch “Fuel Consumption” on
the “Information” screen.
If the “Energy Monitor” or “Past
Record” screen is displayed,
touch .
Fuel consumption in the past
30 minutes
Regenerated energy in the
past 30 minutes
One symbol indicates 50 Wh.
Up to 4 symbols are shown.
Cruising range
STEP1
STEP2
Page 30 of 497
30 1-1. Hybrid system

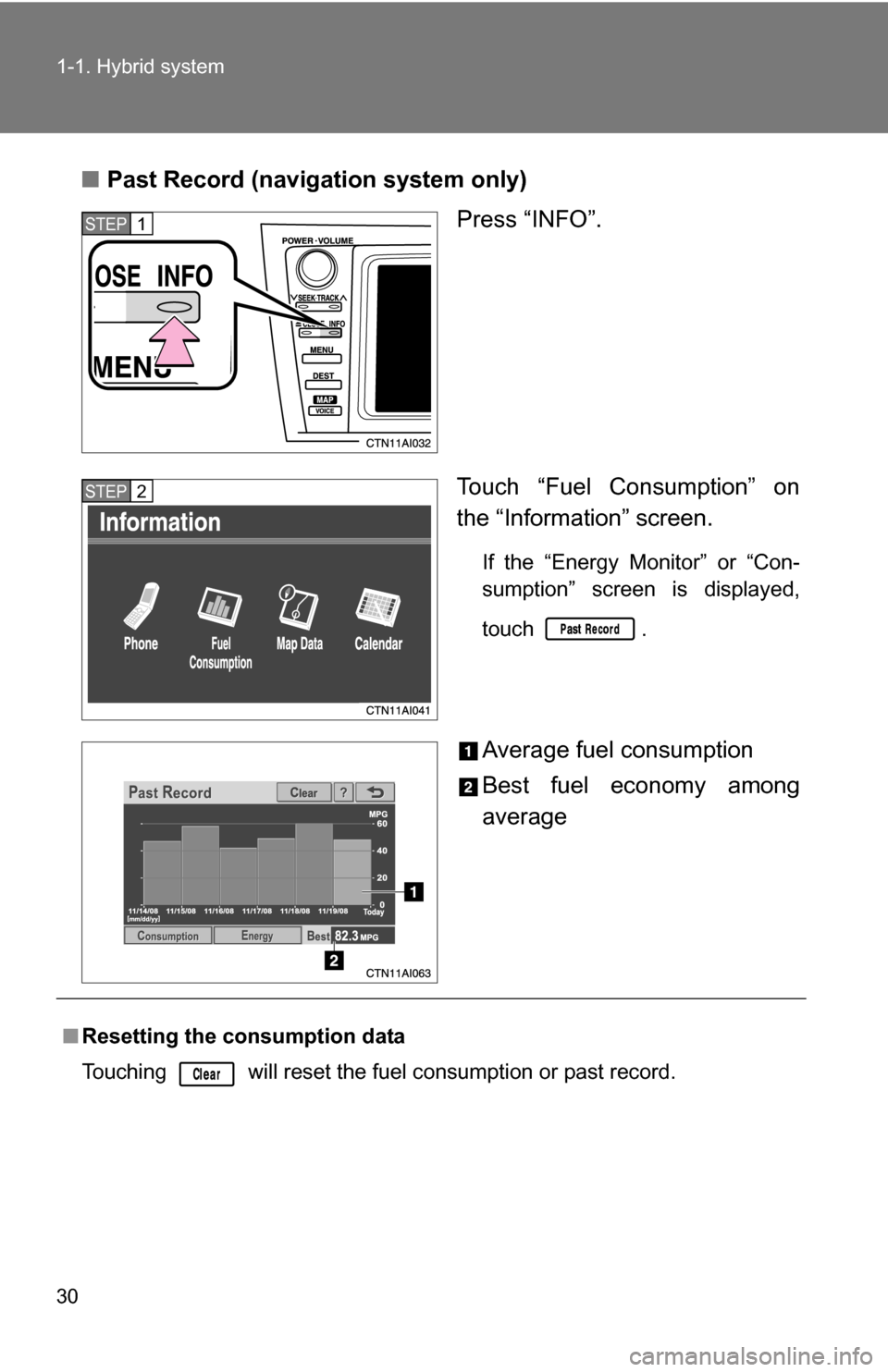

■Past Record (navigation system only)
Press “INFO”.
Touch “Fuel Consumption” on
the “Information” screen.
If the “Energy Monitor” or “Con-
sumption” screen is displayed,
touch .
Average fuel consumption
Best fuel economy among
average
STEP1
STEP2
■Resetting the consumption data
Touching will reset the fuel consumption or past record.
