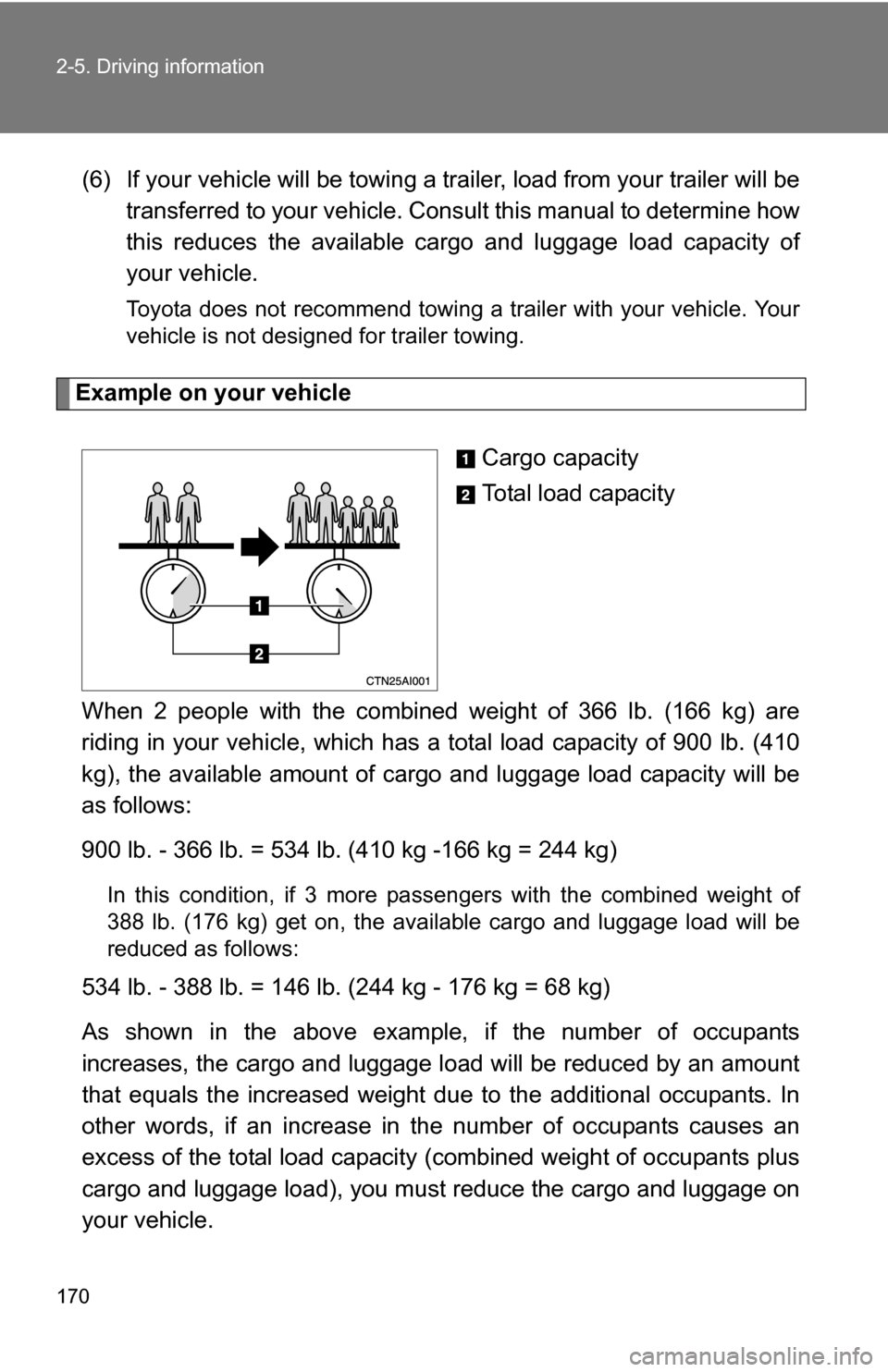

towing capacity TOYOTA CAMRY HYBRID 2010 XV40 / 8.G Owners Manual

170 2-5. Driving information
(6) If your vehicle will be towing a trailer, load from your trailer will betransferred to your vehicle. Cons ult this manual to determine how
this reduces the available ca rgo and luggage load capacity of
your vehicle.
Toyota does not recommend towing a trailer with your vehicle. Your
vehicle is not designed for trailer towing.
Example on your vehicle
Cargo capacity
Total load capacity
When 2 people with the combined weight of 366 lb. (166 kg) are
riding in your vehicle, which has a total load capacity of 900 lb. (410
kg), the available amount of cargo and luggage load capacity will be
as follows:
900 lb. - 366 lb. = 534 lb. (410 kg -166 kg = 244 kg)
In this condition, if 3 more pa ssengers with the combined weight of
388 lb. (176 kg) get on , the available cargo and luggage load will be
reduced as follows:
534 lb. - 388 lb. = 146 lb. (244 kg - 176 kg = 68 kg)
As shown in the above example, if the number of occupants
increases, the cargo and luggage load will be reduced by an amount
that equals the increased weight du e to the additional occupants. In
other words, if an increase in the number of occupants causes an
excess of the total load capacity (combined weight of occupants plus
cargo and luggage load), you must reduce the cargo and luggage on
your vehicle.

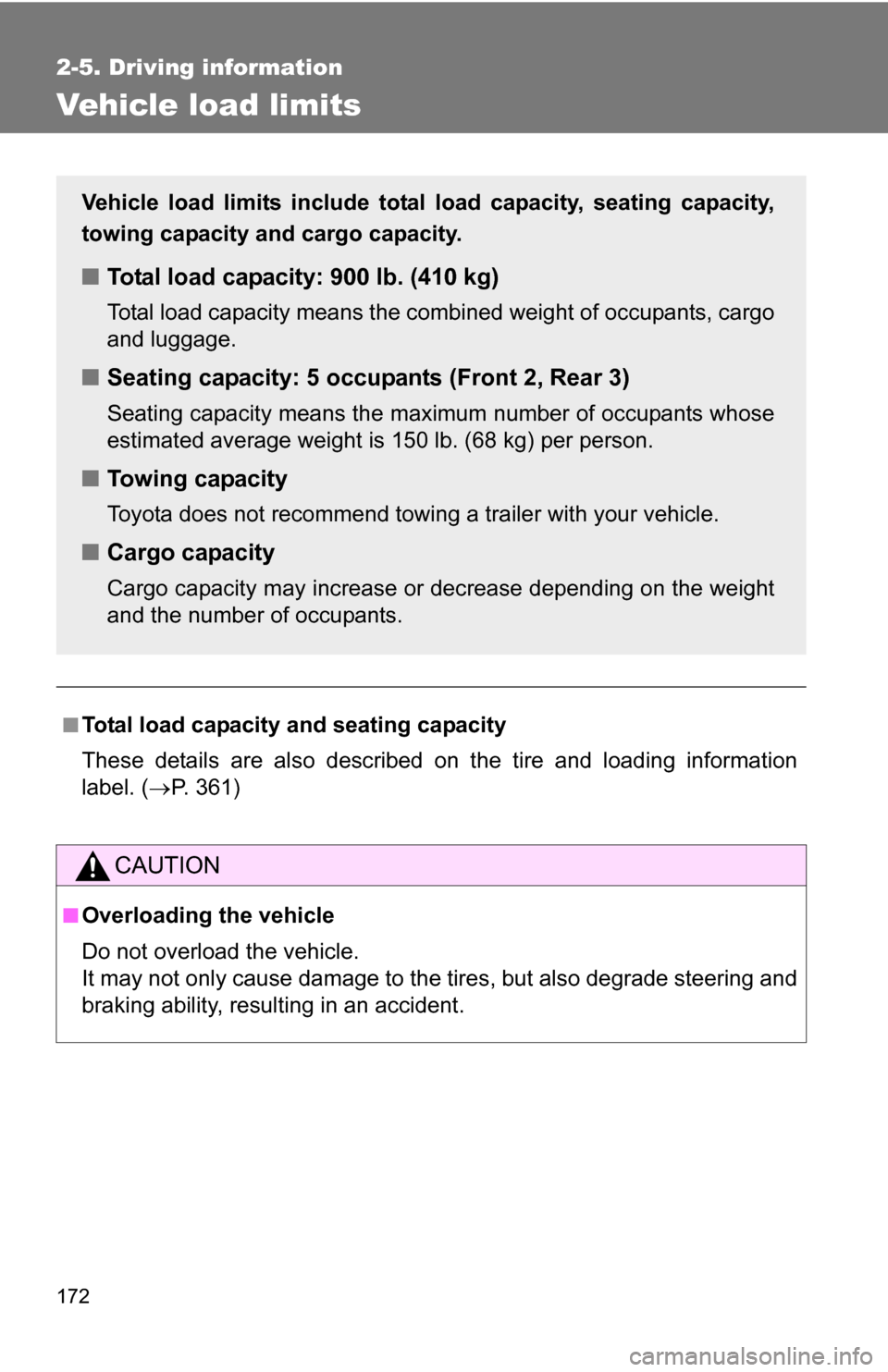

172
2-5. Driving information
Vehicle load limits
■Total load capacity and seating capacity
These details are also described on the tire and loading information
label. (P. 361)
CAUTION
■Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the ti res, but also degrade steering and
braking ability, resulting in an accident.
Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.
■ Total load capacity: 900 lb. (410 kg)
Total load capacity means the combined weight of occupants, cargo
and luggage.
■Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the maxi mum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
■ Towing capacity
Toyota does not recommend towing a trailer with your vehicle.
■Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.

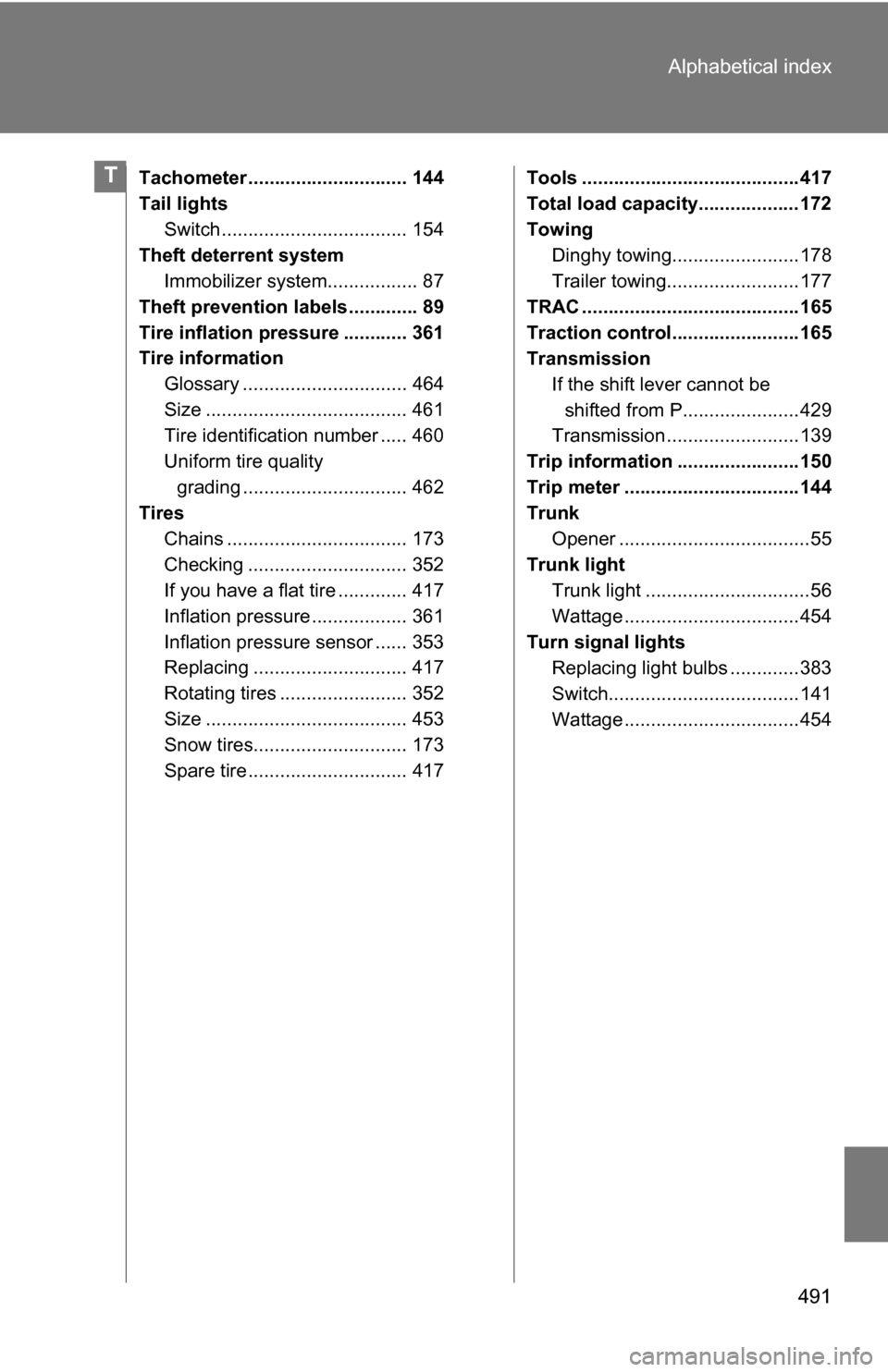

491
Alphabetical index
Tachometer .............................. 144
Tail lights
Switch ................................... 154
Theft deterrent system Immobilizer system................. 87
Theft prevention labels ............. 89
Tire inflation pressure ............ 361
Tire information Glossary ............................... 464
Size ...................................... 461
Tire identification number ..... 460
Uniform tire quality grading ............................... 462
Tires
Chains .................................. 173
Checking .............................. 352
If you have a flat tire ............. 417
Inflation pressure .................. 361
Inflation pressure sensor ...... 353
Replacing ............................. 417
Rotating tires ........................ 352
Size ...................................... 453
Snow tires............................. 173
Spare tire .............................. 417 Tools .........................................417
Total load capacity...................172
Towing
Dinghy towing........................178
Trailer towing.........................177
TRAC .........................................165
Traction control........................165
Transmission If the shift lever cannot be shifted from P......................429
Transmission .........................139
Trip information .......................150
Trip meter .................................144
Trunk Opener ....................................55
Trunk light Trunk light ...............................56
Wattage .................................454
Turn signal lights Replacing light bulbs .............383
Switch....................................141
Wattage .................................454T
