lock TOYOTA CAMRY HYBRID 2010 XV40 / 8.G Quick Reference Guide

22
FEATURES/OPERATIONS
Door locks
LockUnlock
Power outlets
Instrument panel
“POWER” switch must be set at “ACC” or “ON” to be used.
Center console
Cup holders
Front
Rear

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

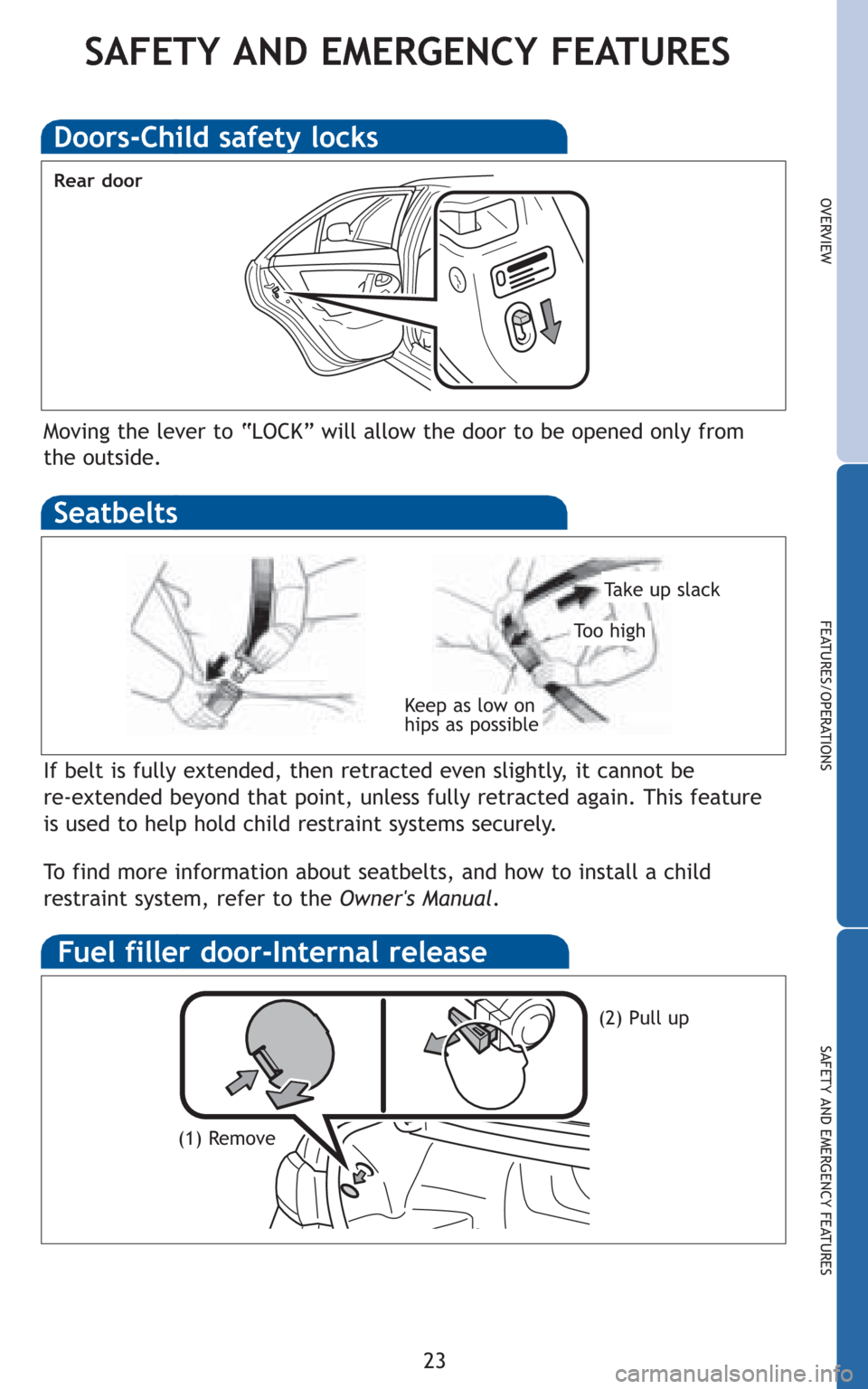

SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
Fuel filler door-Internal release
(2) Pull up
(1) Remove
23

24
SAFETY AND EMERGENCY FEATURE
Push up, or
squeeze lock
release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Seatbelts-Shoulder belt anchor
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
