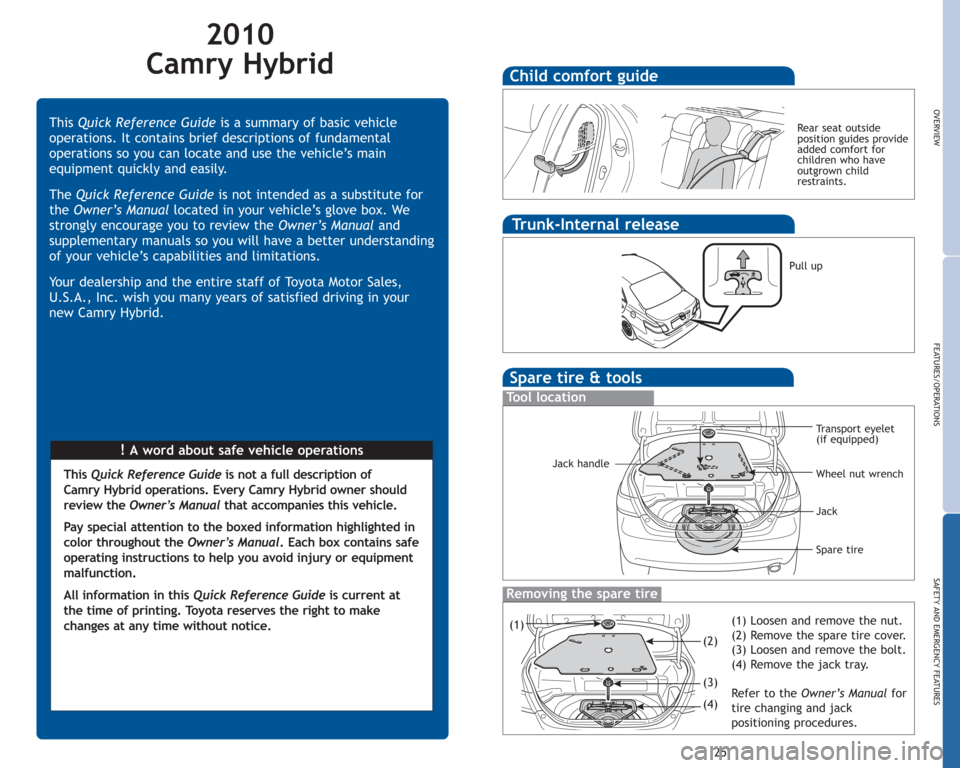

!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Camry Hybrid.
This Quick Reference Guideis not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Rear seat outside
position guides provide
added comfort for
children who have
outgrown child
restraints.
Child comfort guide
Spare tire & tools
Tool location
Wheel nut wrench Jack handle
Transport eyelet
(if equipped)
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the jack tray.
Jack
Spare tire
Trunk-Internal release
Pull up
(1)
(4)
(3)
(2)
Refer to the Owner’s Manualfor
tire changing and jack
positioning procedures.

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Interval wipe
Single wipe
Slow
FastPull to wash and wipe
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam Headlights
-Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed.
Parking lights
Right turn
Lane change
Lane change
Left turnHigh beamAuto
DRL OFF
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Adjust frequency*
Front fog lights (if equipped)
Tu r n
Front fog lights come on only when the headlights are on low beam.

24
SAFETY AND EMERGENCY FEATURE
Push up, or
squeeze lock
release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Seatbelts-Shoulder belt anchor
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
