check engine TOYOTA CAMRY HYBRID 2010 XV40 / 8.G Quick Reference Guide

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Indicator symbols
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger AIR BAG
ON/OFF indicator1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Driving ready light
Malfunction/Check Engine indicator
1
Low fuel level warning
Electric power steering system warning1
Brake system warning light1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Cruise control set indicator
2
Front fog light indicator

8

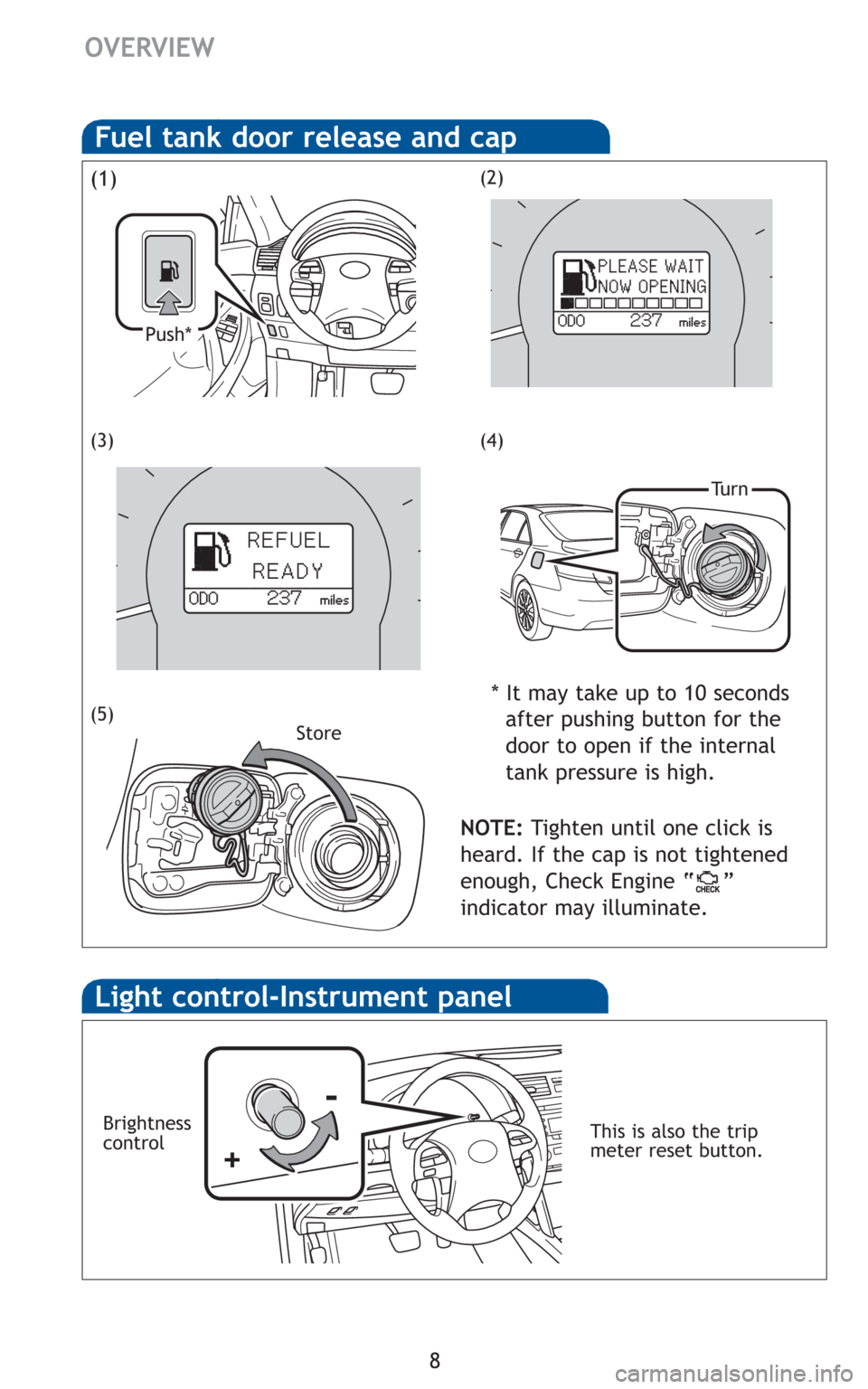

Fuel tank door release and cap
Push*
Light control-Instrument panel
Brightness
control-
+
Store
Tu r n
OVERVIEW
(1)
(3)
(5)(2)
(4)
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
This is also the trip
meter reset button.
* It may take up to 10 seconds
after pushing button for the
door to open if the internal
tank pressure is high.
