CD player TOYOTA CAMRY HYBRID 2011 XV50 / 9.G Quick Reference Guide
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2011, Model line: CAMRY HYBRID, Model: TOYOTA CAMRY HYBRID 2011 XV50 / 9.GPages: 28, PDF Size: 2.58 MB
Page 20 of 28
18
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Steering wheel switches
Audio controlA/C control
“MODE”Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
“”Use to search within the selected audio medium (radio, CD, iPod, etc.).
vv
Volume controlTemperature
selector
Auto A/C
ON
A/C OFF
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
Toload one disc
Push “LOAD” and insert one disc.
To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or “TUNE.
SCROLL.”
Toselect a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scanMode
Preset buttons functions in other
modes indicated above number
Load CD(s)
Push to skip
up/down folder
View CD text
Type 1

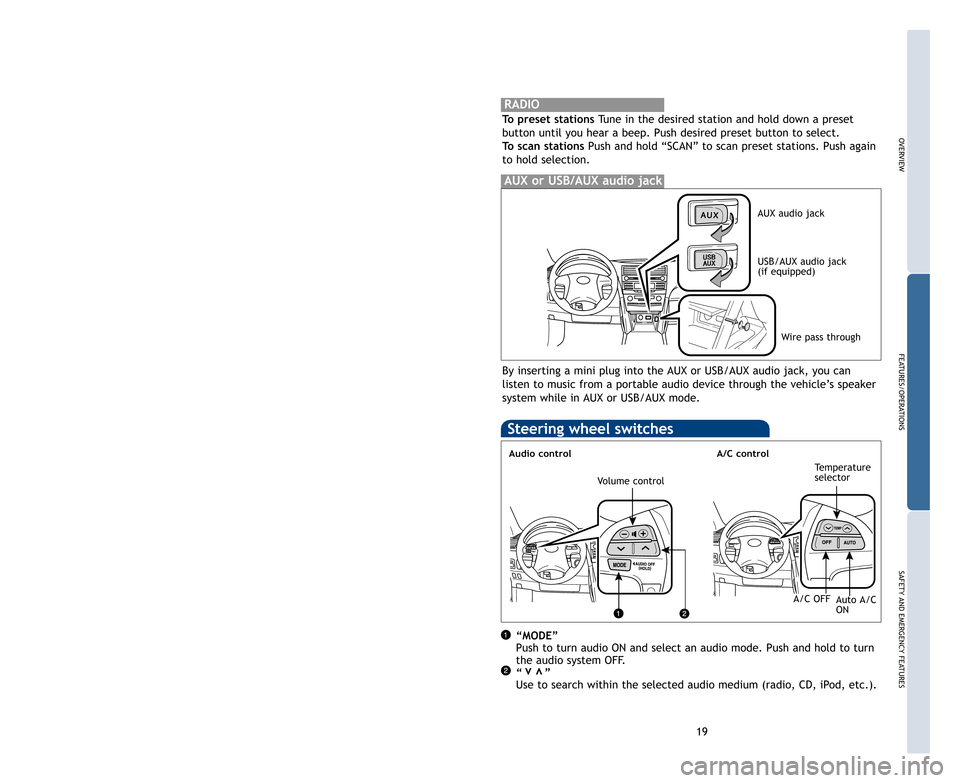

RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
19
Wire pass through
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Mode
Preset buttons functions in other
modes indicated above number
Push to skip
up/down folder
View CD text
Mute/pause Station/CD
track scan
USB/AUX audio jack
(if equipped)
AUX audio jack
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 18
Page 21 of 28
18
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Steering wheel switches
Audio controlA/C control
“MODE”Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
“”Use to search within the selected audio medium (radio, CD, iPod, etc.).
vv
Volume controlTemperature
selector
Auto A/C
ON
A/C OFF
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
Toload one disc
Push “LOAD” and insert one disc.
To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or “TUNE.
SCROLL.”
Toselect a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scanMode
Preset buttons functions in other
modes indicated above number
Load CD(s)
Push to skip
up/down folder
View CD text
Type 1
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
19
Wire pass through
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Mode
Preset buttons functions in other
modes indicated above number
Push to skip
up/down folder
View CD text
Mute/pause Station/CD
track scan
USB/AUX audio jack
(if equipped)
AUX audio jack
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 18
