TOYOTA CAMRY HYBRID 2011 XV50 / 9.G Warranty And Maintenance Guide

JOBNAME:280573-2011-cah-toyw PAGE:49SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

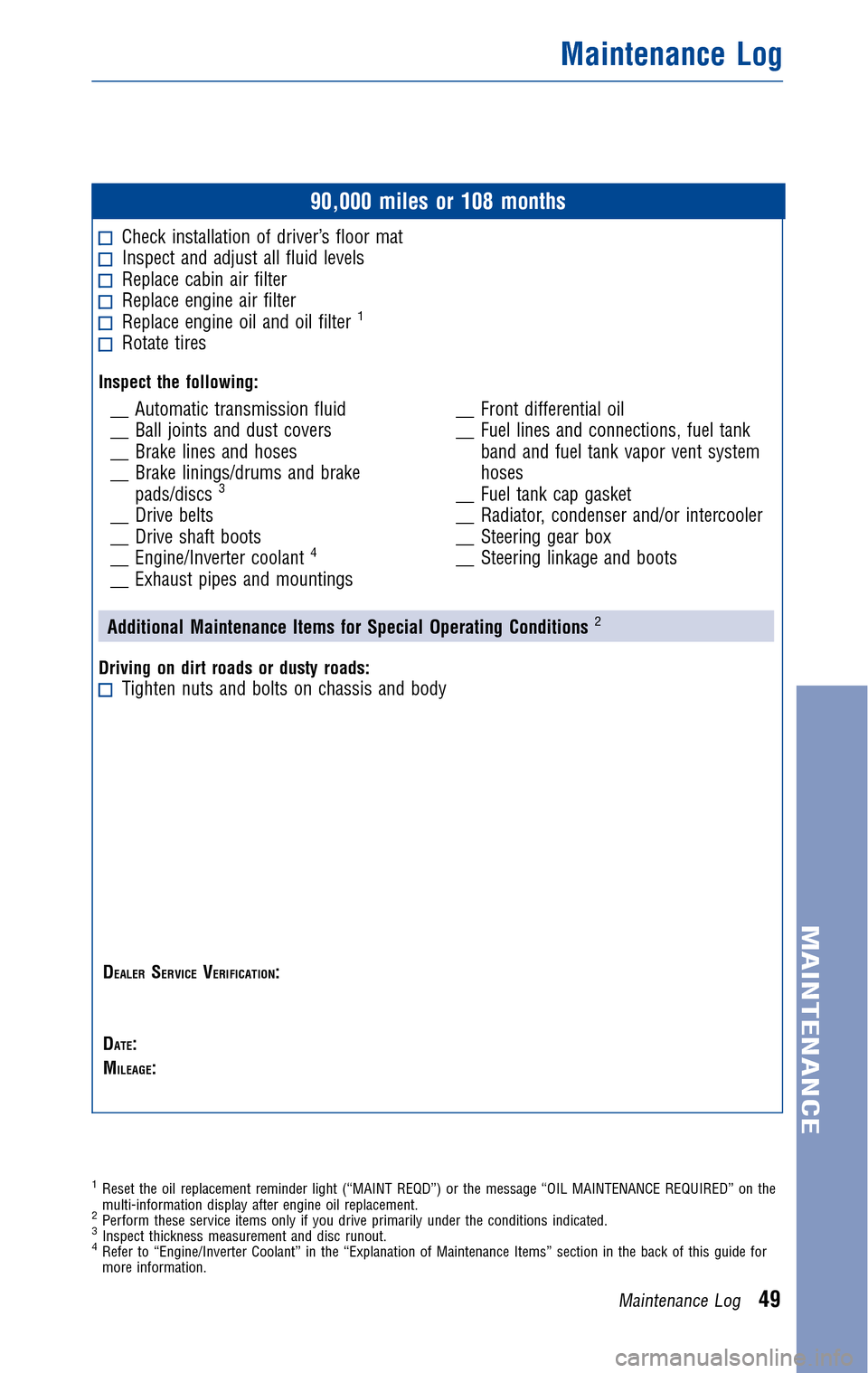

90,000 milesor108 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace cabinairfilterReplace engineairfilterReplace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
4
__Exhaust pipesandmountings __
Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog49

JOBNAME:280573-2011-cah-toyw PAGE:50SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

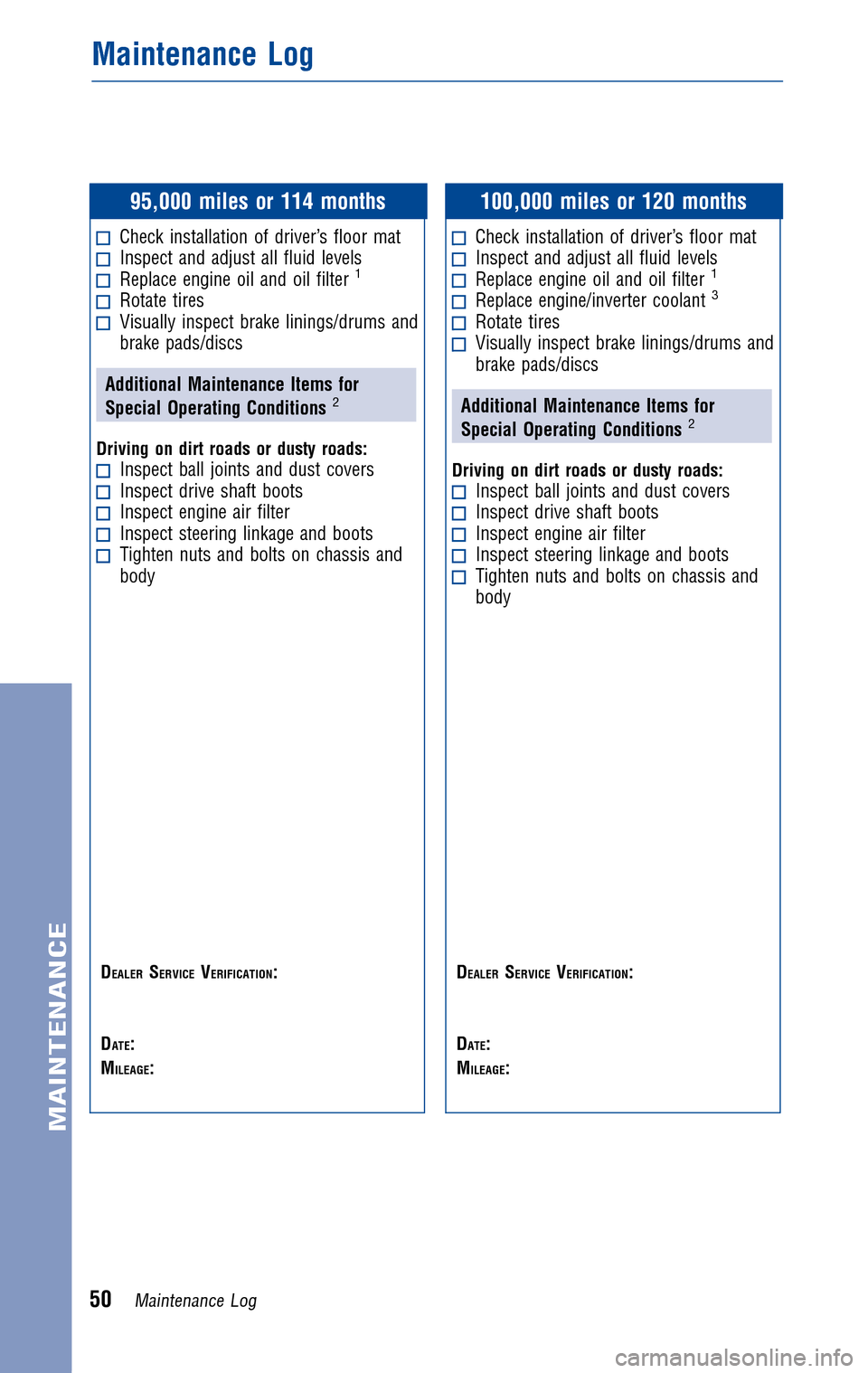

95,000 milesor114 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect engineairfilterInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
100,000 milesor120 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Replace engine/inverter coolant3
RotatetiresVisually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect engineairfilterInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
50MaintenanceLog

JOBNAME:280573-2011-cah-toyw PAGE:51SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

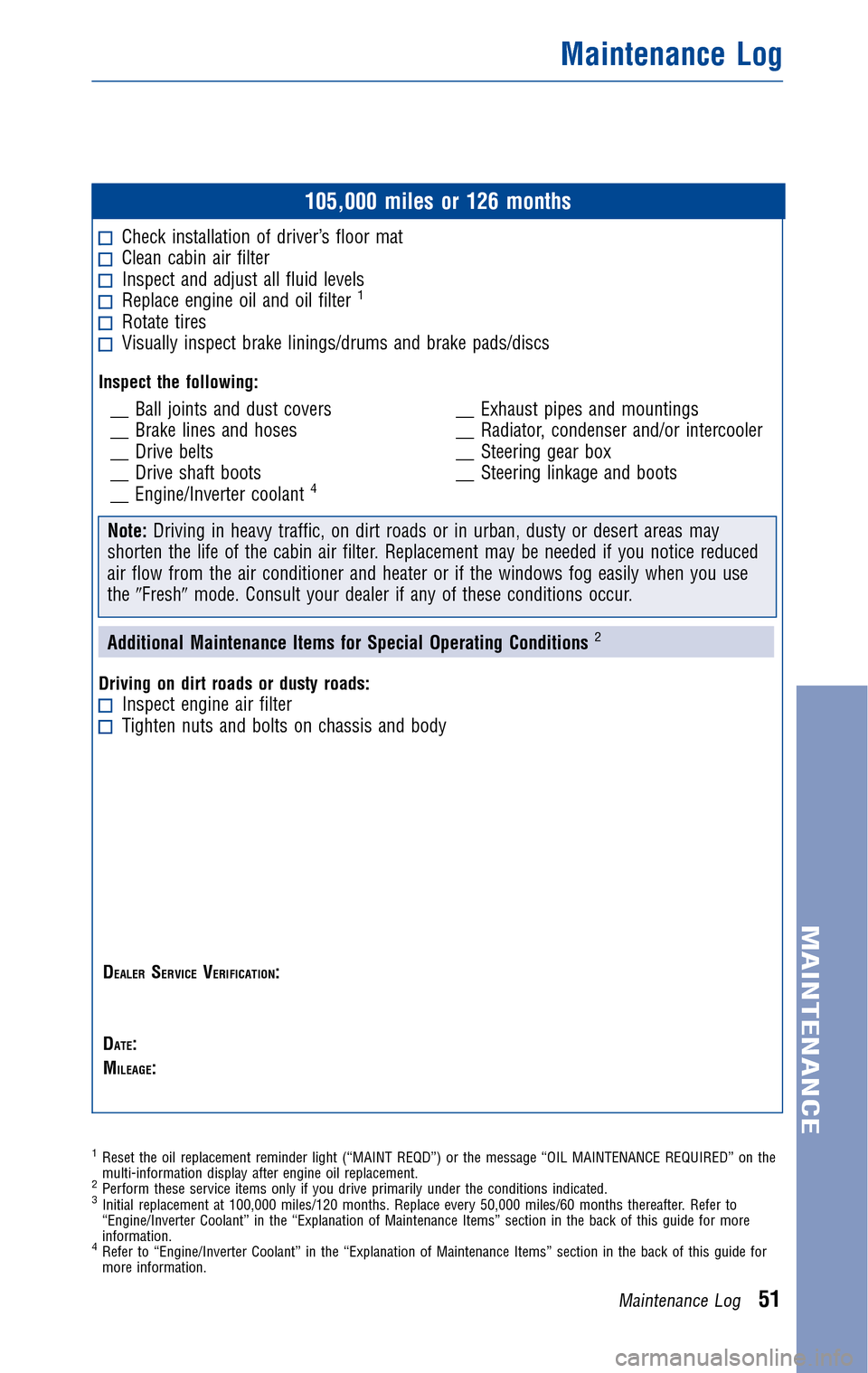

105,000 milesor126 months
Check installation ofdriver’s floormatClean cabinairfilterInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums andbrake pads/discs
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
4
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect engineairfilterTighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Initialreplacement at100,000 miles/120 months.Replaceevery50,000 miles/60 monthsthereafter. Referto
“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog51

JOBNAME:280573-2011-cah-toyw PAGE:52SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

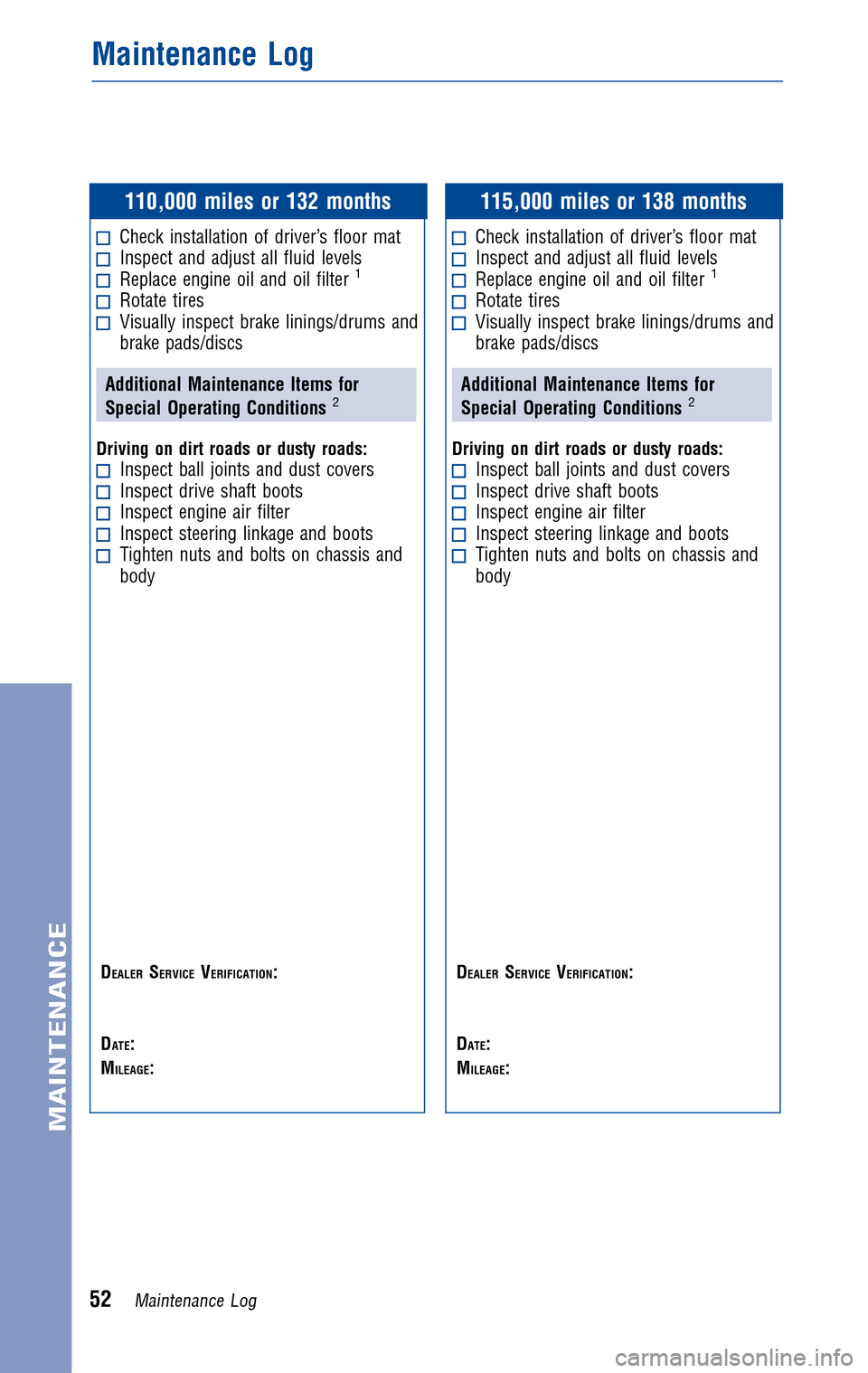

110,000 milesor132 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect engineairfilterInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
115,000 milesor138 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect engineairfilterInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
52MaintenanceLog

JOBNAME:280573-2011-cah-toyw PAGE:53SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

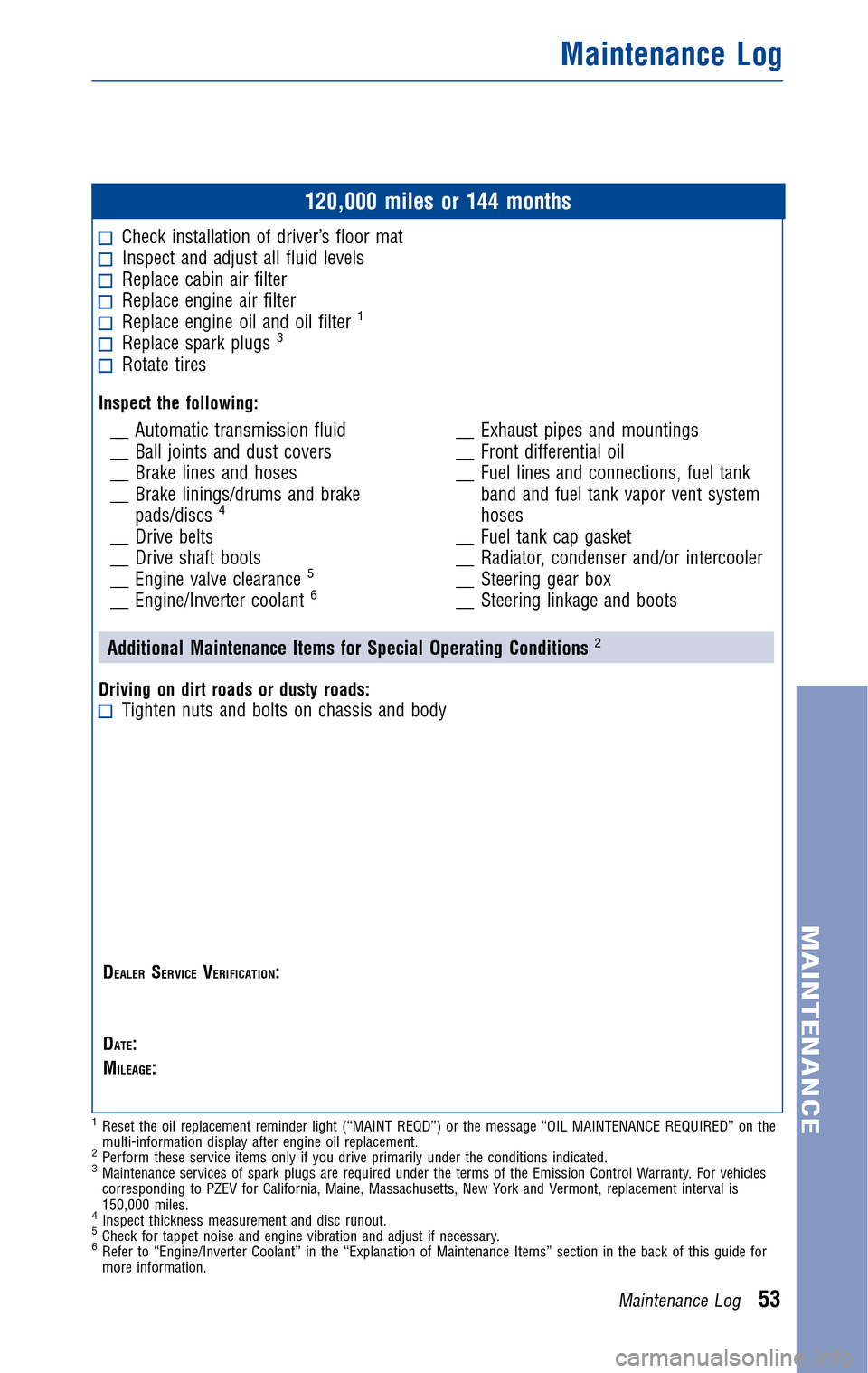

120,000 milesor144 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace cabinairfilterReplace engineairfilterReplace engineoiland oilfilter1
Replace sparkplugs3
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
4
__ Drive belts
__ Drive shaftboots
__ Engine valveclearance
5
__Engine/Inverter coolant6
__Exhaust pipesandmountings
__ Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Maintenance servicesofspark plugs arerequired undertheterms ofthe Emission ControlWarranty. Forvehicles
corresponding toPZEV forCalifornia, Maine,Massachusetts, NewYork andVermont, replacement intervalis
150,000 miles.
4Inspectthickness measurement anddisc runout.5Check fortappet noiseandengine vibration andadjust ifnecessary.6Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog53

JOBNAME:280573-2011-cah-toyw PAGE:54SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

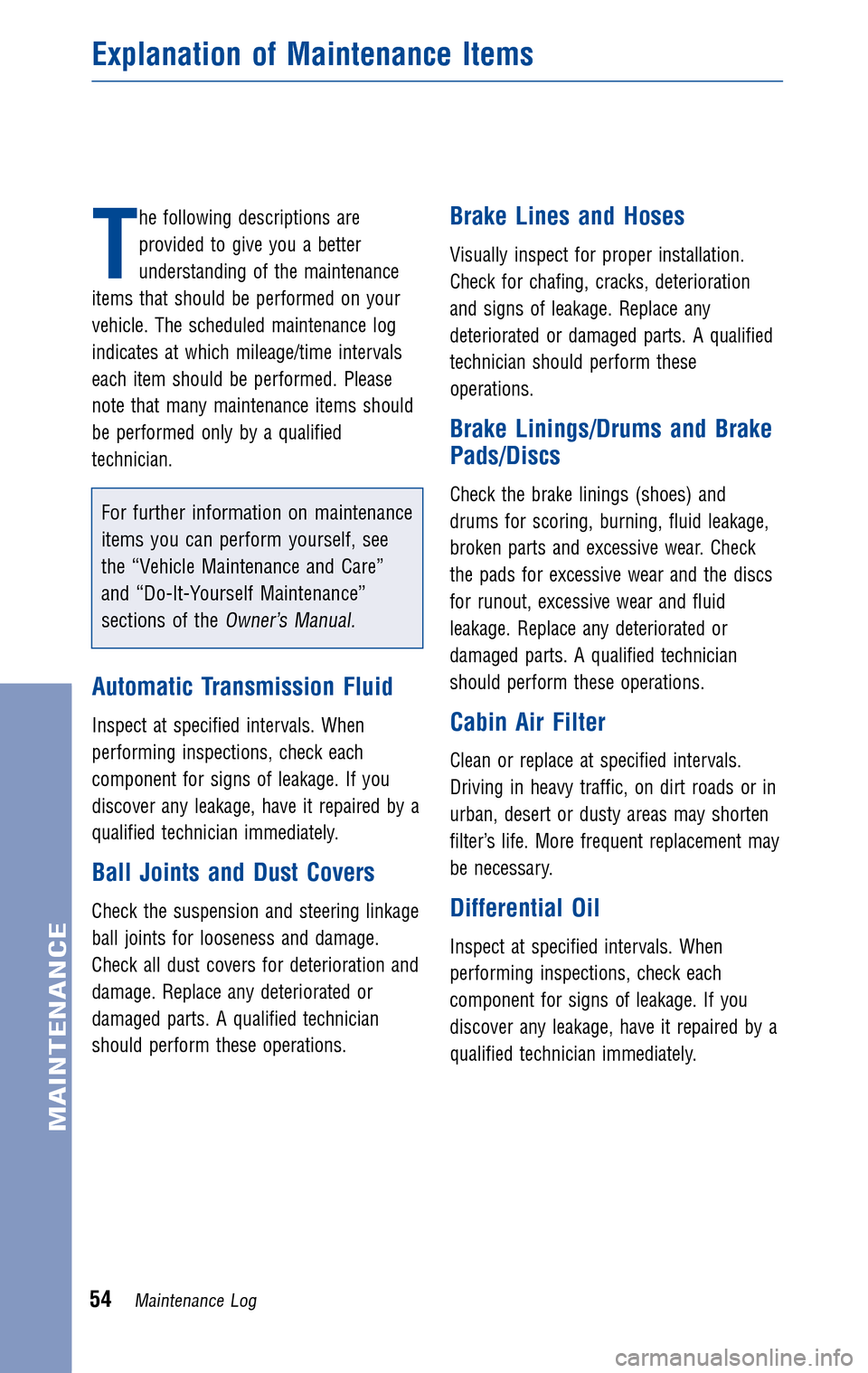

T
he following descriptions are
provided togive youabetter
understanding ofthe maintenance
items thatshould beperformed onyour
vehicle. Thescheduled maintenance log
indicates atwhich mileage/time intervals
each itemshould beperformed. Please
note thatmany maintenance itemsshould
be performed onlybyaqualified
technician.
For further information onmaintenance
items youcanperform yourself, see
the “Vehicle Maintenance andCare”
and “Do-It-Yourself Maintenance”
sections ofthe
Owner’s Manual.
Automatic Transmission Fluid
Inspectatspecified intervals. When
performing inspections, checkeach
component forsigns ofleakage. Ifyou
discover anyleakage, haveitrepaired bya
qualified technician immediately.
BallJoints andDust Covers
Check thesuspension andsteering linkage
ball joints forlooseness anddamage.
Check alldust covers fordeterioration and
damage. Replaceanydeteriorated or
damaged parts.Aqualified technician
should perform theseoperations.
Brake LinesandHoses
Visually inspectforproper installation.
Check forchafing, cracks,deterioration
and signs ofleakage. Replaceany
deteriorated ordamaged parts.Aqualified
technician shouldperform these
operations.
Brake Linings/Drums andBrake
Pads/Discs
Check thebrake linings (shoes) and
drums forscoring, burning, fluidleakage,
broken partsandexcessive wear.Check
the pads forexcessive wearandthediscs
for runout, excessive wearandfluid
leakage. Replaceanydeteriorated or
damaged parts.Aqualified technician
should perform theseoperations.
Cabin AirFilter
Clean orreplace atspecified intervals.
Driving inheavy traffic, ondirt roads orin
urban, desertordusty areasmayshorten
filter’s life.More frequent replacement may
be necessary.
Differential Oil
Inspectatspecified intervals. When
performing inspections, checkeach
component forsigns ofleakage. Ifyou
discover anyleakage, haveitrepaired bya
qualified technician immediately.
Explanation ofMaintenance Items
54MaintenanceLog
MAINTENANCE

JOBNAME:280573-2011-cah-toyw PAGE:55SESS: 14OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

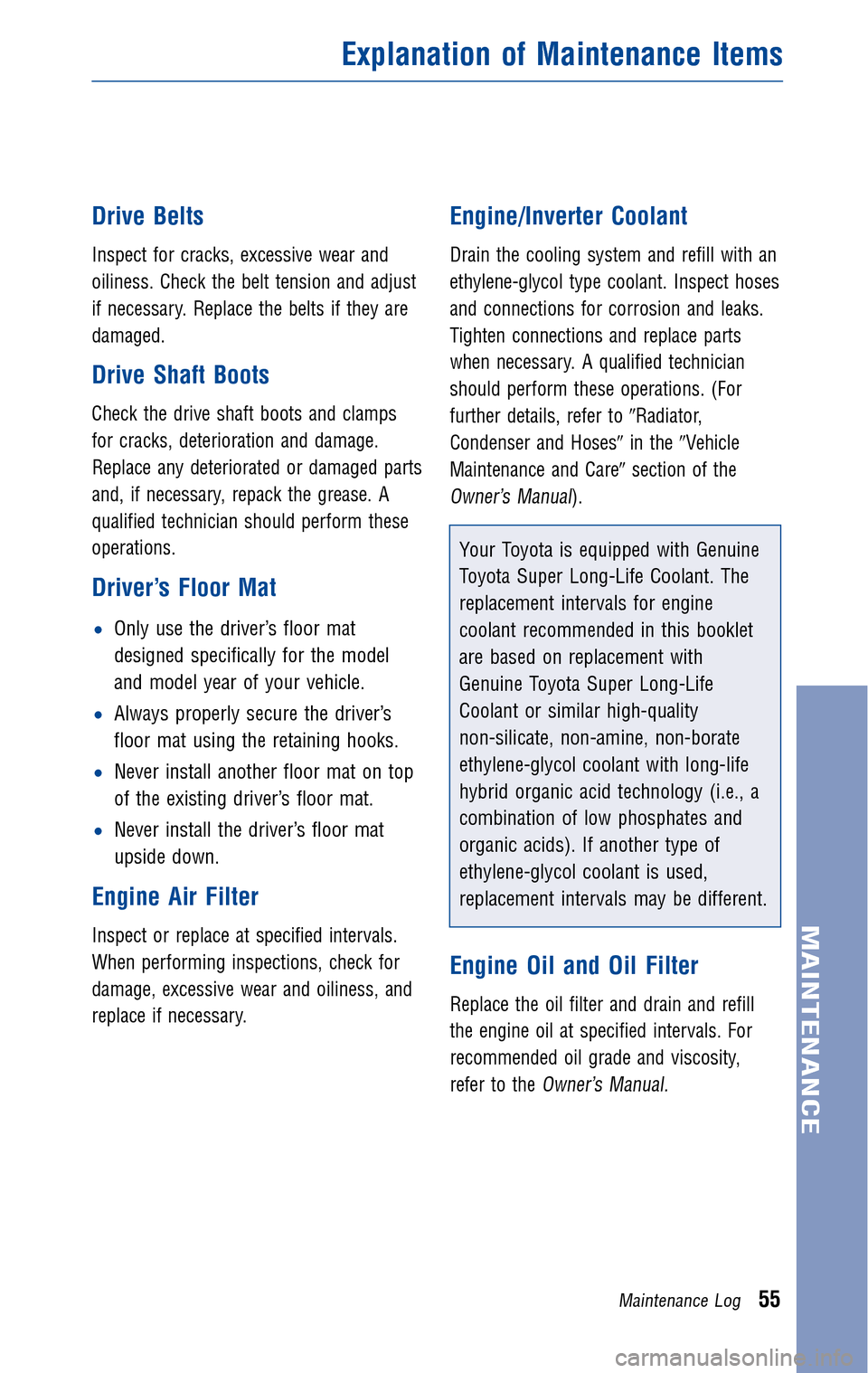

Drive Belts
Inspect forcracks, excessive wearand
oiliness. Checkthebelt tension andadjust
if necessary. Replacethebelts ifthey are
damaged.
Drive ShaftBoots
Check thedrive shaft boots andclamps
for cracks, deterioration anddamage.
Replace anydeteriorated ordamaged parts
and, ifnecessary, repackthegrease. A
qualified technician shouldperform these
operations.
Driver’s FloorMat
•Only usethedriver’s floormat
designed specifically forthe model
and model yearofyour vehicle.
• Always properly securethedriver’s
floor matusing theretaining hooks.
• Never install another floormatontop
of the existing driver’sfloormat.
• Never install thedriver’s floormat
upside down.
Engine AirFilter
Inspect orreplace atspecified intervals.
When performing inspections, checkfor
damage, excessive wearandoiliness, and
replace ifnecessary.
Engine/Inverter Coolant
Drainthecooling systemandrefill withan
ethylene-glycol typecoolant. Inspecthoses
and connections forcorrosion andleaks.
Tighten connections andreplace parts
when necessary. Aqualified technician
should perform theseoperations. (For
further details, referto Radiator,
Condenser andHoses in the Vehicle
Maintenance andCare section ofthe
Owner’s Manual).
YourToyota isequipped withGenuine
Toyota SuperLong-Life Coolant.The
replacement intervalsforengine
coolant recommended inthis booklet
are based onreplacement with
Genuine ToyotaSuperLong-Life
Coolant orsimilar high-quality
non-silicate, non-amine,non-borate
ethylene-glycol coolantwithlong-life
hybrid organic acidtechnology (i.e.,a
combination oflow phosphates and
organic acids).Ifanother typeof
ethylene-glycol coolantisused,
replacement intervalsmaybedifferent.
Engine Oiland OilFilter
Replace theoilfilter anddrain andrefill
the engine oilatspecified intervals. For
recommended oilgrade andviscosity,
refer tothe
Owner’s Manual.
Explanation ofMaintenance Items
MaintenanceLog55
MAINTENANCE

JOBNAME:280573-2011-cah-toyw PAGE:56SESS: 14OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
Engine ValveClearance
Inspect fortappet noiseandengine
vibration andadjust ifnecessary. A
qualified technician shouldperform this
operation.
Exhaust PipesandMountings
Visually inspecttheexhaust pipes,muffler
and hangers forcracks, deterioration and
damage. Starttheengine andlisten
carefully forany exhaust gasleakage.
Tighten connections orreplace partsas
necessary.
Fuel Lines andConnections,
Fuel Tank Band andFuel Tank
Vapor VentSystem Hoses
Visually inspectforcorrosion, damage,
cracks, andloose orleaking connections.
Tighten connections orreplace partsas
necessary.
Fuel Tank CapGasket
Visually inspectforcracks, deterioration
and damage andreplace ifnecessary.
Nuts andBolts onChassis and
Body
Re-tighten theseat-mounting boltsand
front/rear suspension memberretaining
bolts tospecified torque.
Radiator, Condenser and/or
Intercooler
Inspect fordebris, corrosion andsigns of
damage. Haveanyproblem repaired
immediately byaqualified technician.
SparkPlugs
Replace atspecified intervals. Installnew
plugs ofthe same typeasoriginally
equipped. Aqualified technician should
perform thisoperation.
Steering GearBox
Inspect forsigns ofleakage. Ifyou
discover anyleakage, haveitrepaired
immediately byaqualified technician.
Steering LinkageandBoots
With thevehicle stopped, checkfor
excessive freeplayinthe steering wheel.
Inspect thelinkage forbending and
damage andthedust boots for
deterioration, cracksanddamage. Replace
any damaged parts.Aqualified technician
should perform theseoperations.
TireRotation
Tires should berotated according tothe
instructions inthe
Owner’s Manual.When
rotating tires,check fordamage and
uneven wear.Replace ifnecessary.
Explanation ofMaintenance Items
56MaintenanceLog
MAINTENANCE

JOBNAME:280573-2011-cah-toyw PAGE:57SESS: 14OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
Model
In-service date
Sellingdealership
Keynumber
Body style
Mileage atdelivery
Selling dealership phonenumber
Vehicle Identification Number
VehicleIdentification
MAINTENANCE
Maintenance Log57

JOBNAME:280573-2011-cah-toyw PAGE:58SESS: 14OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

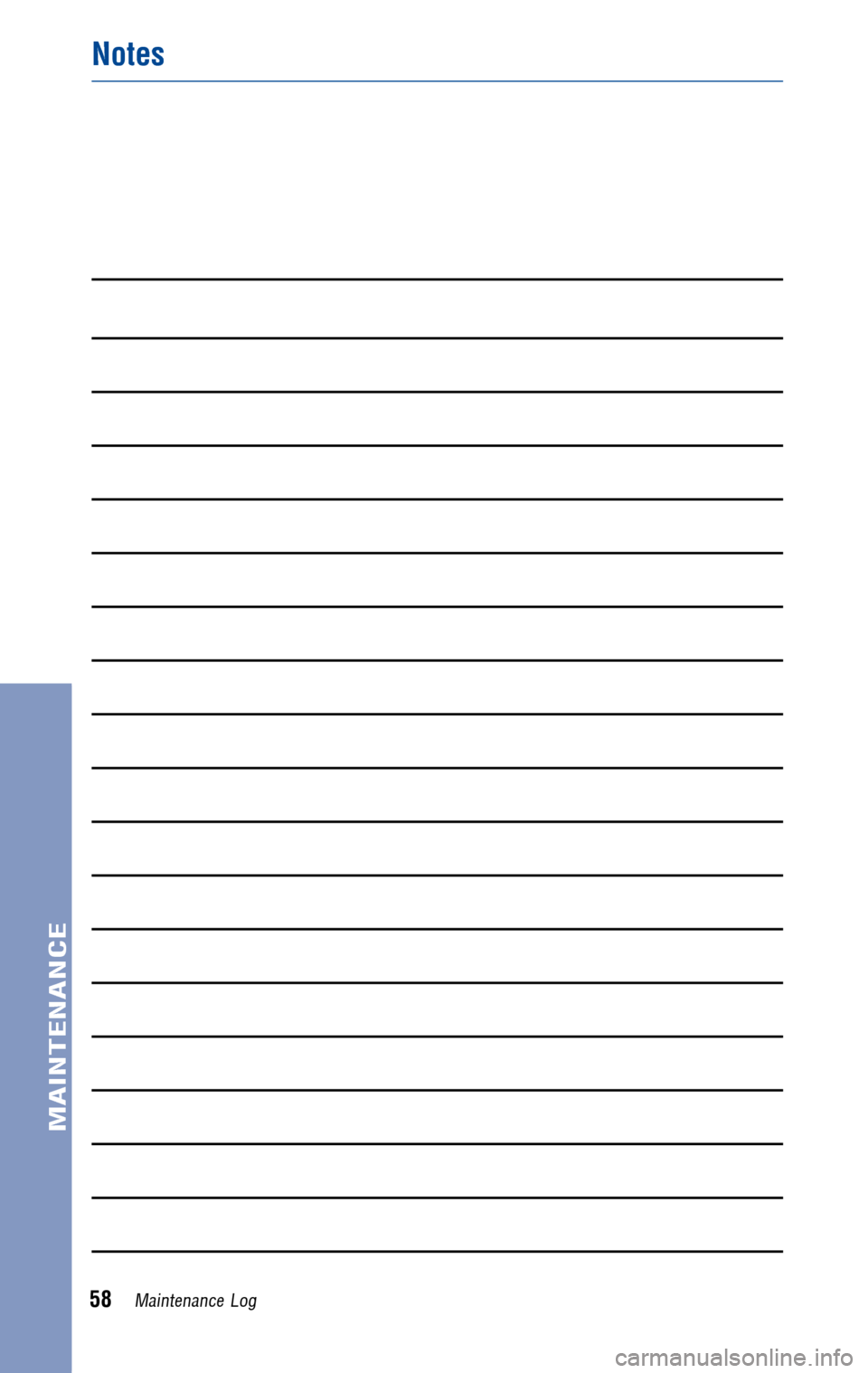

Notes
MAINTENANCE
58Maintenance Log
