TOYOTA CAMRY HYBRID 2013 XV50 / 9.G Owners Manual

291
3-2. Using the audio system
3
Interior features
■
Trademark owned by SRS Labs, Inc.
The audio systems utilize SRS FOCUS
® and SRS TruBass® audio
enhancement technologies, under license from SRS Labs, Inc., in all modes
except AM radio mode.
FOCUS, TruBass, SRS and
symbol are trademarks of SRS Labs,
Inc.
FOCUS and TruBass technologies are incorporated under license from
SRS Labs, Inc.
TruBass
® enhances the perception of bass frequencies to provide deep, rich
bass response from any size speaker.
SRS FOCUS
® raises the audio image from non-optimally placed speakers
up to the natural listening height at ear level.

292
3-2. Using the audio system
Using the AUX port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio devi ce connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Push the lid.
Open the cover and connect
the portable audio device.
Press repeatedly until “AUX” is displayed.STEP1
STEP2
STEP3

293
3-2. Using the audio system
3
Interior features
NOTICE
■
If the auxiliary box lid cannot be fully closed
Depending on the size and shape of the portable audio device that is con-
nected to the system, the auxiliary box lid may not close fully. In this case, do
not forcibly close the lid as this may damage the portable audio device or the
terminal, etc.

294
3-2. Using the audio system
Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned off.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed.
AM FM1 FM2 CD mode iPod or USB memory mode AUX
Some audio features can be cont rolled using the switches on the
steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, re fer to the manual provided with
the audio system or navigation system.
Vo l u m e
Radio mode: Selects radio
stations
CD mode: Selects tracks
and files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Press: Power on, selects an
audio source
Press and hold: Mute

295
3-2. Using the audio system
3
Interior features
Adjusting the volume
Press “+” on to increase the vo lume and “-” to decrease the
volume.
Hold down “+” or “-” on to continue increasing or decreasing the
volume.
Silencing a sound Press and hold .
To cancel, press and hold again.
Selecting a radio station Press to select the radio mode.
Press or to select a preset station.
To scan for receivable stations, press and hold or until
you hear a beep.
Selecting a track/file or songPress to select CD, iPod or USB memory mode.
Press or to select the desired track/file or song.
STEP1
STEP2
STEP1
STEP2

296 3-2. Using the audio system
Selecting a folder (MP3 and WMA or USB memory)Press to select CD or USB memory mode.
Press and hold or until you hear a beep.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2

297
3
Interior features
3-3. Using the interior lights

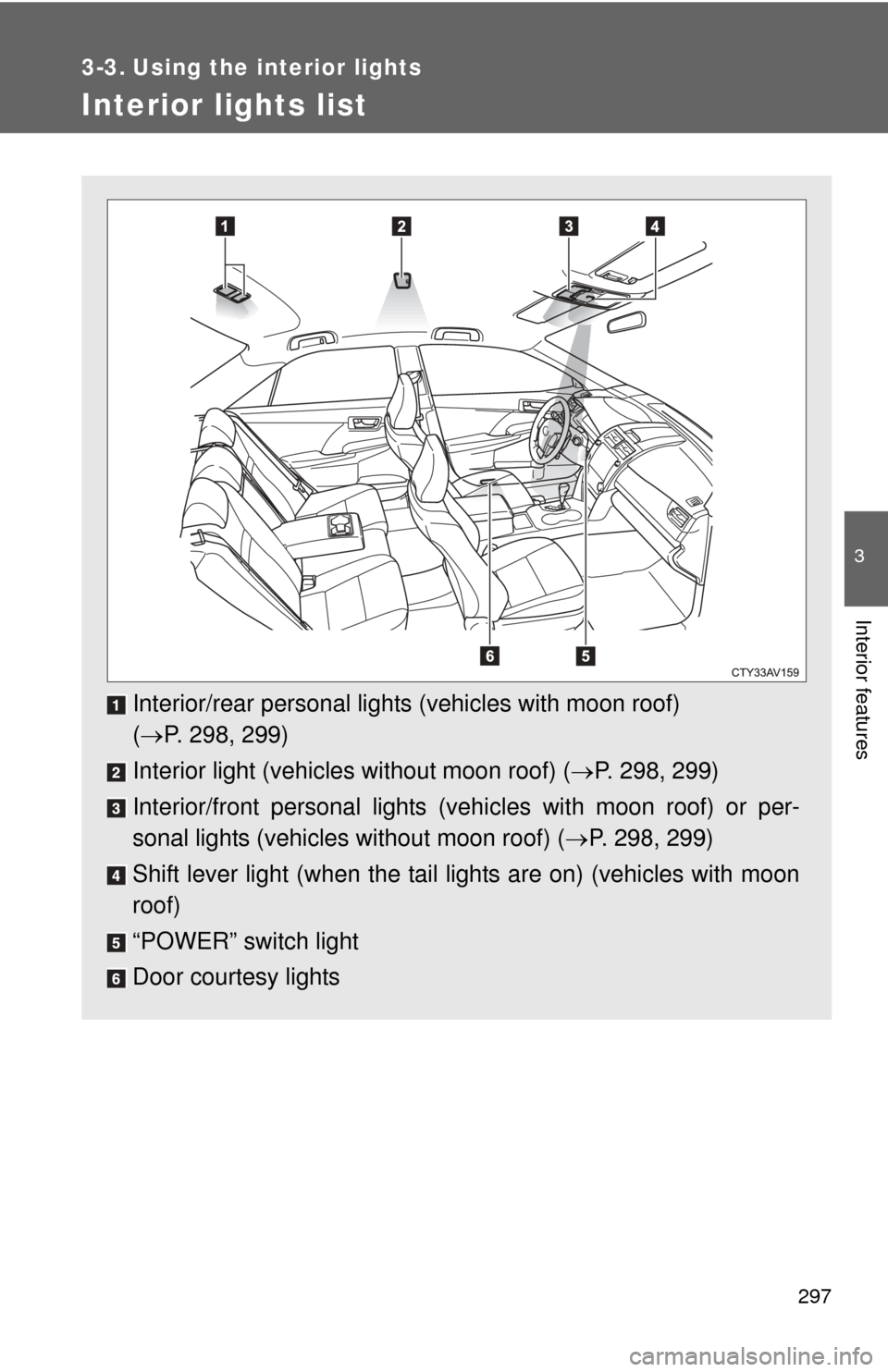

Interior lights list
Interior/rear personal lights (vehicles with moon roof)
( P. 298, 299)
Interior light (vehicles without moon roof) ( P. 298, 299)
Interior/front personal lights (vehi cles with moon roof) or per-
sonal lights (vehicles without moon roof) ( P. 298, 299)
Shift lever light (when the tail lights are on) (vehicles with moon
roof)
“POWER” switch light
Door courtesy lights

298 3-3. Using the interior lights
Interior lightsVehicles without moon roof Turns the lights on
Turns the door position on
Turns the lights off
Vehicles with moon roof Turns the lights on/off linked to
door positions.
Turns the lights on/off
Interior lights

299
3-3. Using the interior lights
3
Interior features
Personal lights
Front Turns the lights on/off
Rear (vehicles with moon roof) Turns the lights on/off
■Illuminated entry system
The lights automatically turn on/off according to “POWER” switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are open/closed.
■ To prevent 12-volt battery discharge
If the interior lights, personal lights and/or door courtesy lights are left on
when the “POWER” switch is turned off, the lights will go off automatically
after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 510)
Personal lights

300
3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Auxiliary boxes
Glove box
Bottle holders/door pockets
Cup holders
Console box
Coin holder
