instrument cluster TOYOTA CAMRY HYBRID 2013 XV50 / 9.G Owners Manual

1
2
3
4
5
6
7
3
2-2. Instrument clusterGauges and meters ............ 178
Indicators and warning lights ................................. 184
Multi-information display ..... 189
2-3. Operating the lights and wipers
Headlight switch .................. 196
Fog light switch ................... 202
Windshield wipers and washer .............................. 204
2-4. Using other driving systems
Cruise control ...................... 208
Driving assist systems ........ 211
Hill-start assist control ......... 216
BSM (Blind Spot Monitor) .......... 218
2-5. Driving information Cargo and luggage ............. 228
Vehicle load limits ............... 232
Winter driving tips ............... 233
Trailer towing ...................... 237
Dinghy towing ..................... 238 3-1. Using the air conditioning
system and defogger
Automatic air conditioning system.......... 240
Rear window and outside rear view mirror
defoggers ......................... 249
3-2. Using the audio system Audio system types ............ 250
Using the radio ................... 255
Using the CD player ........... 258
Playing back MP3 and WMA discs ....................... 264
Operating an iPod .............. 272
Operating a USB memory ............................ 281
Optimal use of the audio system .............................. 289
Using the AUX port............. 292
Using the steering wheel audio switches.................. 294
3Interior features

105
1-5. Opening and closing the windows and moon roof
1
Before driving
■
Moon roof open reminder function
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the “POWER” switch is turned off and the
driver's door is opened with the moon roof open.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. key linked operation) can be changed.
(Customizable features: P. 510)
CAUTION
■Opening the moon roof
Observe the following precautions.
Failure to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.

When driving2
149
2-1. Driving proceduresDriving the vehicle............ 150
Power (ignition) switch ..... 161
EV drive mode ................. 169
Hybrid transmission ......... 172
Turn signal lever .............. 174
Parking brake ................... 176
Horn ................................. 177
2-2. Instrument cluster Gauges and meters ......... 178
Indicators and warning lights .............................. 184
Multi-information display............................ 189
2-3. Operating the lights and wipers
Headlight switch ............... 196
Fog light switch ................ 202
Windshield wipers and washer ........................... 204 2-4. Using other driving
systems
Cruise control ................... 208
Driving assist systems ..... 211
Hill-start assist control ...... 216
BSM (Blind Spot Monitor) ....... 218
2-5. Driving information Cargo and luggage .......... 228
Vehicle load limits ............ 232
Winter driving tips ............ 233
Trailer towing ................... 237
Dinghy towing .................. 238

178
2-2. Instrument cluster
Gauges and meters
Hybrid System Indicator
Displays hybrid system power output and regenerative level.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Average fuel consumption meter
Displays the average fuel consumption since the function was reset.
Current fuel consumption gauge
Displays the current rate of fuel consumption.
Display change button
P. 180
Odometer/trip meter display
P. 180
Multi-information display
P. 189

179
2-2. Instrument cluster
2
When driving

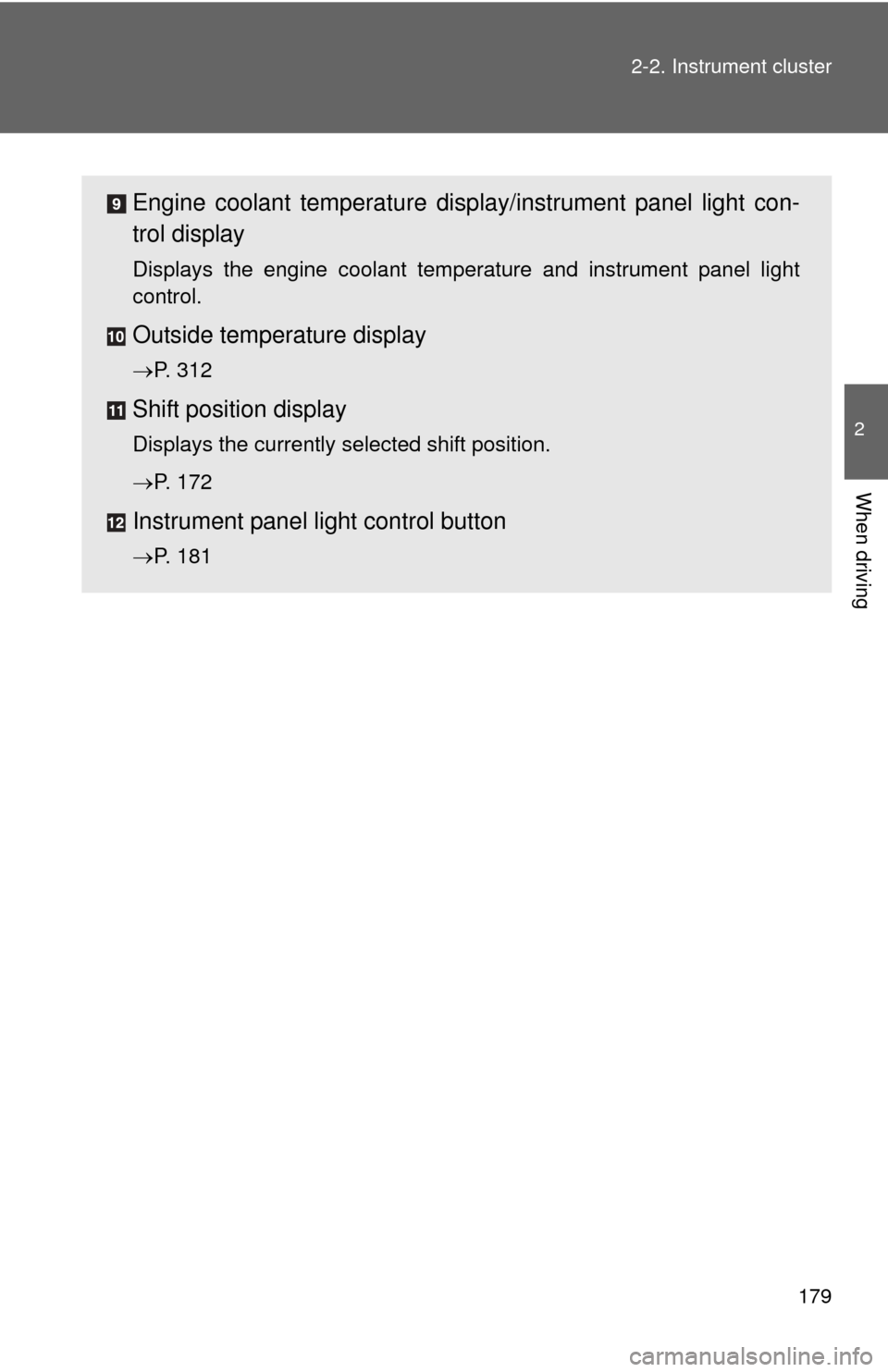

Engine coolant temperature displa
y/instrument panel light con-
trol display
Displays the engine coolant temperature and instrument panel light
control.
Outside temperature display
P. 312
Shift position display
Displays the currently selected shift position.
P. 172
Instrument panel light control button
P. 181

180 2-2. Instrument cluster

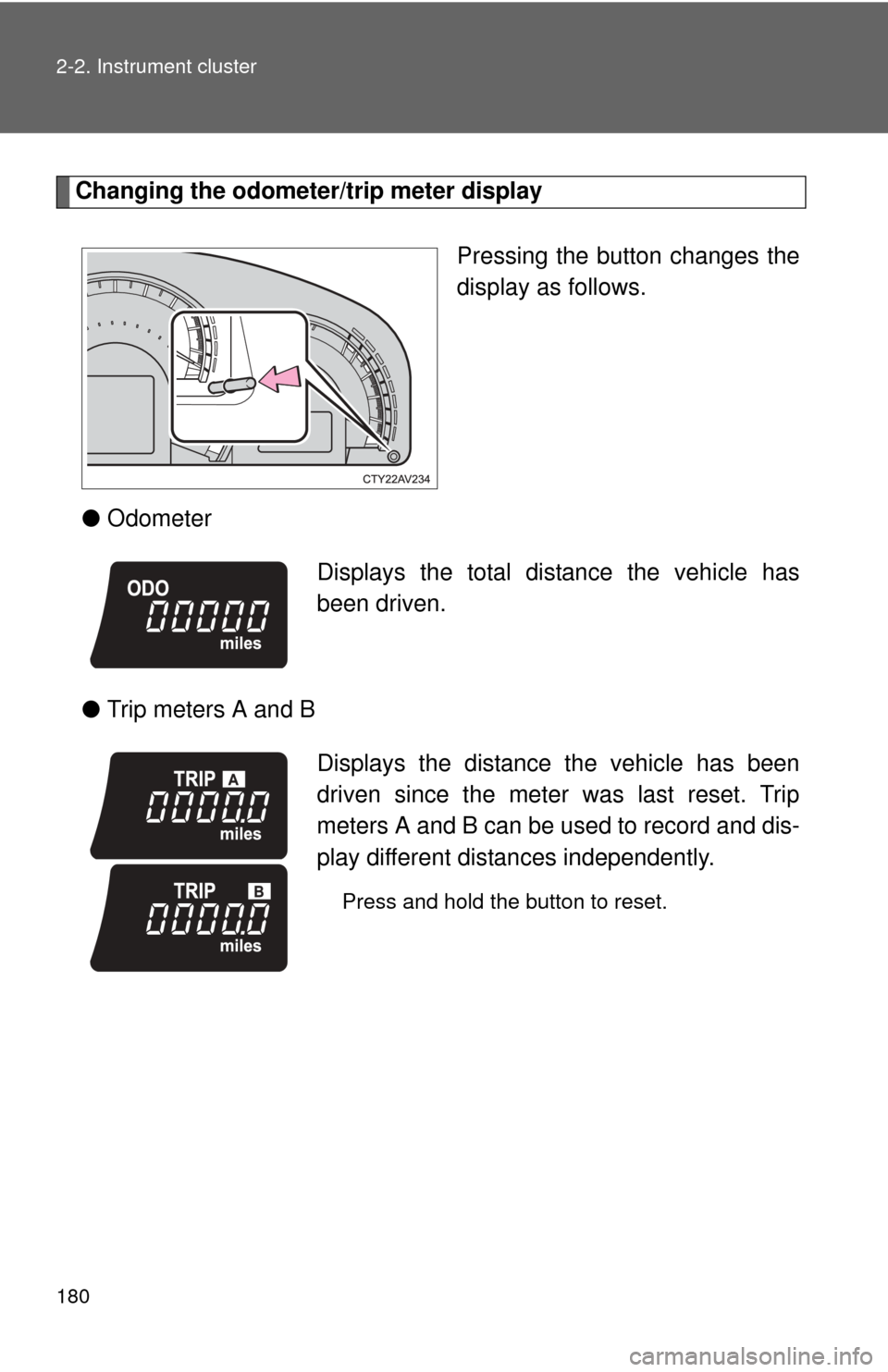

Changing the odometer/trip meter displayPressing the button changes the
display as follows.
● Odometer
● Trip meters A and B
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button to reset.

181
2-2. Instrument cluster
2
When driving

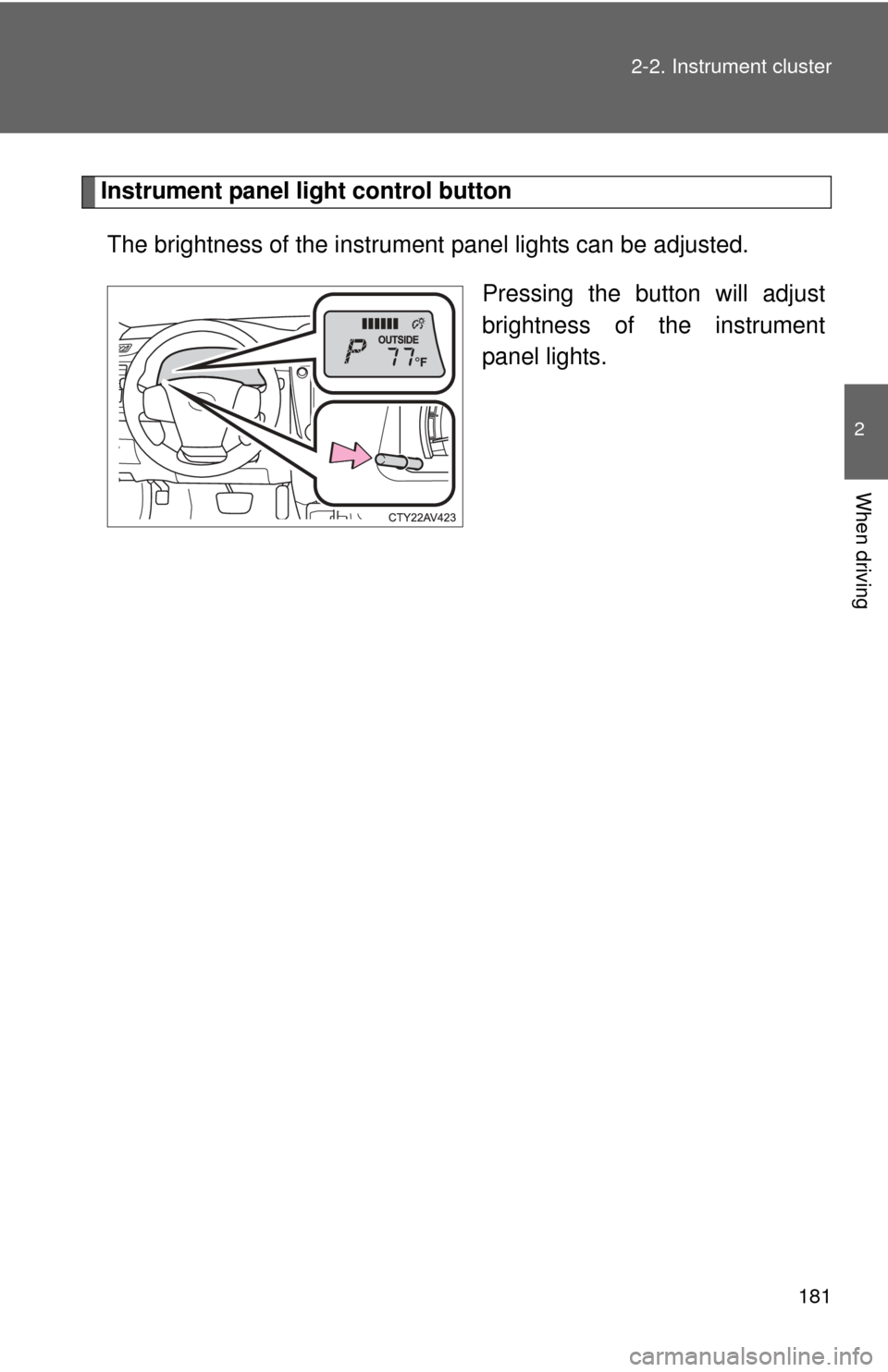

Instrument panel light control button
The brightness of the instrument panel lights can be adjusted.
Pressing the button will adjust
brightness of the instrument
panel lights.

182 2-2. Instrument cluster
■The meters and display illuminate when
The “POWER” switch is in ON mode.

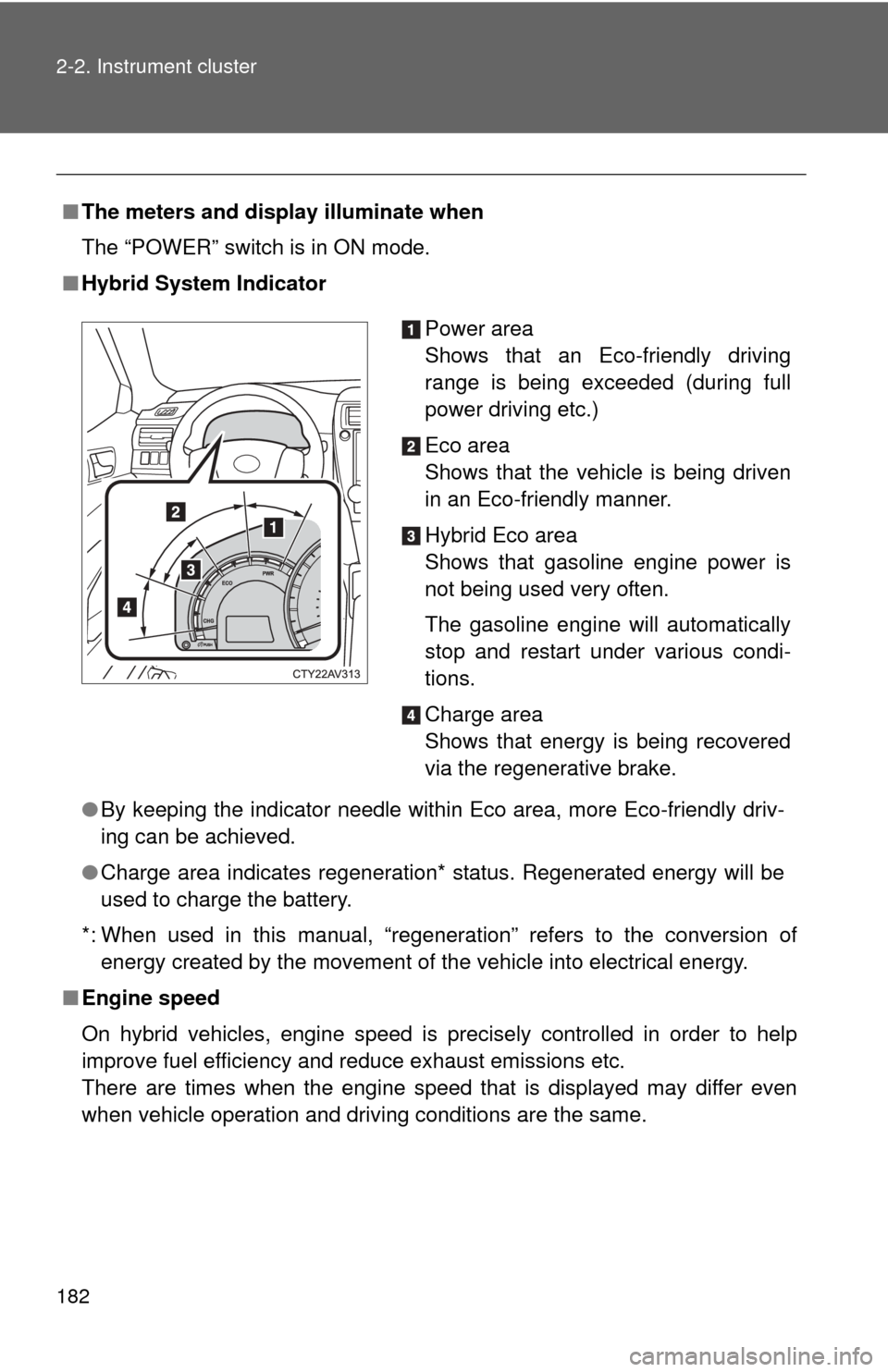

■ Hybrid System Indicator
●By keeping the indicator needle within Eco area, more Eco-friendly driv-
ing can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Charge area
Shows that energy is being recovered
via the regenerative brake.

183
2-2. Instrument cluster
2
When driving
■
The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark, the meter’s
brightness will reduce slightly. However, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even
if the tail lights are turned on.
■ Fuel gauge and odometer/trip meter display remain on mode
After the “POWER” switch has been turned off, the fuel gauge and odome-
ter/trip meter display remain on for 10 minutes, enabling the fuel gauge and
odometer/trip meter values to be checked again without having to turn the
“POWER” switch to ON mode.
When confirming the gauges and meters, turn the headlight switch to the
position. Press the display change button to change between the
odometer and trip meter displays.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the rightmost segment of the engine cool-
ant temperature display is flashing. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(
P. 475)

184
2-2. Instrument cluster

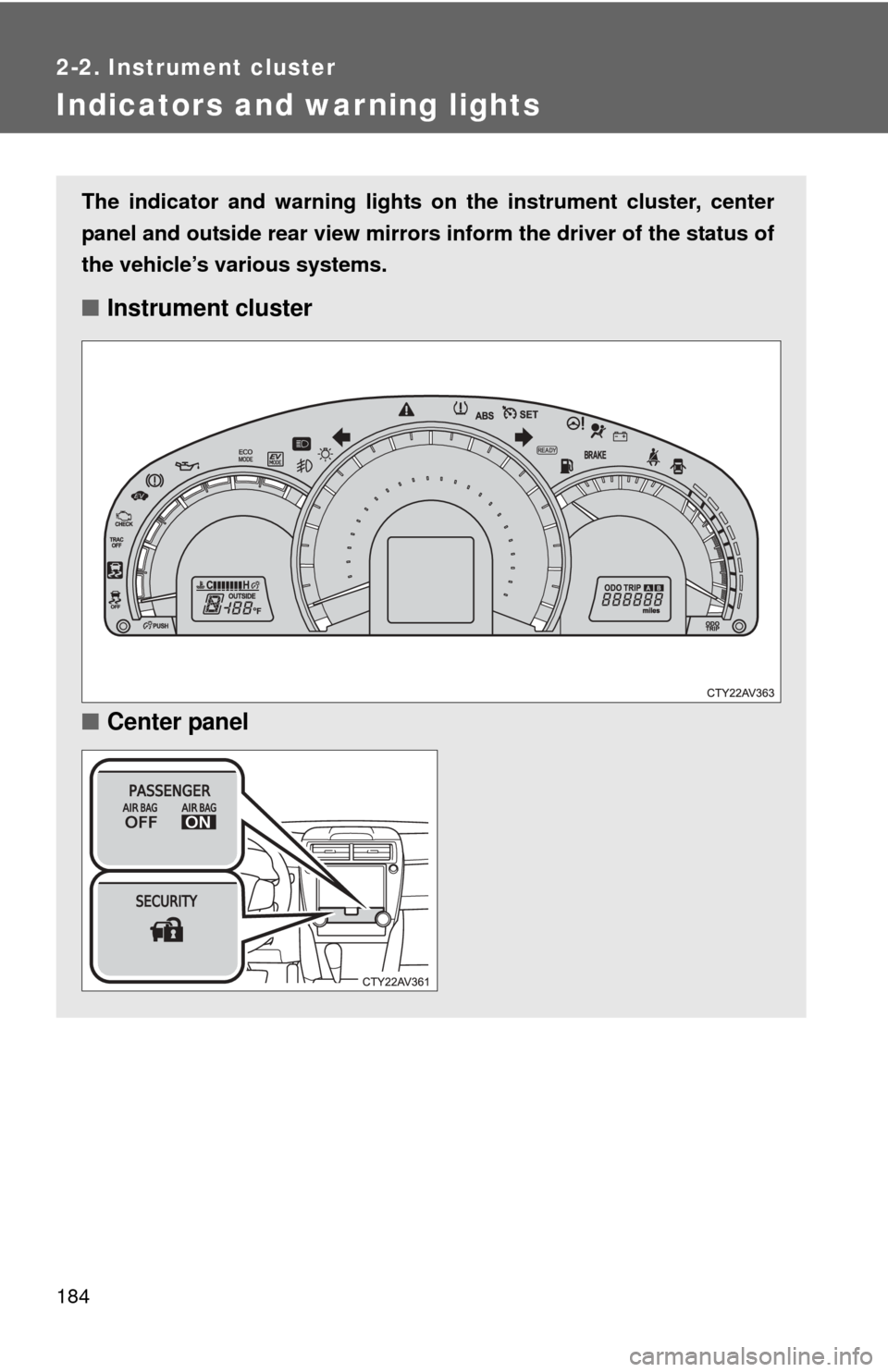

Indicators and warning lights
The indicator and warning lights on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
■ Instrument cluster
■ Center panel
