TOYOTA CAMRY HYBRID 2013 XV50 / 9.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9

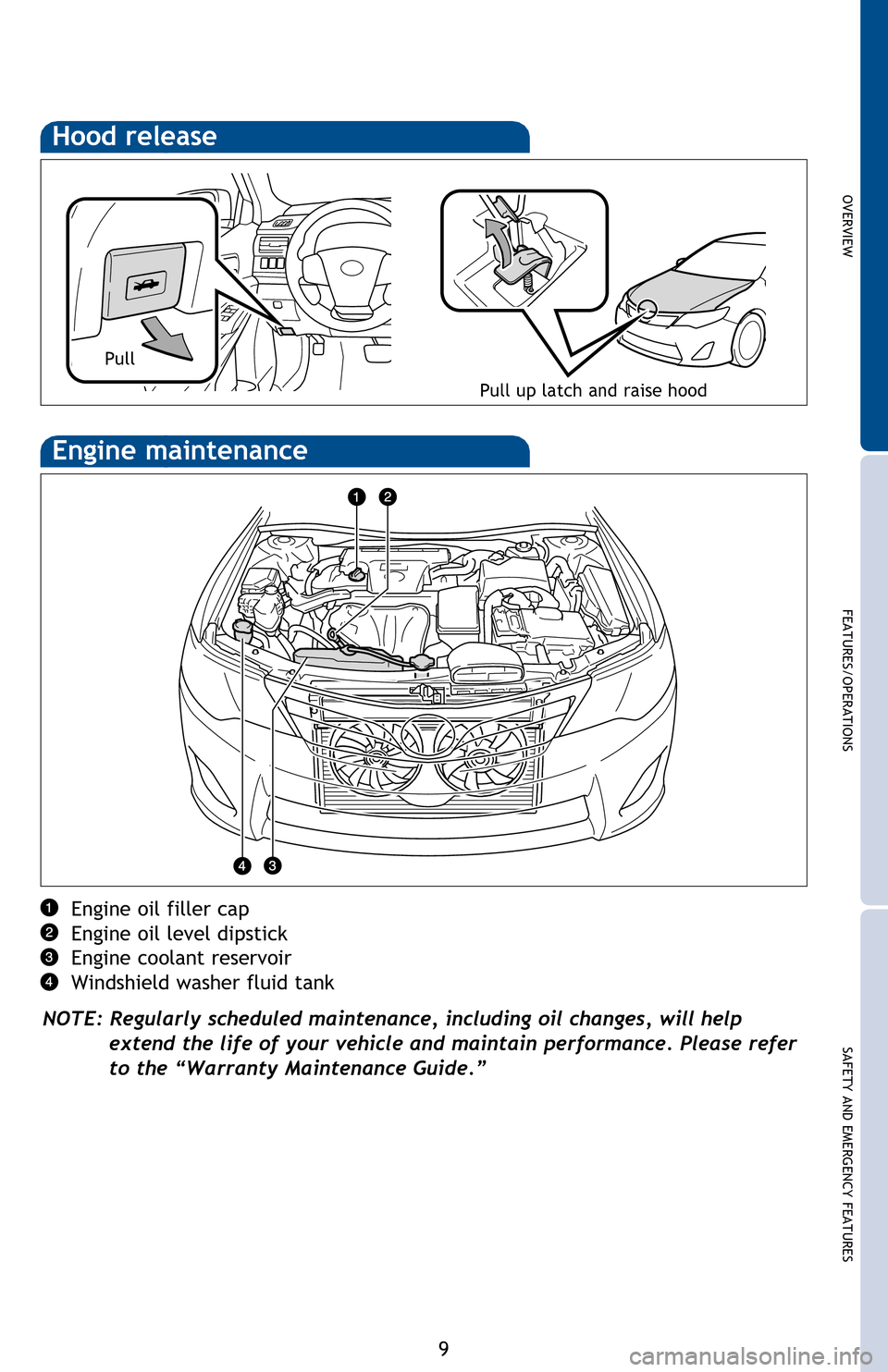

Hood release
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Pull up latch and raise hood
Pull
127615_2013CamryHV.indd 911/19/12 11:05 PM

10
FEATURES/OPERATIONS
Transmission
1 The “POWER” switch must be set at “ON” and the brake pedal depressed to shift
from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Steering lock release
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF and driver’s
door is opened.
Refer to the Owner’s Manual for more details.
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.
Starting the Hybrid System

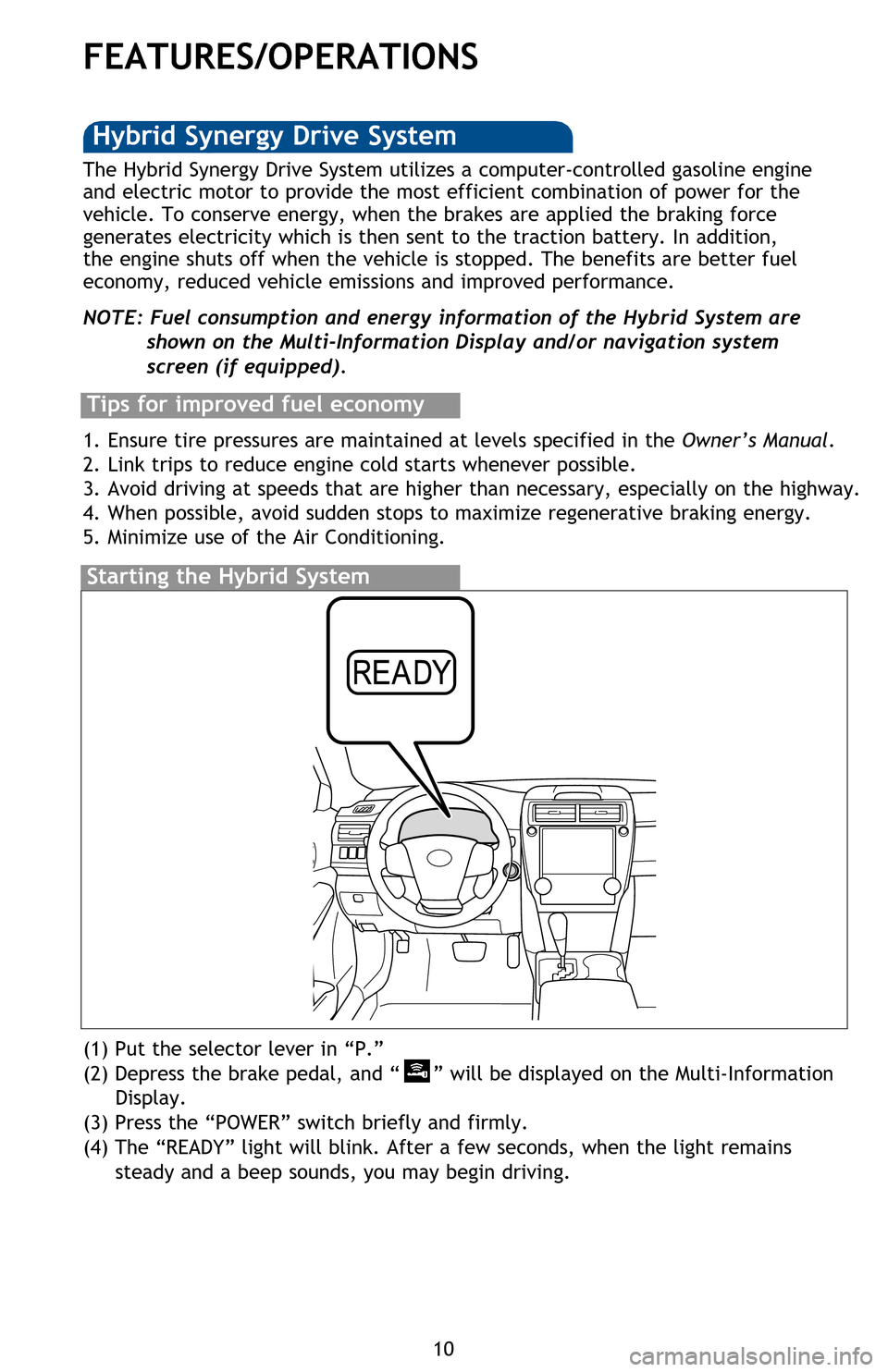

The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the Multi-Information Display and/or navigation system
screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual .
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Gently turn wheel while pressing the “POWER” switch. If the lock does not release,
the switch indicator will flash green.
127615_2013CamryHV.indd 1011/19/12 11:05 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Transmission
1 The “POWER” switch must be set at “ON” and the brake pedal depressed to shift
from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
B
Park1
Reverse
Neutral
Drive
Engine braking2
Steering lock release
Turn
Push

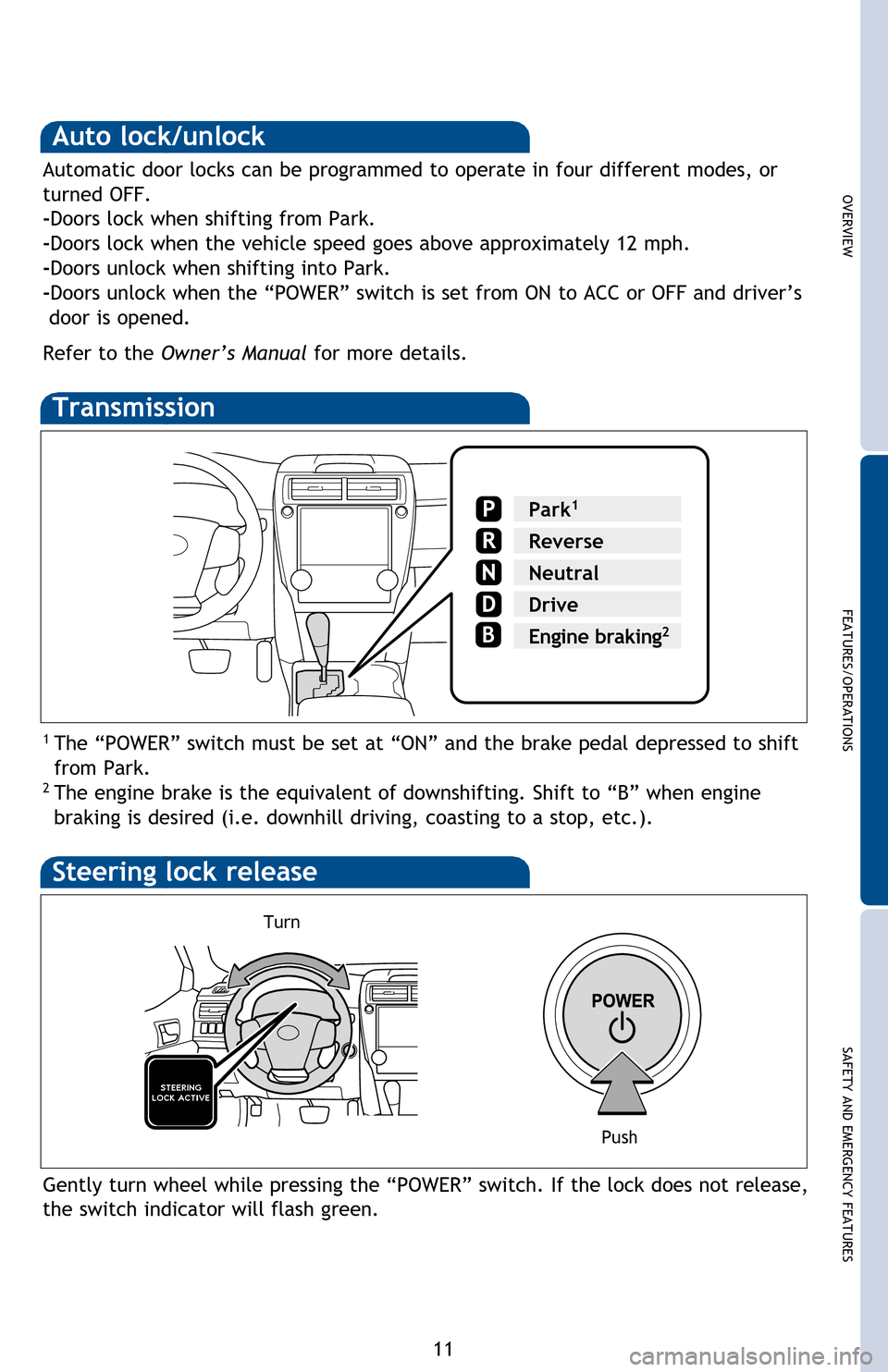

Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the Multi-Information Display and/or navigation system
screen (if equipped).
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual
.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the Air Conditioning.
Gently turn wheel while pressing the “POWER” switch. If the lock does not release,
the switch indicator will flash green.
127615_2013CamryHV.indd 1111/19/12 11:05 PM

12
FEATURES/OPERATIONS
Windshield wipers & washers
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
Angle Length
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.

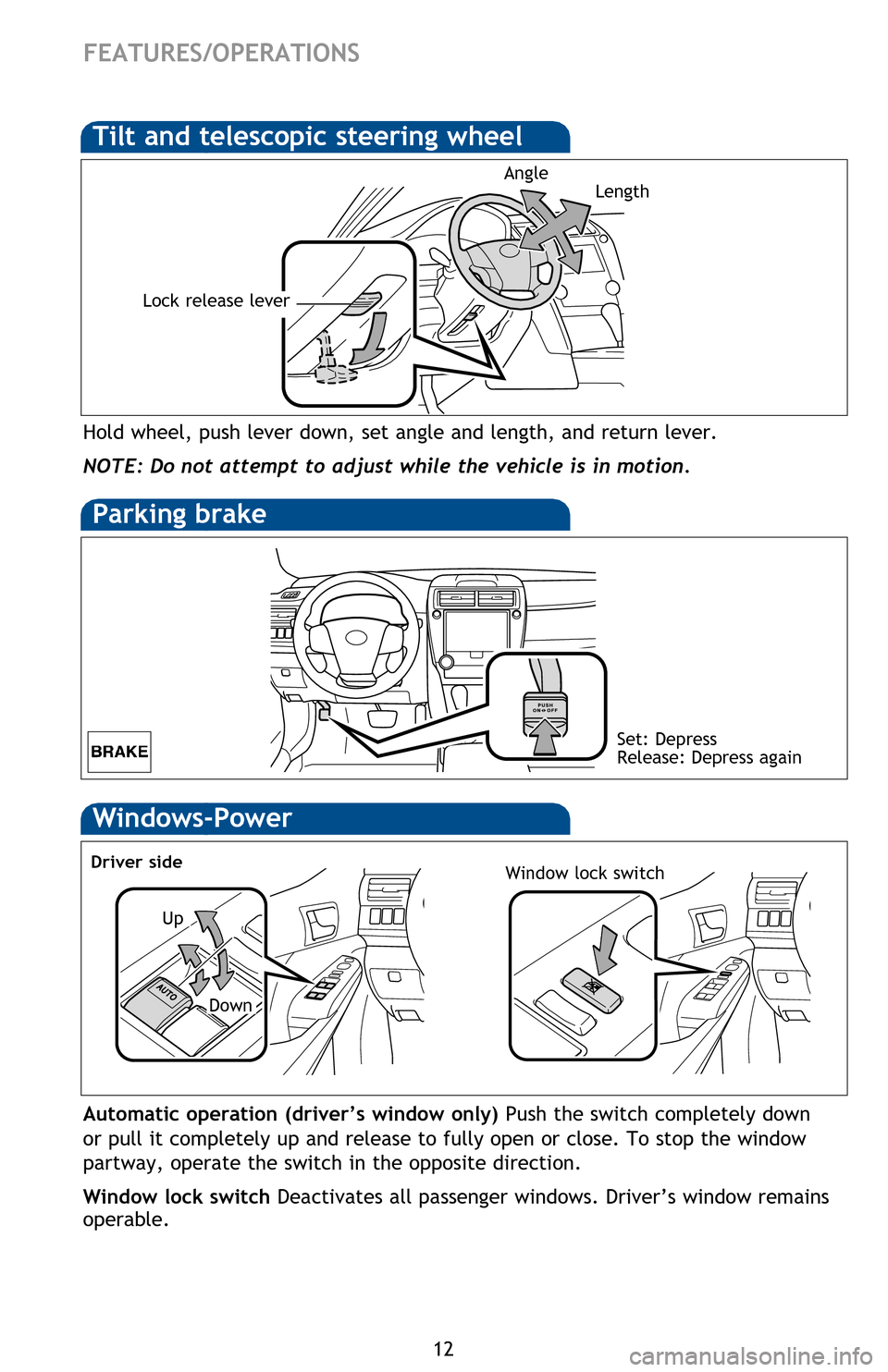

Tilt and telescopic steering wheel
Lights & turn signals
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
Turn signals
Headlights
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
Front fog lights come on only when the headlights are on low beam.
Parking lights
1 The right hand signals will flash 3 times.2 The left hand signals will flash 3 times.
127615_2013CamryHV.indd 1211/19/12 11:06 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Windshield wipers & washers
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lights & turn signals
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Adjust frequency*
Pull to wash and wipeSingle wipe
Interval wipe
Slow
Fast
Turn signals
Headlights
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
Right turn
Lane change
1
Lane change 2
Left turn
Turn
Front fog lights come on only when the headlights are on low beam.
Headlights
Parking lights Auto
DRL OFF
High beam High beam
flasher
Low beam
1 The right hand signals will flash 3 times.2 The left hand signals will flash 3 times.
127615_2013CamryHV.indd 1311/19/12 11:06 PM

14
FEATURES/OPERATIONS

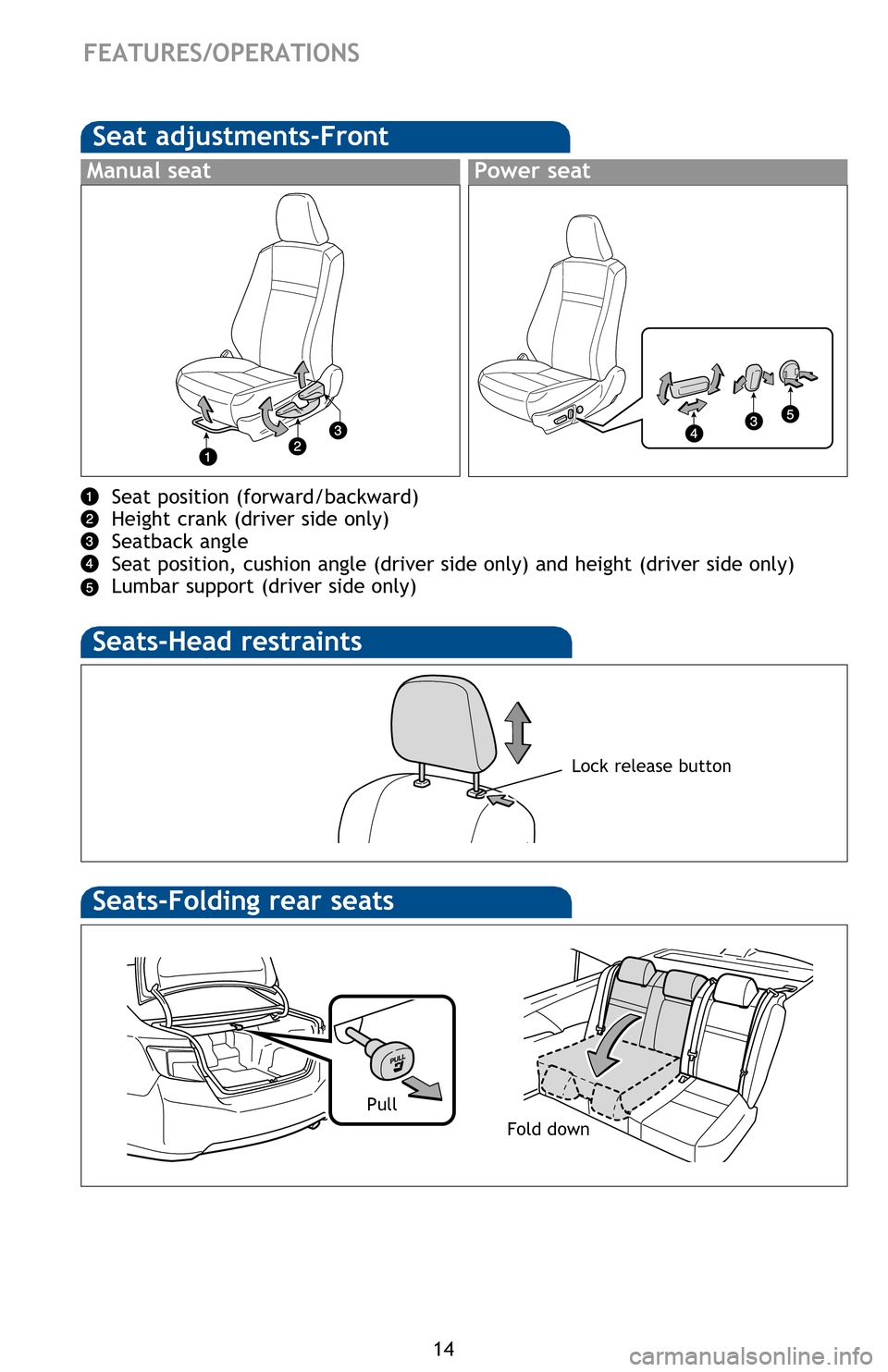

Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Manual seatPower seat
Seats-Head restraints
Lock release button
Pull
Seats-Folding rear seats
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.

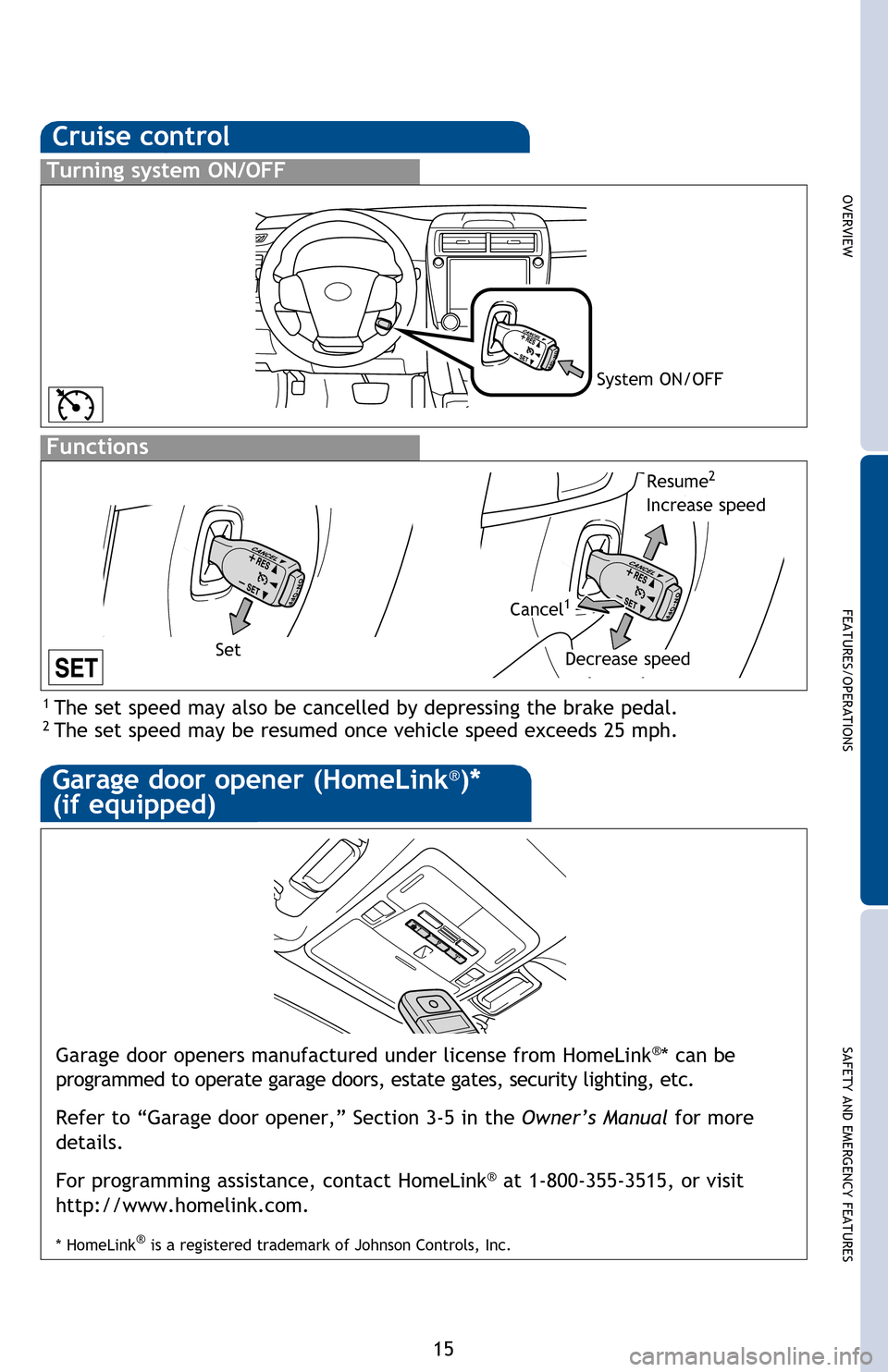

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
Fold down
127615_2013CamryHV.indd 1411/19/12 11:06 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
127615_2013CamryHV.indd 1511/19/12 11:06 PM

16
FEATURES/OPERATIONS

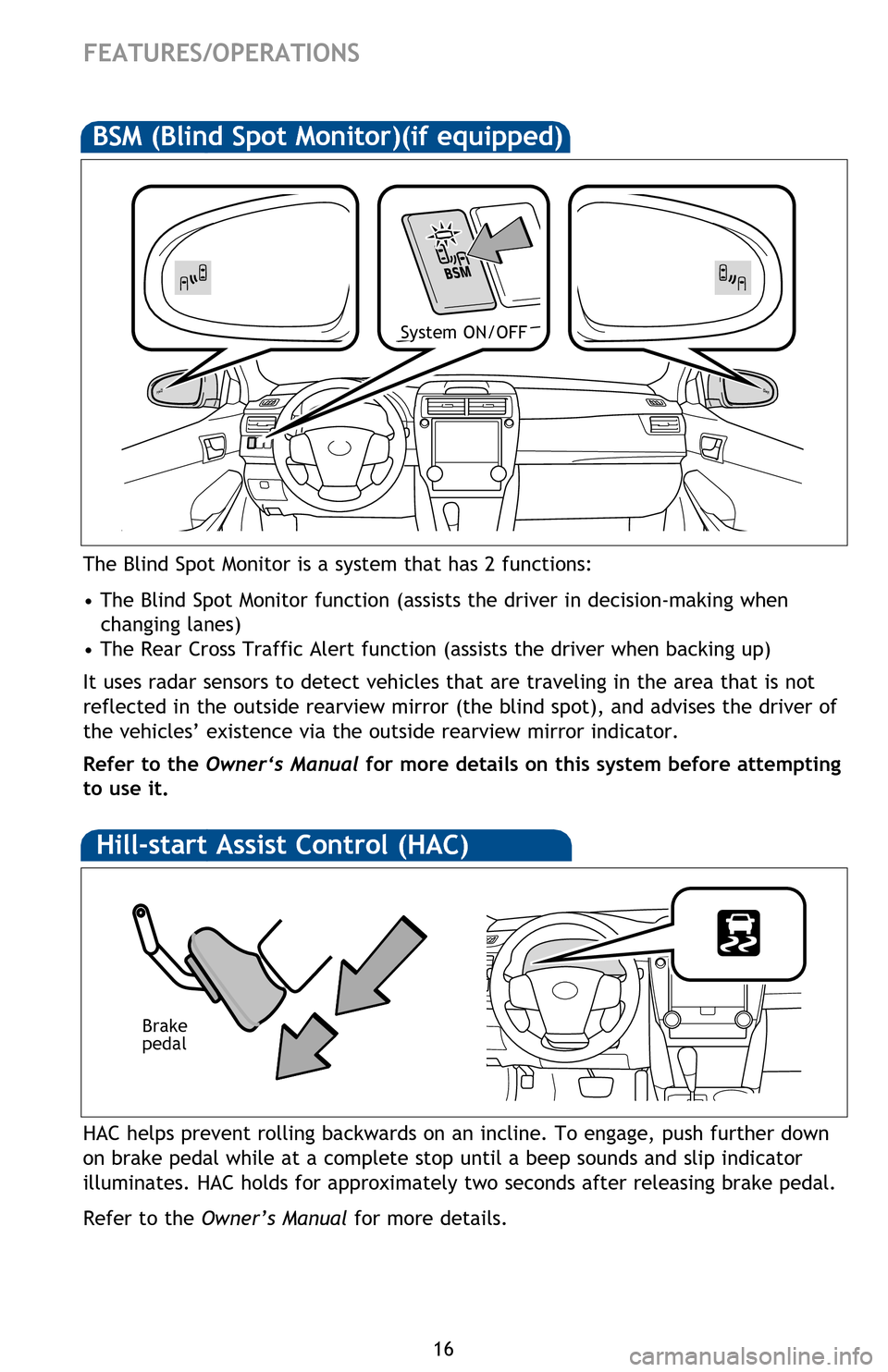

The Blind Spot Monitor is a system that has 2 functions:
• The Blind Spot Monitor function (assists the driver in decision-making when changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
It uses radar sensors to detect vehicles that are traveling in the area that is not
reflected in the outside rearview mirror (the blind spot), and advises the driver of
the vehicles’ existence via the outside rearview mirror indicator.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Moonroof (if equipped)
Sliding operation
Multi-Information Display
Push “DISP” to change information in the following:
(1) Cruising range/Average fuel consumption
(2) Average vehicle speed/elapsed time
(3) Eco drive level
(4) Energy monitor
(5) Customization
(6) (off)
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
BSM (Blind Spot Monitor)(if equipped)
System ON/OFF
Hill-start Assist Control (HAC)
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
2Brake
pedal
127615_2013CamryHV.indd 1611/19/12 11:06 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
The Blind Spot Monitor is a system that has 2 functions:
• The Blind Spot Monitor function (assists the driver in decision-making when changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
It uses radar sensors to detect vehicles that are traveling in the area that is not
reflected in the outside rearview mirror (the blind spot), and advises the driver of
the vehicles’ existence via the outside rearview mirror indicator.
Refer to the Owner‘s Manual for more details on this system before attempting

to use it.
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended open
position to minimize
wind noise.

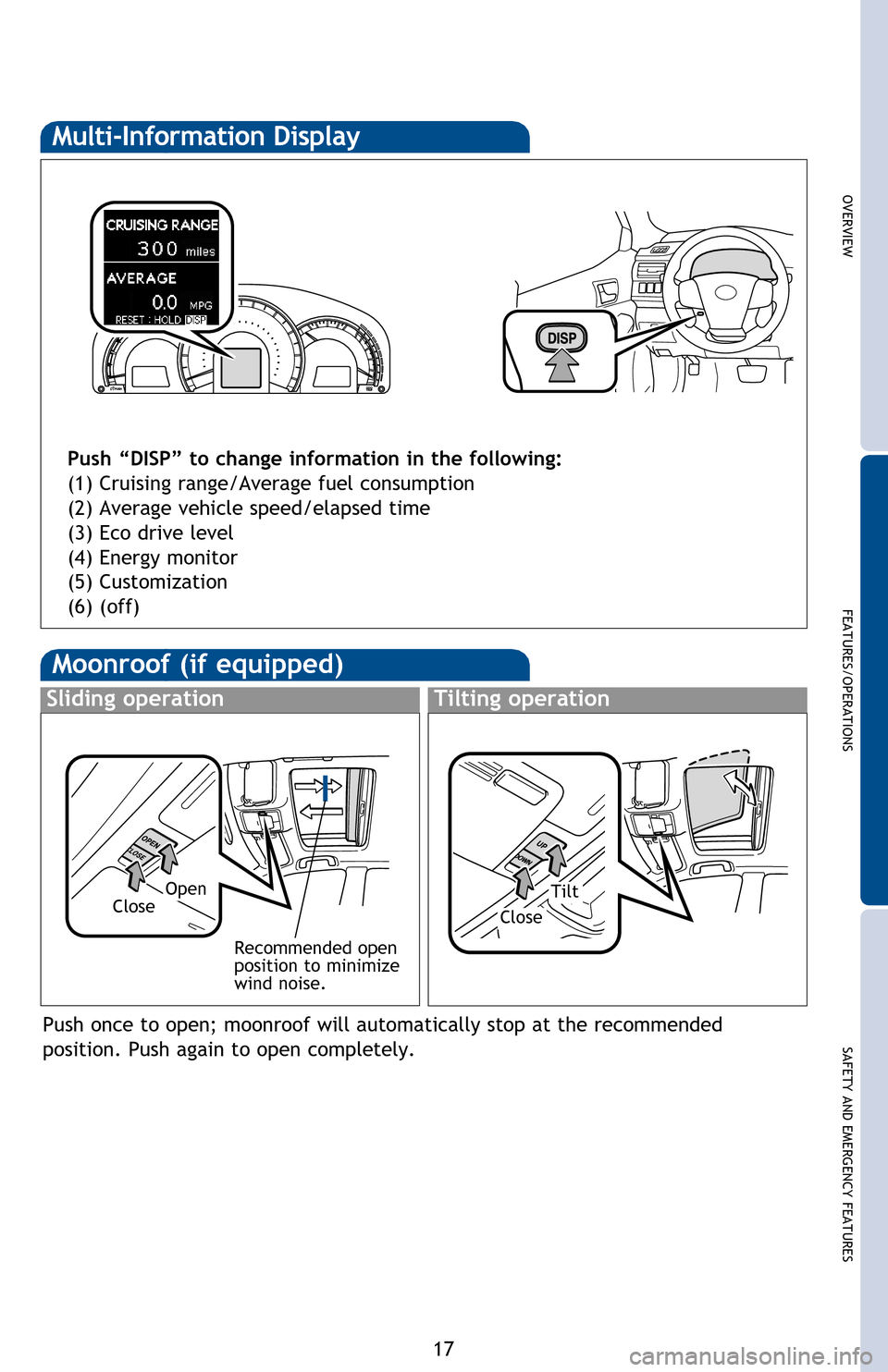

Multi-Information Display
Push “DISP” to change information in the following:
(1) Cruising range/Average fuel consumption
(2) Average vehicle speed/elapsed time
(3) Eco drive level
(4) Energy monitor
(5) Customization
(6) (off)
STEP
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
2
127615_2013CamryHV.indd 1711/19/12 11:06 PM

18
FEATURES/OPERATIONS

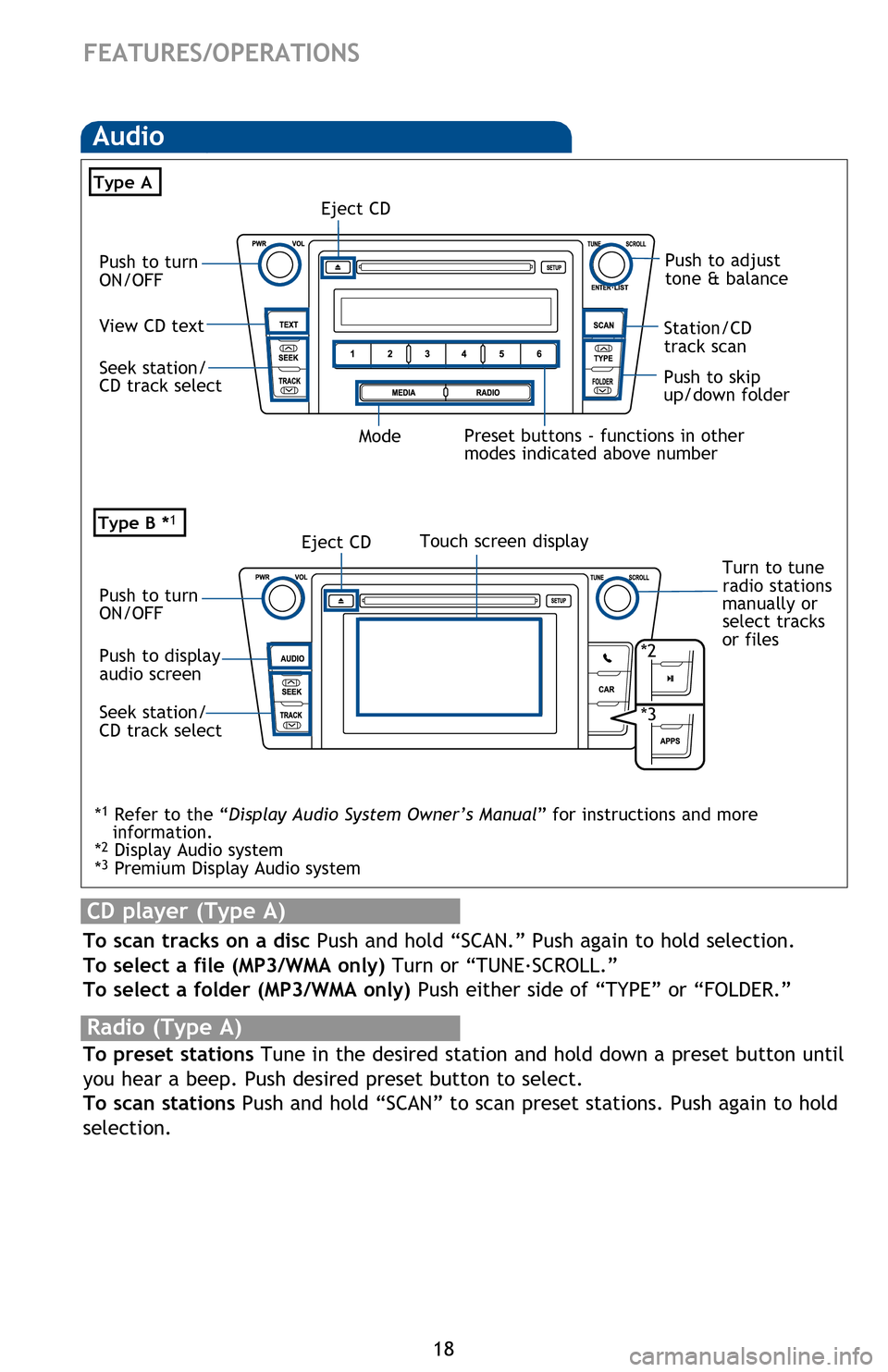

Audio
CD player (Type A)
To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn or “TUNE.
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “TYPE” or “FOLDER.”
Type B *1
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Seek station/
CD track select Station/CD
track scan
Mode Preset buttons - functions in other
modes indicated above number
View CD text
Type A
Radio (Type A)
To preset stations
Tune in the desired station and hold down a preset button until
you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
Push to skip
up/down folder
Touch screen display
Push to display
audio screen Push to turn
ON/OFFEject CD Turn to tune
radio stations
manually or
select tracks
or files
Seek station/
CD track select
*2
*3
*
1 Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
*
2 Display Audio system
*3 Premium Display Audio system
Steering wheel switches (if equipped)
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute.
iPod
®/USB portBy connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
iPod®/USB/AUX port
127615_2013CamryHV.indd 1811/19/12 11:06 PM
