washer fluid TOYOTA CAMRY HYBRID 2014 XV50 / 9.G Owners Manual

202 2-3. Operating the lights and wipers
■The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

203
2-3. Operating the lights and wipers
2
When driving
NOTICE
■
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

229
2-5. Driving information
2
When driving
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the level and specific grav-
ity of battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains
match the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
● To ensure proper operation of th e climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
● Remove any ice that has accumu lated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow
that may have accumulated in the wheel well or on the
brakes.

418
4-2. Maintenance
General maintenance
Engine compartment
Trunk
ItemsCheck points
Brake fluid Is the brake fluid at the correct
level? (
P. 436)
Coolant Is the coolant at the correct level?
(P. 434)
Engine oil Is the engine oil at the correct
level?
(P. 430)
Exhaust system There should not be any fumes or
strange sounds.
Radiator/condenser The radiator and condenser
should be free from foreign
objects.
(P. 436)
Washer fluid Is there sufficient washer fluid?
(P. 438)
ItemsCheck points
12-volt battery Check the connections. ( P. 439)
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Owner's Warranty Informa-
tion Booklet” or “Owner’s Manual Supplement/Scheduled
Maintenance Guide”. It is recommended that any problem you notice
should be brought to the attention of your Toyota dealer or qualified
service shop for advice.

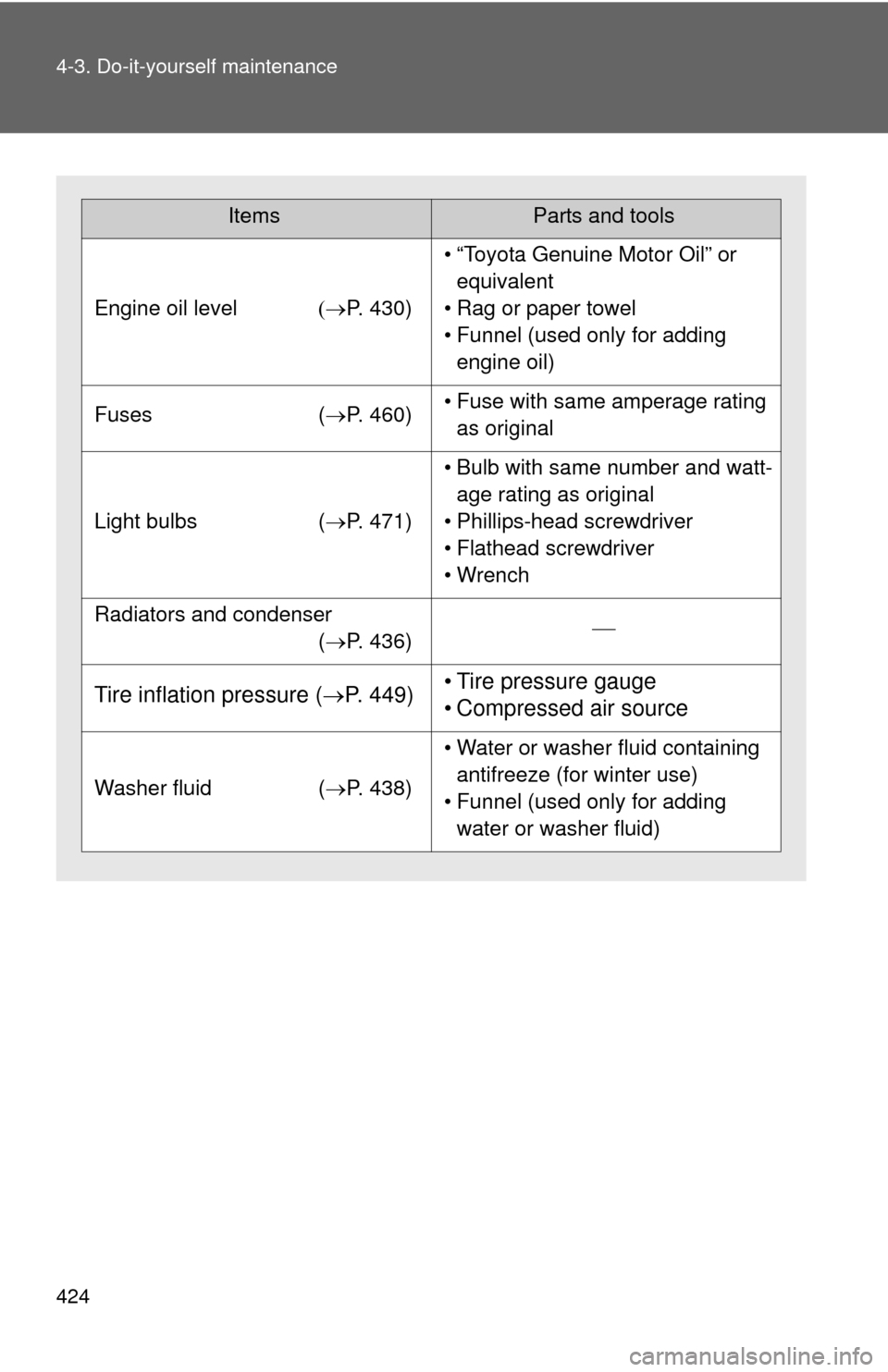

424 4-3. Do-it-yourself maintenance
ItemsParts and tools
Engine oil levelP. 430)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 460)• Fuse with same amperage rating
as original
Light bulbs (P. 471)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Radiators and condenser
(P. 436)
Tire inflation pressure ( P. 449)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 438)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compar tment
Fuse box (P. 460)
Engine oil filler cap ( P. 431)
Engine oil level dipstick ( P. 430)
Brake fluid reservoir ( P. 436)
Engine coolant
radiator ( P. 436)Power control unit
coolant radiator ( P. 436)
Condenser ( P. 436)
Electric cooling fans
Engine coolant
reservoir ( P. 434)
Washer fluid tank ( P. 438)
Power control unit
coolant reservoir ( P. 434)

438 4-3. Do-it-yourself maintenance
Washer fluidAdd washer fluid in the following
situations.
●Any washer does not work.
● The warning message
appears on the multi-informa-
tion display.
CAUTION
■When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the hybrid sys-
tem etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

5
When trouble arises
505
5-2. Steps to take in an emergency
(U.S.A.)
(Canada)
(Flashes)
Indicates, if the vehi-
cle reaches a speed of
3 mph (5 km/h), that
the parking brake is
still engaged.
A buzzer also sounds. Release the parking
brake.
Indicates that the
washer fluid level is
low. Add washer fluid.
(If equipped) Indicates that the
Blind Spot Monitor
sensors or the sur-
rounding area on the
bumper is dirty or
covered with ice.
Clean the sensor and
its surrounding area on
the bumper.
Warning messageDetailsCorrection procedure

602 Alphabetical index
EngineAccessory mode.................... 157
Compartment ........................ 429
Hood...................................... 426
How to start the
hybrid system...................... 157
Identification number ............. 550
If the hybrid system will not start ............................... 531
Ignition switch........................ 157
Overheating........................... 542
“POWER” switch ................... 157
Engine coolant Capacity ................................ 555
Checking ............................... 434
Preparing and checking before winter ....................... 229
Engine coolan t temperature
display .................................... 174
Engine oil
Capacity ................................ 553
Checking ............................... 430
Preparing and checking before winter ....................... 229
Engine/power control unit coolant
Capacity ................................ 555
Checking ............................... 434
Preparing and checking before winter ....................... 229
EPS ............................................ 207
EV drive mode .......................... 165
Event data recorder ...................23 Floor mat .................................. 388
Fluid
Brake..................................... 436
Washer.................................. 438
Fog lights
Replacing light bulbs ............. 471
Switch ................................... 198
Wattage................................. 560
Front fog lights Switch ................................... 198
Wattage................................. 560
Front passenger occupant classification system ............ 125
Front passenger's seat belt
reminder light ........................ 493
Front seats Adjustment .............................. 76
Front side marker lights Replacing light bulbs ............. 471
Wattage................................. 560
Front turn signal lights Replacing light bulbs ............. 471
Wattage................................. 560
Fuel Capacity ................................ 552
Fuel gauge ............................ 174
Gas station information ......... 612
Information ............................ 561
Refueling ............................... 102
Type ...................................... 552
Fuel door .................................. 102
Fuel filler door .......................... 102
Fuses ........................................ 460F

608 Alphabetical index
Warning buzzersBrake system ........................ 490
Electric power steering
system ................................ 491
Open door ............................. 493
Seat belt reminder ................. 493
Warning lights Anti-lock brake system .......... 491
Brake assist system .............. 491
Brake system ........................ 490
Charging system .... ............... 491
Electric power steering system ................................ 491
Engine coolant
temperature ........................ 491
Engine oil pressure ............... 491
Low fuel level ........................ 493
Low tire pressure warning light ..................................... 493
Malfunction indicator lamp .... 491
Master warning light .............. 493
Open door ............................. 493
Pretensioners ........................ 491
Seat belt reminder light ......... 493
Slip indicator.......................... 491
SRS airbags .......................... 491
Tire pressure warning light .... 493
Warning messages Blind Spot monitor ......... 502, 503
Cruise control ........................ 502
EV drive mode....................... 503
Headlight ............................... 503
Hood...................................... 503
Hybrid system ....................... 501
Hybrid system overheat ........ 503
Maintenance.......................... 503
Moon roof .............................. 503
N position .............................. 503
Open door ............................. 503
Parking brake ........................ 503
P position .............................. 503
Smart key system.......... 502, 510
Steering lock ......................... 502 Traction battery ..................... 503
Trunk ..................................... 503
Washer fluid .......................... 503
Washer Preparing and checking
before winter ....................... 229
Refilling ................................. 438
Switch ................................... 200
Washing and waxing ............... 410
Weight Cargo capacity ...................... 224
Load limits ............................. 228
Weight ................................... 550
Wheels ...................................... 453
Window glasses ........................ 95
Window lock switch................... 95
Windows
Power windows ....................... 95
Rear window defogger .......... 248
Washer.................................. 200
Windshield wipers ................... 200
Wireless remote control key Replacing the battery ............ 458
Wireless remote control .......... 64
WMA disc.................................. 274W
