912. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)■
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 491)

922. Instrument cluster
CAMRY_HV_U (OM33A87U)

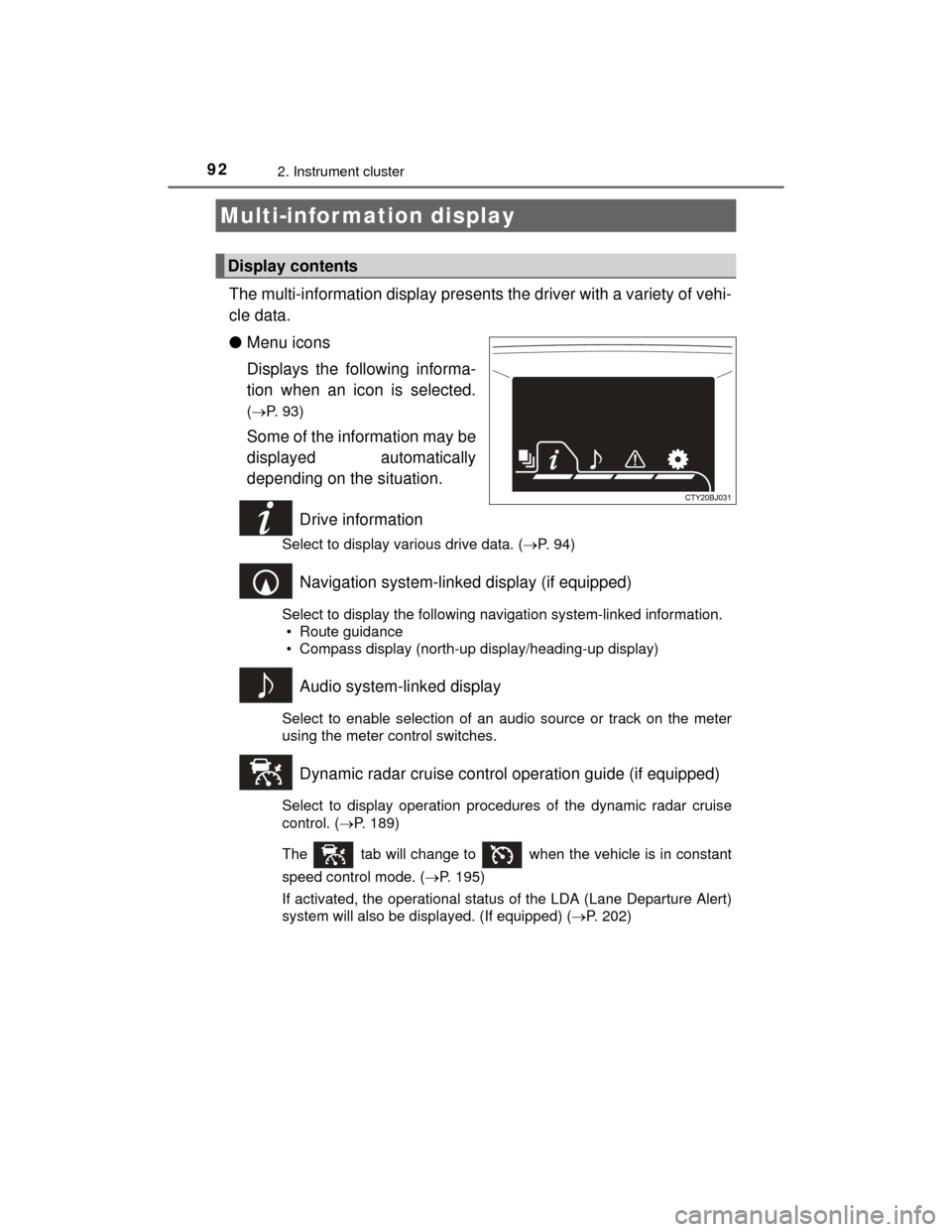

The multi-information display presents the driver with a variety of vehi-
cle data.
●Menu icons
Displays the following informa-
tion when an icon is selected.
(P. 93)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 94)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Dynamic radar cruise control operation guide (if equipped)
Select to display operation procedures of the dynamic radar cruise
control. ( P. 189)
The tab will change to when the vehicle is in constant
speed control mode. ( P. 195)
If activated, the operational status of the LDA (Lane Departure Alert)
system will also be displayed. (If equipped) (P. 202)
Multi-infor mation display
Display contents

932. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 453)
Settings display
Select to change the meter display settings. ( P. 95)
■

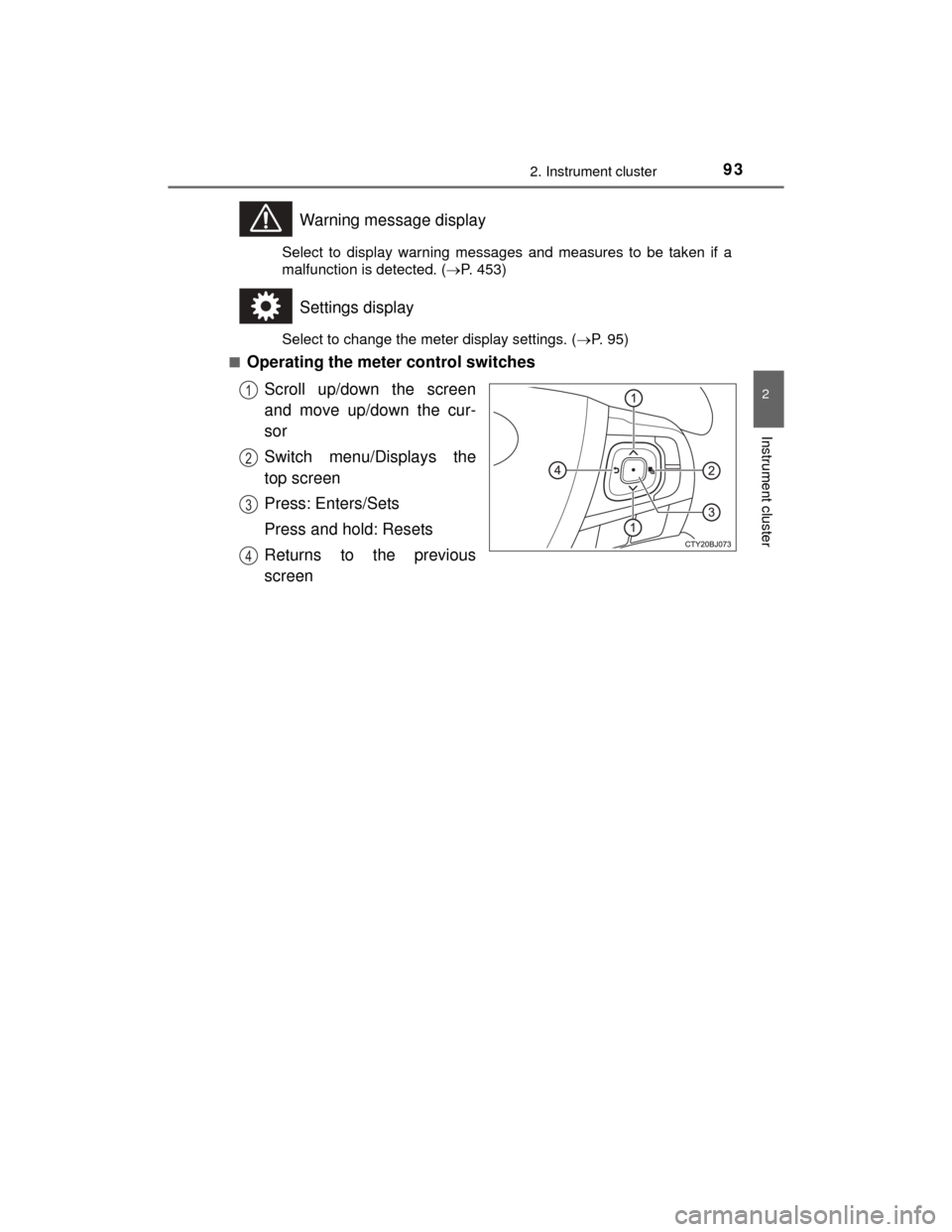

Operating the meter control switches
Scroll up/down the screen
and move up/down the cur-
sor
Switch menu/Displays the
top screen
Press: Enters/Sets
Press and hold: Resets
Returns to the previous
screen
1
2
3
4

942. Instrument cluster
CAMRY_HV_U (OM33A87U)
●Average fuel economy*1, 2/Tank average fuel economy*1/Trip aver-
age fuel economy
*1
Displays the average fuel consumption since the function was
reset, the vehicle was refueled, and the hybrid system was started,
respectively
Use the displayed average fuel consumption as a reference.
● Current fuel economy*1
Displays the current rate of fuel consumption
● Distance to empty
*1/Trip distance*1/Distance*1, 2
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining, the distance driven after the hybrid
system was started and the distance since the function was reset,
respectively.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
● Trip elapsed time*1/Elapsed time*1, 2
Displays the hybrid system was started and the elapsed time since
the function was reset, respectively
● Trip average speed
*1/Average speed*1, 2
Displays the hybrid system was started and the average vehicle
speed since the function was reset, respectively
● Digital speedometer
*1
●Energy monitor
P. 9 8
● Tire inflation pressure
*3
P. 4 0 7
Drive information

952. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)
*1: Can be registered to Drive information 1 through 3.
*2: Resetting procedures:• Select a function to be reset using the meter control switch and then press and hold the center button to reset.
• If there is more than one function that can be reset, check boxes will be
displayed next to the functions.
*3: With a tire inflation pressure display function
■
Changing the settings Select using the meter control switch.
Select an item and then set it with the center button.
■Customizable items
●Language
Select to change the language on the display.
● Units
Select to change the unit of measure for fuel consumption.
● Drive information 1 through 3
Select to select up to 2 items that will be displayed on a Drive
information screen, up to 3 Drive information screens can be set.
● EV indicator light
Select to activate/deactivate the EV indicator light. (
P. 7 1 )
● Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Instrument panel brightness adjustment display
• Route guidance display of the navigation system-linked sys- tem (if equipped)
• Cruise control operation display (vehicles with dynamic radar
cruise control)
• Incoming call display of the hands-free phone system
• Shift position display
● Accent color
Select to change the accent colors on the screen, such as the
cursor color.
Settings display
1
2

962. Instrument cluster
CAMRY_HV_U (OM33A87U)
●Speed limit display*
Select to set the display of speed limit information stored in the
navigation system (if equipped) to on with the speed limit caution
indicator (yellow) enabled, on with the speed limit caution not
enabled, or off. If enabled, the speed limit caution indicator will
come on if the vehicle speed exceeds the displayed speed limit.
● Maintenance system (U.S.A.)
Select to reset the message after the required maintenance is
performed. (
P. 383)
● Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
*: Speed limit display may not be available for some regions.
■Setting display automatic cancelation
In the following situations, a setting display in which the settings can be
changed through the meter control switches will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■
Tire inflation pressure (vehicles with tire pressure warning system)
●It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to
display the tire inflation pressure after inflation pressure has been
adjusted.
●“---” may be displayed if the tire position information cannot be deter-
mined due to unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values
may also be different from the values measured using a tire pressure
gauge.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

972. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

982. Instrument cluster
CAMRY_HV_U (OM33A87U)
Entune Audio system or navi-
gation system
Multi-information display
Energy monitor/consumption screen

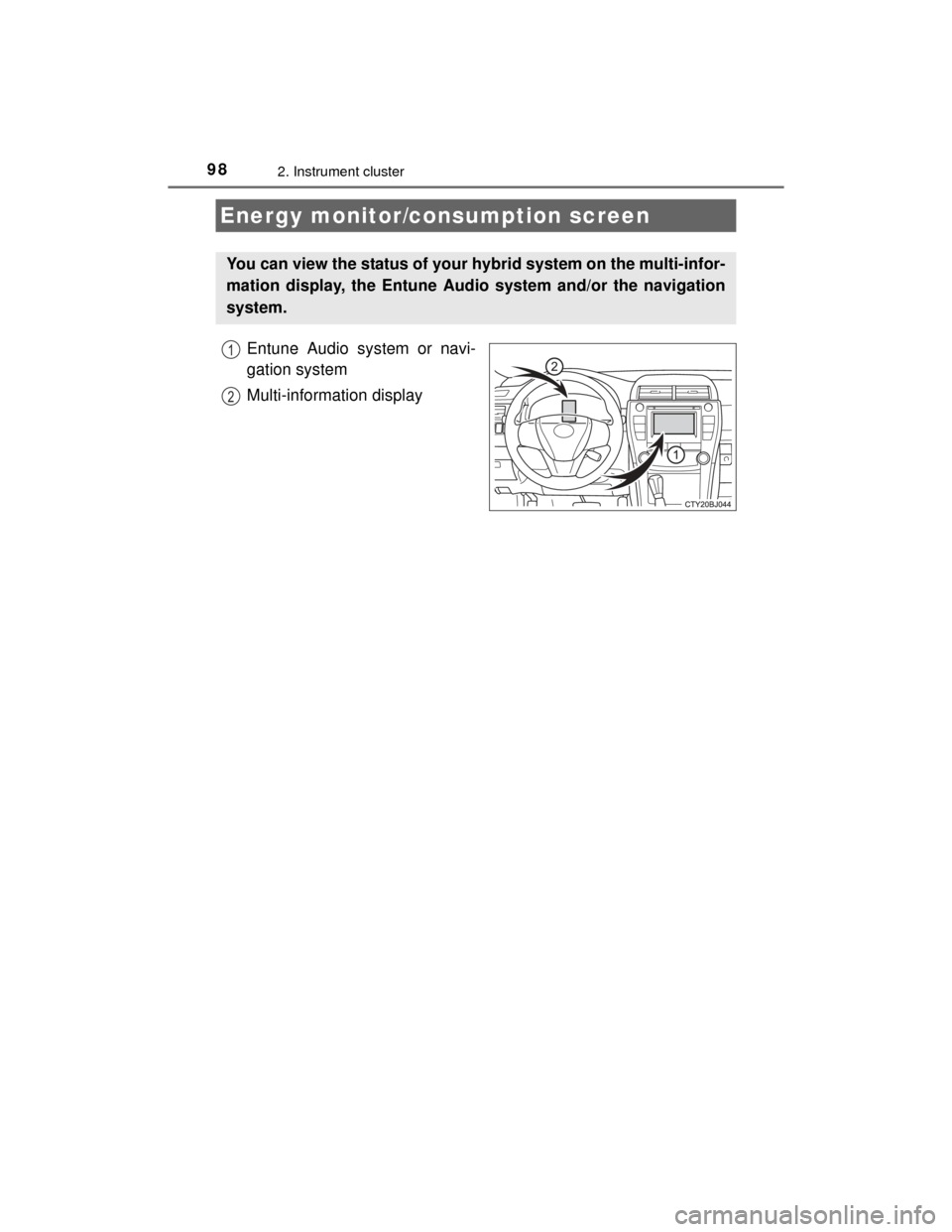

You can view the status of your hybrid system on the multi-infor-
mation display, the Entune Audio system and/or the navigation
system.
1
2

992. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)

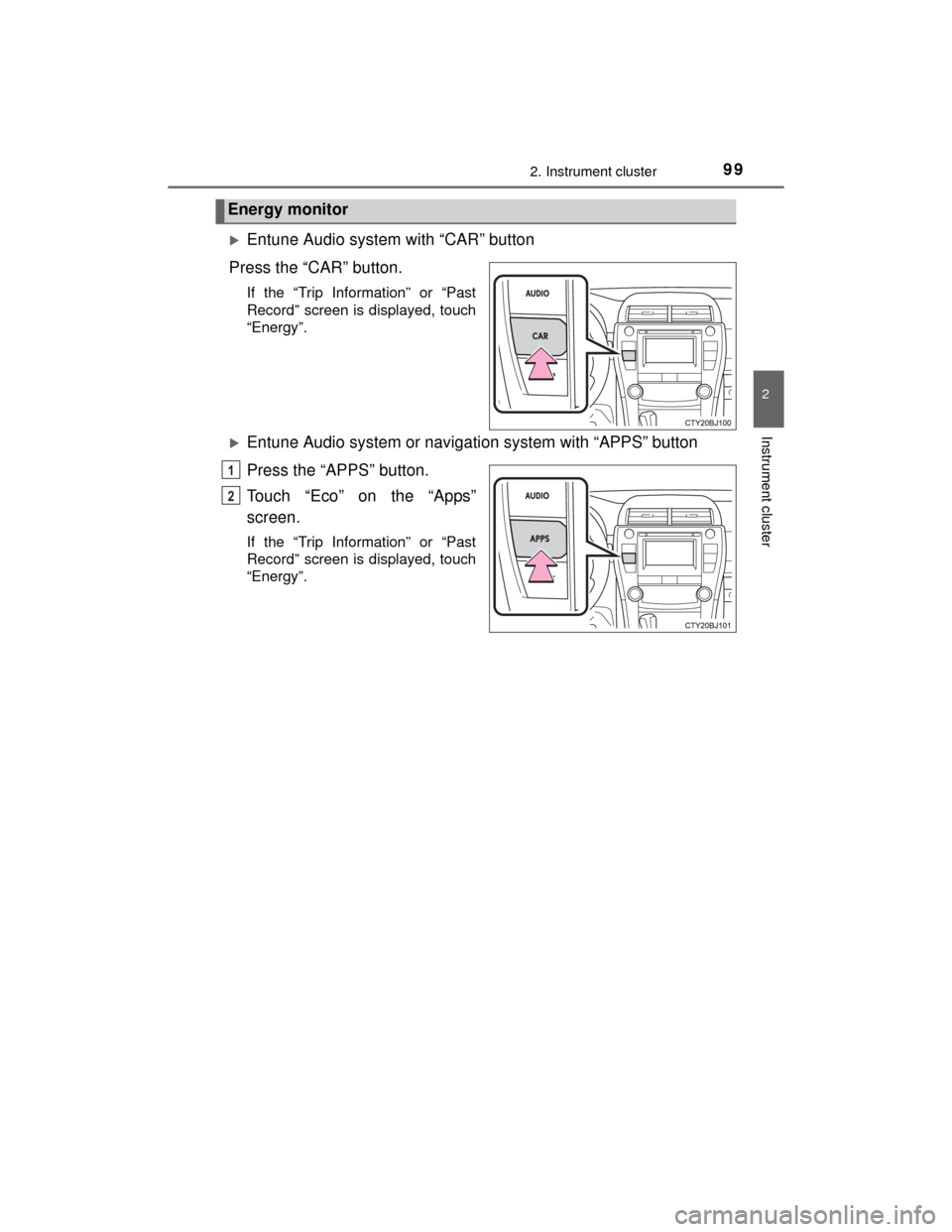

Entune Audio system with “CAR” button
Press the “CAR” button.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Entune Audio system or navigation system with “APPS” button
Press the “APPS” button.
Touch “Eco” on the “Apps”
screen.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Energy monitor
1
2

1002. Instrument cluster
CAMRY_HV_U (OM33A87U)■
Multi-information display
Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.
Entune Audio system or
Navigation systemMulti-information display

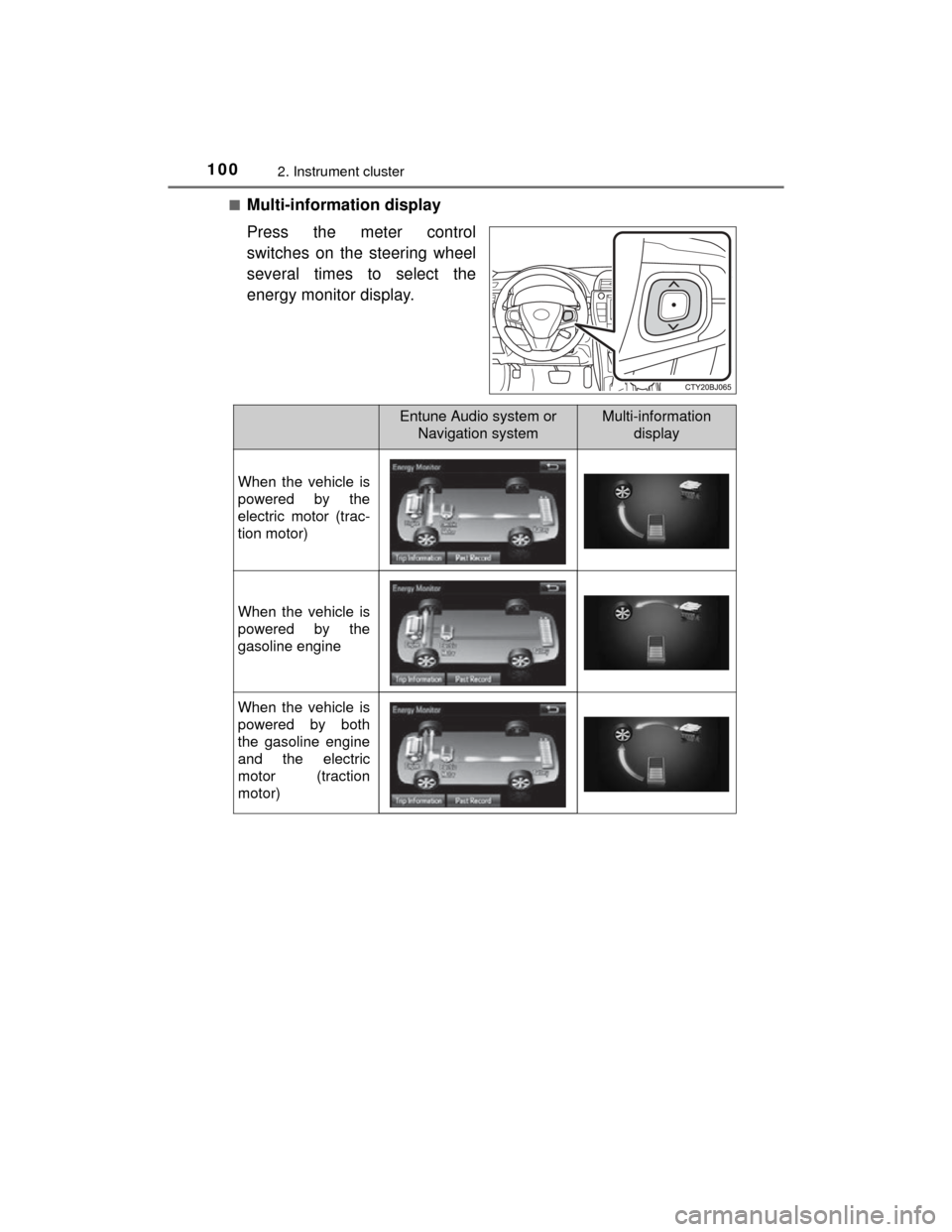

When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)
