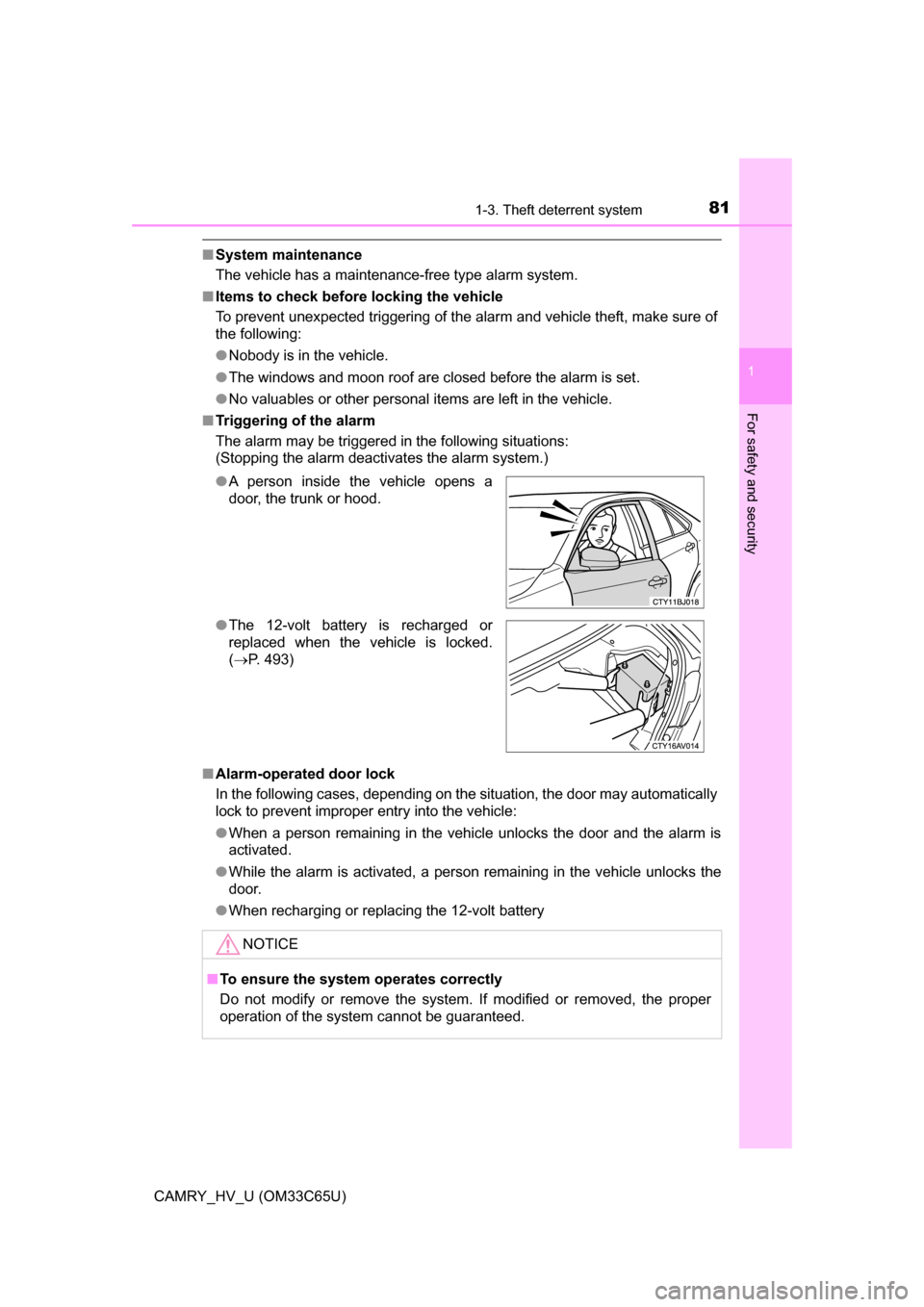

Page 81 of 572
811-3. Theft deterrent system
1
For safety and security
CAMRY_HV_U (OM33C65U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
●Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
●When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery
●
A person inside the vehicle opens a
door, the trunk or hood.
● The 12-volt battery is recharged or
replaced when the vehicle is locked.
(P. 493)
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
Page 82 of 572
821-3. Theft deterrent system
CAMRY_HV_U (OM33C65U)

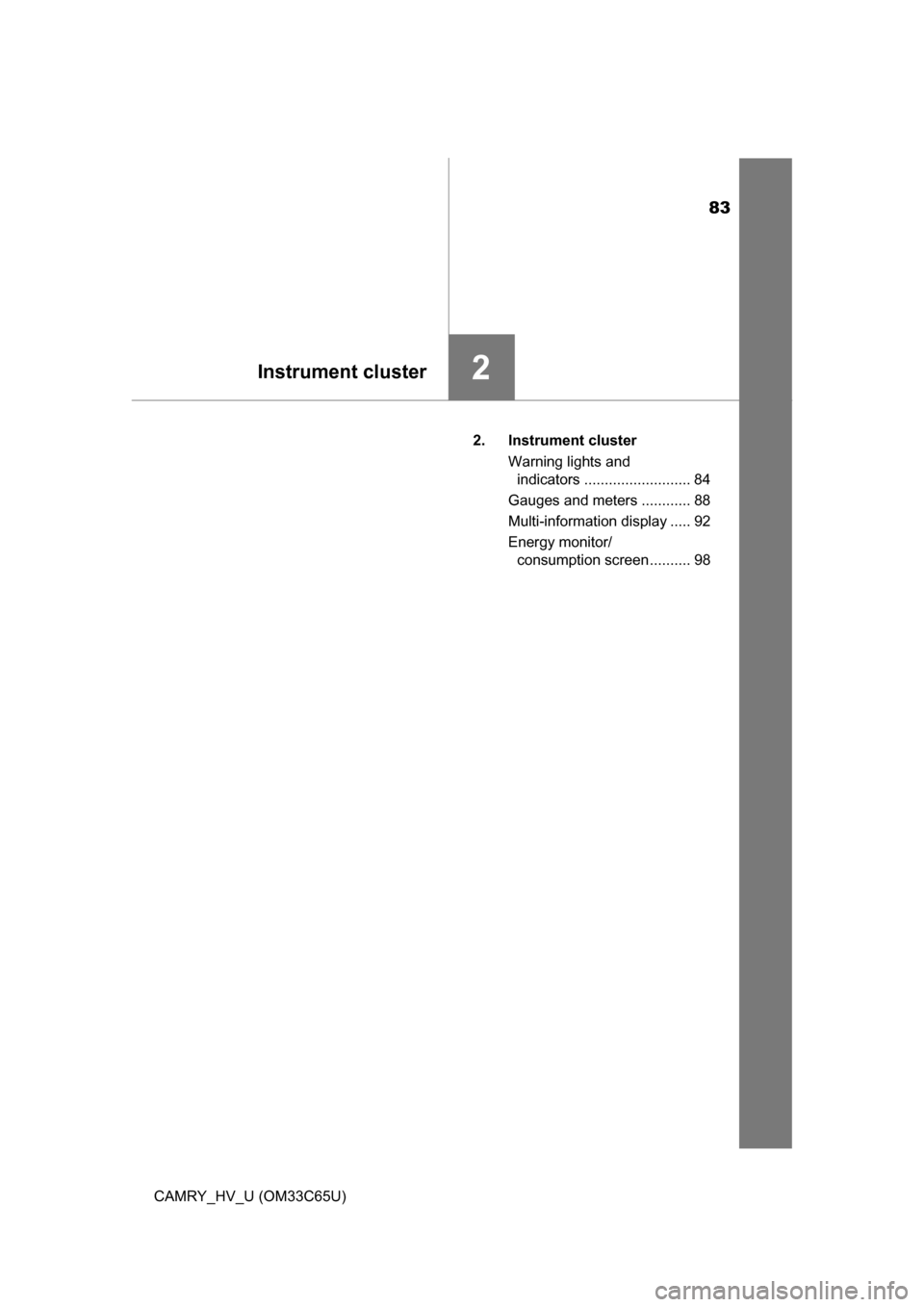

Page 83 of 572
83
Instrument cluster2
CAMRY_HV_U (OM33C65U)2. Instrument
cluster
Warning lights and indicators .......................... 84
Gauges and meters ............ 88
Multi-information display ..... 92
Energy monitor/ consumption screen .......... 98

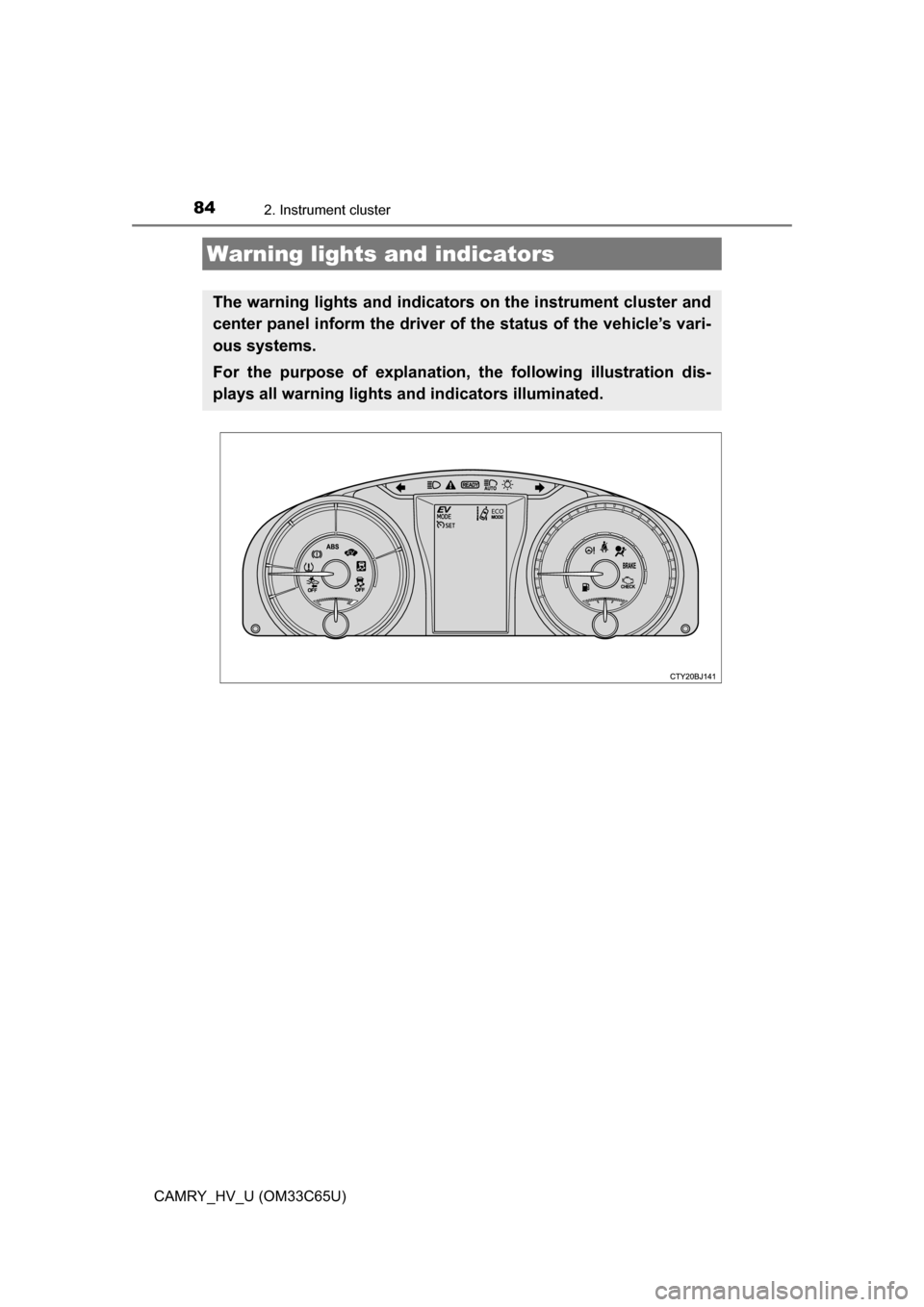

Page 84 of 572
84
CAMRY_HV_U (OM33C65U)
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

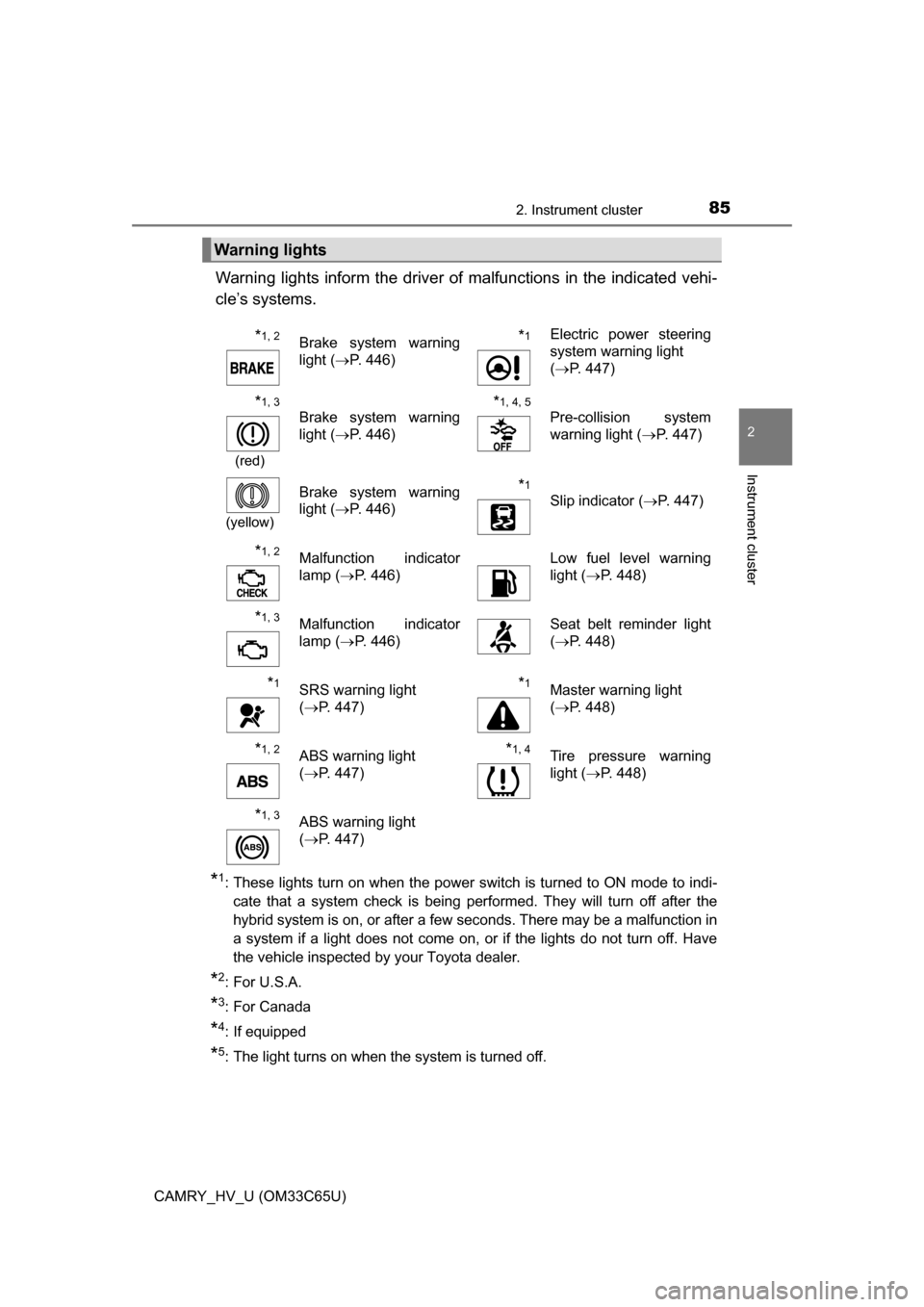

Page 85 of 572
852. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C65U)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
*1: These lights turn on when the power switch is turned to ON mode to indi- cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2:For U.S.A.
*3: For Canada
*4: If equipped
*5: The light turns on when the system is turned off.
Warning lights
*1, 2Brake system warning
light ( P. 446)*1Electric power steering
system warning light
(P. 447)
*1, 3
(red)
Brake system warning
light ( P. 446)*1, 4, 5
Pre-collision system
warning light ( P. 447)
(yellow)
Brake system warning
light ( P. 446)*1
Slip indicator ( P. 447)
*1, 2Malfunction indicator
lamp (P. 446)Low fuel level warning
light (P. 448)
*1, 3Malfunction indicator
lamp ( P. 446)Seat belt reminder light
(P. 448)
*1SRS warning light
(P. 447)*1Master warning light
(P. 448)
*1, 2ABS warning light
(P. 447)*1, 4Tire pressure warning
light ( P. 448)
*1, 3ABS warning light
(P. 447)
Page 86 of 572
862. Instrument cluster
CAMRY_HV_U (OM33C65U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 170)
*3
“ECO MODE” indicator
(P. 169)
(U.S.A.)
Headlight indicator
(P. 172)*1, 5 Slip indicator ( P. 219)
(Canada)
Tail light indicator
(P. 172) *1VSC OFF indicator
(P. 220)
Headlight high beam
indicator ( P. 172)
*1, 6“PASS AIR BAG ON/
OFF” indicator ( P. 4 9 )
*2Automatic High Beam
indicator ( P. 175)*6Security indicator
(P. 78, 80)
*3Cruise control indicator
(P. 185) “READY” indicator
(
P. 161)
*2, 3Radar cruise control
indicator ( P. 189) EV indicator (
P. 71)
*3Cruise control set indica-
tor ( P. 185)*3EV drive mode indicator
(P. 166)
*2, 3LDA (Lane Departure
Alert) indicator
(P. 109)*3, 7
Low outside tempera-
ture indicator ( P. 88)
*1, 2, 4Pre-collision system
warning light (P. 224)
Page 87 of 572
872. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C65U)
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: This light illuminates on the multi-information display.
*4: The light turns on when the system is off.
*5: The light flashes to indicate that the system is operating.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37°F (3°C) or lower, theindicator will flash for approximately 10 seconds, then stay on.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could r\
esult
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

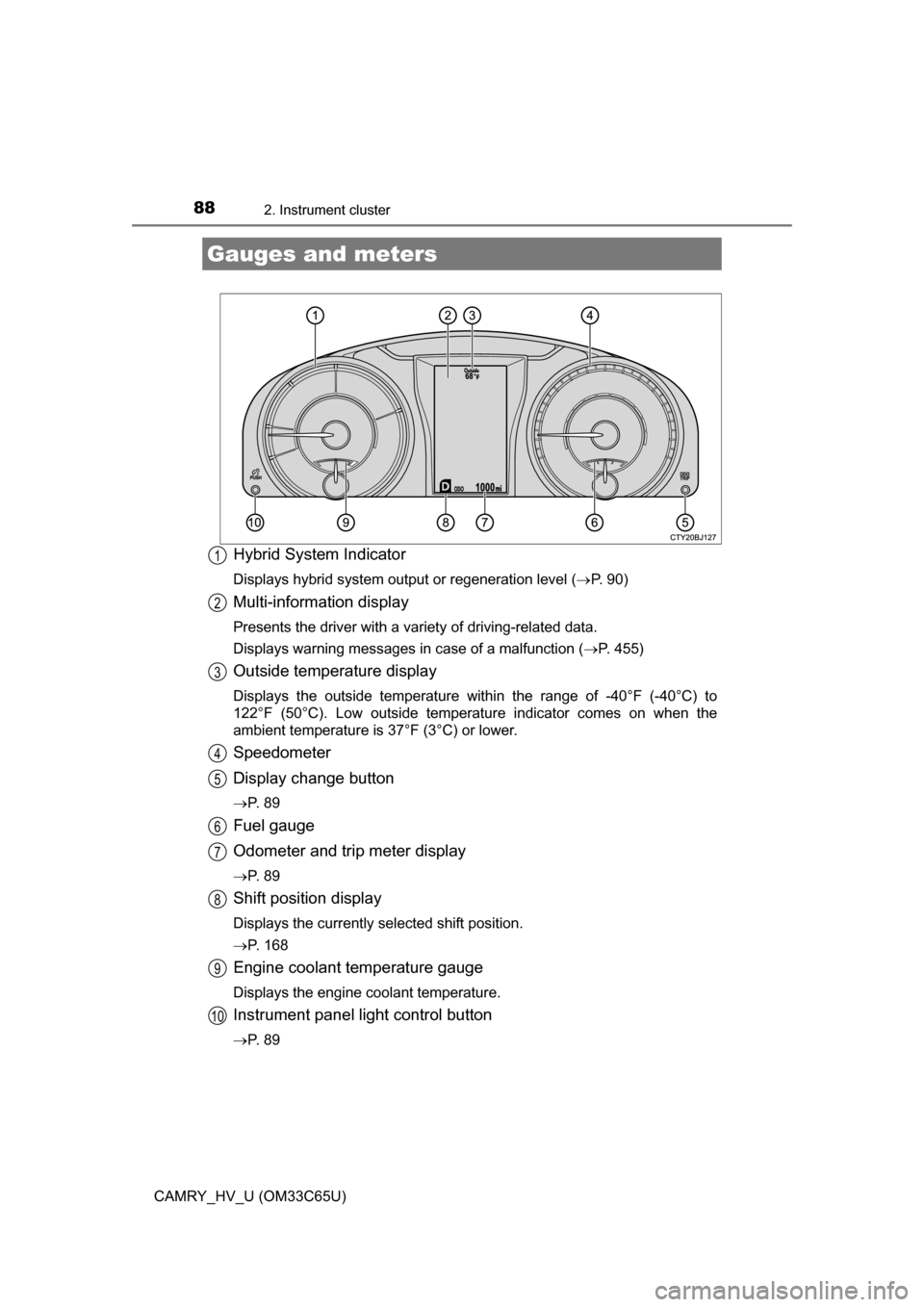

Page 88 of 572
882. Instrument cluster
CAMRY_HV_U (OM33C65U)
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 90)
Multi-information display
Presents the driver with a variety of driving-related data.
Displays warning messages in case of a malfunction ( P. 455)
Outside temperature display
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Speedometer
Display change button
P. 8 9
Fuel gauge
Odometer and trip meter display
P. 8 9
Shift position display
Displays the currently selected shift position.
P. 168
Engine coolant temperature gauge
Displays the engine coolant temperature.
Instrument panel light control button
P. 8 9
Gauges and meters
1
2
3
4
5
6
7
8
9
10

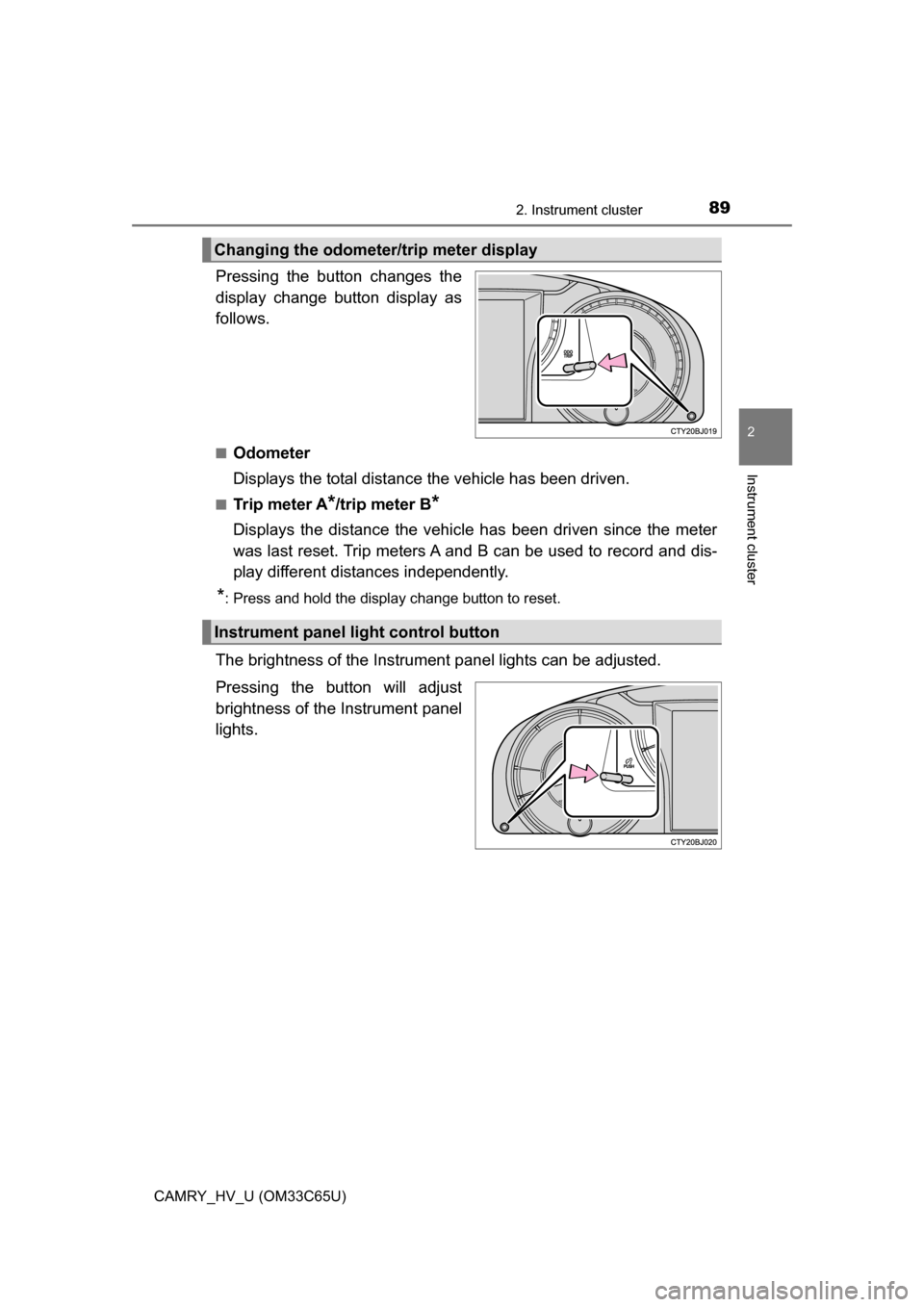

Page 89 of 572
892. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C65U)
Pressing the button changes the
display change button display as
follows.
■Odometer
Displays the total distance the vehicle has been driven.
■Tr i p m e t e r A*/trip meter B*
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
*: Press and hold the display change button to reset.
The brightness of the Instrument panel lights can be adjusted.
Pressing the button will adjust
brightness of the Instrument panel
lights.
Changing the odometer/trip meter display
Instrument panel light control button

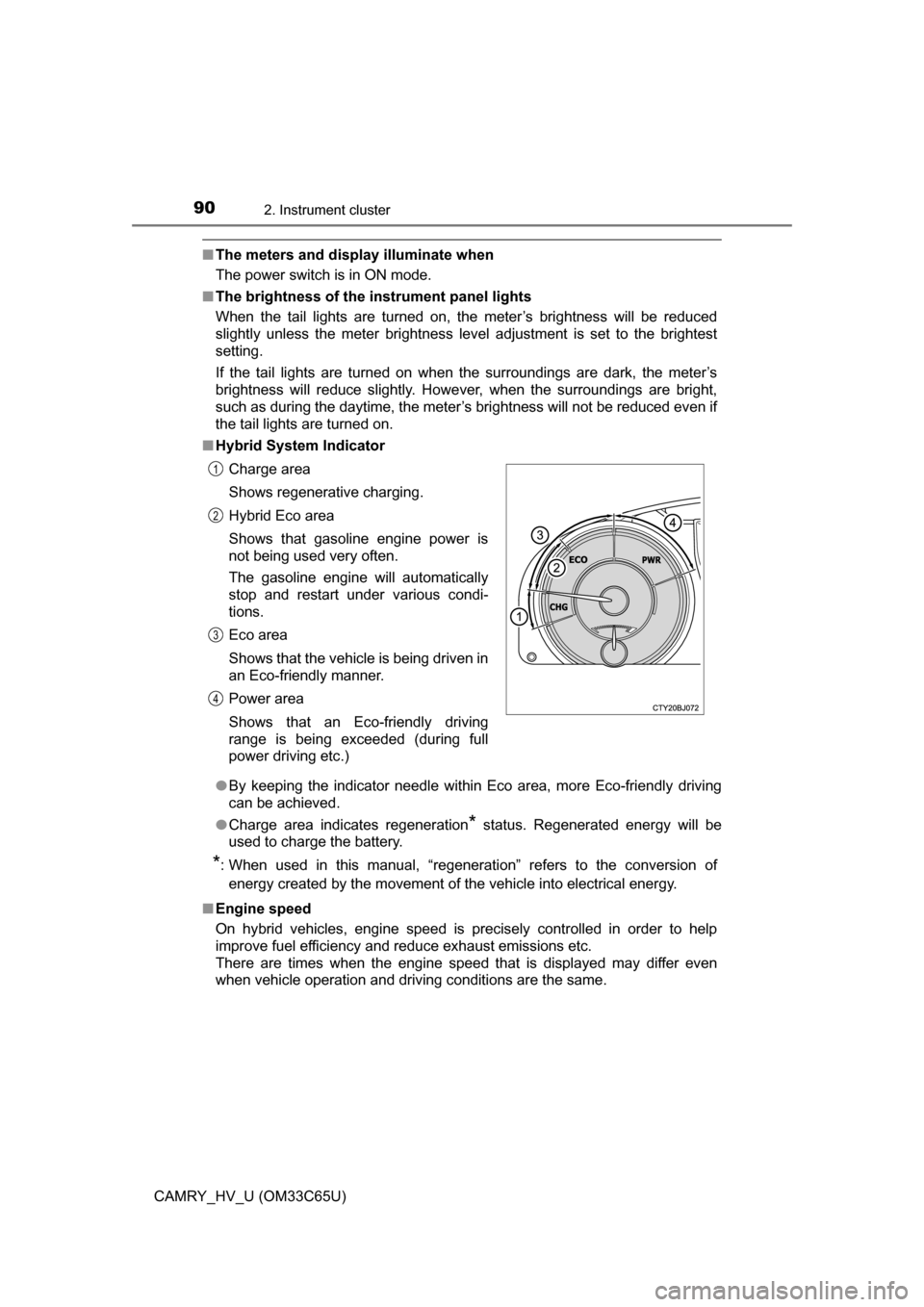

Page 90 of 572
902. Instrument cluster
CAMRY_HV_U (OM33C65U)
■The meters and display illuminate when
The power switch is in ON mode.
■ The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark, the met\
er’s
brightness will reduce slightly. Howe ver, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even if
the tail lights are turned on.
■ Hybrid System Indicator
●By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4
