TOYOTA CAMRY HYBRID 2017 XV50 / 9.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
Light control-Instrument panel
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend
the life of your vehicle and maintain performance. Please refer to the “Warranty
Maintenance Guide.”

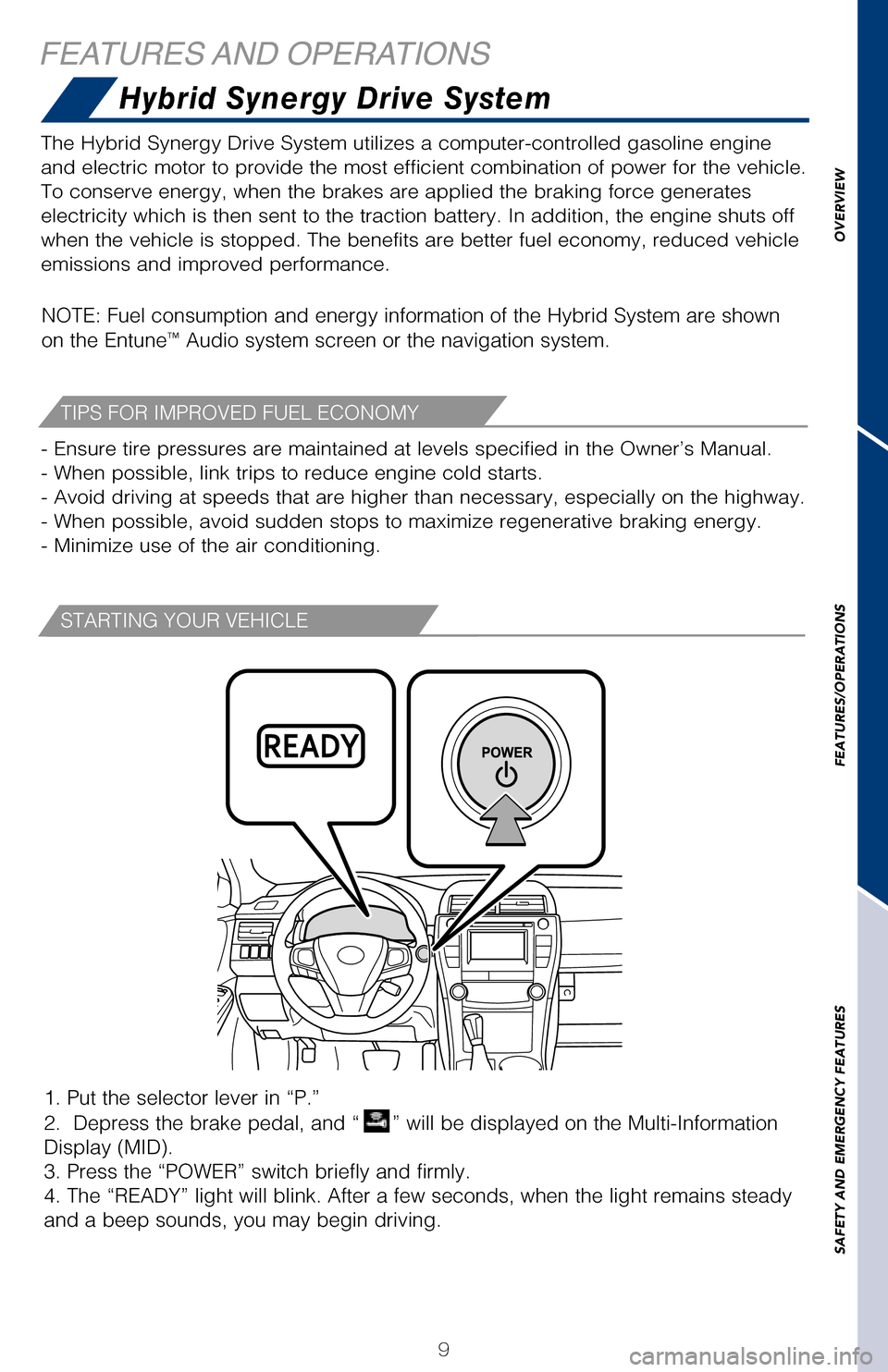

TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are s\
hown
on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
FEATURES AND OPERATIONS
Hybrid Synergy Drive System
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display (MID).
3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the lig\
ht remains steady
and a beep sounds, you may begin driving.
2017_CamryHV_QRG_D4.indd 95/3/16 4:13 PM

10
TransmissionHold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the \
switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes\
, or
turned OFF.
- Doors lock when shifting from Park.
- Doors lock when the vehicle speed is approximately 12 mph or higher.
- Doors unlock when shifting into Park.
- Doors unlock when the driver’s door is opened within 10 seconds aft\
er turning the “POWER” switch OFF.
Refer to the Owner’s Manual for more details.
1 The “POWER” switch must be set at “ON” and the brake pedal \
depressed to shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” w\
hen engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
B
Park1
Reverse
Neutral
Drive
Engine braking2
Push
Turn
Steering lock release
Driver side
FEATURES AND OPERATIONS
2017_CamryHV_QRG_D4.indd 105/3/16 3:20 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

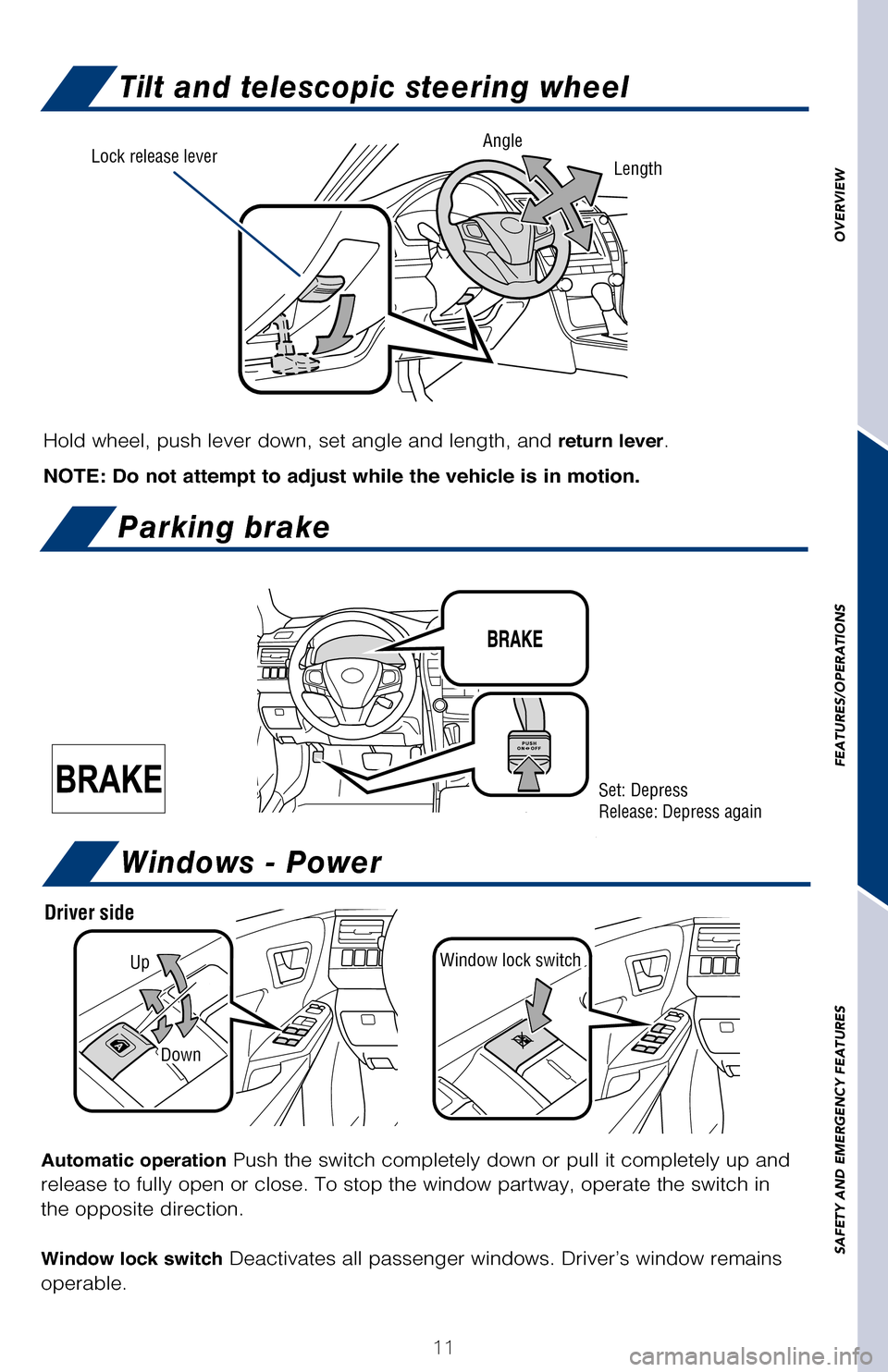

Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Parking brake
Set: Depress
Release: Depress again
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the \
switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Windows - Power
Up
Down
Window lock switch
Automatic door locks can be programmed to operate in two different modes\
, or
turned OFF.
- Doors lock when shifting from Park.
- Doors lock when the vehicle speed is approximately 12 mph or higher.
- Doors unlock when shifting into Park.
- Doors unlock when the driver’s door is opened within 10 seconds aft\
er turning the “POWER” switch OFF.
Refer to the Owner’s Manual for more details.
1 The “POWER” switch must be set at “ON” and the brake pedal \
depressed to shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” w\
hen engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Lock release lever AngleLength
Driver side
2017_CamryHV_QRG_D4.indd 115/3/16 4:13 PM

12

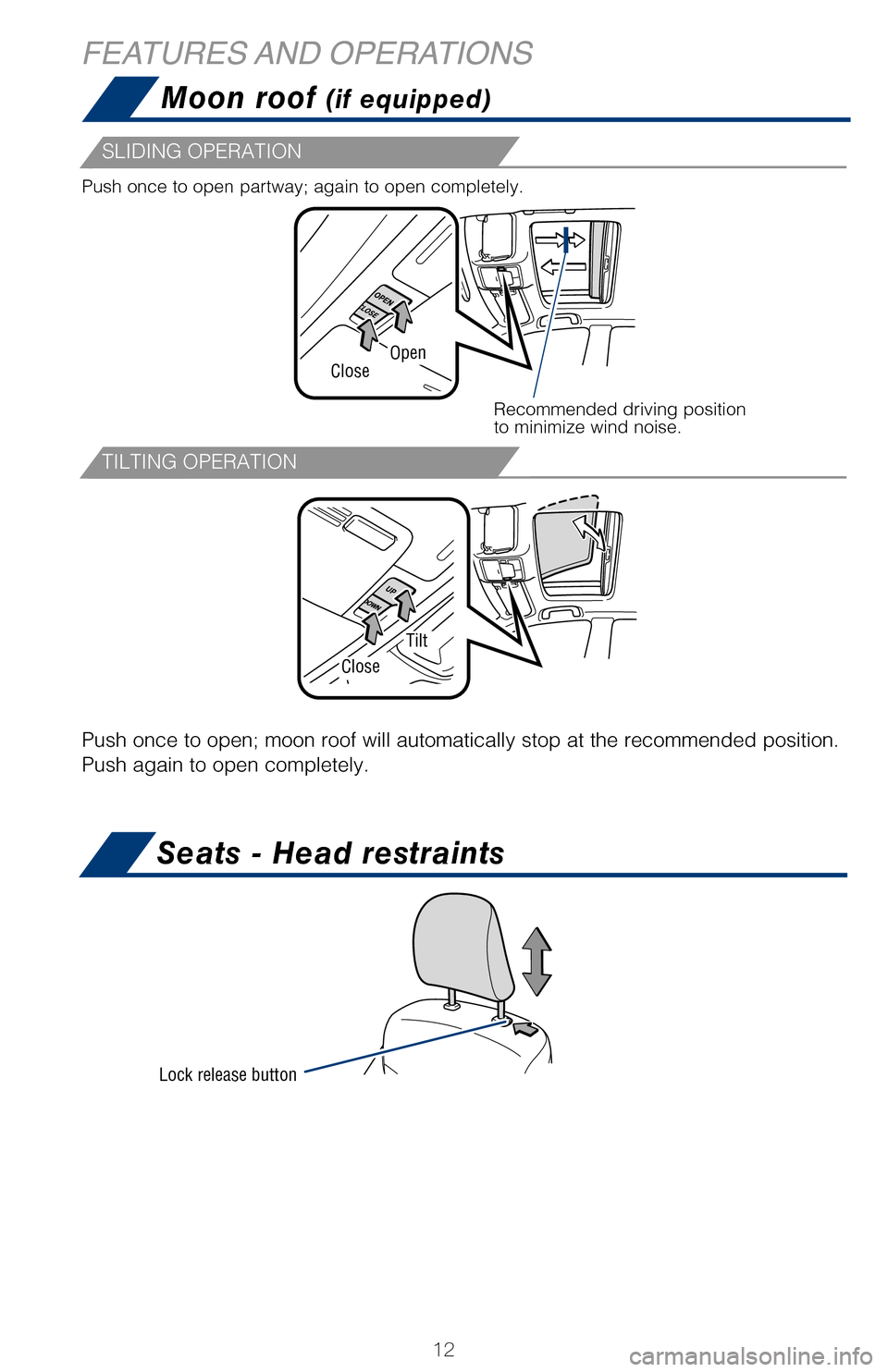

SLIDING OPERATION
TILTING OPERATION
Moon roof (if equipped)
Seats - Head restraints
Tip: To fold rear seats, the
release button is located in the
trunk.
FEATURES AND OPERATIONS
Lock release button
MANUAL SEAT
POWER SEAT (IF EQUIPPED)
Tilt
Close
OpenClose
Recommended driving position
to minimize wind noise.
Push once to open; moon roof will automatically stop at the recommended posi\
tion.
Push again to open completely.
Push once to open partway; again to open completely.
Refer to the Owner’s Manual for more details.
2017_CamryHV_QRG_D4.indd 125/3/16 3:20 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

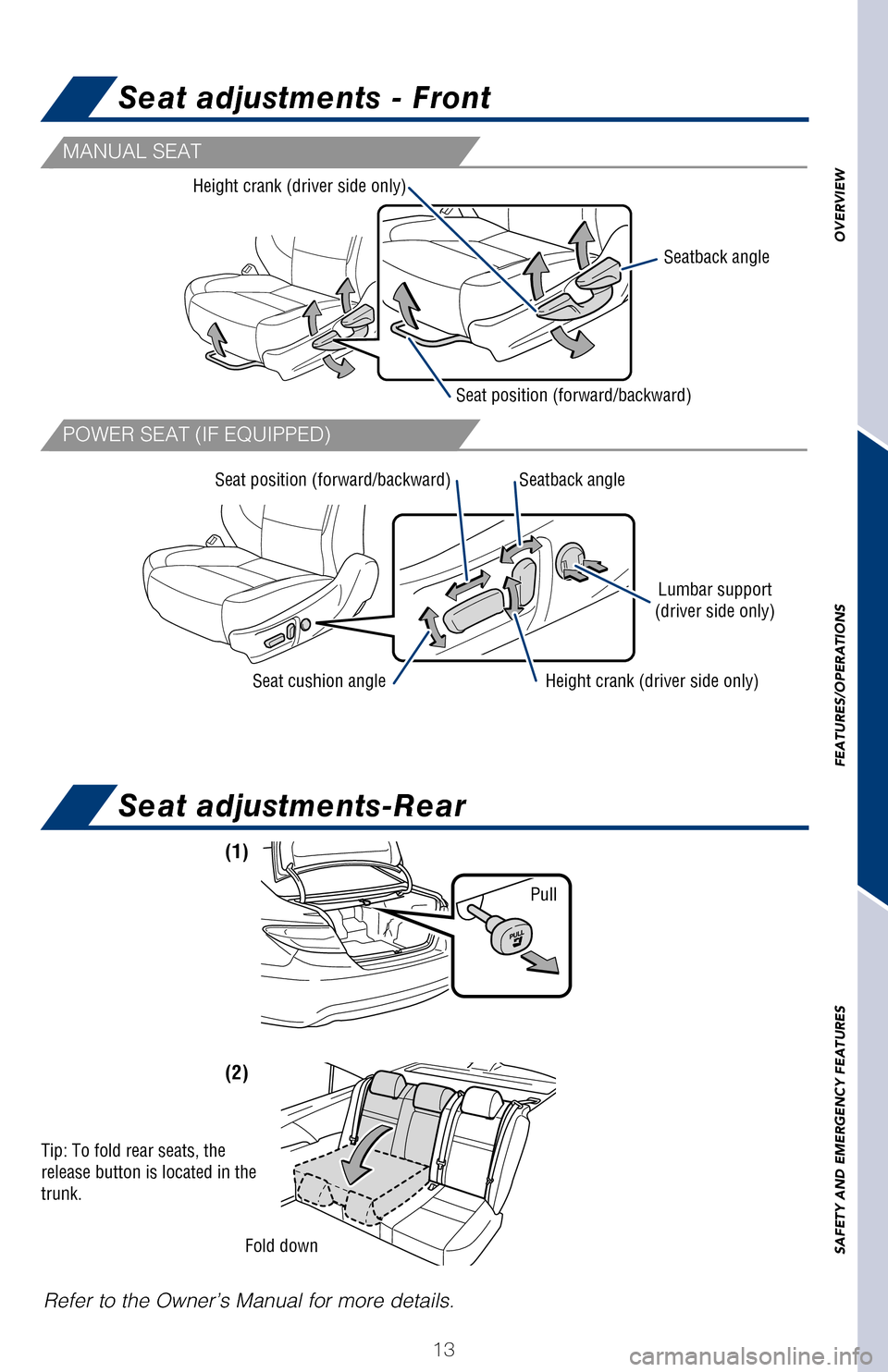

13
Seat adjustments - Front
Seat adjustments-Rear
(1)
(2)
Tip: To fold rear seats, the
release button is located in the
trunk.
Seat position (forward/backward)
Seat cushion angle Height crank (driver side only)
Seatback angle
Lumbar support
(driver side only)
Height crank (driver side only)
Seatback angle
Seat position (forward/backward)
MANUAL SEAT
POWER SEAT (IF EQUIPPED)
Pull
Fold down
Push once to open; moon roof will automatically stop at the recommended \
position.
Push again to open completely.
Refer to the Owner’s Manual for more details.
2017_CamryHV_QRG_D4.indd 135/6/16 12:06 AM

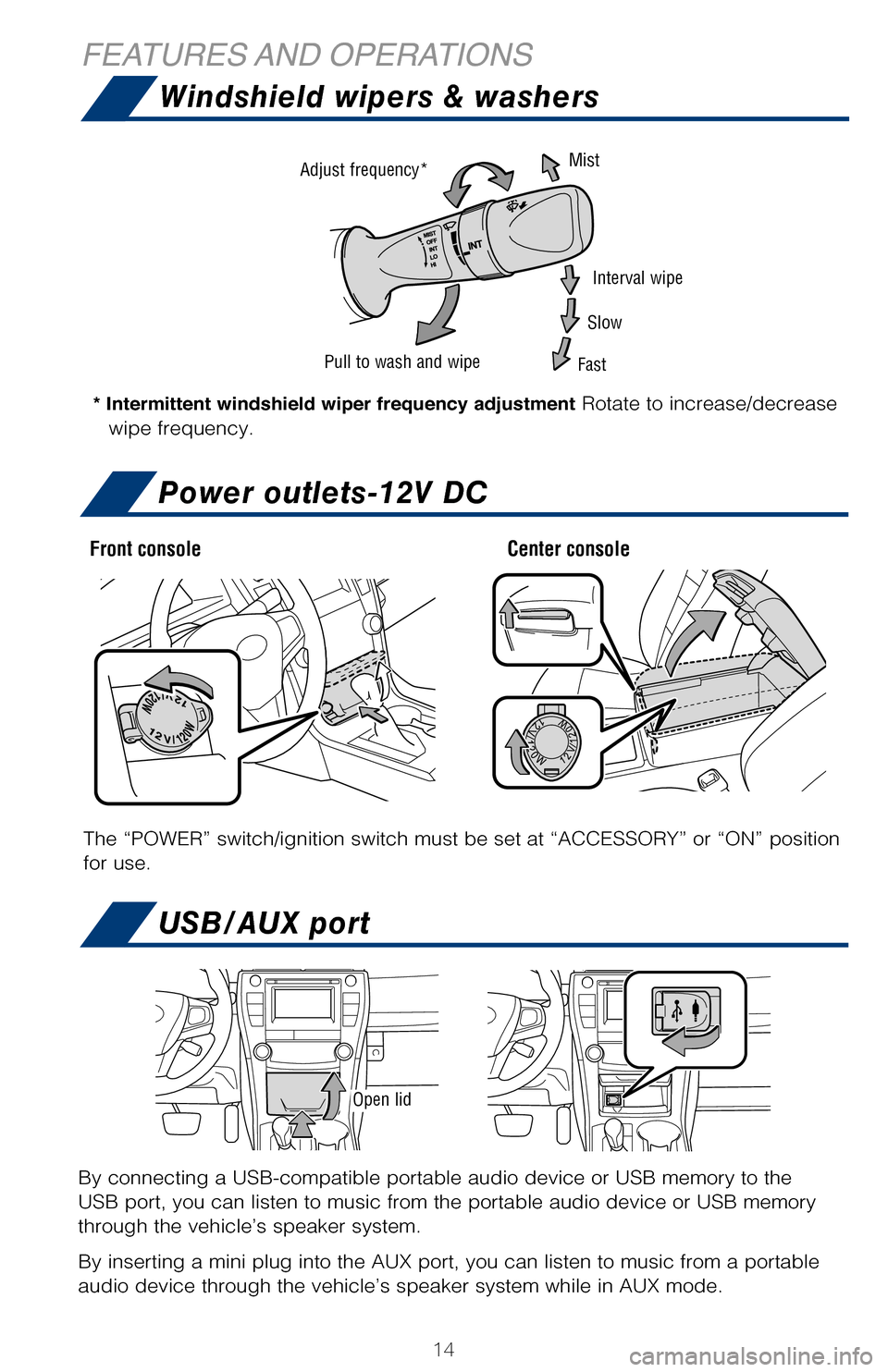

14
HEADLIGHTS
TURN SIGNALS
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease
wipe frequency.
Windshield wipers & washers
Power outlets-12V DC
USB/AUX port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Open lid
FEATURES AND OPERATIONS
Front console Center console
The “POWER” switch/ignition switch must be set at “ACCESSORY”\
or “ON” position
for use.
Adjust frequency*
Pull to wash and wipeMist
Interval wipe
Slow
Fast
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
1 The right hand signals will flash three times.2 The left hand signals will flash three times.
2017_CamryHV_QRG_D4.indd 145/3/16 3:21 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

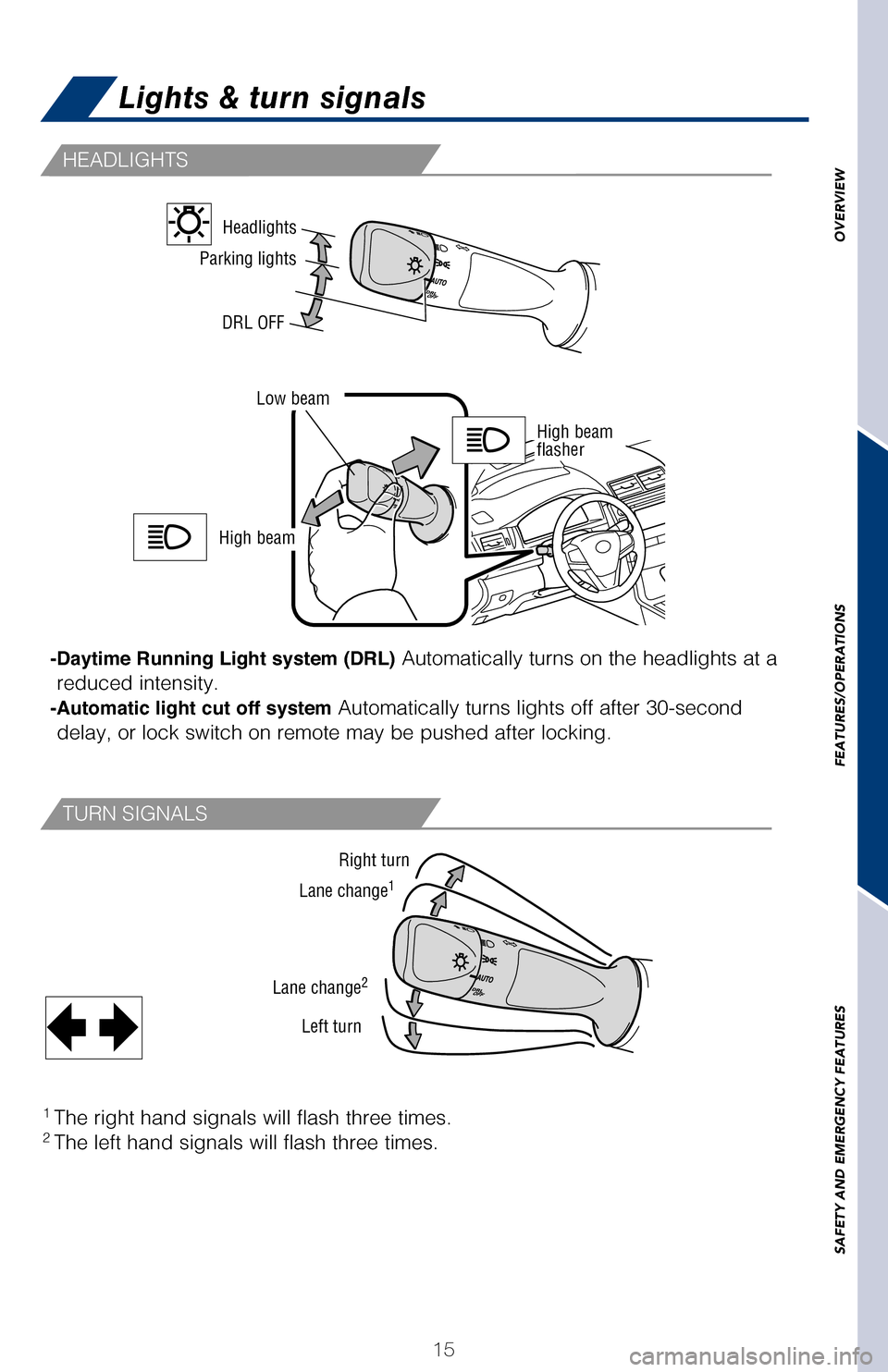

15
HEADLIGHTS
TURN SIGNALS
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease
wipe frequency.
Parking lights Headlights
DRL OFF
Right turn
Lane change1
Lane change2
Left turn
Lights & turn signals
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Center console
The “POWER” switch/ignition switch must be set at “ACCESSORY”\
or “ON” position
for use.
FEATURES/OPERATIONS
High beam
-Daytime Running Light system (DRL)
Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
High beam
flasher
Low beam
1 The right hand signals will flash three times.2 The left hand signals will flash three times.
2017_CamryHV_QRG_D4.indd 155/3/16 4:13 PM

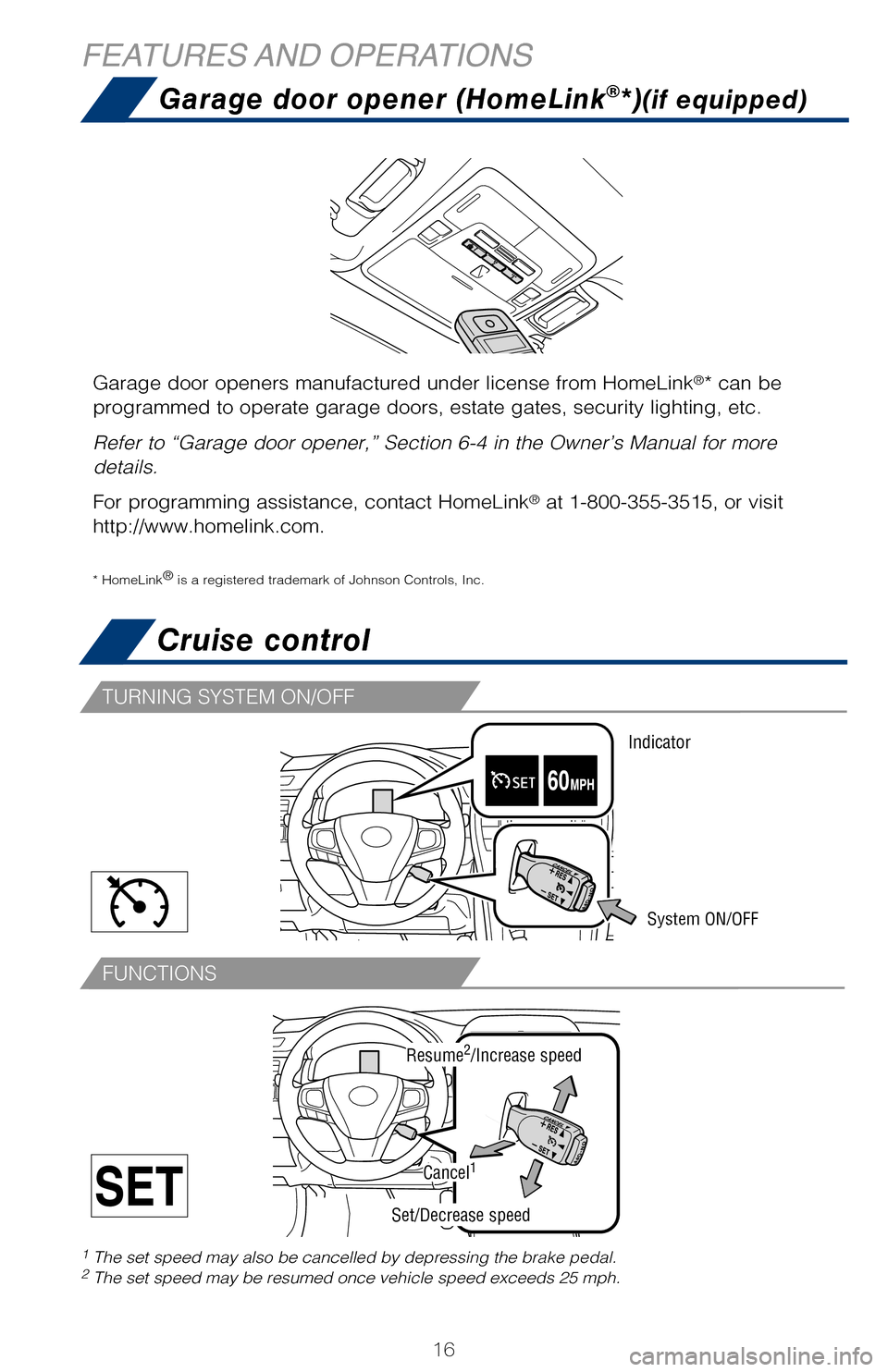

16
FUNCTIONS
TURNING SYSTEM ON/OFF
Cruise control
System ON/OFF
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
FIXED SPEED MODE
DISTANCE CONTROL MODE
VEHCLE-TO-VEHICLE DISTANCE
Refer to the Owner’s Manual for more details and complete safety prec\
autions
before attempting to use “Dynamic Radar Cruise Control.”
To set, cancel and resume a speed Refer to “Summary of Functions” in the Cruise
Control section, and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will
increase speed to the nearest 5 mph, and then in 5 mph increments. Pushing
lever down toward “- SET” will reduce speed in the same way. The distance control mode will cruise at a set speed, decelerate to main\
tain a
selected distance from a slower vehicle traveling in front of you, and a\
ccelerate
back up to the selected speed if the vehicle in front changes lanes or s\
peeds up.
To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will chang\
e
progressively from LONG to MIDDLE to SHORT. To set, cancel and resume a speed
Refer to “Summary of Functions” in the Cruise
Control section, and to the Owner’s Manual for more details.
FEATURES AND OPERATIONS
Garage door opener (HomeLink®*)(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manua\
l for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink ®
is a registered trademark of Johnson Controls, Inc.
3-5. Other interior feature s
Resume2/Increase speed
Set/Decrease speed
Cancel1
Indicator
2017_CamryHV_QRG_D4.indd 165/3/16 3:21 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

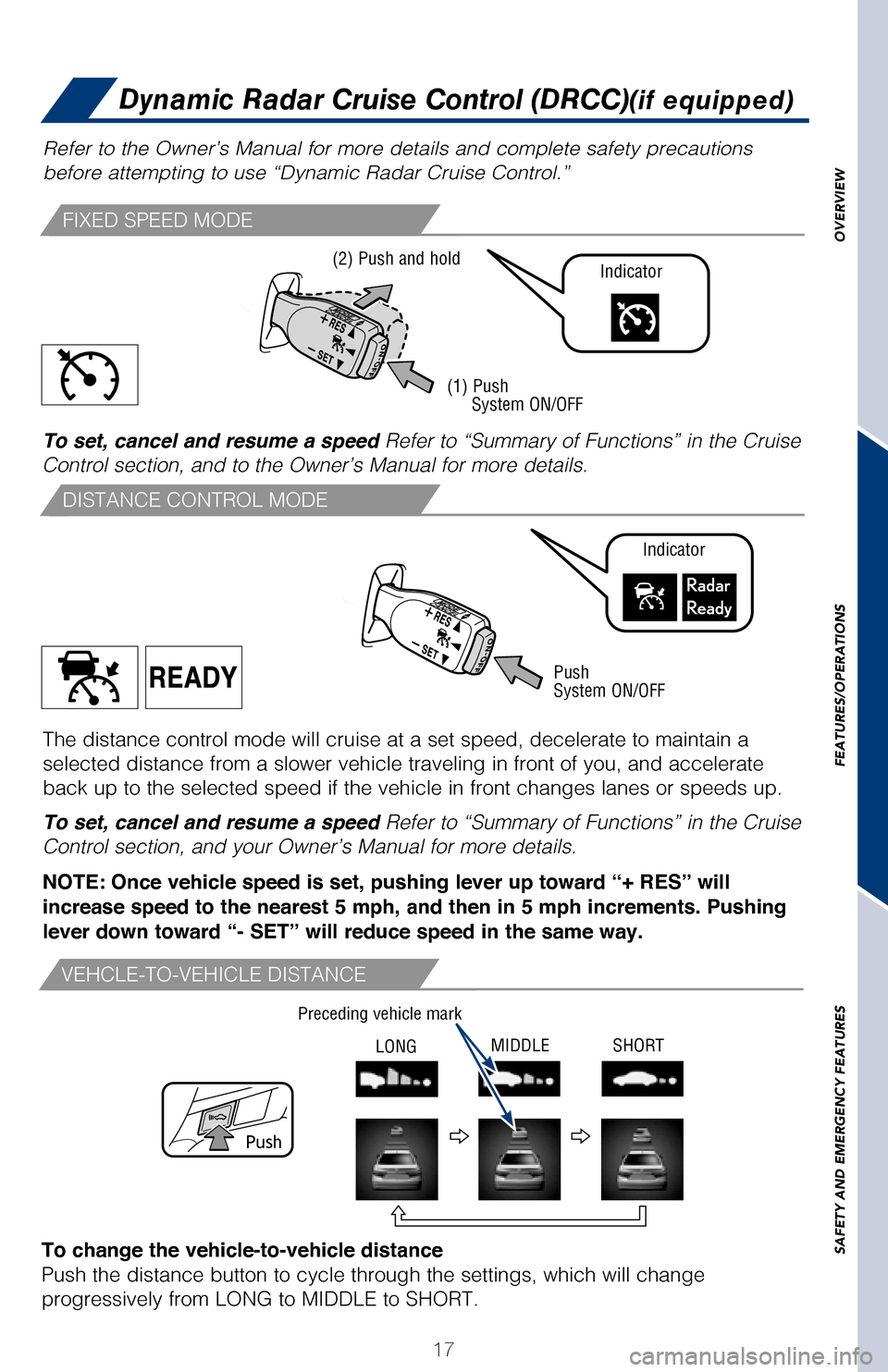

17
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
FIXED SPEED MODE
DISTANCE CONTROL MODE
VEHCLE-TO-VEHICLE DISTANCE
Dynamic Radar Cruise Control (DRCC)(if equipped)
Refer to the Owner’s Manual for more details and complete safety prec\
autions
before attempting to use “Dynamic Radar Cruise Control.”
To set, cancel and resume a speed Refer to “Summary of Functions” in the Cruise
Control section, and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will
increase speed to the nearest 5 mph, and then in 5 mph increments. Pushing
lever down toward “- SET” will reduce speed in the same way. The distance control mode will cruise at a set speed, decelerate to main\
tain a
selected distance from a slower vehicle traveling in front of you, and a\
ccelerate
back up to the selected speed if the vehicle in front changes lanes or s\
peeds up.
To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will chang\
e
progressively from LONG to MIDDLE to SHORT. To set, cancel and resume a speed
Refer to “Summary of Functions” in the Cruise
Control section, and to the Owner’s Manual for more details.
(1) Push
System ON/OFF
Push
System ON/OFF
Indicator
Indicator(2) Push and hold
Push
Preceding
vehicle mark
Preceding vehicle mark
LONG MIDDLE SHORT
Preceding vehicle mark
Garage door opener (HomeLink®*)(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manua\
l for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink ®
is a registered trademark of Johnson Controls, Inc.
2017_CamryHV_QRG_D4.indd 175/3/16 4:13 PM

18
Blind Spot Monitor (BSM) (if equipped)
Rear view monitor system
Automatic Air Conditioning
FEATURES AND OPERATIONS
The Blind Spot Monitor is a system that has two functions:
- The Blind Spot Monitor function (assists the driver in decision-makin\
g when changing lanes)
- The Rear Cross Traffic Alert function (assists the driver when backin\
g up)
The Blind Spot Monitor function uses radar sensors to detect vehicles th\
at are
traveling in an adjacent lane in the area that is not reflected in the o\
utside rear
view mirror (the blind spot), and advises the driver of the vehicles e\
xistence via the
outside rear view mirror indicator.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
System ON/OFF Rear Cross Traffic Alert buzzer
The rear view monitor system displays an image of the view from the bump\
er
of the rear area of the vehicle. The camera for the rear view monitor sy\
stem is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP\
” button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
To find your system, refer to Audio section of this guide.
For Entune™ Audio
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.
For Entune™ Audio Plus and Entune™ Premium Audio
Push “APPS” button next to the screen
then select “General” in the touch screen to access clock setting.
Automatic climate control ON - Adjusting the
temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Outside rearview mirror/
Rear defogger
Climate control OFF
Windshield airflow/
defogger
2017_CamryHV_QRG_D4.indd 185/3/16 3:21 PM
