CAMRY HYBRID 2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your new
Camry Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Camry Hybrid
operations. Every Camry Hybrid owner should review the Owner’s Manual\
that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
2017_CamryHV_QRG_D4.indd 25/6/16 12:08 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 8
Fuel tank door release and cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 8
Smart Key system
1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
BLUETOOTH® DEVICE
PAIRING SECTION
30-39
Air conditioning/heating
19
Audio 21
Auto lock/unlock
1,2 10
Blind Spot Monitor (BSM) 18
Bottle holders/Cup holders 20
Clock 19
Cruise control 16
Dynamic Radar Cruise Control (DRCC) 17
Garage door opener (HomeLink
®)3 16
Hybrid Synergy Drive System 9
Lane Departure Alert (LDA) 24
Lights
1 & turn signals 15
Moon roof 12
Multi-Information Display (MID)
1 23
Parking brake 11
Power outlets-12V DC 14
Pre-Collision System (PCS) 23
Rear view monitor system 18
Seat adjustments-Front 13
Seat adjustments-Rear 13
Seat heaters 20
Seats-Head restraints 12
Steering lock release 10
Steering wheel controls
(Audio & telephone Bluetooth
®) 22 Door locks
25
Doors-Child safety locks 25
Floor mat installation 29
Safety Connect 26
Seat belts 25
Seat belts-Shoulder belt anchor 26
Spare tire & tools 27
Star Safety System
™ 28-29
Trunk internal release 27
FEATURES & OPERATIONS (continued)
Tilt and telescopic steering wheel 11
Transmission 10
USB/AUX port 14
Windows - Power 11
Windshield wipers & washers 14
Wireless charging 20
2017_CamryHV_QRG_D4.indd 15/3/16 4:11 PM

4
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
Malfunction/
Check Engine indicator1
Brake system warning
Driver seat belt reminder and/
or front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
OVERVIEWInstrument cluster
READY indicatorMaster warning
1
3 Light flashes in yellow to indicate a malfunction. Light flashes quickly\
in green to indicate that the
steering lock has not been released.
4 If equipped.
1 If indicator does not turn off within a few seconds of starting the Hybr\
id System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control,” Section 4-5, 201\
7 Owner’s Manual.
Indicator symbols
Hybrid System Indicator Outside temperature display Speedometer
Display change button
Fuel gauge
Shift position display Multi-information display
Engine coolant temperature display
Instrument panel light control button Odometer/trip meter display
Service indicators and reminders
2017_CamryHV_QRG_D4.indd 45/3/16 3:19 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Driver seat belt reminder and/
or front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Airbag SRS warning1
Low Tire Pressure Warning1,4
Low fuel level warning
Electric power steering system warning1
Theft deterrent/ Engine Immobilizer
system indicator
Fuel tank door position
Cruise control
indicators2,3
Headlight low/high beam
indicators
Automatic High Beam indicator4
Turn signal indicator
Pre-Collision System (PCS)
warning light1,4
Lane Departure Alert (LDA) indicator4
Slip indicator1
Vehicle Stability Control OFF indicator1
Passenger Air Bag ON/OFF indicator1
ECO MODE indicator
EV drive mode indicator
EV indicator
Low outside temperature indicator
3 Light flashes in yellow to indicate a malfunction. Light flashes quickly\
in green to indicate that the
steering lock has not been released.
4 If equipped.
1 If indicator does not turn off within a few seconds of starting the Hybr\
id System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control,” Section 4-5, 201\
7 Owner’s Manual.
Display change button
Service indicators and reminders
2017_CamryHV_QRG_D4.indd 55/3/16 4:12 PM

8
OVERVIEWHood release
Engine maintenance
Light control-Instrument panel
Push to control brightness
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend
the life of your vehicle and maintain performance. Please refer to the “Warranty
Maintenance Guide.”
Pull up latch and raise hood
Pull
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are s\
hown
on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
FEATURES AND OPERATIONS
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “” will be displayed on the Multi-Information
Display (MID).
3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the lig\
ht remains steady
and a beep sounds, you may begin driving.
2017_CamryHV_QRG_D4.indd 85/3/16 3:20 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
Light control-Instrument panel
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend
the life of your vehicle and maintain performance. Please refer to the “Warranty
Maintenance Guide.”
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are s\
hown
on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
FEATURES AND OPERATIONS
Hybrid Synergy Drive System
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display (MID).
3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the lig\
ht remains steady
and a beep sounds, you may begin driving.
2017_CamryHV_QRG_D4.indd 95/3/16 4:13 PM

18
Blind Spot Monitor (BSM) (if equipped)
Rear view monitor system
Automatic Air Conditioning
FEATURES AND OPERATIONS
The Blind Spot Monitor is a system that has two functions:
- The Blind Spot Monitor function (assists the driver in decision-makin\
g when changing lanes)
- The Rear Cross Traffic Alert function (assists the driver when backin\
g up)
The Blind Spot Monitor function uses radar sensors to detect vehicles th\
at are
traveling in an adjacent lane in the area that is not reflected in the o\
utside rear
view mirror (the blind spot), and advises the driver of the vehicles e\
xistence via the
outside rear view mirror indicator.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
System ON/OFF Rear Cross Traffic Alert buzzer
The rear view monitor system displays an image of the view from the bump\
er
of the rear area of the vehicle. The camera for the rear view monitor sy\
stem is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP\
” button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
To find your system, refer to Audio section of this guide.
For Entune™ Audio
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.
For Entune™ Audio Plus and Entune™ Premium Audio
Push “APPS” button next to the screen
then select “General” in the touch screen to access clock setting.
Automatic climate control ON - Adjusting the
temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Outside rearview mirror/
Rear defogger
Climate control OFF
Windshield airflow/
defogger
2017_CamryHV_QRG_D4.indd 185/3/16 3:21 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Blind Spot Monitor (BSM) (if equipped)
Rear view monitor system
Air conditioning/heating
Automatic Air Conditioning
The Blind Spot Monitor is a system that has two functions:
- The Blind Spot Monitor function (assists the driver in decision-making\
when
changing lanes)
- The Rear Cross Traffic Alert function (assists the driver when backing\
up)
The Blind Spot Monitor function uses radar sensors to detect vehicles that \
are
traveling in an adjacent lane in the area that is not reflected in the outside re\
ar
view mirror (the blind spot), and advises the driver of the vehicles exist\
ence via the

outside rear view mirror indicator.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m before
attempting to use it.
Rear Cross Traffic Alert buzzer
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor syst\
em is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP”\
button

and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m.
To find your system, refer to Audio section of this guide.
For Entune™ Audio
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.
For Entune™ Audio Plus and Entune™ Premium Audio
Push “APPS” button next to the screen
then select “General” in the touch screen to access clock setting.
Clock
Temperature selector
(driver side)
Automatic climate control ON - Adjusting the
temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
“SYNC” button - Indicator ON: Synchronized
temperature settings for driver and pas-
sengers. Indicator OFF: Separate temperature
settings for driver and passengers.Airflow mode display
Airflow vent mode - In “” or “”
mode, use outside air (“” indicator
OFF) to reduce window fogging.
Temperature selector
(passenger side)
Recirculate cabin air
(outside air when OFF)
Outside rearview mirror/
Rear defogger
Climate control OFFAir Conditioning
ON/OFF
Fan speedWindshield airflow/
defogger
2017_CamryHV_QRG_D4.indd 195/3/16 4:13 PM

20

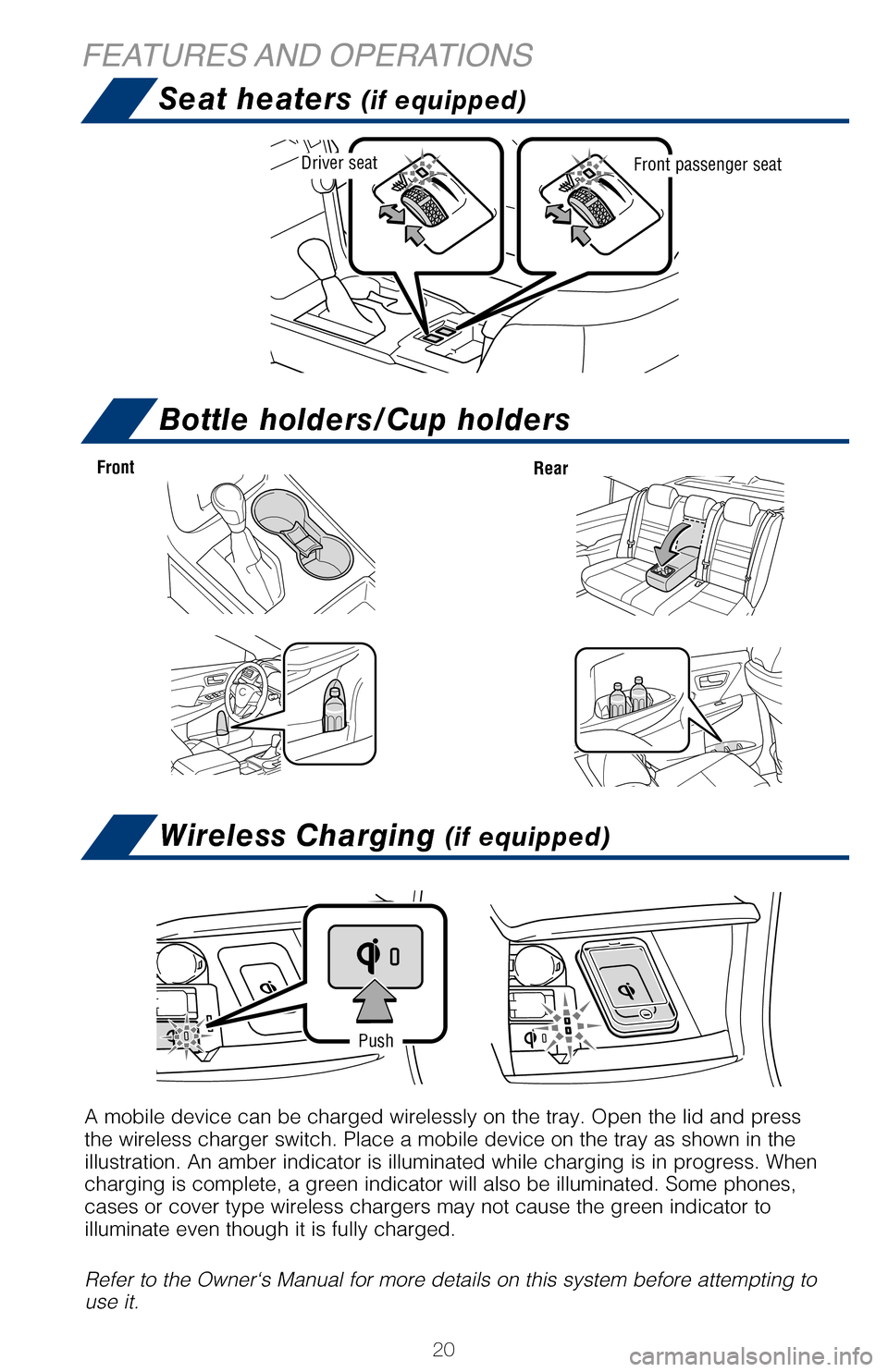

Seat heaters (if equipped)
FEATURES AND OPERATIONSBottle holders/Cup holders
Wireless Charging (if equipped)
A mobile device can be charged wirelessly on the tray. Open the lid and \
press
the wireless charger switch. Place a mobile device on the tray as shown \
in the
illustration. An amber indicator is illuminated while charging is in pro\
gress. When
charging is complete, a green indicator will also be illuminated. Some p\
hones,
cases or cover type wireless chargers may not cause the green indicator \
to
illuminate even though it is fully charged.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Push
Front
Rear
Driver seatFront passenger seat
Push to turn
ON/OFF
1 Refer to the “Navigation System Owner’s Manual” and “2017 E\
ntune™ Audio Quick Reference
Guide.”
Entune™ Audio
Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
NOTE: Concentrating on the road should always be your first priority whi\
le driving. Do not
use the Entune system if it will distract you.
AUDIO Button
Push to display
audio screen
or access audio
functions.
HOME Button
Access to navigation
system
1 and Home
screen.
APPS Button
Access to traffic
and weather
APPS Button
Access to traffic
and weather
HOME Button
Access to Home
screen.
AUDIO Button
Push to display
audio screen
or access audio
functions.
AUDIO Button
Push to display
audio screen
or access audio
functions.
Entune™ Audio Plus With Connected Navigation App (JBL® Audio)
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up. HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up.
2017_CamryHV_QRG_D4.indd 205/3/16 3:21 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
pg 309

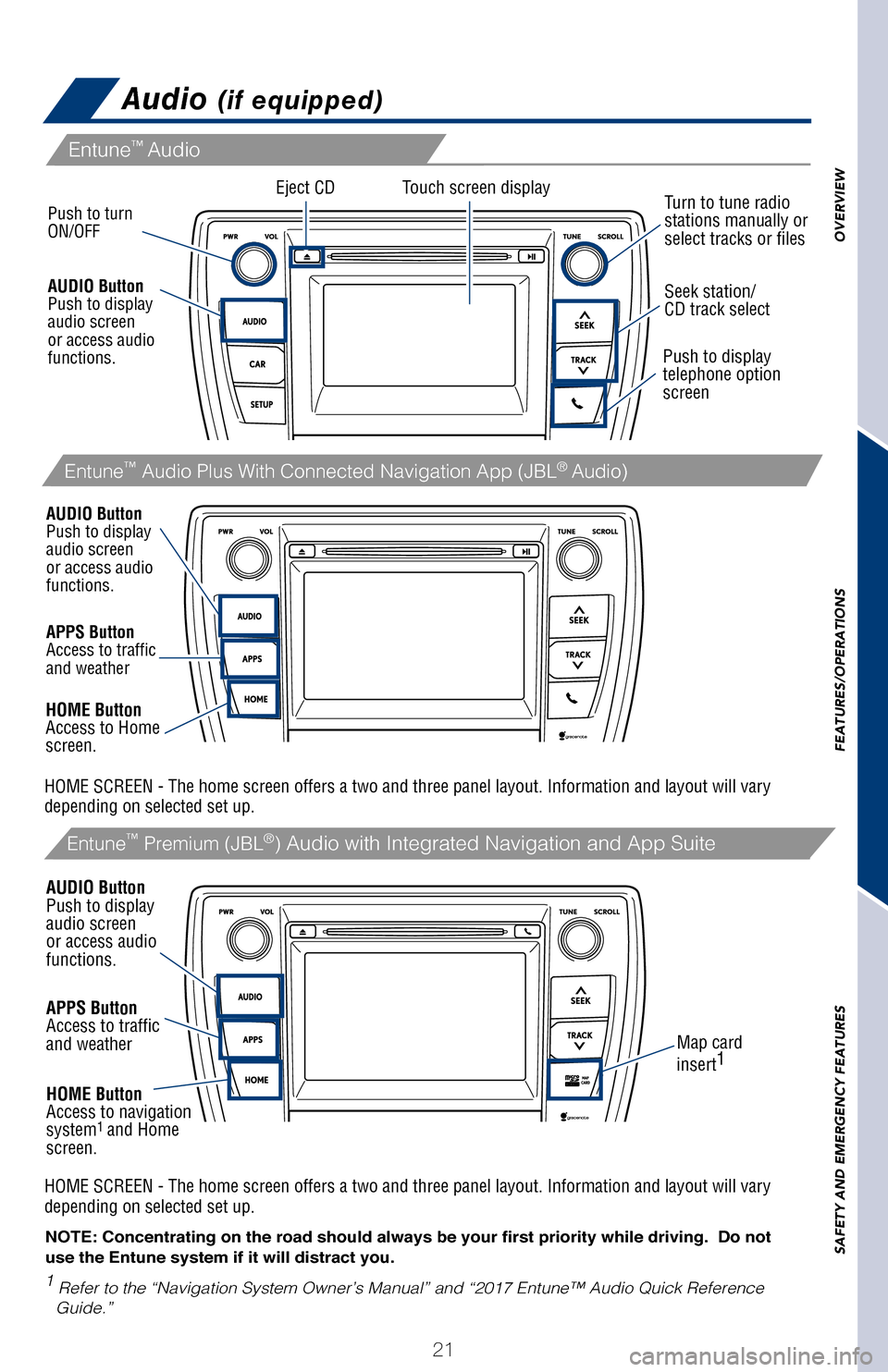

Audio (if equipped)
A mobile device can be charged wirelessly on the tray. Open the lid and p\
ress
the wireless charger switch. Place a mobile device on the tray as shown in \
the
illustration. An amber indicator is illuminated while charging is in progress. When
charging is complete, a green indicator will also be illuminated. Some phones,
cases or cover type wireless chargers may not cause the green indicator to
illuminate even though it is fully charged.
Refer to the Owner‘s Manual for more details on this system before attempt\
ing to
use it.
Eject CD
Push to turn
ON/OFF
1
Refer to the “Navigation System Owner’s Manual” and “2017 E\
ntune™ Audio Quick Reference
Guide.”
Map card
insert 1
Touch screen display
Entune™
Audio
Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
NOTE: Concentrating on the road should always be your first priority whi\
le driving. Do not
use the Entune system if it will distract you.
AUDIO Button
Push to display
audio screen
or access audio
functions.
HOME Button
Access to navigation
system
1 and Home
screen.
Seek station/
CD track select
Turn to tune radio
stations manually or
select tracks or files
Push to display
telephone option
screen
APPS Button
Access to traffic
and weather
APPS Button
Access to traffic
and weather
HOME Button
Access to Home
screen.
AUDIO Button
Push to display
audio screen
or access audio
functions.
AUDIO Button
Push to display
audio screen
or access audio
functions.
Entune™ Audio Plus With Connected Navigation App (JBL® Audio)
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up. HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up.
2017_CamryHV_QRG_D4.indd 215/3/16 4:13 PM
