TOYOTA CAMRY HYBRID 2018 (in English) User Guide

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
9
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE

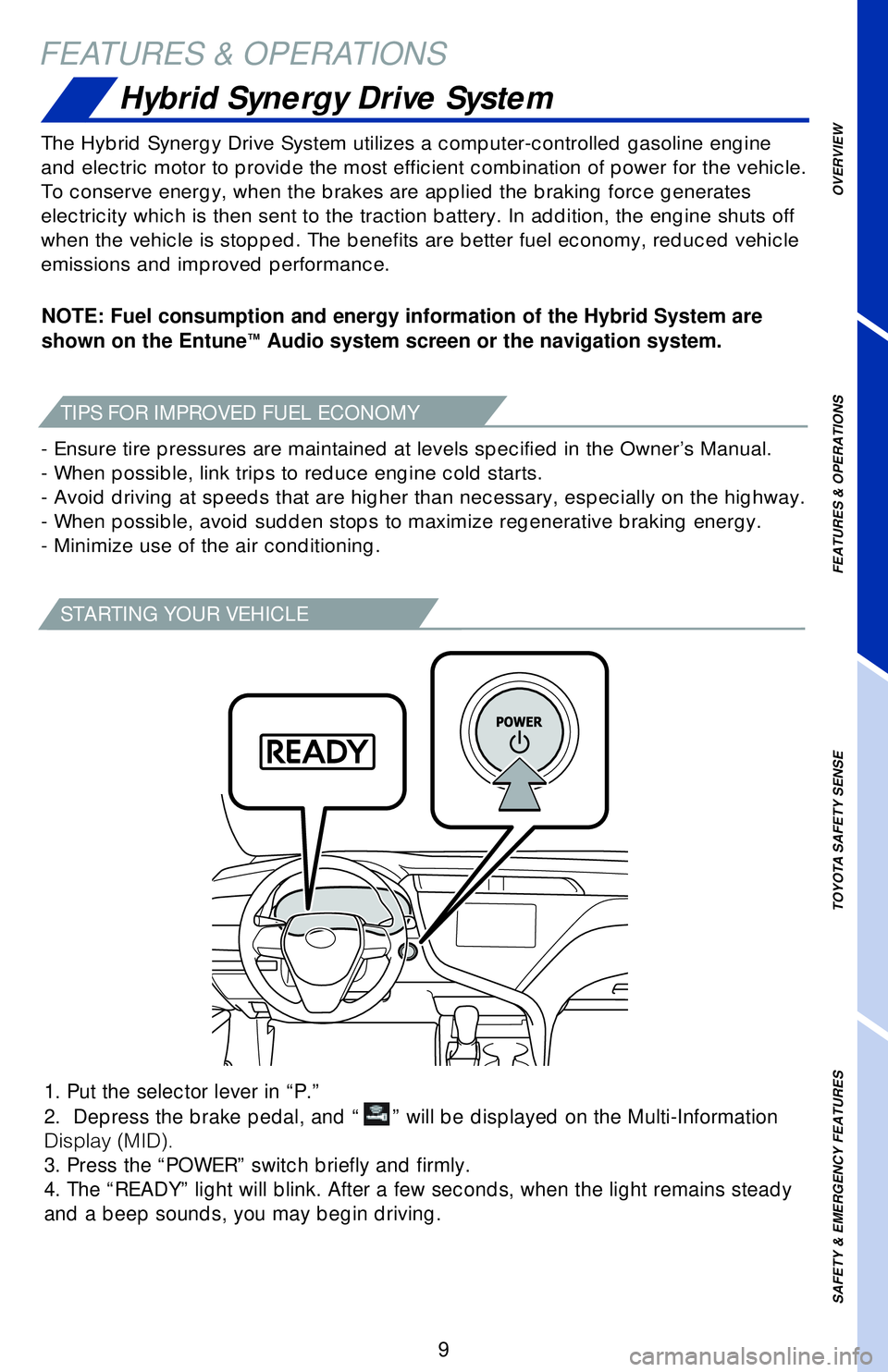

NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
FEATURES & OPERATIONS
Hybrid Synergy Drive System
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “
” will be displayed on the Multi-Information
%JTQMBZ .*%

3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the lig\
ht remains steady
and a beep sounds, you may begin driving.

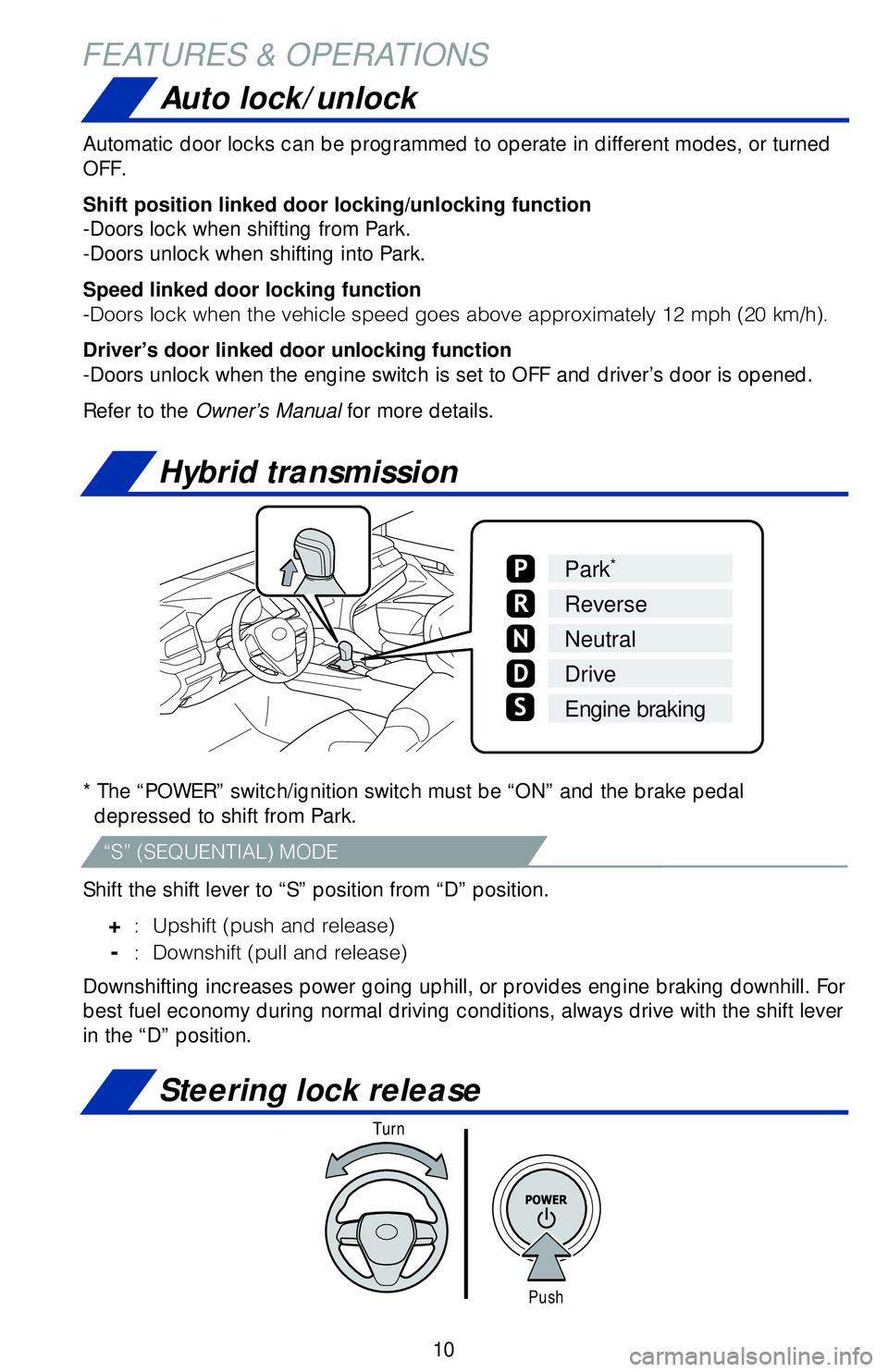

10
Hybrid transmission
Auto lock/unlock
Park*
Reverse
Neutral
Drive
Engine braking
Push
Turn
Steering lock release
FEATURES & OPERATIONS
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-%PPSTMPDLXIFOUIFWFIJDMFTQFFEHPFTBCPWFBQQSPYJNBUFMZNQI LNI

'ULYHU

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
11

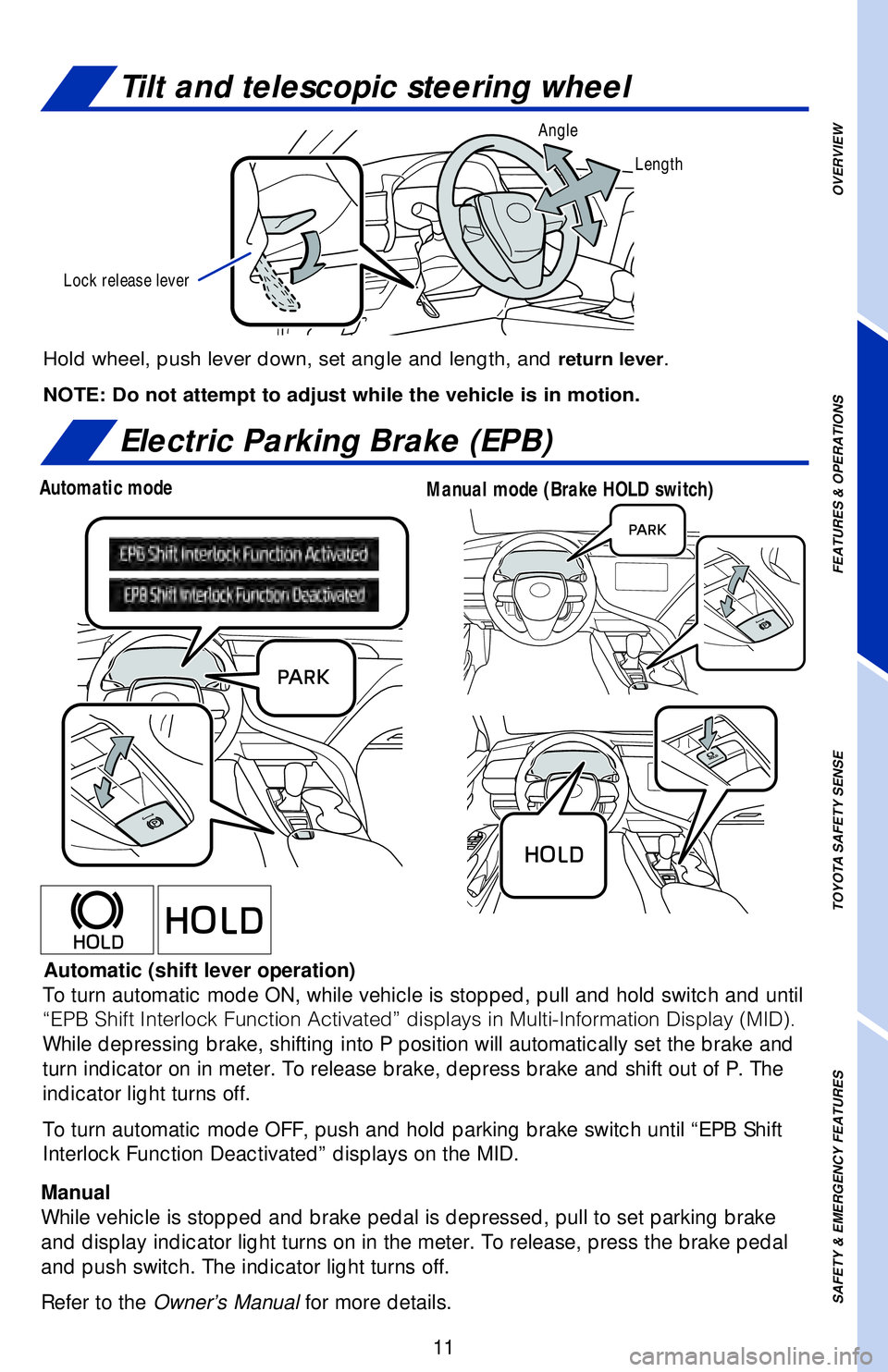

Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Electric Parking Brake (EPB)
Automatic (shift lever operation)
Manual To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h and until
i&1#4IJGU*OUFSMPDL'VODUJPO"DUJWBUFEwEJTQMBZTJO.VMUJ*OGPSNBUJPO%JTQMBZ .*%

While depressing brake, shifting into P position will automatically set \
the brake and
turn indicator on in meter. To release brake, depress brake and shift ou\
t of P. The
indicator light turns off.
To turn automatic mode OFF, push and hold parking brake switch until “\
EPB Shift
Interlock Function Deactivated” displays on the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and display indicator light turns on in the meter. To release, press the\
brake pedal
and push switch. The indicator light turns off.
Refer to the Owner’s Manual for more details.
Lock release lever Angle
Length
Driver sideAutomatic modeManual mode (Brake HOLD switch)

12

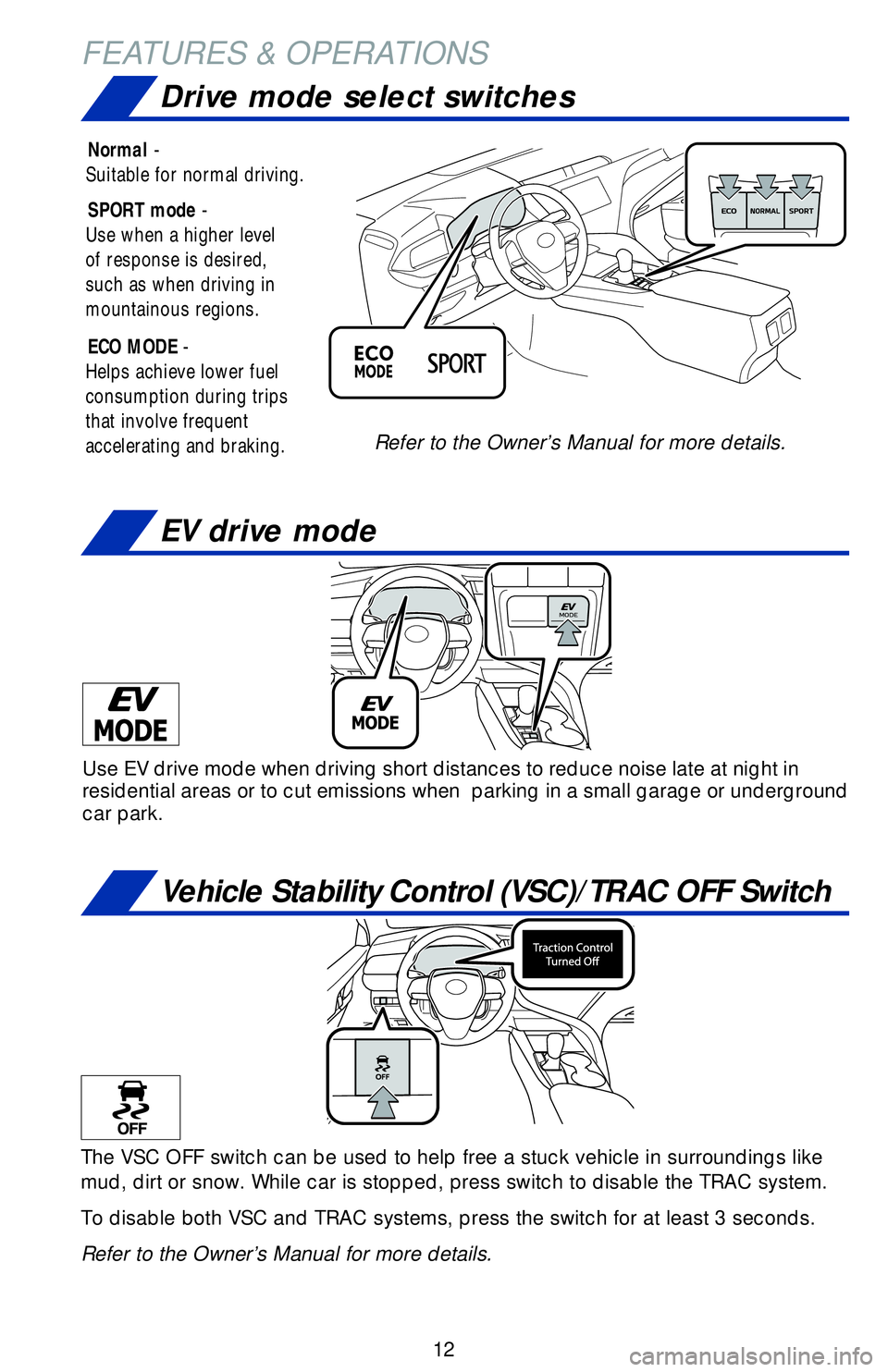

EV drive mode
Vehicle Stability Control (VSC)/TRAC OFF Switch
FEATURES & OPERATIONSDrive mode select switches
Use EV drive mode when driving short distances to reduce noise late at n\
ight in
residential areas or to cut emissions when parking in a small garage or\
underground
car park.
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While car is stopped, press switch to disable the TRA\
C system.
To disable both VSC and TRAC systems, press the switch for at least 3 se\
conds.
Refer to the Owner’s Manual for more details.
Normal -
Suitable for normal driving.
SPORT mode -
Use when a higher level
of response is desired,
such as when driving in
mountainous regions.
ECO MODE -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking. Refer to the Owner’s Manual for more details.

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

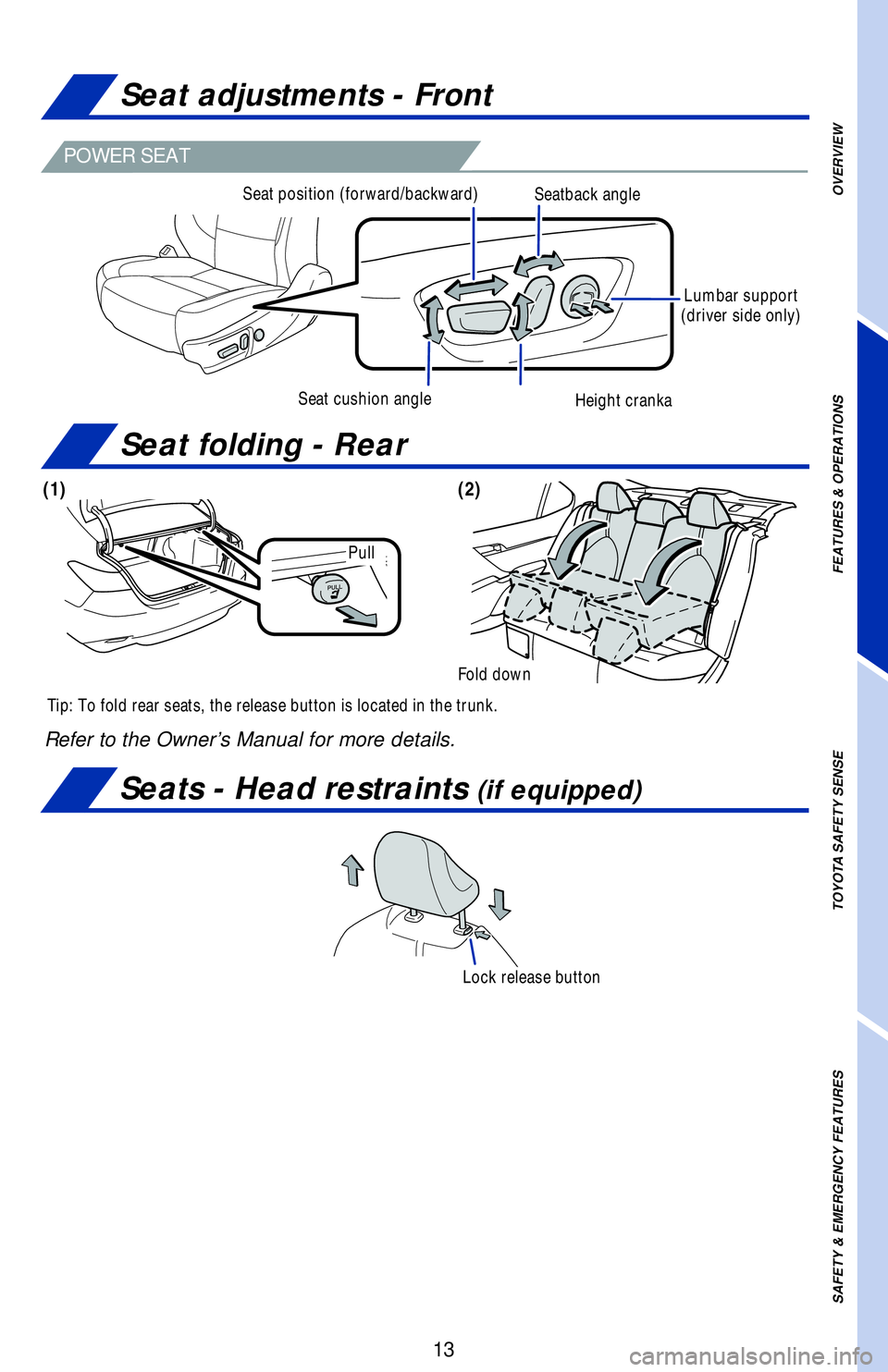

13
Seat adjustments - Front
Seats - Head restraints (if equipped)
Seat folding - Rear
(1)(2)
Tip: To fold rear seats, the release button is located in the trunk.
Seat position (forward/backward)
Seat cushion angle Height cranka
Seatback angle
Lumbar support
(driver side only)
Lock release button
POWER SEAT
Pull
Fold down
Refer to the Owner’s Manual for more details.

14

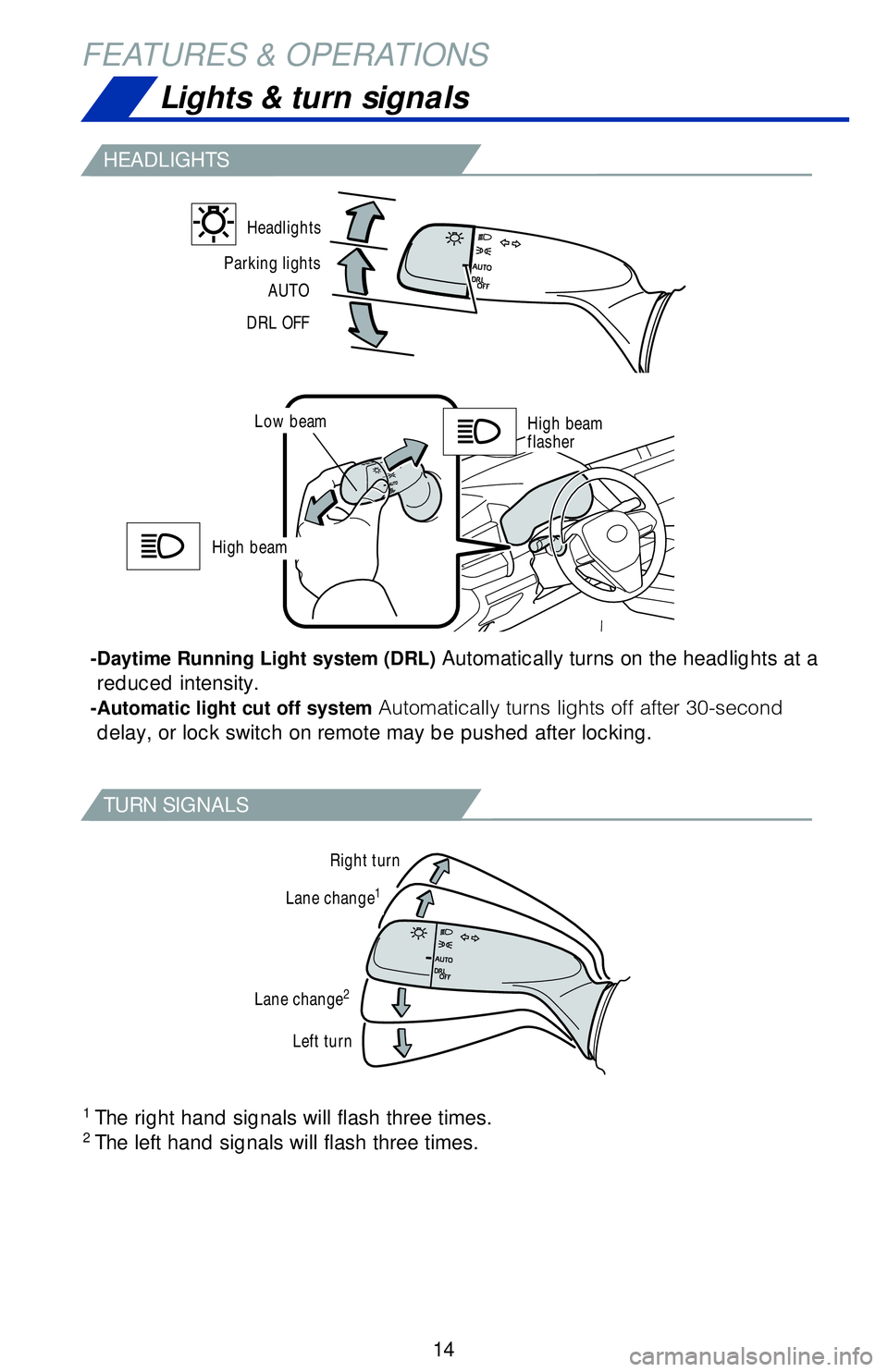

HEADLIGHTS
TURN SIGNALS
Lights & turn signals
FEATURES & OPERATIONS
-Daytime Running Light system (DRL)Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system"VUPNBUJDBMMZUVSOTMJHIUTPGGBGUFSTFDPOE
delay, or lock switch on remote may be pushed after locking.
1 The right hand signals will flash three times.2 The left hand signals will flash three times.
Parking lights Headlights
DRL OFF
AUTO
High beam
High beam
flasher
Right turn
Lane change1
Lane change2
Left turn
Low beam

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
15

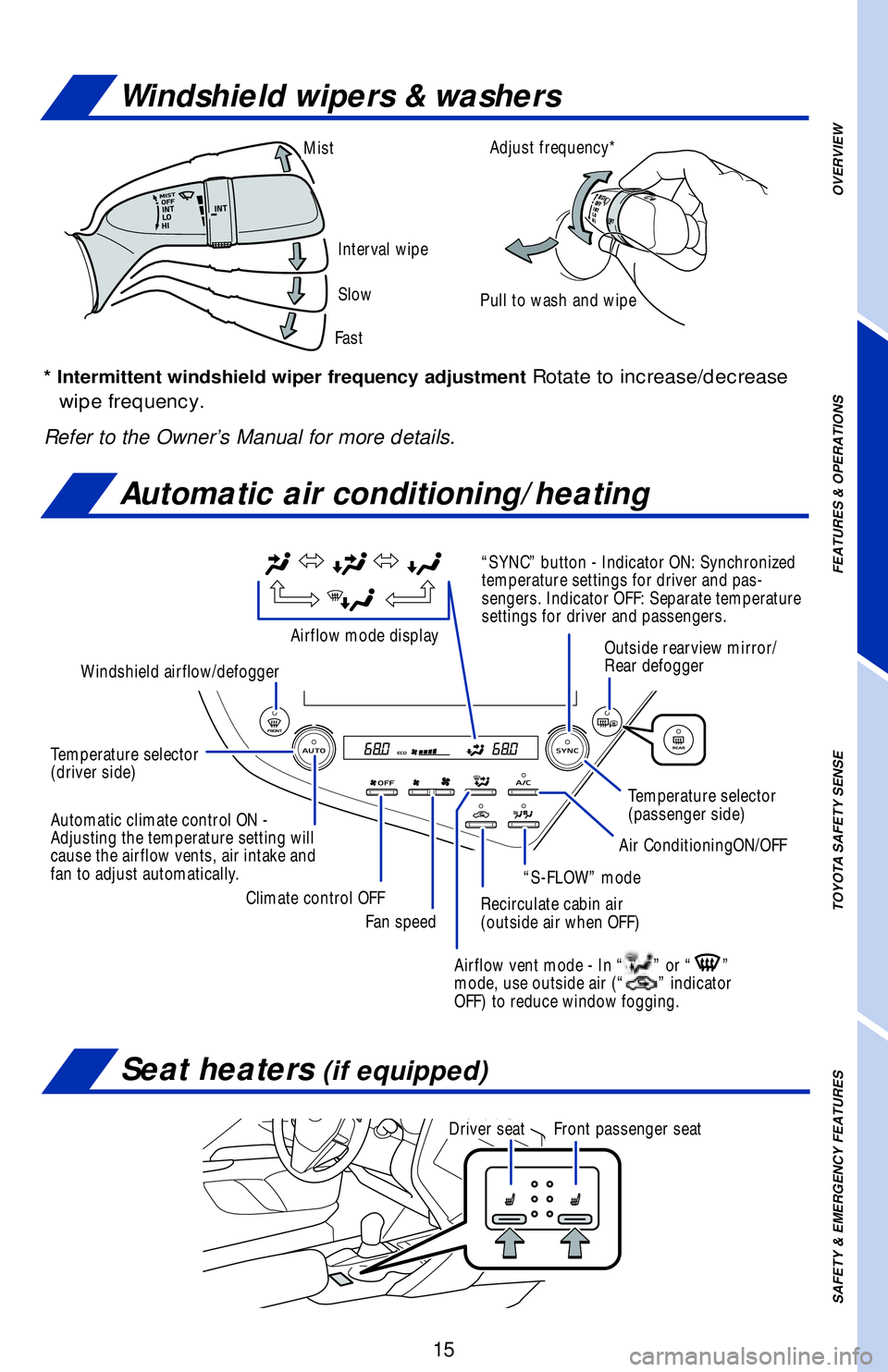

* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease
wipe frequency.
Refer to the Owner’s Manual for more details.
Windshield wipers & washers
Automatic air conditioning/heating
Adjust frequency*
Pull to wash and wipeMist
Interval wipe
Slow
Fast
Seat heaters (if equipped)
Driver seatFront passenger seat
Temperature selector
(driver side)
Automatic climate control ON -
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically.
“SYNC” button - Indicator ON: Synchronized
temperature settings for driver and pas-
sengers. Indicator OFF: Separate temperature
settings for driver and passengers.
Airflow mode display
Airflow vent mode - In “
” or “”
mode, use outside air (“” indicator
OFF) to reduce window fogging. Temperature selector
(passenger side)
“S-FLOW” mode
Recirculate cabin air
(outside air when OFF)
Outside rearview mirror/
Rear defogger
Climate control OFF
Air ConditioningON/OFF
Fan speed
Windshield airflow/defogger

16
FEATURES & OPERATIONS

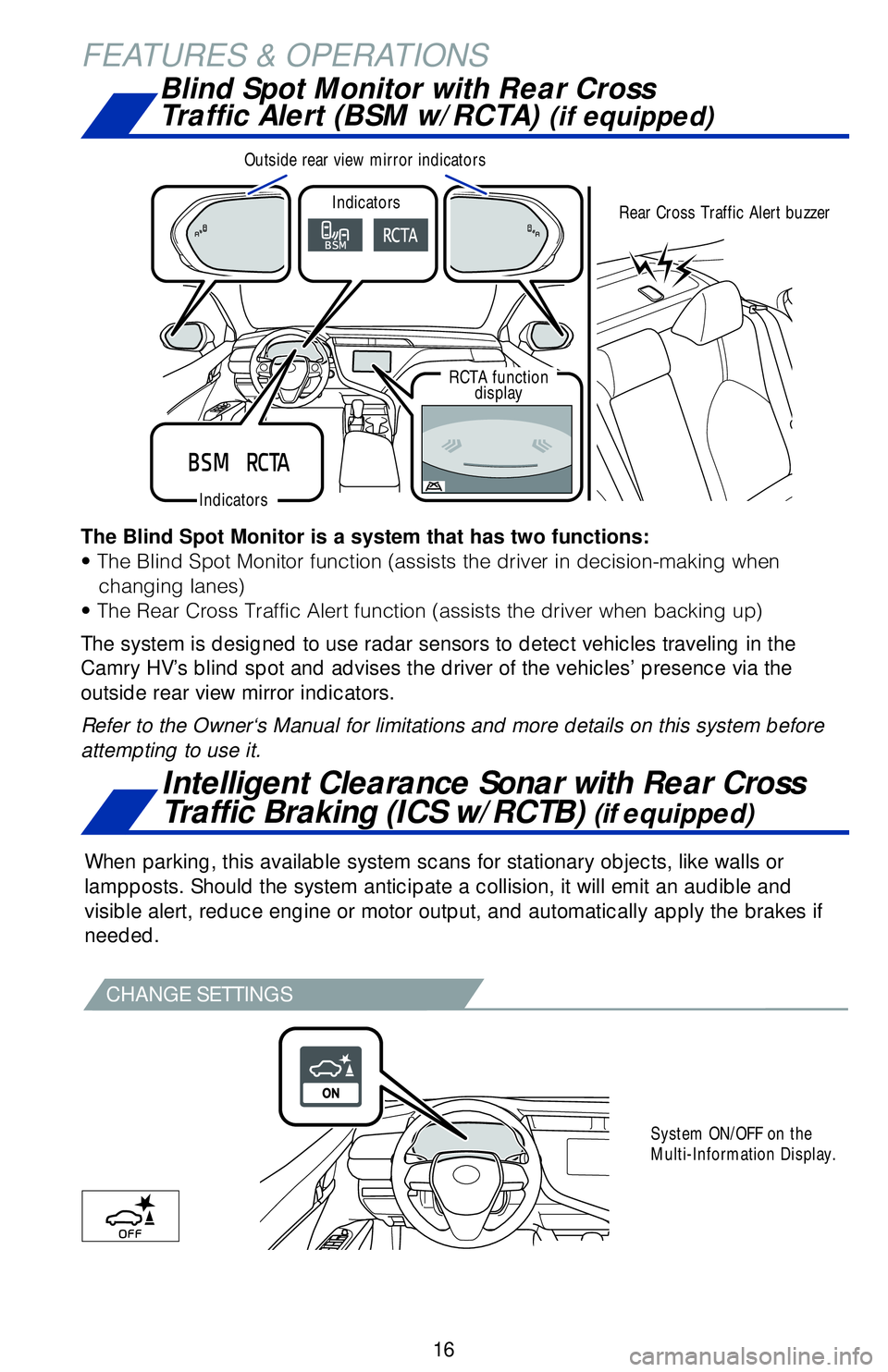

Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Intelligent Clearance Sonar with Rear Cross
Traffic Braking (ICS w/RCTB)
(if equipped)
When parking, this available system scans for stationary objects, like w\
alls or
lampposts. Should the system anticipate a collision, it will emit an aud\
ible and
visible alert, reduce engine or motor output, and automatically apply th\
e brakes if
needed.
System ON/OFF on the
Multi-Information Display.
CHANGE SETTINGS
Indicators
Indicators
RCTA function
display Rear Cross Traffic Alert buzzer
Outside rear view mirror indicators
The Blind Spot Monitor is a system that has two functions:
t5IF#MJOE4QPU.POJUPSGVODUJPO BTTJTUTUIFESJWFSJOEFDJTJPONBLJOHXIFO
DIBOHJOHMBOFT

t5IF3FBS$SPTT5SBGGJD"MFSUGVODUJPO BTTJTUTUIFESJWFSXIFOCBDLJOHVQ

The system is designed to use radar sensors to detect vehicles traveling\
in the
Camry HV’s blind spot and advises the driver of the vehicles’ pres\
ence via the
outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
17

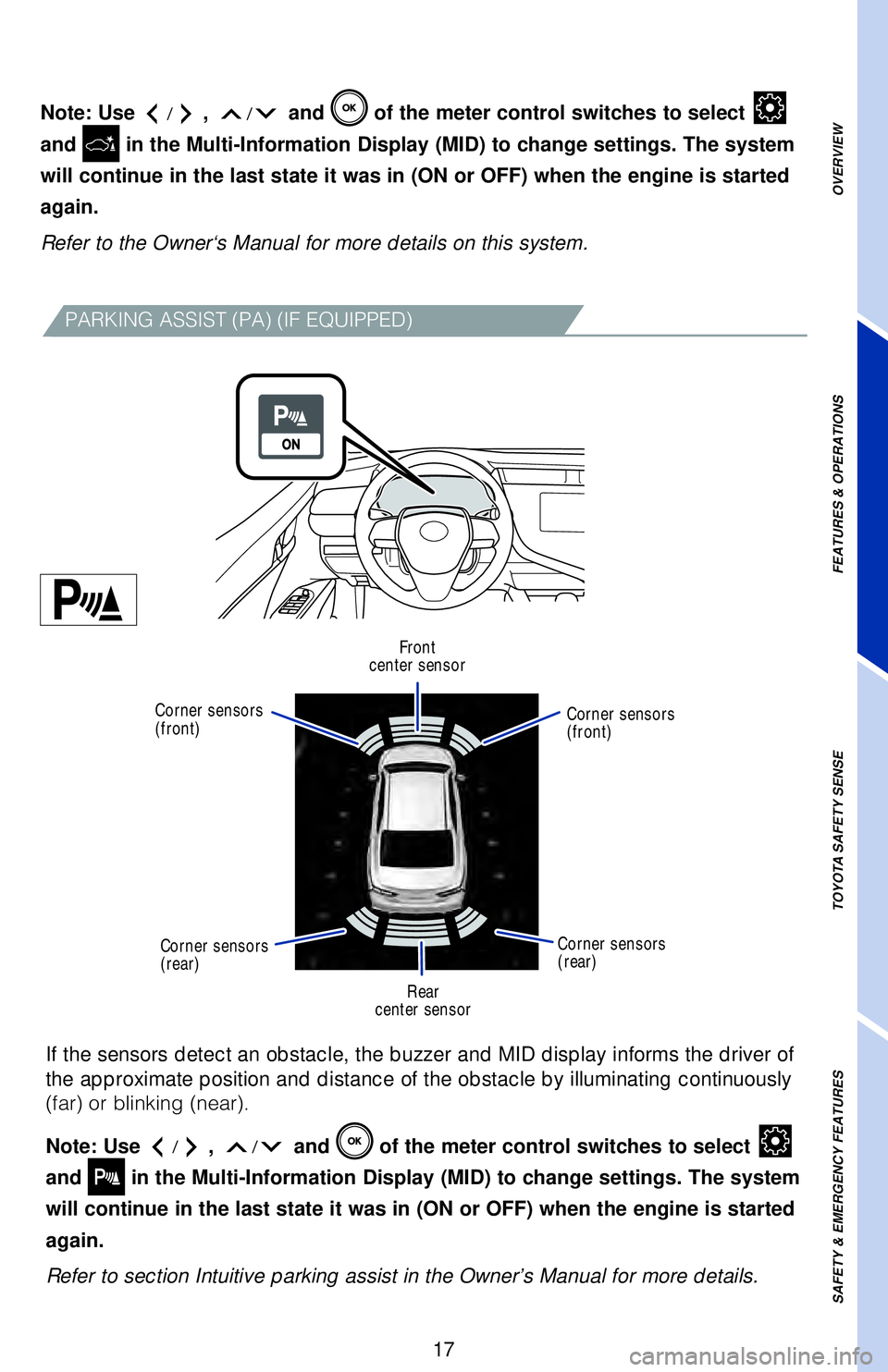

If the sensors detect an obstacle, the buzzer and MID display informs th\
e driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
GBS
PSCMJOLJOH OFBS

Note: Use
/,/ and of the meter control switches to select
and in the Multi-Information Display (MID) to change settings. The system\

will continue in the last state it was in (ON or OFF) when the engine \
is started
again.
Refer to section Intuitive parking assist in the Owner’s Manual for m\
ore details.
Note: Use/,/ and of the meter control switches to select
and in the Multi-Information Display (MID) to change settings. The system\

will continue in the last state it was in (ON or OFF) when the engine \
is started
again.
Refer to the Owner‘s Manual for more details on this system.
1"3,*/("44*45 1"
 *'&26*11&%

Front
center sensor
Rear
center sensor
Corner sensors
(front)
Corner sensors
(front)
Corner sensors
(rear) Corner sensors
(rear)

18

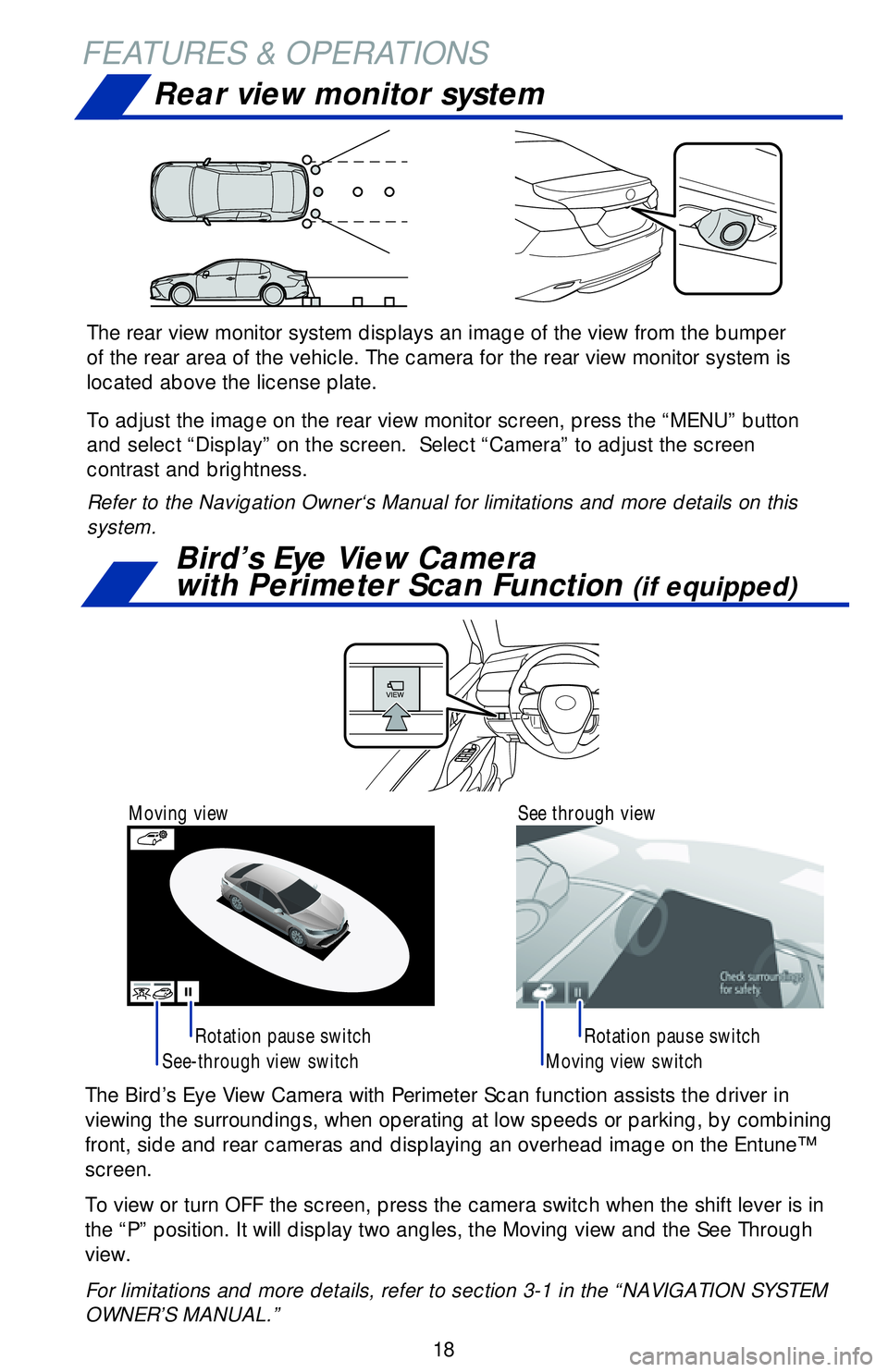

FEATURES & OPERATIONSRear view monitor system
See-through view switch Moving view switch
Rotation pause switch
Rotation pause switch
The Bird’s Eye View Camera with Perimeter Scan function assists the d\
river in
viewing the surroundings, when operating at low speeds or parking, by co\
mbining
front, side and rear cameras and displaying an overhead image on the Ent\
une™
screen.
To view or turn OFF the screen, press the camera switch when the shift l\
ever is in
the “P” position. It will display two angles, the Moving view and \
the See Through
view.
For limitations and more details, refer to section 3-1 in the “NAVIGA\
TION SYSTEM
OWNER’S MANUAL.”
Moving viewSee through view
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
The rear view monitor system displays an image of the view from the bump\
er
of the rear area of the vehicle. The camera for the rear view monitor sy\
stem is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button
and select “Display” on the screen. Select “Camera” to adju\
st the screen
contrast and brightness.
Refer to the Navigation Owner‘s Manual for limitations and more detai\
ls on this
system.
