1412. Instrument cluster
2
Instrument cluster
Displays the following items in the appropriate situation:
■Warning/Message
●Alert from the LTA (Lane Tracing Assist)
● Dynamic radar cruise control with full-speed range
● message
Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. ( P. 135)
● message
Displayed when a warning message is displayed on the multi-info rma-
tion display. ( P. 519)
● Outside temperature
Displayed in the following situations:
• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing
Displayed content is the same as that displayed on the multi-in formation
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. ( P. 102)
■
Hands-free system status
Displayed when the hands-free system is operated.
■
Audio system operation status
Displayed when the audio system is operated.
Information display area

1422. Instrument cluster
■Head-up display
The head-up display may seem dark or hard to see when viewed th rough
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
■ Display brightness
The brightness of the head-up display can be adjusted on of the multi-
information display. Also, it is automatically adjusted accordi ng to the ambient
brightness.
■ Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled whe n the power
switch is turned off then back to ON mode.
■ Street name display (vehicles with a navigation system)
Only street names which are included in the map data will be displayed.
WARNING
■Before using the head-up display
● Check that the position and brightness of the head-up display i mage does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.
● Do not continuously look at the head-up display while driving a s you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.
■ Caution for changing settings of the head-up display
As the hybrid system needs to be operating while changing the settings of
the head-up display, ensure that the vehicle is parked in a pla ce with ade-
quate ventilation. In a closed area such as a garage, exhaust gases includ-
ing harmful carbon monoxide (CO) may collect and enter the vehi cle. This
may lead to death or a serious health hazard.

1432. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to components
■ When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while the changing the settings of the head-up display.
● Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.
● Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

1442. Instrument cluster
Audio system screen
Multi-information display
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
If the “Trip Information” or “History”
screen is displayed, select
“Energy”.
Audio (vehicles with Data Commu nication Module), Audio Plus
(vehicles with Data Communicat ion Module) and Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Informa-
tion” screen.
If the “Trip Information” or “History”
screen is displayed, select
“Energy”.
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-info r-
mation display, the audio system screen.
1
2
Energy monitor
1
2
1
2
3

1452. Instrument cluster
2
Instrument cluster

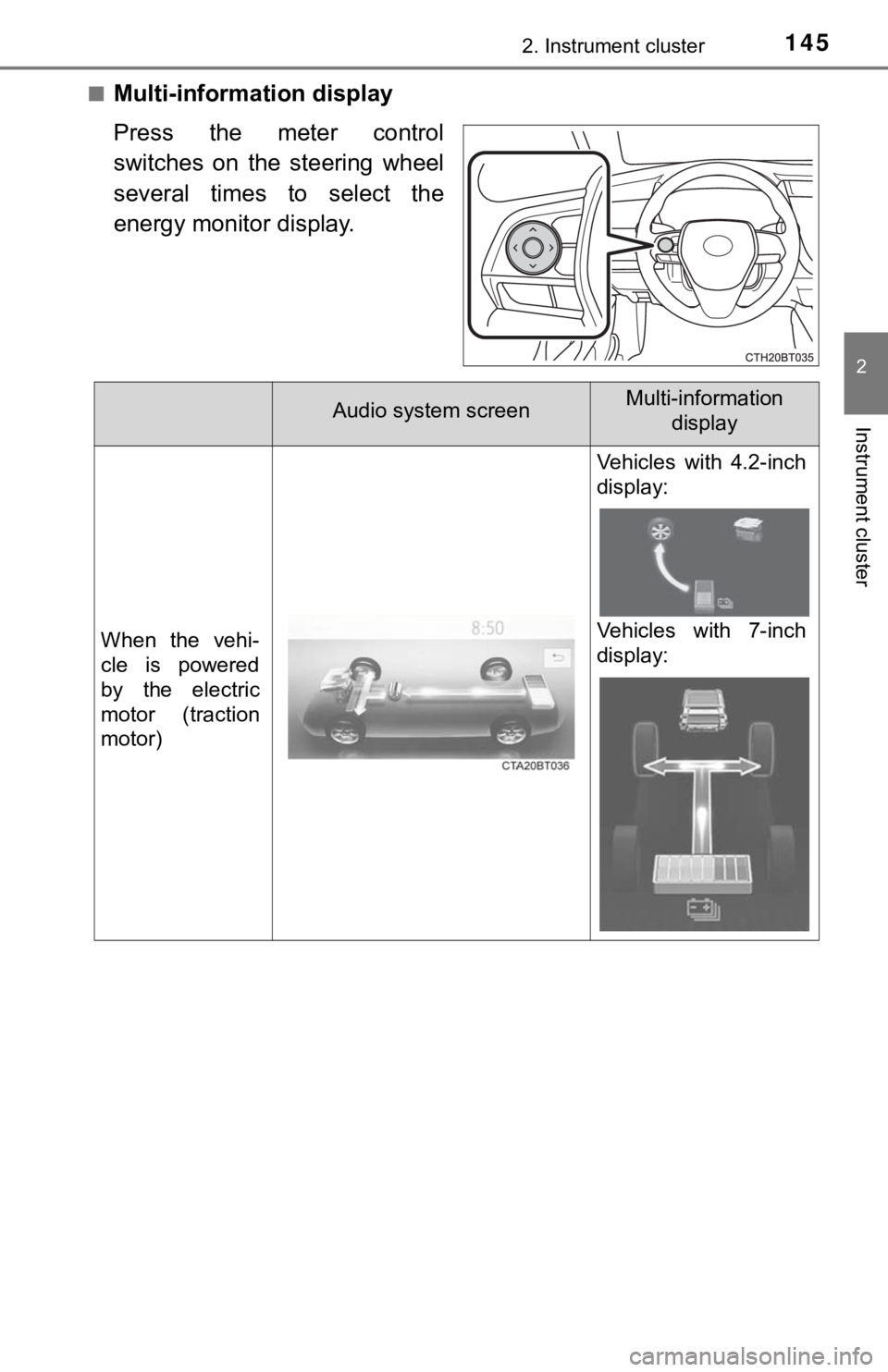

■Multi-information display
Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.
Audio system screenMulti-information display
When the vehi-
cle is powered
by the electric
motor (traction
motor)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:

1462. Instrument cluster

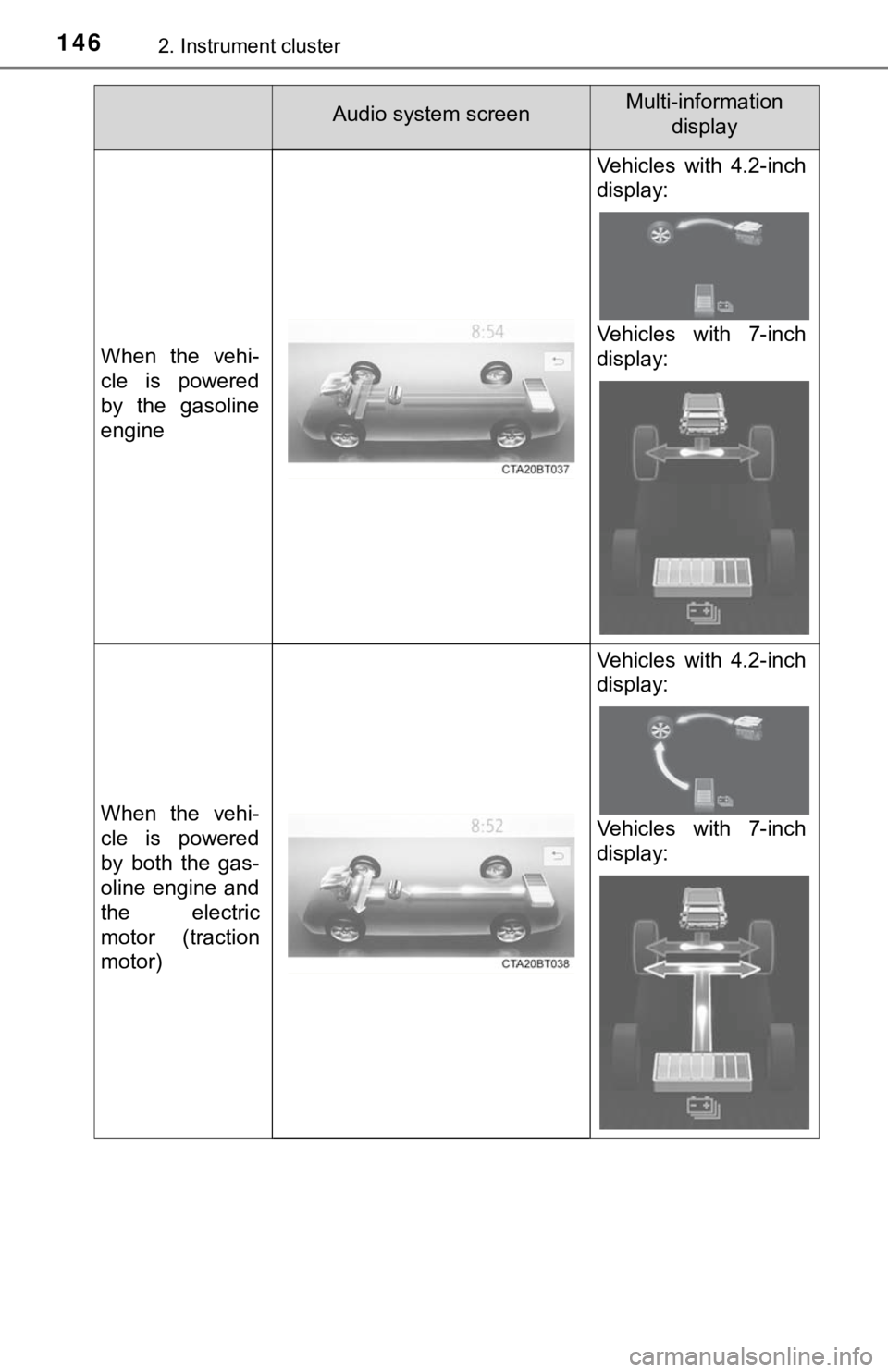

When the vehi-
cle is powered
by the gasoline
engine
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
When the vehi-
cle is powered
by both the gas-
oline engine and
the electric
motor (traction
motor)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

1472. Instrument cluster
2
Instrument cluster

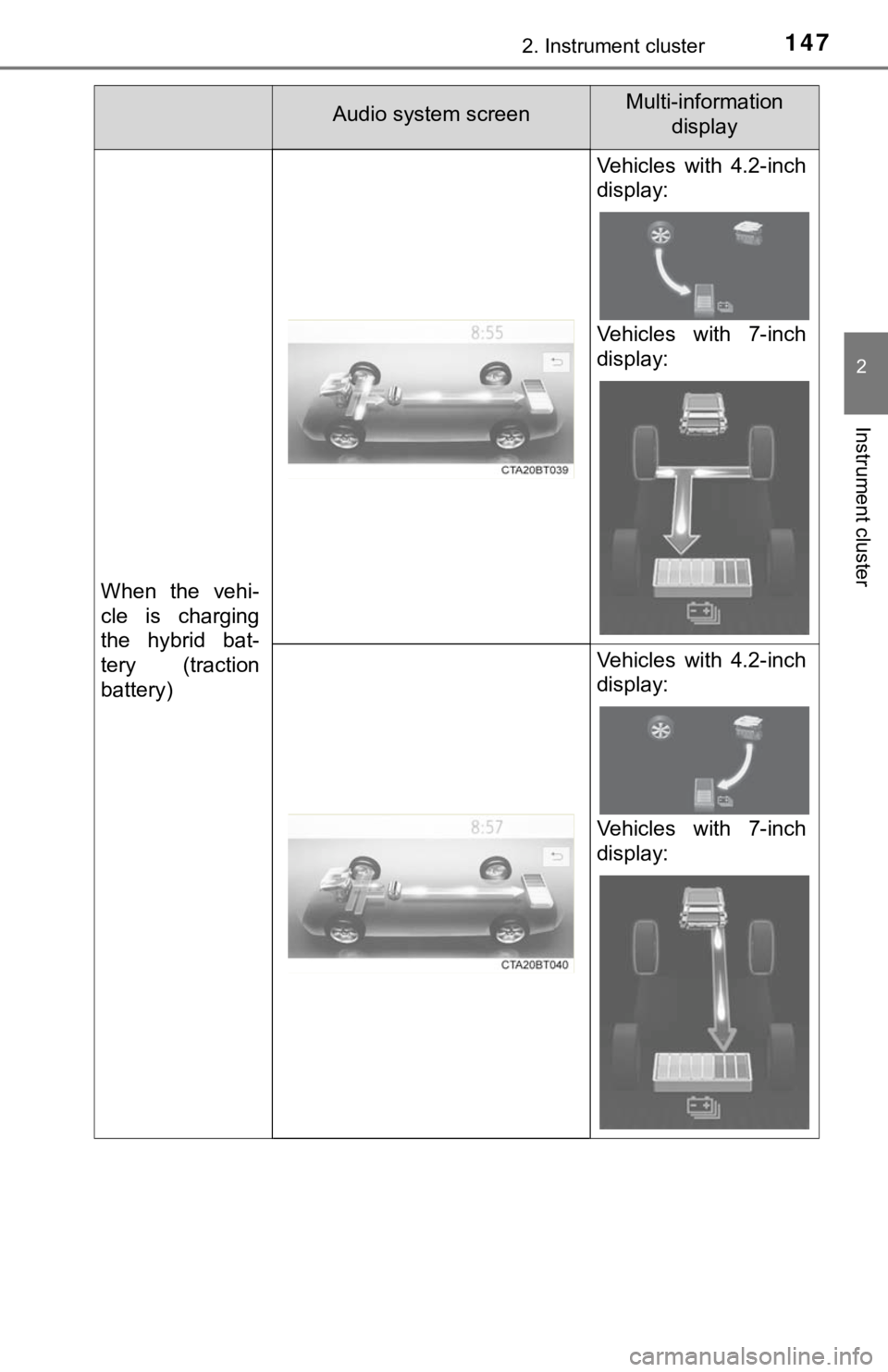

When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

1482. Instrument cluster
When there is
no energy flow
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Hybrid battery
(traction bat-
tery) statusLow Full Vehicles with 4.2-inch
display:
Low Full
Vehicles with 7-inch
display:
Low Full
Audio system screenMulti-information display

1492. Instrument cluster
2
Instrument cluster
■Trip information
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
If the “Energy Monitor” or “History” screen is displayed, selec t “Trip
Information”.
Audio (vehicles with Data Com munication Module), Audio Plus
(vehicles with Data Communica tion Module) and Premium Audio
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “History” screen is displayed, select “T rip Informa-
tion”.
Resetting the consumption
data
Displays the average vehicle
speed since the hybrid sys-
tem was started
Displays the elapsed time
since the hybrid system was
started
Fuel consumption in t he past 15 minutes
Cruising range
Regenerated energy i n the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual co ndi-
tions.
Current fuel consumption
Fuel consumption screen
1
2
1
2
3
1
2
3
4
5
6
7

1502. Instrument cluster
■History
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.
Audio (vehicles with Data Com munication Module), Audio Plus
(vehicles with Data Communica tion Module) and Premium Audio
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “Trip Inf ormation” screen is displayed, select “His-
tory”.
Resetting the past record
data
Best past fuel consumption
Current fuel economy
Previous fuel consumption
record
Audio or Audio Plus
Displays the daily average fuel consumption. (Instead of the da te,
“Trip 1” through “Trip 5” will be displayed.)
Premium Audio
Displays the daily average fuel consumption. Updating the average fuel consumption data
Displays a maximum of five past record of the average fuel cons ump-
tion.
The image is example only, and may vary slightly from actual co ndi-
tions.
1
2
1
2
3
1
2
3
4
5
