TOYOTA CAMRY HYBRID 2022 Owners Manual

2114-2. Driving procedures
4
Driving
WARNING
■When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not
depress the accelerator pedal while starting the hybrid system under any
circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If hybrid system failure occurs while the vehicle is moving, do not lock or
open the doors until the vehicle reaches a safe and complete stop. Activa-
tion of the steering lock in this circumstance may lead to an accident, result-
ing in death or serious injury.
■Stopping the hybrid system in an emergency
●If you want to stop the hybrid system in an emergency while driving the
vehicle, press and hold the power switch for more than 2 seconds, or
press it briefly 3 times or more in succession. (P. 491)
However, do not touch the power switch while driving except in an emer-
gency. Turning the hybrid system off while driving will not cause loss of
steering or braking control, however, power assist to the steering will be
lost. This will make it more difficult to steer smoothly, so you should pull
over and stop the vehicle as soon as it is safe to do so.
●If the power switch is operated while the vehicle is running, a warning
message will be shown on the multi-information display and a buzzer
sounds.
●When restarting the hybrid system after an emergency shutdown while
driving, press the power switch. When restarting the hybrid system after
stopping the vehicle, change the shift position to P and then press the
power switch.
■When parking
Exhaust gases include harmful carbon monoxide (CO), which is colorless
and odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may
lead to an accident caused by light-headedness, or may lead to death or a
serious health hazard.
●If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the hybrid system.
●Do not leave the vehicle with the hybrid system operating for a long time. If
such a situation cannot be avoided, park the vehicle in an open space and
ensure that exhaust fumes do not enter the vehicle interior.
●Do not leave the hybrid system operating in an area with snow build-up, or
where it is snowing. If snowbanks build up around the vehicle while the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle.

2124-2. Driving procedures
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid system on.
●If “ACCESSORY” or “IGNITION ON” is displayed on the multi-information
display, the power switch is not off. Exit the vehicle after turning the power
switch off.
●Do not stop the hybrid system when the shift lever is in a position other
than P. If the hybrid system is stopped in another shift lever position, the
power switch will not be turned off but instead be turned to ACCESSORY
mode. If the vehicle is left in ACCESSORY mode, 12-volt battery dis-
charge may occur.
■When starting the hybrid system
●Do not depress the accelerator pedal unnecessarily.
●If the hybrid system becomes difficult to start, have your vehicle checked
by your Toyota dealer immediately.
■Symptoms indicating a malfunction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Toyota dealer immediately.

2134-2. Driving procedures
4
Driving
Turns EV drive mode on/off
When EV drive mode is turned on,
the EV drive mode indicator will
come on. Pressing the switch
when in EV drive mode will return
the vehicle to normal driving (using
the gasoline engine and electric
motor [traction motor]).
■Situations in which EV drive mode cannot be turned on
It may not be possible to turn EV drive mode on in the following situations. If it
cannot be turned on, a buzzer will sound and a message will be shown on the
multi-information display.
●The temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds,
etc.
●The temperature of the hybrid system is low.
The vehicle has been left in temperatures lower than about 32
F (0C) for a
long period of time etc.
●The gasoline engine is warming up.
●The hybrid battery (traction battery) is low.
The remaining battery level indicated in the energy monitor display is low.
(P. 142)
●Vehicle speed is high.
●The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
●The windshield defogger is in use.
EV drive mode
In EV drive mode, electric power is supplied by the hybrid bat-
tery (traction battery), and only the electric motor (traction
motor) is used to drive the vehicle.
This mode allows you to drive in residential areas early in the
morning and late at night, or in indoor parking lots etc. without
concern for noises and gas emissions.
However, when the Acoustic Vehicle Alerting System is active,
the vehicle may produce sound.

2144-2. Driving procedures
■Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gasoline engine is cold, the gasoline
engine will start automatically after a short period of time in order to warm up.
In this case, you will become unable to switch to EV drive mode.
After the hybrid system has started and the “READY” indicator has illumi-
nated, press the EV drive mode switch before the gasoline engine starts to
switch to EV drive mode.
■Automatic cancelation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart
in the following situations. When EV drive mode is canceled, a buzzer will
sound and the EV drive mode indicator will flash and go off.
●The hybrid battery (traction battery) becomes low.
The remaining battery level indicated in the energy monitor on the multi-
information display is low. (P. 142)
●Vehicle speed is high.
●The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
■<0033005200560056004c0045004f0048000300470055004c0059004c0051004a00030047004c0056005700440051004600480003005a004b00480051000300470055004c0059004c0051004a0003004c0051000300280039000300470055004c0059004800
030050005200470048[
EV drive mode’s possible driving distance ranges from a few hundred meters
to approximately 0.9 miles (1 km). However, depending on vehicle conditions,
there are situations when EV drive mode cannot be used.
(The distance that is possible depends on the hybrid battery [traction battery]
level and driving conditions.)
■Fuel economy
The hybrid system is designed to achieve the best possible fuel economy
during normal driving (using the gasoline engine and electric motor [traction
motor]). Driving in EV drive mode more than necessary may lower fuel econ-
omy.
■If “EV Mode Unavailable” is shown on the multi-information display
The EV drive mode is not available. The reason the EV drive mode is not
available (the vehicle is idling, battery charge is low, vehicle speed is higher
than the EV drive mode operating speed range or accelerator pedal is
depressed too much) may be displayed. Use the EV drive mode when it
becomes available.
■If “EV Mode Deactivated” is shown on the multi-information display
The EV drive mode has been automatically canceled. The reason the EV
drive mode is not available (the battery charge is low, vehicle speed is higher
than the EV drive mode operating speed range or accelerator pedal is
depressed too much) may be displayed. Drive the vehicle for a while before
attempting to turn on the EV drive mode again.

2154-2. Driving procedures
4
Driving
WARNING
■Caution while driving
When driving in EV drive mode no engine noise is made. As such, pedestri-
ans, people riding bicycles or other people and vehicles in the surrounding
area may not be aware of the vehicle starting off or approaching them.
Therefore, take extra care while driving even if the Acoustic Vehicle Alerting
System is active.

2164-2. Driving procedures
While the power switch is in ON mode and the brake pedal
depressed
*, shift the shift lever while pushing the shift release
button on the shift knob.
Shift the shift lever while pushing the shift release button on
the shift knob.
Shift the shift lever normally.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped and the brake pedal is depressed.
*: For the vehicle be able to be shifted from P, the brake pedal must be
depressed before the shift release button is pushed. If the shift
release button is pushed first, the shift lock will not be released.
Hybrid transmission
Shifting the shift lever

2174-2. Driving procedures
4
Driving
*1: To improve fuel efficiency and reduce noise, shift the shift lever to D for
normal driving.
*2: By selecting shift ranges using S mode, you can control accelerating force
and engine braking force.

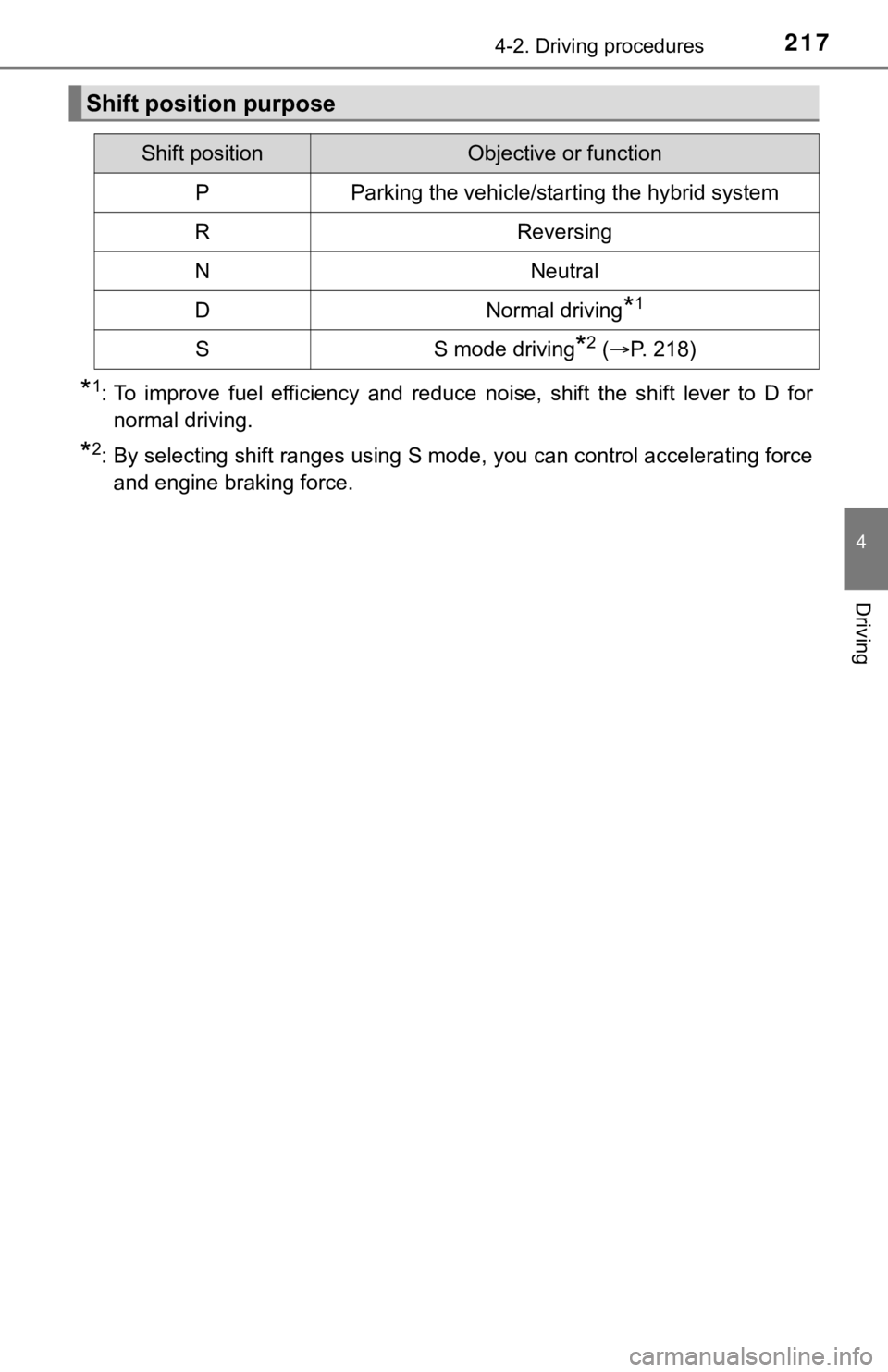

Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 (P. 218)

2184-2. Driving procedures
P. 3 5 5
When the shift lever is in the S position, the shift lever or paddle shift
switches (if equipped) can be operated as follows:
Upshifting
Downshifting
The initial shift range in S mode is set automatically to S5 or S4
according to vehicle speed.
*1: Vehicles with 4.2-inch display
*2: Vehicles with 7-inch display
■
Shift ranges and their functions
●You can choose from 6 levels of accelerating force and engine
braking force.
●A lower shift range will provide greater accelerating force and
engine braking force than a higher shift range, and the engine
revolutions will also increase.
●If you accelerate while in ranges 1 to 4, the shift range may auto-
matically increase in accordance with the vehicle speed.
Selecting the driving mode
Changing shift ranges in S mode
Shift leverPaddle shift switches (if
equipped)
*1*2*1*2
1
2

2194-2. Driving procedures
4
Driving
To drive using temporary shift range selection, operate the “-” paddle
shift switch. The shift range can then be selected by operating the “-”
and “+” paddle shift switches. Changing the shift range allows restric-
tion of the highest gear, preventing upshifting and enabling the level of
engine braking force to be selected.
Upshifting
Downshifting
The selected shift range, from D1
to D6 will be displayed on the
multi-information display.
*1: Vehicles with 4.2-inch display
*2: Vehicles with 7-inch display
■When the “-” paddle shift switch is operated with the shift lever in the D
position (vehicles with paddle shift switches)
The shift range is downshifted to a range that enables engine braking force
that is suitable to driving conditions.
■Automatic deactivation of shift range selection in the D position (vehi-
cles with paddle shift switches)
Shift range selection in the D position will be deactivated in the following situ-
ations:
●The “+” paddle shift switch is held down for a period of time
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time
●<003a004b0048005100030057004b004800030056004b004c004900570003004f00480059004800550003004c005600030056004b004c0049005700480047000300570052000300440003005300520056004c0057004c00520051000300520057004b004800
5500030057004b0044005100030027[
■S mode
●When the shift range is S4 or lower, holding the shift lever toward “+” sets
the shift range to S6.
●To prevent the engine from over-revving, upshifting may automatically
occur.
■Downshift restriction warning buzzer (S mode or paddle shifting)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)
Selecting shift ranges in the D position (vehicles with paddle
shift switches)
*1*2
1
2

2204-2. Driving procedures
■When driving with dynamic radar cruise control with full-speed range
activated
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not occur because dynamic radar cruise control
with full speed range will not be canceled.
●<003a004b004c004f0048000300470055004c0059004c0051004a0003004c0051000300270003005200550003003600030050005200470048000f000300470052005a00510056004b004c00490057004c0051004a0003005700520003001800030052005500
03001700110003000b[
P. 287)
●When switching the driving mode to sport mode while driving in the D posi-
tion. (
P. 355)
■Restraining sudden start (Drive-start Control)
P. 194
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the power switch is in the ON
<0050005200470048000f00030057004b00480003004500550044004e004800030053004800470044004f0003004c00560003004700480053005500480056005600480047000300440051004700030057004b004800030056004b004c004900570003005500
48004f00480044005600480003004500580057005700520051[ is pushed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted even though the brake pedal is depressed
and the shift release button is pushed, there may be a problem with the shift
lock system. Have the vehicle inspected by your Toyota dealer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the power switch off.
Depress the brake pedal.
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press and hold the shift lock override
button and then push the button on the
shift knob.
The shift lever can be shifted while both
buttons are pressed.
1
2
3
4
5
