1-1. For safe useBefore driving ...................... 24
For safe driving ................... 26
Seat belts ............................ 28
SRS airbags ........................ 34
Front passenger occupant classification system ......... 47
Exhaust gas precautions ..... 52
1-2. Child safety Riding with children ............. 53
Child restraint systems ........ 54
1-3. Emergency assistance Safety Connect.................... 73
1-4. Hybrid system Hybrid system features ....... 78
Hybrid system precautions ....................... 82
1-5. Theft deterrent system Immobilizer system ............. 89
Alarm ................................... 90 2. Instrument cluster
Warning lights and indicators ........................... 94
Gauges and meters ........... 100
Multi-information display (4.2-inch display) ............. 104
Multi-information display (7-inch display) ................ 117
Head-up display................. 136
Energy monitor/ consumption screen ........ 142
3-1. Key information Keys................................... 150
3-2. Opening, closing and locking the doors
Doors ................................. 154
Trunk ................................. 160
Smart key system .............. 164
3-3. Adjusting the seats Front seats......................... 171
Rear seats ......................... 173
Head restraints .................. 175
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 177
Inside rear view mirror ....... 179
Outside rear view mirrors ............................. 181
3-5. Opening and closing the windows
Power windows.................. 183
Moon roof .......................... 186
1For safety and security
2Instrument cluster
3Operation of each
component

15Pictorial index
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 238
Precautions for winter season . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . P. 546, 553
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Checking/rotation/tire pressur e warning system . . . . . . . . .P. 444
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 513
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 547
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Front turn signal lights/
parking lights/daytime running lights
*2 . . . . . . . . . . . . . . . P. 230
Headlights/daytime running lights
*3. . . . . . . . . . . . . . . . . . P. 230
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Side turn signal lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Rear turn signal lights/r ear side marker lights/
tail lights/stoplights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222, 230
Tail lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
4
5
6
7
Light bulbs of the exter ior lights for driving
(Replacing method: P. 476, Watts: P. 552)
8
9
10
11
12
13
14
*1: If equipped
*2: Vehicles with LED type front side marker lights
*3: Vehicles with bulb type front side marker lights

16Pictorial index

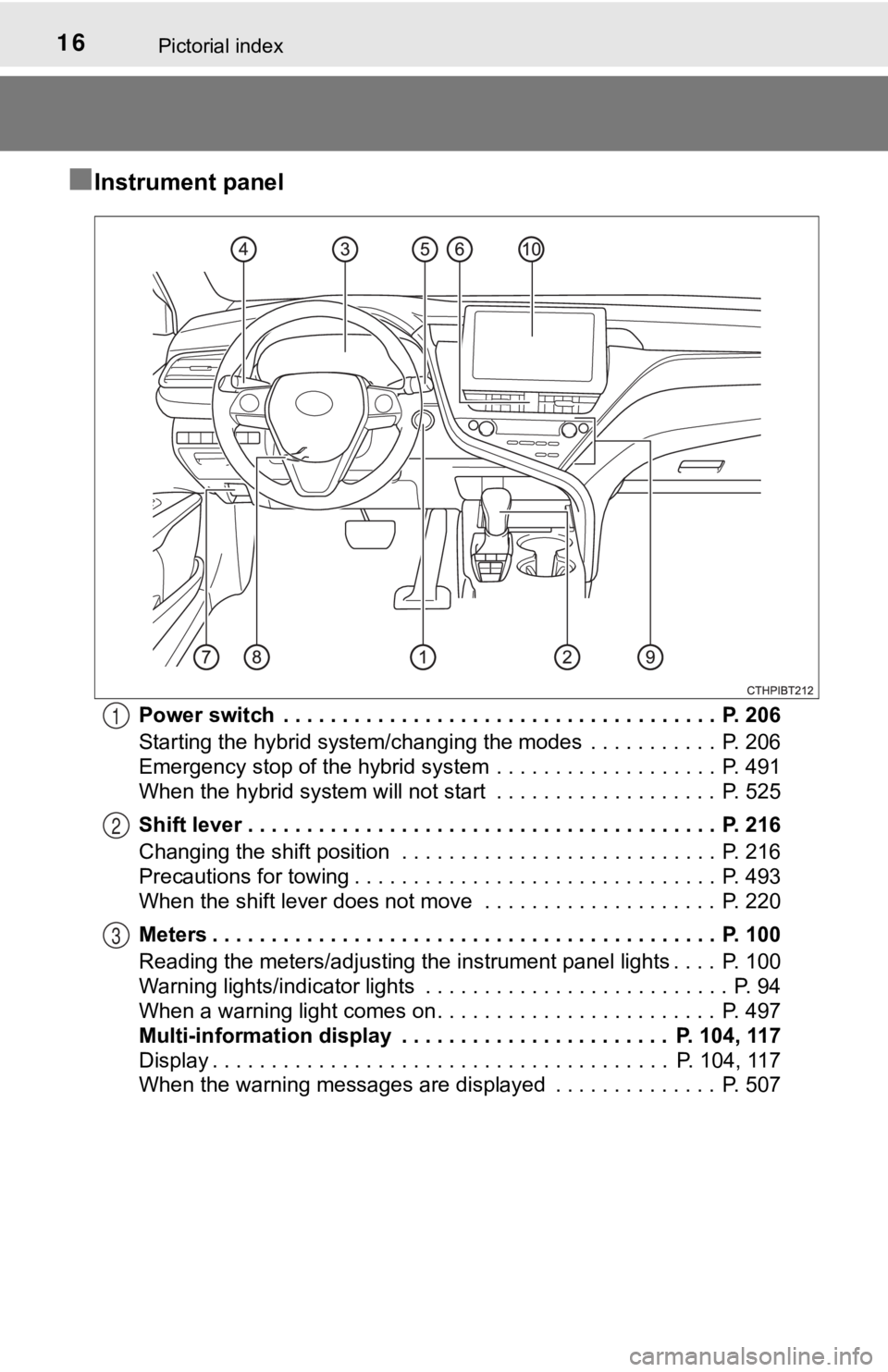

■Instrument panel
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 206
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 491
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 525
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Precautions for towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 220
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
Reading the meters/adjusting the instrument panel lights . . . . P. 100
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
When a warning light comes on . . . . . . . . . . . . . . . . . . . . . . . . P. 497
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 104, 117
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104, 117
When the warning messages are displayed . . . . . . . . . . . . . . P. 5071
2
3

361-1. For safe use
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU) controls airbag deployment based on infor-
mation obtained from the sensors etc. shown in the system compo -
nents diagram above. This informat ion includes crash severity and
occupant information. As the airbags deploy, a chemical reactio n in
the inflators quickly fills the airbags with non-toxic gas to h elp restrain
the motion of t he occupants.
SRS airbag system components
Front impact sensors
Front passenger occupant
classification system (ECU
and sensors)
Knee airbags
Side impact sensors (front
doors)
Side impact sensors (front)
Front passenger airbag
Front side airbags
Curtain shield airbags
Rear side airbags “AIRBAG ON” and “AIRBAG
OFF” indicator lights
SRS warning light
Front passenger’s seat belt
buckle switch
Airbag sensor assembly
Driver airbag
Driver’s seat belt buckle
switch
Seat belt pretensioners and
force limiters
Driver’s seat p
osition sensor1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

421-1. For safe use
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from S RS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rails,
may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
● The hybrid system will be stopped and fuel supply to the engine will be
stopped. ( P. 83)
● All of the doors will be unlocked. ( P. 158)
● The brakes and stop lights will be controlled automatically. ( P. 303)
● The interior lights will turn on automatically. ( P. 380)
● The emergency flashers will turn on automatically. ( P. 490)
WARNING
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars, roof side rails, front door panels, front door trims or front door
speakers
● Modifications to the front door panel (such as making a hole in it)
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches or roof luggage carrier
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radio s and CD
players
● Modifications to your vehicle for a person with a physical disability

481-1. For safe use
■Adult*1
■Child*4
■Child restraint system with infant*5

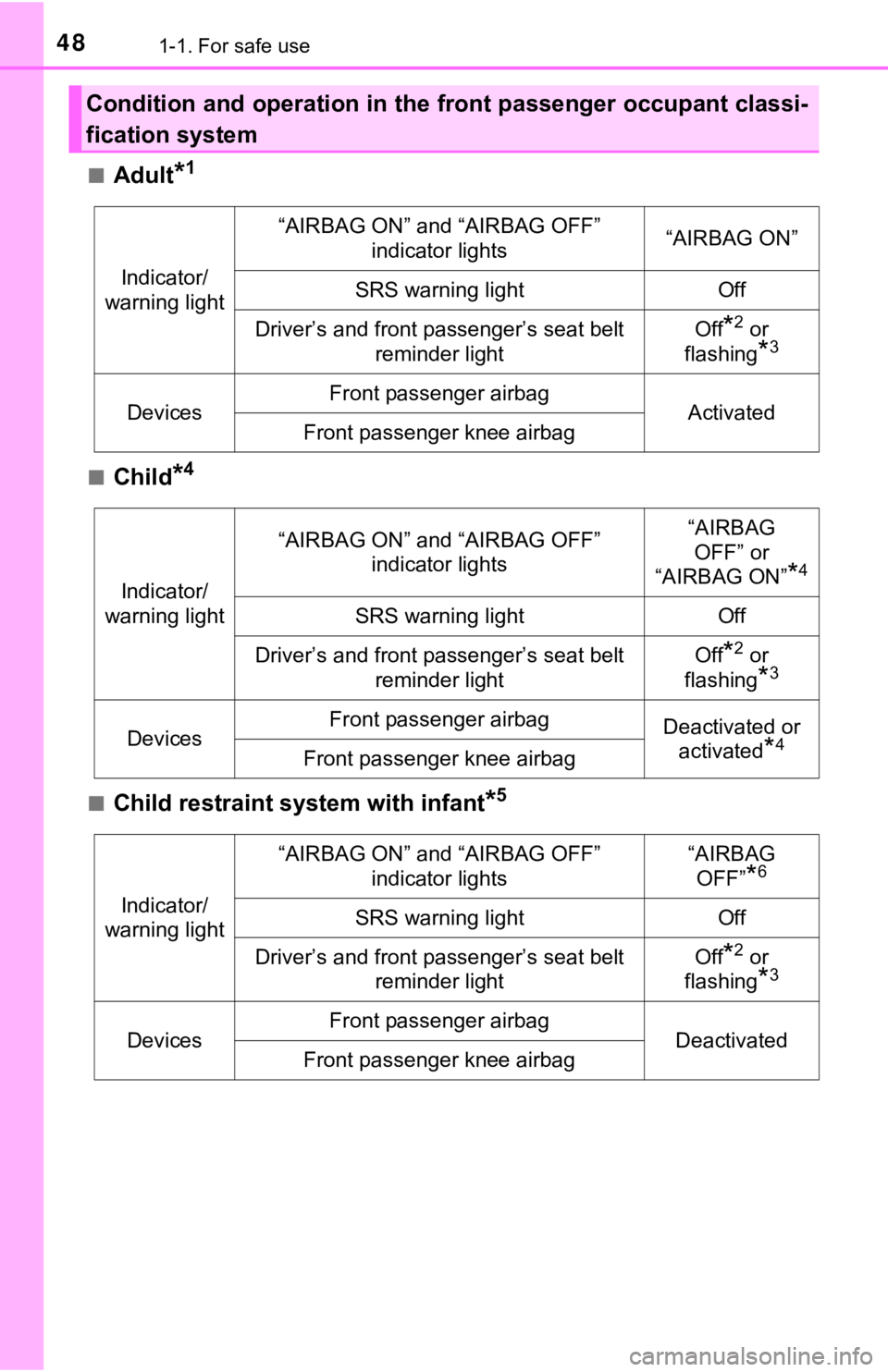

Condition and operation in the front passenger occupant classi-
fication system
Indicator/
warning light
“AIRBAG ON” and “AIRBAG OFF” indicator lights“AIRBAG ON”
SRS warning lightOff
Driver’s and front passenger’s seat belt
reminder lightOff*2 or
flashing
*3
DevicesFront passenger airbagActivatedFront passenger knee airbag
Indicator/
warning light
“AIRBAG ON” and “AIRBAG OFF” indicator lights“AIRBAG
OFF” or
“AIRBAG ON”
*4
SRS warning lightOff
Driver’s and front passenger’s seat belt
reminder lightOff*2 or
flashing
*3
DevicesFront passenger airbagDeactivated or activated
*4Front passenger knee airbag
Indicator/
warning light
“AIRBAG ON” and “AIRBAG OFF”
indicator lights“AIRBAG OFF”
*6
SRS warning lightOff
Driver’s and front passenger’s seat belt reminder lightOff*2 or
flashing
*3
DevicesFront passenger airbagDeactivatedFront passenger knee airbag

491-1. For safe use
1
For safety and security

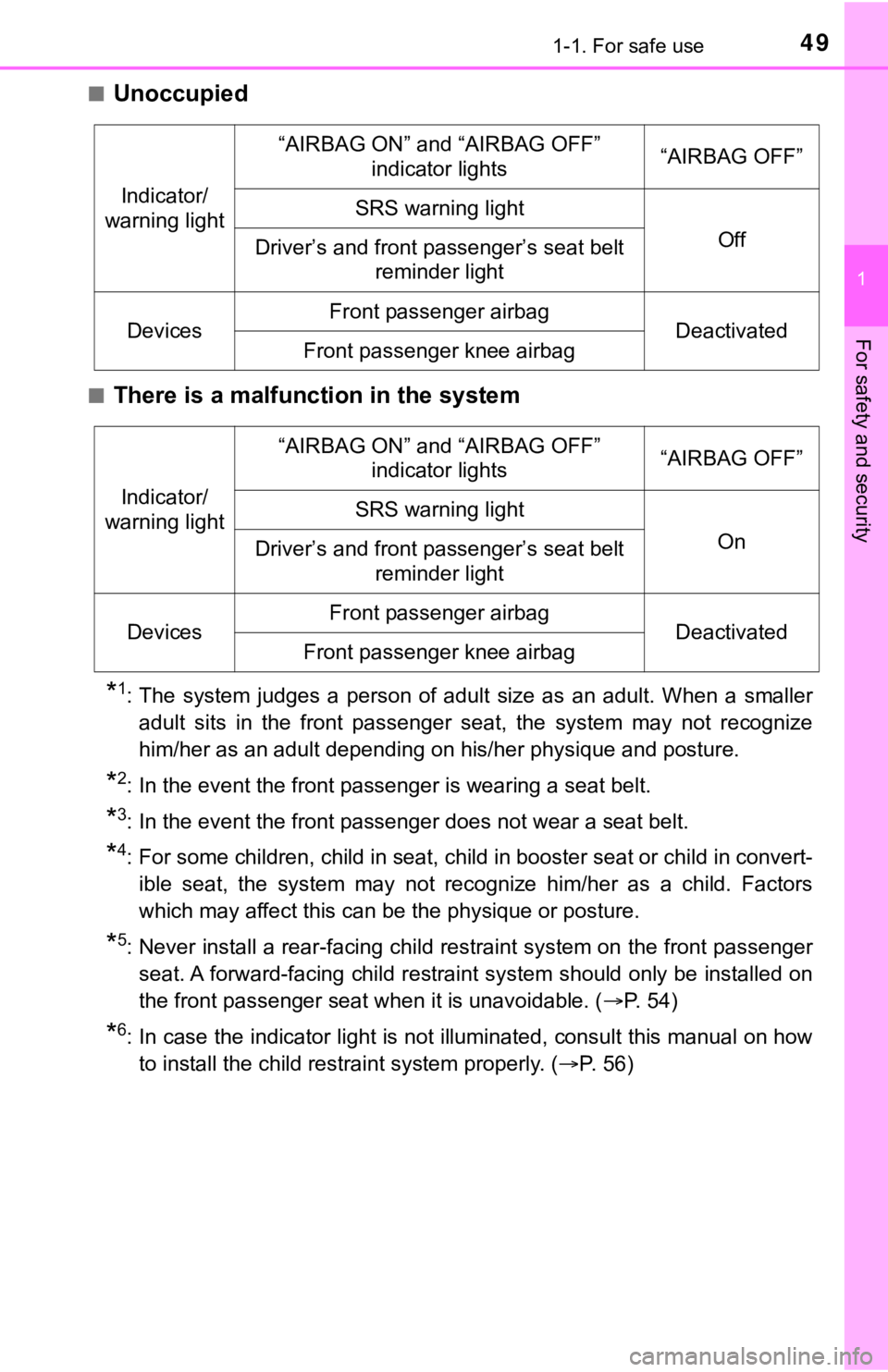

■Unoccupied
■There is a malfunction in the system
*1: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may not recognize
him/her as an adult depending on his/her physique and posture.
*2: In the event the front passenger is wearing a seat belt.
*3: In the event the front passenger does not wear a seat belt.
*4: For some children, child in seat, child in booster seat or chi ld in convert-
ible seat, the system may not recognize him/her as a child. Fac tors
which may affect this can be the physique or posture.
*5: Never install a rear-facing child restraint system on the front passenger seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. ( P. 54)
*6: In case the indicator light is not illuminated, consult this m anual on how
to install the child restraint system properly. ( P. 56)
Indicator/
warning light
“AIRBAG ON” and “AIRBAG OFF”
indicator lights“AIRBAG OFF”
SRS warning light
OffDriver’s and front passenger’s seat belt reminder light
DevicesFront passenger airbagDeactivatedFront passenger knee airbag
Indicator/
warning light
“AIRBAG ON” and “AIRBAG OFF” indicator lights“AIRBAG OFF”
SRS warning light
OnDriver’s and front passenger’s seat belt reminder light
DevicesFront passenger airbagDeactivatedFront passenger knee airbag

93
Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 94
Gauges and meters .......... 100
Multi-information display (4.2-inch display) ............ 104
Multi-information display (7-inch display) ............... 117
Head-up display ................ 136
Energy monitor/ consumption screen ........ 142

942. Instrument cluster
4.2-inch display
7-inch display
The units used on the meters and some indicators may differ depending on
the target region.

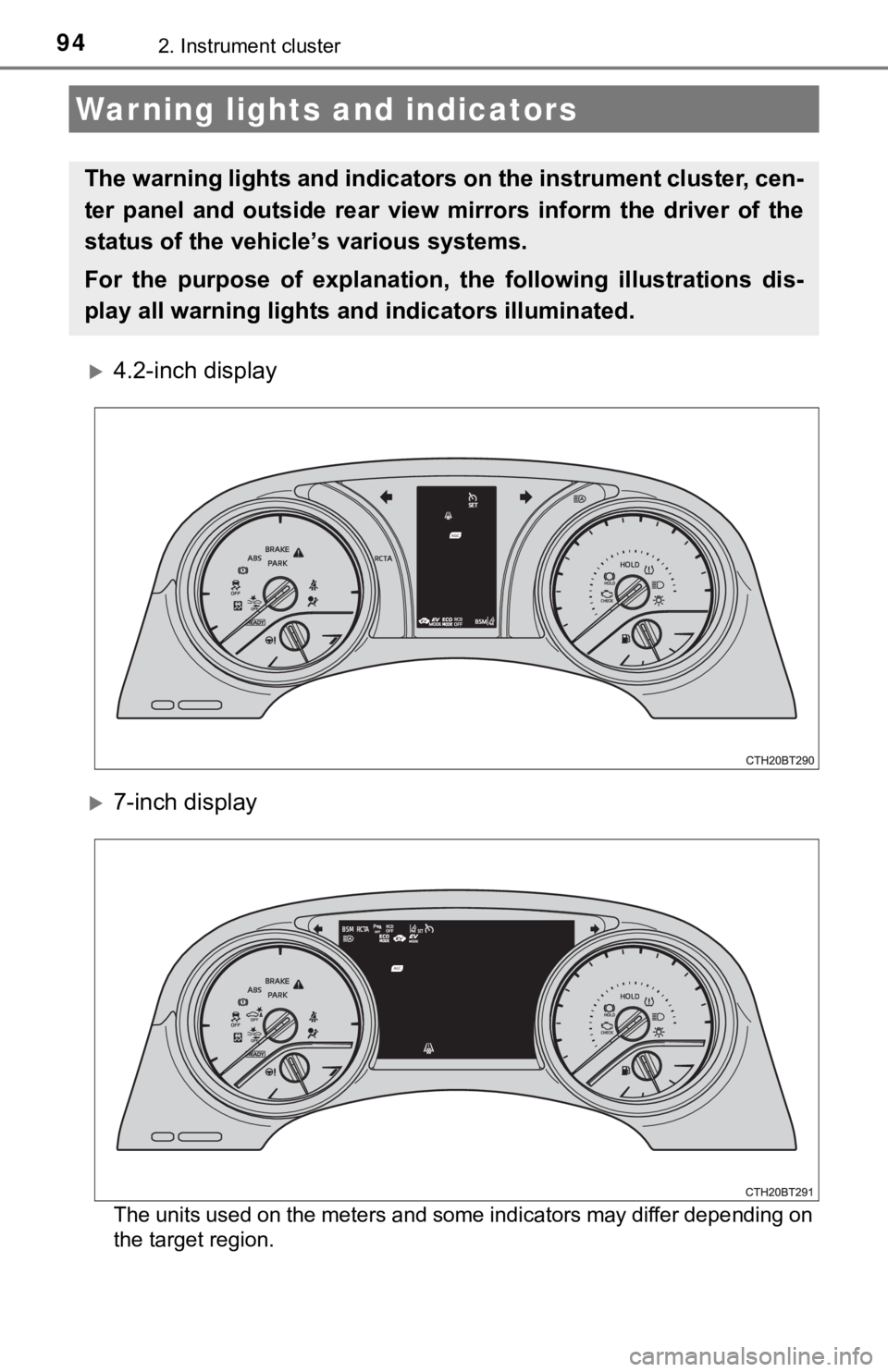

Warning lights and indicators
The warning lights and indicators on the instrument cluster, ce n-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.
