3. REMOVE DOOR LOCK CONTROL
(a) Remove the link protector.
(b) Disconnect the links from the door lock control and
door lock cylinder.
(c) Disconnect the connector from the solenoid.
(d) Remove the four bolts and door lock control with the
solenoid.

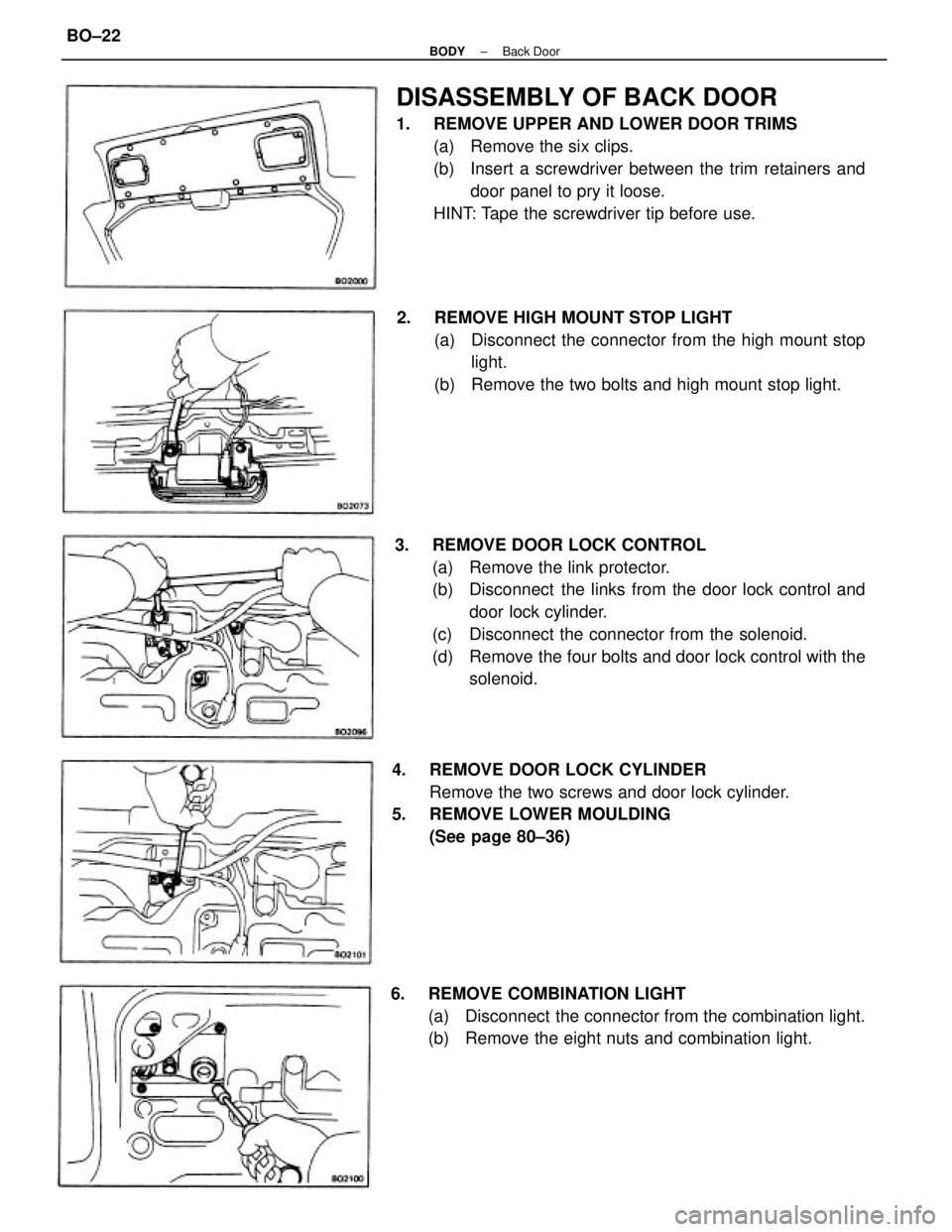

DISASSEMBLY OF BACK DOOR
1. REMOVE UPPER AND LOWER DOOR TRIMS
(a) Remove the six clips.
(b) Insert a screwdriver between the trim retainers and
door panel to pry it loose.
HINT: Tape the screwdriver tip before use.
2. REMOVE HIGH MOUNT STOP LIGHT
(a) Disconnect the connector from the high mount stop
light.
(b) Remove the two bolts and high mount stop light.
4. REMOVE DOOR LOCK CYLINDER
Remove the two screws and door lock cylinder.
5. REMOVE LOWER MOULDING
(See page 80±36)
6. REMOVE COMBINATION LIGHT
(a) Disconnect the connector from the combination light.
(b) Remove the eight nuts and combination light.
± BODYBack DoorBO±22

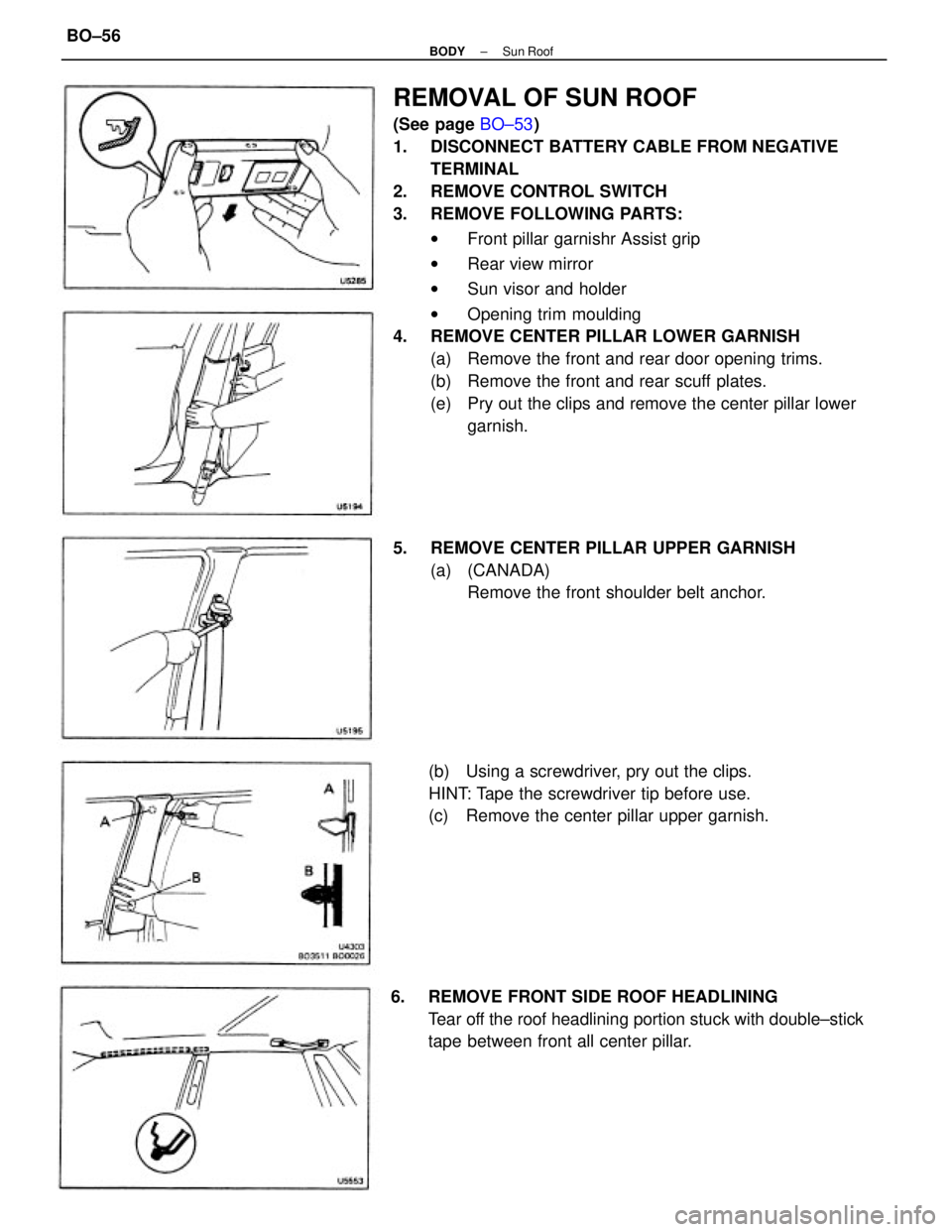

REMOVAL OF SUN ROOF
(See page BO±53)
1. DISCONNECT BATTERY CABLE FROM NEGATIVE
TERMINAL
2. REMOVE CONTROL SWITCH
3. REMOVE FOLLOWING PARTS:
wFront pillar garnishr Assist grip
wRear view mirror
wSun visor and holder
wOpening trim moulding
4. REMOVE CENTER PILLAR LOWER GARNISH
(a) Remove the front and rear door opening trims.
(b) Remove the front and rear scuff plates.
(e) Pry out the clips and remove the center pillar lower
garnish.
6. REMOVE FRONT SIDE ROOF HEADLINING
Tear off the roof headlining portion stuck with double±stick
tape between front all center pillar. 5. REMOVE CENTER PILLAR UPPER GARNISH
(a) (CANADA)
Remove the front shoulder belt anchor.
(b) Using a screwdriver, pry out the clips.
HINT: Tape the screwdriver tip before use.
(c) Remove the center pillar upper garnish.
± BODYSun RoofBO±56
