TOYOTA CELICA 1996 Owners Manual
Manufacturer: TOYOTA, Model Year: 1996, Model line: CELICA, Model: TOYOTA CELICA 1996Pages: 203, PDF Size: 1.48 MB
Page 111 of 203
104
Use of unleaded fuel with an octane num-
ber or rating lower than stated above will
cause persistent heavy knocking. If se-
vere, this will lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or d riving up hills. This is no cause
for concern.
GASOLINES CONTAINING DETER-
GENT ADDITIVES
Toyota recommends use of gasolines
that contain detergent additives to
avoid build-up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer.
GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary-Butyl Ether) are available in
the market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE. If the use of gasolines containing MTBE
causes poor driveability and/or poor fuel
economy, you should discontinue the use
of fuels containing MTBE.
GASOLINES CONTAINING ALCOHOL
If you use gasohol in your Toyota, be
sure that it is u
nleaded, has an octane
rating no lower than 87 and does not
contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.
Toyota does not recommend the use of
gasolines containing m ethanol. If you use
gasoline containing methanol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.
NOTICE
Do not use gasohol other than stated above. It will cause fuel
system damage or vehicle perfor-mance problems.
If driveablity problems are en-countered (poor hot starting, va-porizing, engine knock, etc.),discontinue the use.
Take care not to spill gasohol dur-
ing refueling. Gasohol may causepaint damage.
FUEL TANK CAPACITY
60 L (15.9 gal., 13.2 Imp. gal)
ProCarManuals.com
Page 112 of 203
105
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the
correct fuel (unleaded and minimum oc-
tane number).
7A-FE engines
5S-FE engines The three-way catalytic converter is
an emission control device installed in
the exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION!
Keep people and combustible ma-
terials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not drive, idle or park your ve-
hicle over anything that might
burn easily such as grass, leaves,
paper or rags.
A large amount of unburned gases
flowing into the three-way catalytic
converter may cause it to overheatand create a fire hazard. To preventthis and other damage, observe thefollowing precautions:
Use only unleaded gasoline.
Do not drive with an extremely lowfuel level; running out of fuelcould cause the engine to misfire,
creating an excessive load on thethree-way catalytic converter.
NOTICE
Three-way catalytic converters
Operation in foreign countries
ProCarManuals.com
Page 113 of 203
106
Do not allow the engine to run atidle speed for more than 20 min-
utes.
Avoid racing the engine.
Do not push-start or pull-startyour vehicle.
Do not turn off the ignition whilethe vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine electrical system, electronic igni-
tion system/distributor ignitionsystem or fuel system couldcause an extremely high three-
way catalytic converter tempera-ture.
If the engine becomes difficult tostart or stalls frequently, take your
vehicle in for a check-up as soon as possible. Remember, your To-
yota dealer knows your vehicleand its three-way catalytic con-verter system best.
To ensure that the three-way cata-
lytic converter and the entireemission control system operate
properly, your vehicle must re-ceive the periodic inspections re-quired by the T oyota Maintenance
Schedule. For scheduled mainte- nance information, refer to the
separate Owner's Manual Sup-plement/Maintenance Scheduleº.
CAUTION!
Avoid inhaling the engine exhaust.
It contains carbon monoxide,
which is a colorless and odorless
gas. It can cause unconsciousness
or even death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage or
enclosed area except for the time
needed to drive the vehicle in or
out. The exhaust gases cannot es-
cape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Keep the trunk lid or back door
closed while driving. An open or
unsealed trunk lid or back door
may cause exhaust gases to be
drawn into the vehicle. If you must
drive with the trunk or back door lid
open to accommodate a large ob-
ject, close the windows, open all
the instrument panel vents and
have the heating or cooling system
deliver fresh air into the vehicle by
turning the fan to high speed with
the air intake control lever set at the
outside air position.
To allow proper operation of your
vehicle's ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the trunk lid or back door
closed. Have the cause immediate-
ly located and corrected.
Engine exhaust cautions
ProCarManuals.com
Page 114 of 203
107
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of lu-
bricating and cooling the inside of the en-
gine, and plays a major role in maintaining
the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are
as follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil is
left on the cylinder wall when a piston
moves downwards in the cylinder.
High negative pressure generated
when the vehicle is decelerating sucks
some of this oil into the combustion
chamber. This oil as well as some part
of the oil film left on the cylinder wall is
burned by the high temperature com-
bustion gases during the combustion
process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion cham-
ber together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems. The amount of engine oil consumed
depends on the viscosity of the oil, the
quality of the oil and the conditions
the vehicle is driven under.
More oil is consumed by high-speed
driv-
ing and frequent acceleration and decel-
eration.
A new engine consumes more oil, since
its pistons, piston rings and cylinder walls
have not become conditioned.
When judging the amount of oil con-
sumption, note that the oil may be-
come diluted and make it difficult to
judge the true level accurately.
As an example, if a vehicle is used for re-
peated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more. This
is because the oil is gradually becoming
diluted with the fuel or moisture, making it
appear that the oil level has not changed.
The diluting ingredients evaporate out
when the vehicle is then driven at high
speeds, as on an expressway, making it
appear that oil is excessively consumed
after driving as high speeds. IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in proper
vehicle maintenance is to keep the engine
oil at the optimum level so that oil function
will
not be impaired. Therefore, it is essen-
tial that the oil level be checked regularly.
Toyota recommends that the oil level be
checked every time you refuel the vehicle.
NOTICE
Failure to check the oil level regularly could lead to serious
engine trouble due to insufficientoil.
For detailed information on the oil level
check, see Checking the engine oil levelº
in Chapter 7-2.
Facts about engine oil
consumption
ProCarManuals.com
Page 115 of 203
108
TANDEM MASTER CYLINDER BRAKE
SYSTEM
The tandem master cylinder brake sys-
tem is a hydraulic system with two sepa-
rate sub-systems. If either sub-system
should fail, the other will still work. Howev-
er, the pedal will be harder to press, and
your stopping distance will be longer.
Also, the brake system warning light may
come on.

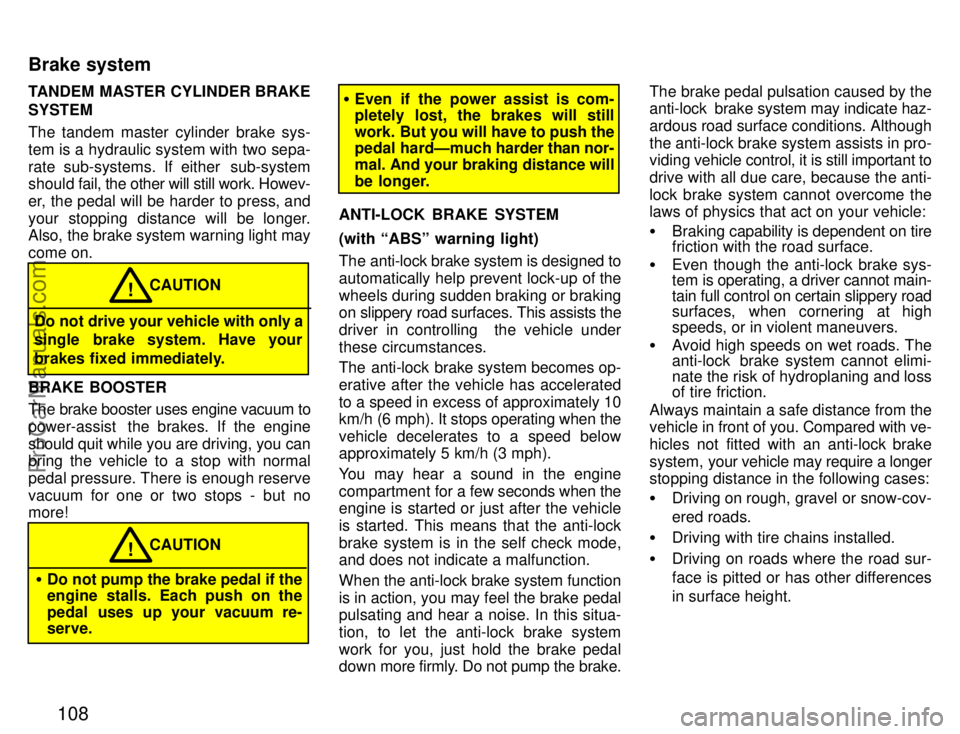

CAUTION!
Do not drive your vehicle with only a
single brake system. Have your
brakes fixed immediately.
BRAKE BOOSTER
The brake booster uses engine vacuum to
power-assist the brakes. If the engine
should quit while you are driving, you can
bring the vehicle to a stop with normal
pedal pressure. There is enough reserve
vacuum for one or two stops - but no
more!
CAUTION!
Do not pump the brake pedal if the
engine stalls. Each push on the
pedal uses up your vacuum re-
serve.
Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push the
pedal hardÐmuch harder t han nor-
mal. And your braking distance will
be longer.
ANTI-LOCK BRAKE SYSTEM
(with ABSº warning light)
The anti-lock brake system is designed to
automatically help prevent lock-up of the
wheels during sudden braking or braking
on slippery road surfaces. This assists the
driver in controlling the vehicle under
these circumstances.
The anti-lock brake system becomes op-
erative after the vehicle has accelerated
to a speed in excess of approximately 10
km/h (6 mph). It stops operating when the
vehicle decelerates to a speed below
approximately 5 km/h (3 mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the anti-lock
brake system is in the self check mode,
and does not indicate a malfunction.
When the anti-lock brake system function
is in action, you may feel the brake pedal
pulsating and hear a noise. In this situa-
tion, to let the anti-lock brake system
work for you, just hold the brake pedal
down more firmly. Do not pump the brake. The brake pedal pulsation caused by the
anti-lock brake system may indicate haz-
ardous road surface conditions. Although
the anti-lock brake system assists in pro-
viding
vehicle control, it is still important to
drive with all due care, because the anti-
lock brake system cannot overcome the
laws of physics that act on your vehicle:
Braking capab ility is dependent on tire
friction with the road surface.
Even though the anti-lock brake sys-
tem is operating, a driver cannot main-
tain full control on certain slippery road
surfaces, when cornering at high
speeds, or in violent maneuvers.
Avoid high speeds on wet roads. The
anti-lock brake system cannot elimi-
nate the risk of hydroplaning and loss
of tire friction.
Always maintain a safe distance from the
vehicle in front of you. Compared with ve-
hicles not fitted with an anti-lock brake
system, your vehicle may require a longer
stopping distance in the following cases:
Driving on rough, gravel or snow-cov-
ered roads.
Driving with tire chains installed.
Driving on roads where the road sur-
face is pitted or has other differences
in surface height.
Brake system
ProCarManuals.com
Page 116 of 203
109
Type A
Type BABSº warning light
This light comes on when the ignition key
is turned to the ONº position. After about
3 seconds, the light will go off.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on as de-
scribed above, or remains on.
The light comes on while driving.
Even if the anti-lock brake system should
fail, the brake system will still operate con-
ventionally. Have your vehicle checked by
your Toyota dealer as soon as possible.
DRUM-IN-DISC TYPE PARKING
BRAKE SYSTEM
(with 5S-FE engine)
Your vehicle has a drum-in-disc type
parking brake system. This type brake
system needs bedding-down of the brake
shoes periodically or whenever the park-
ing brake shoes and/or drums are re-
placed.
Have your Toyota dealer perform the bed-
ding-down.
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to
where replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
Brake pad wear limit
indicators
ProCarManuals.com
Page 117 of 203
11 0
When stowing luggage or cargo in the ve-
hicle, observe the following:
Put luggage or cargo in the trunk or
luggage compartment when at all pos-
sible. Be sure all items are secured in
place.
Be careful to keep the vehicle
balanced. Locating the weight as far
forward as possible helps maintain
this.
For better fuel economy, do not carry
unneeded weight.

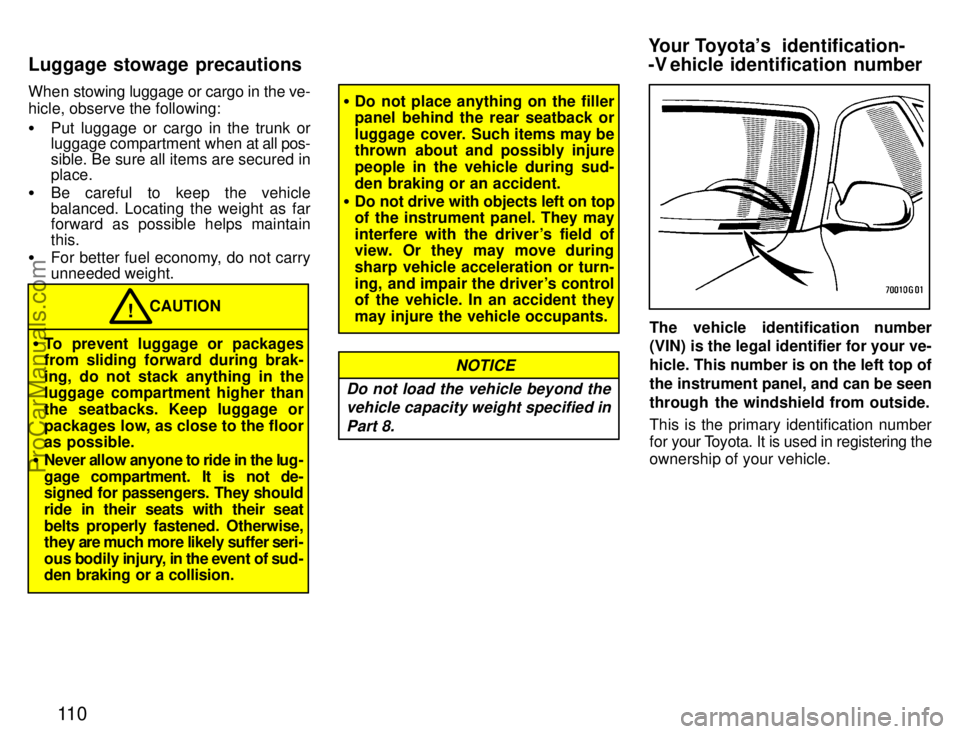

CAUTION!
To prevent luggage or packages
from sliding forward during brak-
ing, do not stack anything in the
luggage compartment higher than
the seatbacks. Keep luggage or
packages low, as close to the floor
as possible.
Never allow anyone to ride in the lug-
gage compartment. It is not de-
signed for passengers. They s hould
ride in their seats with their seat
belts properly fastened. Otherwise,
they are much more likely suffer seri-
ous bodily injury, in the event of sud-
den braking or a collision.
Do not place anything on the filler
panel behind the rear seatback or
luggage cover. Such items may be
thrown about and possibly injure
people in the vehicle during sud-
den braking or an accident.
Do not drive with objects left on top
of the instrument panel. They may
interfere with the driver's field of
view. Or they may move during
sharp vehicle acceleration or turn-
ing, and impair the driver's control
of the vehicle. In an accident they
may injure the vehicle occupants.
Do not load the vehicle beyond the
vehicle capacity weight specified in
Part 8.
NOTICE
The vehicle identification number
(VIN) is the legal identifier for your ve-
hicle. This number is on the left top of
the instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your T oyota. It is used in registering the
ownership of your vehicle.
Your Toyota's identification-
-V ehicle identification number
Luggage stowage precautions
ProCarManuals.com
Page 118 of 203
111
The vehicle identification number (VIN) is
also on the Certification Label.7A-FE engine
5S-FE engineThe engine number is stamped on the
engine block as shown.
ÐEngine number
ProCarManuals.com
Page 119 of 203
11 2
Your new vehicle carries theft preven-
tion labels which are approximately 56
mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that once it is applied to a surface, any at-
tempt to remove it will result in destroying
the integrity of the label. Transferring
these la bels intact from one part to anoth-
er, will be impossible.
NOTICE
You should not attempt to remove the theft prevention labels as it may
violate certain state or federal laws.
Make sure what kind of tires your ve-
hicle is originally equipped with.
1. Summer tires
Summer tires are high-speed capability
tires best suited to highway driving under
dry conditions.
Since summer tires do not have the same
traction performance as snow tires, sum-
mer tires are inadequate for driving on
snow-covered or icy roads. For driving on
snow-covered or icy roads, we recom-
mend using snow tires. If installing snow
tires, be sure to replace all four tires.
2. All season tires
All season tires are designed to provide
better traction in snow and to be adequate
for driving in most winter conditions, as
well as for use all year round.
All season tires, however, do not have ad-
equate traction performance compared
with snow tires in heavy or loose snow.
Also, all season tires fall short in accelera-
tion and handling performance compared
with summer tires in highway driving.CAUTION!
Do not mix summer and all season
tires on your vehicle as this can
cause dangerous handling charac-
teristics, resulting in loss of control.
Types of tires
Theft prevention labels
(except for Canada)
ProCarManuals.com
Page 120 of 203
Part 3
How to start the engineÐ
(a) Before cranking
Before starting the engine
11 3
STARTING AND
DRIVING

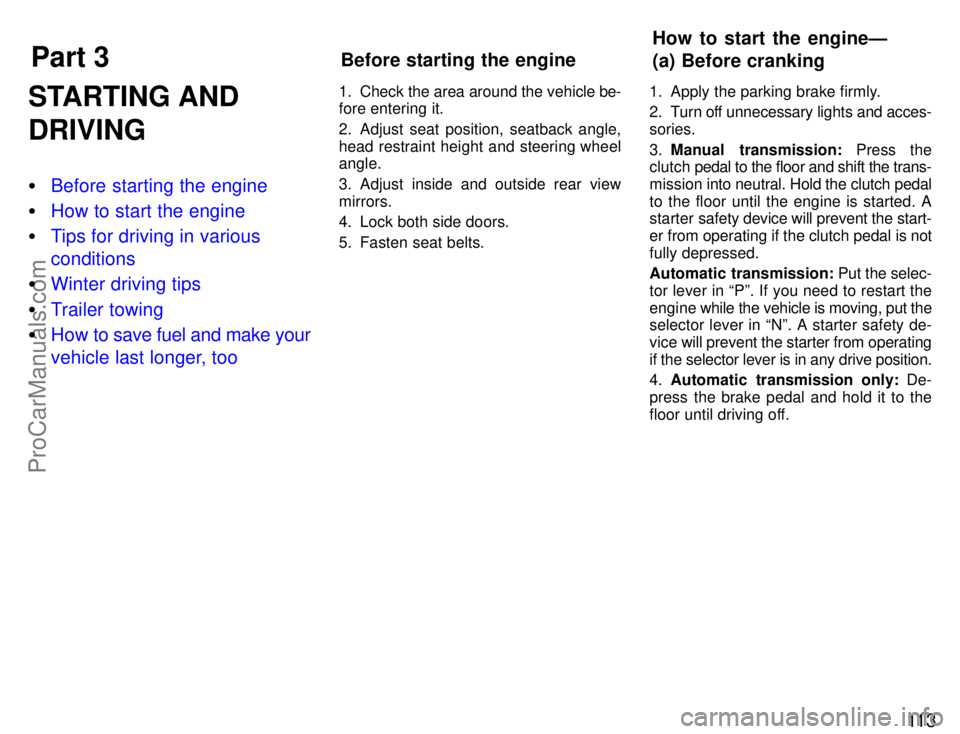

Before starting the engine
How to start the engine
Tips for driving in various
conditions
Winter driving tips
Trailer towing
How to save fuel and make your
vehicle last longer, too
1. Check the area around the vehicle be-
fore entering it.
2. Adjust seat position, seatback angle,
head restraint height and steering wheel
angle.
3. Adjust inside and outside rear view
mirrors.
4. Lock both side doors.
5. Fasten seat belts. 1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3.
Manual transmission: Press the
clutch pedal to the floor and shift the trans-
mission into neutral. Hold the clutch pedal
to the floor until the engine is started. A
starter safety device will prevent the start-
er from operating if the clutch pedal is not
fully depressed.
Automatic transmission: Put the selec-
tor lever in Pº. If you need to restart the
engine while the vehicle is moving, put the
selector lever in Nº. A starter safety de-
vice will prevent the starter from operating
if the selector lever is in any drive position.
4. Automatic transmission only: De-
press the brake pedal and hold it to the
floor until driving off.
ProCarManuals.com
