TOYOTA CELICA 1997 Owners Manual

96
Changing the security code
1. Turn off the audio system.
Turn the ignition key to ACCº.
Simultaneously push and hold in 1º, 6º,
and PWR/VOLº until SECº appears in
the display.2. While you are holding in the ~º side
of TUNEº push 1º.
The display will read - - -º.
On some models,  º and  º will also
turn on.3. Input the existing three-digit code.
You have 10 seconds to enter each digit.
For example, 209º:
To set the first digit: Push 1º until the digit
you want appears on the display.
To set the second digit: Push 2º until the
digit you want appears on the display.
To set the third digit: Push 3º until the digit
you want appears on the display.
ProCarManuals.com

97
4. The three-digit code should be on the
display.
Push SCANº.
The display will read - - -º.
5. Repeat steps 2 and 3, this time enter-
ing your new code. You can use digits 0º
through 9º.6. The new three-digit code should be on
the display.
Push and hold in SCANº until the display
goes dark. (At first, SECº will appear on
the display.)If you pushed any wrong buttons,
Errº and the number of errors you
have made will appear on the display
before SECº does. Go back to step 2
and try again. If the display returns to
- - - while you are entering the code,
go back to step 3.
To make sure the security code has been
accepted, turn the ignition to LOCKº and
then
back to ACCº. SECº should appear
on the display.NOTICE
A tenth error will activate the anti-theft system and HELPº will
appear on the display. The audiosystem will be completely inop-erable. At this time, the anti-theftlight also comes on. If this occurs,contact your Toyota dealer.
ProCarManuals.com

98
Cleaning the security code.
1. Turn off the audio system.
Turn the ignition key to ACCº.
Simultaneously push and hold in 1º, 6º,
and PWR/VOLº until SECº appears on
the display.2. While you are holding in the ~º side
of TUNEº, push 1º.
The display will read - - -.
On some models,  º and  º will also
turn on.3. Input the existing three-digit code.
You have 10 seconds to enter each digit.
For example, 209º:
To set the first digit: Push 1º until the digit
you want appears on the display.
To set the second digit: Push 2º until the
digit you want appears on the display.
To set the third digit: Push 3º until the digit
you want appears on the display.
ProCarManuals.com

99
4. The three-digit code should be on the
display.
Push SCANº.
The display will read - - -º.
5. Wait for 10 seconds until the security
system is deactivated and the display
goes dark.If you pushed any wrong buttons,
Errº and the number of errors you
have made will appear on the display
before SECº does. Go back to step 2
and try again. If the display returns to
к while you are entering the code,
go back to step 3.
NOTICE
A tenth error will activate the anti-theft system and HELPº will
appear on the display. The audiosystem will be completely inop-erable. At this time, the anti-theftlight also comes on. If this occurs,contact your Toyota dealer.
Reactivating a disabled audio system
1. Turn the ignition switch to ACCº.
2. While you are holding in the  ~º side of
TUNEº, push 1º.
The dispay will read - - -º.
On some models,  º and º will also
turn on.
ProCarManuals.com

100
3. Input the existing three-digit code.
You have 10 seconds to enter each digit.
For example, 209º:
To set the first digit: Push 1º until the digit
you want appears on the display.
To set the second digit: Push 2º until the
digit you want appears on the display.
To set the third digit: Push 3º until the digit
you want appears on the display.4. The three-digit code should be on the
display.
Push and hold in SCANº until the display
goes dark. (At first, SECº will appear on
the display.)If you pushed any wrong buttons,
Errº and the number of errors you
have made will appear on the display
before SECº does. Go back to step 2
and try again. If the display returns to
- - -º while you are entering the code,
go back to step 3.
To make sure the security code has been
accepted, turn the ignition to LOCKº and
then
back to ACCº. SECº should appear
on the display.NOTICE
A tenth error will activate the anti-theft system and HELPº will
appear on the display. The audiosystem will be completely inop-erable. At this time, the anti-theftlight also comes on. If this occurs,contact your Toyota dealer.
ProCarManuals.com

101
NOTICE
To ensure the correct audio system operation:
Be careful not to spill beveragesover the audio system.
Do not put anything other than acassette tape or Compact Disc
into the slot.
ILLUMINATION CONTROL LOGIC
On some audio-units, when the instru-
ment panel lights are on, the letters on op-
erable buttons of the mode in current use
light up together with the mode selection
and eject buttons.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio-it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range, and the farther you
are from a station, the weaker its signal
will be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems
that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifing stationsÐGenerally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi-pathÐFM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this hap-
pens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and flutteringÐThese occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swappingÐIf the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the original
signal can be picked up again. AM
FadingÐAM broadcasts are reflected by
the upper atmosphere-especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interferenceÐwhen a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other,
making it difficult to hear the broad-
cast.
StaticÐAM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAY-
ER AND TAPES
For high performance from your cassette
player and tapes:
Clean the tape head and other parts regu-
larly.
 A dirty tape head or tape path can de-
crease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet tape is recommended.)
ÐCar audio system operating
hints
ProCarManuals.com

102
Use high-quality cassettes.
Low-quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto-reversing. They can
also get stuck or tangled in the cas-
sette player.
 Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
 Do not leave a cassette in the player if
you are not listening to it, especially if
it is hot outside.
 Store cassettes in their cases and out
of direct sunlight.
 Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
 Use only compact discs labeled as
shown.
 Extremely high temperatures can
keep your compact disc player from
working. On hot days, use the air con-
ditioning to cool the vehicle interior be-
fore you listen to a disc.
 Bumby roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
 Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
 Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the disc
up to the light.)
 Remove discs from the compact disc
player when you are not listening to
them. S tore them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint-free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc (not
in circles). Dry it with another soft, lint-
free cloth. Do not use a conventional re-
cord cleaner or anti-static device.
ProCarManuals.com

103
A new disc may have rough edges on
its inner and outer perimeter. Remove
the rough edges by pressing the side
of a ball-point pen or pencil against
the inner and outer perimeter of the
disc as shown.
If you continue to play a disc with rough
edges, flakes will fall on to the signal side
of the disc and cause sound skipping or
other problems.

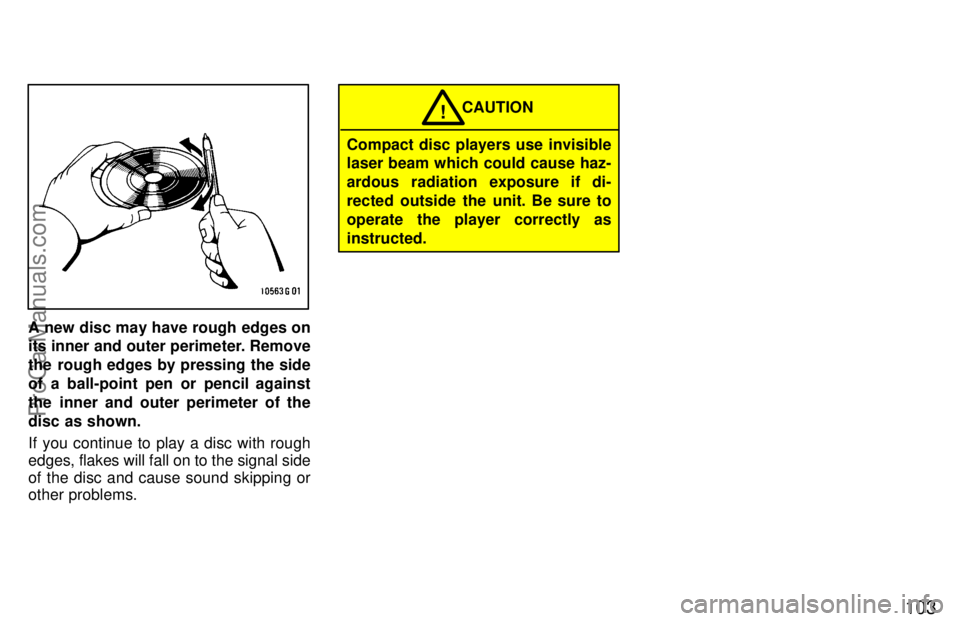

Compact disc players use invisible
laser beam which could cause haz-
ardous radiation exposure if di-
rected outside the unit. Be sure to
operate the player correctly as
instructed.CAUTION
!
ProCarManuals.com

104
1. Air Flow Selector
2. Air Intake Selector
3. A/Cº Button (on some models)
4. Fan Speed Selector
5. Temperature Selector
Air conditioning systemÐ
ÐControls
ProCarManuals.com

105
Fan speed selector
Turn the knob to adjust the fan speed ± to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature ±
to the right to warm, to the left to cool.
Air flow selector
Press one of the buttons to select the
vents used for air flow. An indicator light
will illuminate to show which air flow mode
is being selected.
1 Panel ÐAir flows mainly from the in-
strument panel vents.
2 Bi-level ÐAir flows from both the
floor vents and the instrument panel
vents.
3 Floor ÐAir flows mainly from the floor
vents.
4 Floor/Windshield ÐAir flows mainly
from the floor vents and windshield vents.
5 Windshield ÐAir flows mainly from
the windshield vents. For details about air flow selector settings,
see the illustration after A/Cº button.
Vehicles with A/Cº buttonÐ
Pressing the windshield button turns on
the defroster-linked air conditioning. At
this time, the A/Cº button indica
tor comes
on regardless of whether or not the A/Cº
button is pressed in. This is to clean up the
front view more quickly.
When the A/Cº button is not pressed in,
pressing another air flow button pressing
and the turns off the air conditioning.
ProCarManuals.com
