If either the left or right front fog or
front side marker lights burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker light bulbs by your-
self. You may damage the vehicle.
—Parking lights

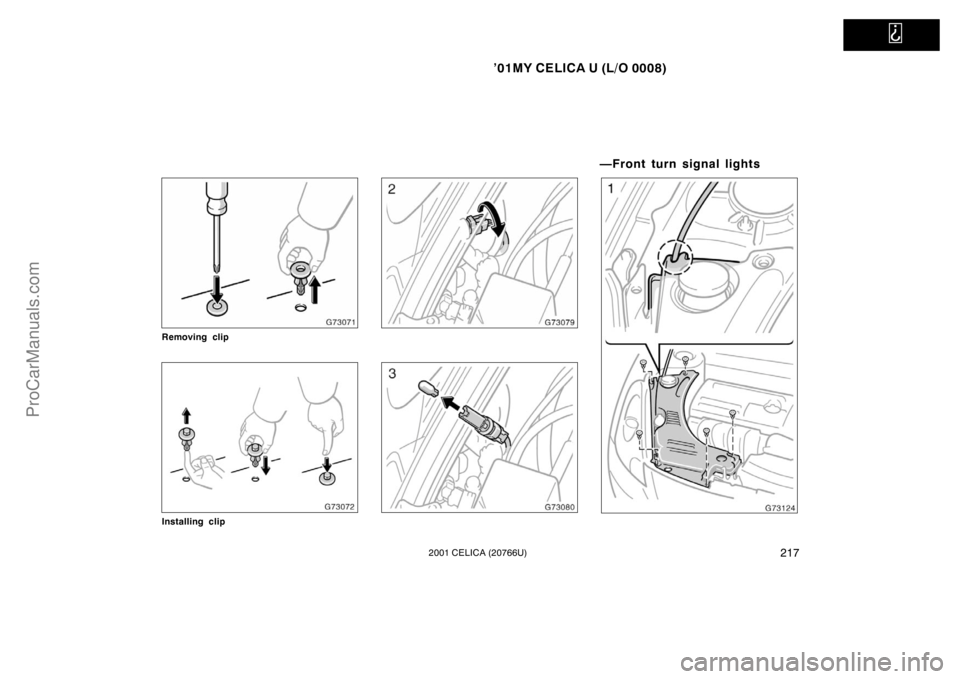

RIGHT SIDE PARKING LIGHT—Remove
and install the clips as shown in the
following illustrations.

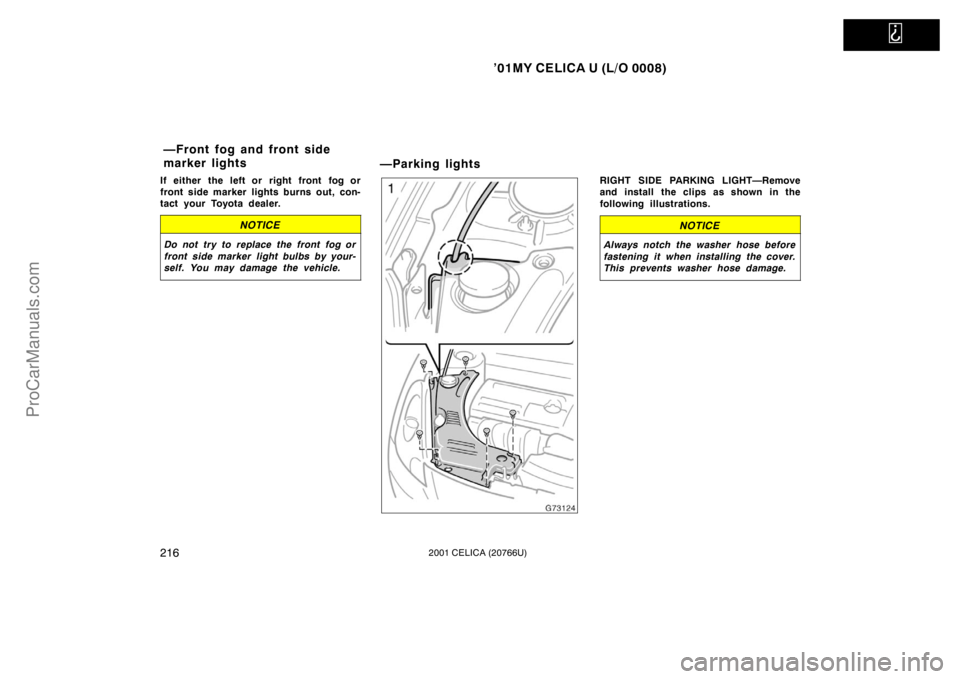

NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
—Front fog and front side
marker lights
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2172001 CELICA (20766U)
Removing clip
Installing clip
—Front turn signal lights
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2182001 CELICA (20766U)

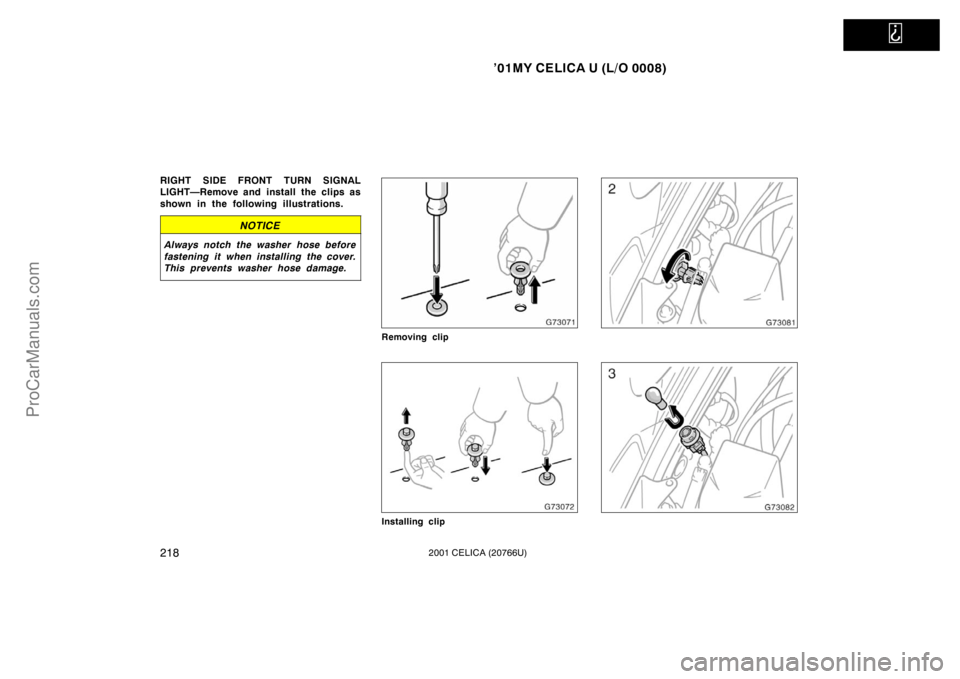

RIGHT SIDE FRONT TURN SIGNAL
LIGHT—Remove and install the clips as
shown in the following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
Removing clip
Installing clip
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2192001 CELICA (20766U)

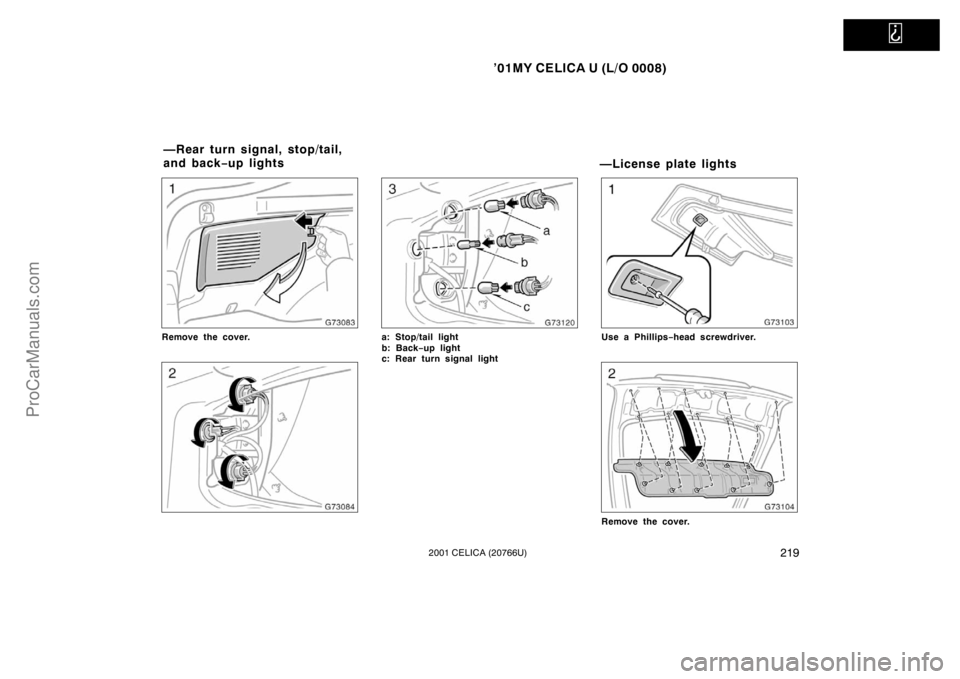

Remove the cover.a: Stop/tail light
b: Back−up light
c: Rear turn signal light
—License plate lights
Use a Phillips −head screwdriver.
Remove the cover.
—Rear turn signal, stop/tail,
and back− up lights
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2202001 CELICA (20766U)
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2212001 CELICA (20766U)
SPECIFICATIONS
Dimensions and weight222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2222001 CELICA (20766U)
Dimensions and weight
Overall length mm (in.) 4330 (170.5)
Overall width mm (in.) 1735 (68.3)
Overall height mm (in.) 1305 (51.8)
∗
Wheelbase mm (in.) 2600 (102.4)
Front tread mm (in.) 1490 (58.7)
Rear tread mm (in.) 1480 (58.3)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 329 (725)
∗: Unladen vehicle
Engine
Model: 1ZZ −FE and 2ZZ −GE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZ −FE engine
79.0  91.5 (3.11  3.60)
2ZZ −GE engine
82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZ −FE engine 1794 (109.5)
2ZZ −GE engine 1796 (109.6)
Fuel
Fuel type:
1ZZ −FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
2ZZ −GE engine
Select premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher for opti-
mum engine performance
Fuel tank capacity, L (gal., Imp. gal.): 55 (14.5, 12.1)
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2232001 CELICA (20766U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):1ZZ −FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
2ZZ −GE engine (on a roller side)
Intake 0.08—0.18 (0.003—0.007)
Exhaust 0.22—0.32 (0.009—0.013)
Spark plug type: 1ZZ −FE engine
DENSO SK16R11
NGK IFR5A11
2ZZ −GE engine
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):
1ZZ −FE engine
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
2ZZ −GE engine
With filter 4.4 (4.8, 4.0)
Without filter 4.2 (4.6, 3.8)
Oil grade: API grade SJ, “Energy −Conserving” or
ILSAC multigrade engine oil is recom-
mended.
Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 1ZZ −FE engine
Manual transaxle 5.7 (6.0, 5.0)
Automatic transaxle 5.6 (5.9, 4.9)
2ZZ −GE engine
Manual transaxle 5.9 (6.2, 5.2)
Automatic transaxle 5.8 (6.1, 5.1)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethylene− glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 °C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2242001 CELICA (20766U)
CLUTCH
Pedal free play, mm (in.):5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1ZZ −FE engine
1.9 (2.0, 1.7)
2ZZ −GE engine
2.3 (2.4 2.0)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.): 1ZZ −FE engine
Up to 2.9 (3.1, 2.6)
2ZZ −GE engine
Up to 4.0 (4.2, 3.5)
Fluid type: Automatic transmission fluid Type T −IV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change auto-
matic transmission fluid only if your ve-
hicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or “Own-
er ’s Manual Supplement”. When changing
the automatic transmission fluid, use only
Toyota Genuine ATF Type T
−IV (ATF
JWS3309 or NWS6500) to aid in assuring
optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Ty p e T −IV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle. BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
85 (3.4)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 7—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2252001 CELICA (20766U)
Tires
Tire size and pressure:
Except spare tireModel
Tire size
Tire pressure
kPa (kgf/cm2 or bar, psi)Wheel size
FrontRear
1ZZ −FE engine195/60R15 88H210 (2.1, 29)210 (2.1, 29)15 61/2JJ
P195/60R15 87H210 (2.1, 29)210 (2.1, 29)15 61/2JJ
2ZZ −GE engine
205/55R15 87V220 (2.2, 32)220 (2.2, 32)15 61/2JJ
P205/55R15 87V220 (2.2, 32)220 (2.2, 32)15 61/2JJ
205/50R16 87V220 (2.2, 32)220 (2.2, 32)16 61/2JJ
Spare tire
Tire sizeTire pressure kPa (kgf/cm2 or bar, psi)Wheel size
U.S.AT125/70D16 96M420 (4.2, 60)16 4T
CanadaSame as original tire
Wheel nut torque, N·m (kgf·m, ft·Ibf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire pressure” through “Alum inum
wheel precautions” in Section 7 −2.
