The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.High−low beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
682001 CELICA (20766U)

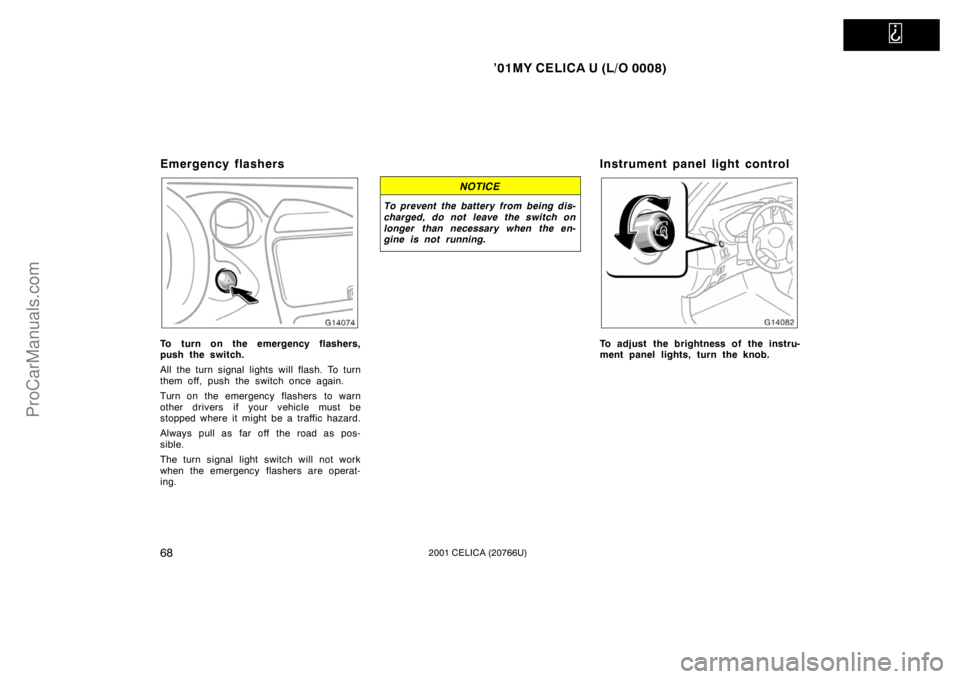

Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
692001 CELICA (20766U)

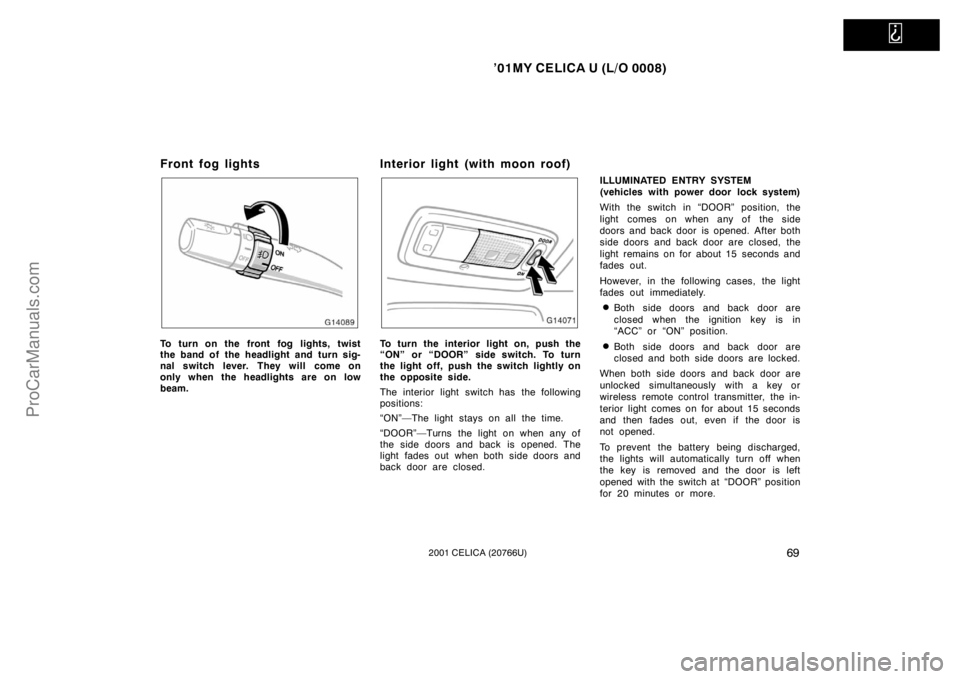

Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Interior light (with moon roof)
To turn the interior light on, push the
“ON” or “DOOR” side switch. To turn
the light off, push the switch lightly on
the opposite side.
The interior light switch has the following
positions:
“ON”—The light stays on all the time.
“DOOR”—Turns the light on when any of
the side doors and back is opened. The
light fades out when both side doors and
back door are closed.ILLUMINATED ENTRY SYSTEM
(vehicles with power door lock system)
With the switch in “DOOR” position, the
light comes on when any of the side
doors and back door is opened. After both
side doors and back door are closed, the
light remains on for about 15 seconds and
fades out.
However, in the following cases, the light
fades out immediately.
Both side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
Both side doors and back door are
closed and both side doors are locked.
When both side doors and back door are
unlocked simultaneously with a key or
wireless remote control transmitter, the in-
terior light comes on for about 15 seconds
and then fades out, even if the door is
not opened.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at “DOOR” position
for 20 minutes or more.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
702001 CELICA (20766U)
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—The light stays on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors and back door is opened.
The light fades out when both side doors
and back door are closed.ILLUMINATED ENTRY SYSTEM
(vehicles with power door lock system)
With the switch in “DOOR” position, the
light comes on when any of the side
doors and back door is opened. After both
side doors and back door are closed, the
light remains on for about 15 seconds and
fades out.
However, in the following cases, the light
fades out immediately.
Both side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
Both side doors and back door are
closed and both side doors are locked.
When both side doors and back door are
unlocked simultaneously with a key or
wireless remote control transmitter, the in-
terior light comes on for about 15 seconds
and then fades out, even if the door is
not opened.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at “DOOR” position
for 20 minutes or more.
Luggage compartment light
To turn the luggage compartment light
on, open the back door and push the
switch. Closing the back door will turn
the light off.
Interior light
(without moon roof)
ProCarManuals.com

’01MY CELICA U (L/O 0008)
712001 CELICA (20766U)
Windshield wipers and washer
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window wiper and washer
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7 −3.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
722001 CELICA (20766U)
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Rear window defogger
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop
−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
732001 CELICA (20766U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Engine coolant temperature gauge ge74
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers rs76
. . . . . . . . . . . . . .
SECTION 1− 5
ProCarManuals.com

’01MY CELICA U (L/O 0008)
742001 CELICA (20766U)
Fuel gauge
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Indicator at “F”
Nearly empty—Indicator at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.If the fuel tank is full or the fuel quantity
has increased or decreased by more than
5 liters since the vehicle was turned off,
the position display is recalculated. If the
fuel quantity has increased or decreased
by less than 5 liters since the vehicle was
turned off, the previous position is dis-
played.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
If the fuel gauge display flashes or the
remaining quantity is not displayed after
the flashing, there may be a problem in
the system. In this case, contact your
Toyota dealer as soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves to the “H” position
and flashes, your engine is too hot. If
your vehicle overheats, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop
−and− go traffic.
Engine coolant temperature
gauge
ProCarManuals.com

’01MY CELICA U (L/O 0008)
752001 CELICA (20766U)
Towing a trailer.
If the engine coolant temperature gauge
needle is not displayed, there may be a
problem in the system. In this case, con-
tact your Toyota dealer as soon as pos-
sible.
NOTICE
 Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over −revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
 Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
2ZZ −GE engine only—The engine
will not exceed 7100 rpm before it
warms up.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
762001 CELICA (20766U)
Odometer and two trip meters
This meter displays the odometer and
two trip meters.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
If the indicator Do this.
or buzzer
comes on...
(a) If parking
brake is off,
stop immediately
and contact
Toyota dealer.
(b) Fasten driver ’s seat belt.
(d) Stop and check.
or
(c) Fasten front
passenger ’s seat
belt.
(e) Stop and check.
Service reminder indicators
an d warn in g bu zzers
ProCarManuals.com
