DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Doityourself service precautions 187
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parts and tools 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

’02MY CELICA U (L/O 0108)
1842002 MY CELICA_U (OM20792U)
1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine coolant reservoir
4. Engine oil filler cap
5. Battery
6. Brake fluid reservoir
7. Fuse blocks
8. Radiator
9. Electric cooling fans
10. Condenser
11. Windshield and rear window washer fluid tank
Engine compartment overview
1ZZFE engine

’02MY CELICA U (L/O 0108)
1852002 MY CELICA_U (OM20792U)
1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine coolant reservoir
4. Engine oil filler cap
5. Battery
6. Brake fluid reservoir
7. Fuse blocks
8. Radiator
9. Electric cooling fans
10. Condenser
11. Windshield and rear window washer fluid tank

2ZZGE engine

’02MY CELICA U (L/O 0108)
1862002 MY CELICA_U (OM20792U)

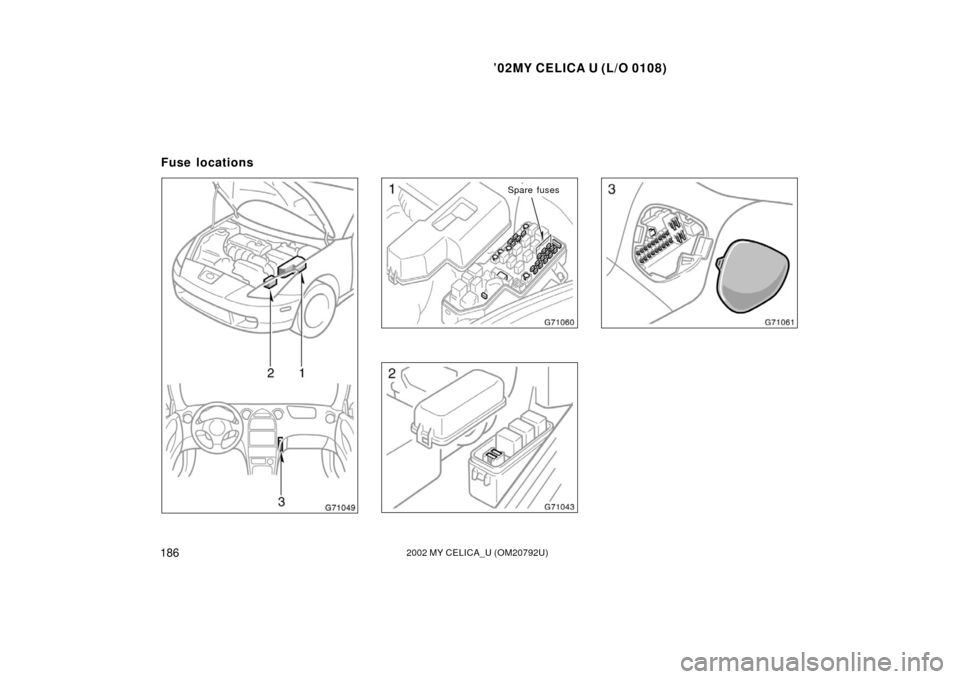

Spare fuses
Fuse locations

’02MY CELICA U (L/O 0108)
1902002 MY CELICA_U (OM20792U)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs—” in Section
73.)
Tools:
Screwdriver

’02MY CELICA U (L/O 0108)
2032002 MY CELICA_U (OM20792U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition204
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 205
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 206
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 207
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’02MY CELICA U (L/O 0108)
2062002 MY CELICA_U (OM20792U)
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 71 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit.
Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.
Checking and replacing fuses

’02MY CELICA U (L/O 0108)
2072002 MY CELICA_U (OM20792U)
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RADIO”,
“CIG” or “HTR” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as

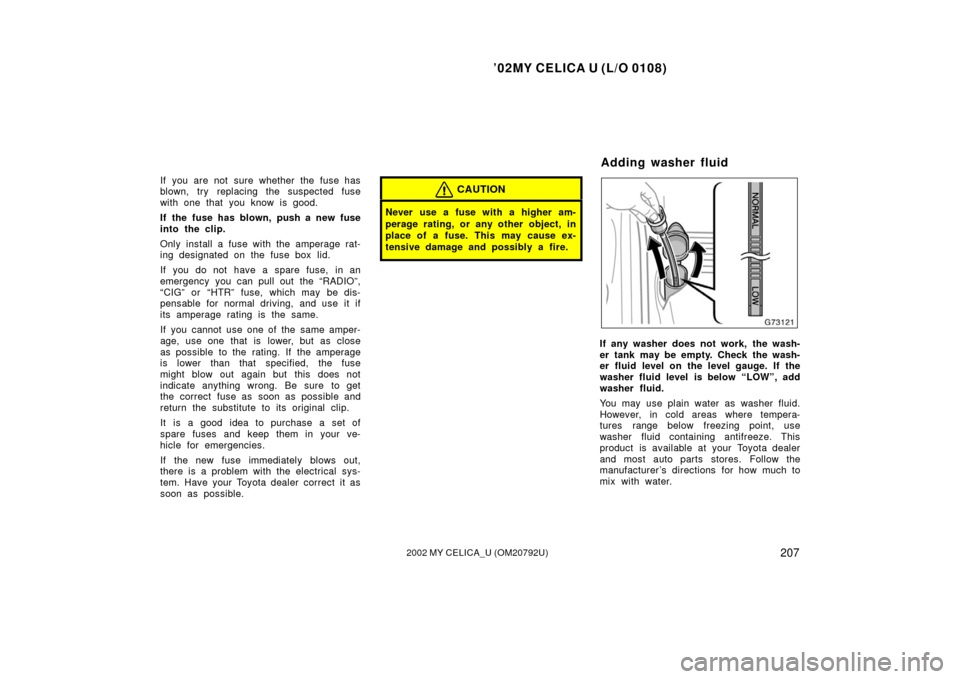

soon as possible.CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below “LOW”, add
washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
Adding washer fluid

’02MY CELICA U (L/O 0108)
2192002 MY CELICA_U (OM20792U)
SPECIFICATIONS
Dimensions and weight220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’02MY CELICA U (L/O 0108)
2242002 MY CELICA_U (OM20792U)

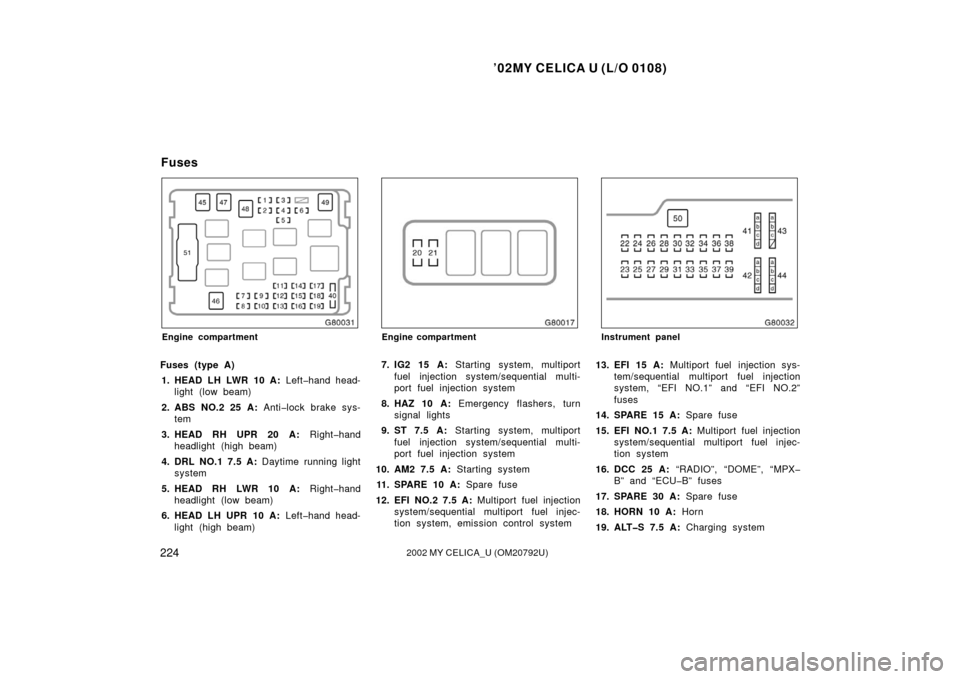

Engine compartment
Fuses (type A)1. HEAD LH LWR 10 A: Lefthand head-
light (low beam)
2. ABS NO.2 25 A: Antilock brake sys-
tem
3. HEAD RH UPR 20 A: Righthand
headlight (high beam)
4. DRL NO.1 7.5 A: Daytime running light
system
5. HEAD RH LWR 10 A: Righthand
headlight (low beam)
6. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
Engine compartment
7. IG2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
8. HAZ 10 A: Emergency flashers, turn
signal lights
9. ST 7.5 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
10. AM2 7.5 A: Starting system
11. SPARE 10 A: Spare fuse
12. EFI NO.2 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, emission control system
Instrument panel
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI NO.1” and “EFI NO.2”
fuses
14. SPARE 15 A: Spare fuse
15. EFI NO.1 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
16. DCC 25 A: “RADIO”, “DOME”, “MPX
B” and “ECUB” fuses
17. SPARE 30 A: Spare fuse
18. HORN 10 A: Horn
19. ALTS 7.5 A: Charging system
Fuses
